9GE5 | pdb_00009ge5

CryoEM structure of the human INO80-Hexasome complex

PDB DOI: https://doi.org/10.2210/pdb9GE5/pdb
NAKB: 9GE5
EM Map EMD-51290: EMDB EMDataResource

Classification: DNA BINDING PROTEIN
Organism(s): Homo sapiens, synthetic construct
Expression System: Trichoplusia ni, Escherichia coli
Mutation(s): No

Deposited: 2024-08-07 Released: 2025-08-20
Deposition Author(s): Sharma, M., Aggarwal, P., Hopfner, K.P.
Funding Organization(s): European Research Council (ERC), German Research Foundation (DFG)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.35 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Recognition and remodelling of nucleosomes and hexasomes by the human INO80 complex

Aggarwal, P., Sharma, M., Hopfner, K.P.

To be published.

Macromolecule Content

Total Structure Weight: 608.89 kDa
Atom Count: 40,017
Modeled Residue Count: 4,695
Deposited Residue Count: 5,003
Unique protein chains: 10
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

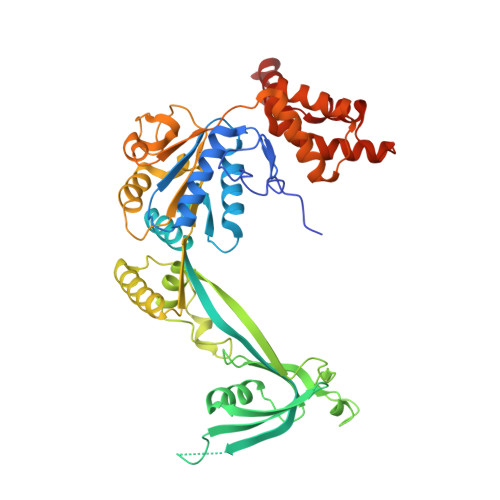

RuvB-like 1	A, B, C	453	Homo sapiens	Mutation(s): 0 Gene Names: RUVBL1, INO80H, NMP238, TIP49, TIP49A EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y265 (Homo sapiens) Explore Q9Y265 Go to UniProtKB: Q9Y265
PHAROS: Q9Y265 GTEx: ENSG00000175792
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y265
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

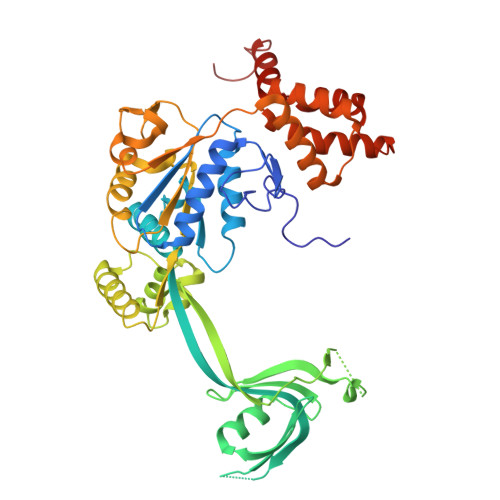

RuvB-like 2	D, E, F	439	Homo sapiens	Mutation(s): 0 Gene Names: RUVBL2, INO80J, TIP48, TIP49B, CGI-46 EC: 3.6.4.12
UniProt & NIH Common Fund Data Resources
Find proteins for Q9Y230 (Homo sapiens) Explore Q9Y230 Go to UniProtKB: Q9Y230
PHAROS: Q9Y230 GTEx: ENSG00000183207
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9Y230
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

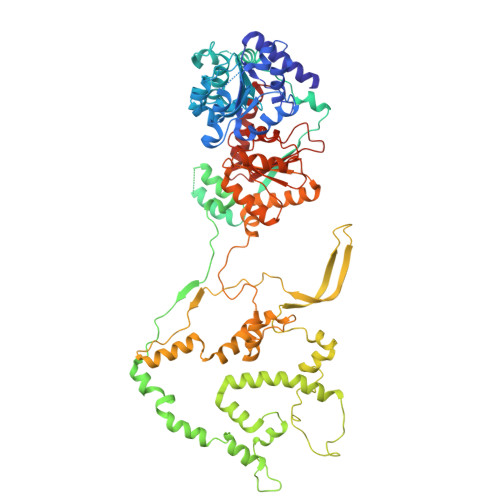

Chromatin-remodeling ATPase INO80	G	733	Homo sapiens	Mutation(s): 0 Gene Names: INO80, INO80A, INOC1, KIAA1259 EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for Q9ULG1 (Homo sapiens) Explore Q9ULG1 Go to UniProtKB: Q9ULG1
PHAROS: Q9ULG1 GTEx: ENSG00000128908
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9ULG1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

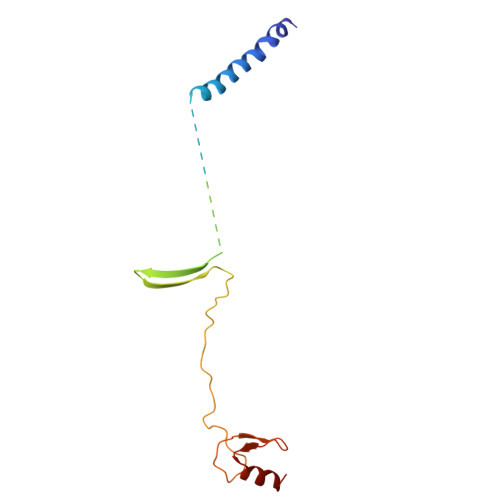

INO80 complex subunit B	H	135	Homo sapiens	Mutation(s): 0 Gene Names: INO80B, HMGA1L4, PAPA1, ZNHIT4
UniProt & NIH Common Fund Data Resources
Find proteins for Q9C086 (Homo sapiens) Explore Q9C086 Go to UniProtKB: Q9C086
GTEx: ENSG00000115274
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9C086
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

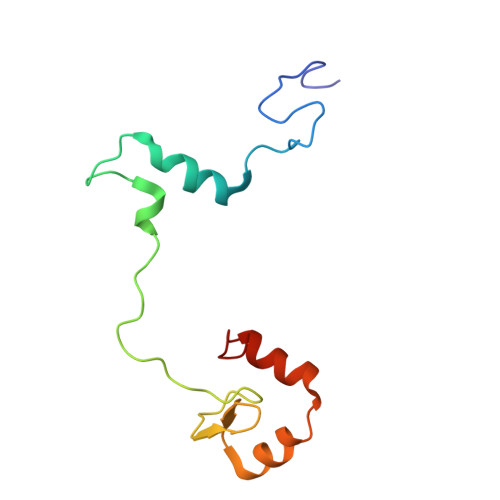

INO80 complex subunit C	I	107	Homo sapiens	Mutation(s): 0 Gene Names: INO80C, C18orf37
UniProt & NIH Common Fund Data Resources
Find proteins for Q6PI98 (Homo sapiens) Explore Q6PI98 Go to UniProtKB: Q6PI98
PHAROS: Q6PI98 GTEx: ENSG00000153391
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6PI98
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

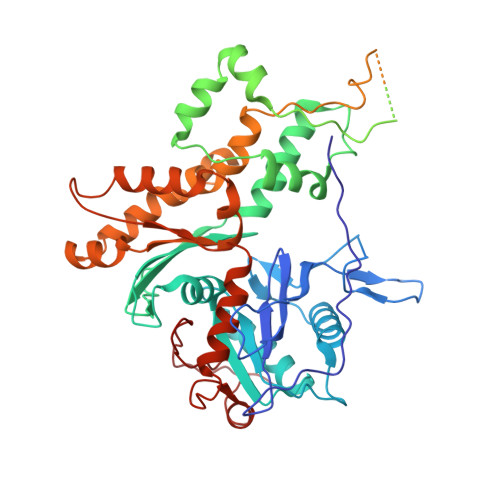

Actin-related protein 5	J	576	Homo sapiens	Mutation(s): 0 Gene Names: ACTR5, ARP5
UniProt & NIH Common Fund Data Resources
Find proteins for Q9H9F9 (Homo sapiens) Explore Q9H9F9 Go to UniProtKB: Q9H9F9
PHAROS: Q9H9F9 GTEx: ENSG00000101442
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9H9F9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Histone H3.1	M, O [auth Q]	94	Homo sapiens	Mutation(s): 0 Gene Names: H3C1, H3FA, HIST1H3A, H3C2, H3FL, HIST1H3B, H3C3, H3FC HIST1H3C, H3C4, H3FB... H3C1, H3FA, HIST1H3A, H3C2, H3FL, HIST1H3B, H3C3, H3FC HIST1H3C, H3C4, H3FB, HIST1H3D, H3C6, H3FD, HIST1H3E, H3C7, H3FI, HIST1H3F, H3C8, H3FH, HIST1H3G, H3C10, H3FK, HIST1H3H, H3C11, H3FF, HIST1H3I, H3C12, H3FJ, HIST1H3J
UniProt & NIH Common Fund Data Resources
Find proteins for P68431 (Homo sapiens) Explore P68431 Go to UniProtKB: P68431
PHAROS: P68431 GTEx: ENSG00000197409 ENSG00000197153 ENSG00000278828 ENSG00000275714 ENSG00000273983 ENSG00000274750 ENSG00000275379 ENSG00000277775
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P68431
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

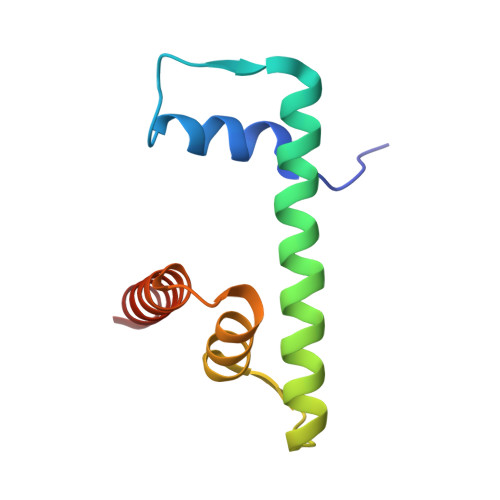

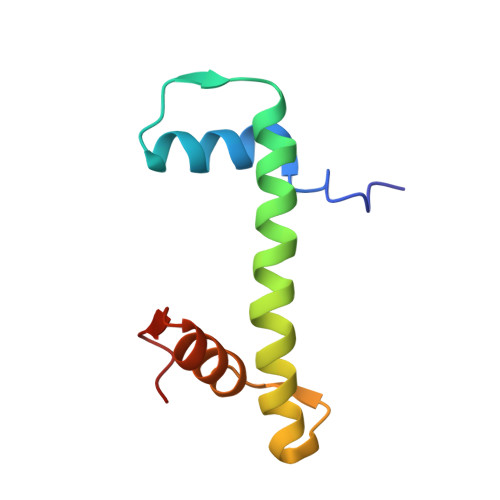

Histone H4	N, P [auth R]	81	Homo sapiens	Mutation(s): 0 Gene Names: H4C1, H4/A, H4FA, HIST1H4A, H4C2, H4/I, H4FI, HIST1H4B, H4C3, H4/G... H4C1, H4/A, H4FA, HIST1H4A, H4C2, H4/I, H4FI, HIST1H4B, H4C3, H4/G, H4FG, HIST1H4C, H4C4, H4/B, H4FB, HIST1H4D, H4C5, H4/J, H4FJ, HIST1H4E, H4C6, H4/C, H4FC, HIST1H4F, H4C8, H4/H, H4FH, HIST1H4H, H4C9, H4/M, H4FM, HIST1H4I, H4C11, H4/E, H4FE, HIST1H4J, H4C12, H4/D, H4FD, HIST1H4K, H4C13, H4/K, H4FK, HIST1H4L, H4C14, H4/N, H4F2, H4FN, HIST2H4, HIST2H4A, H4C15, H4/O, H4FO, HIST2H4B, H4C16, H4-16, HIST4H4
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens) Explore P62805 Go to UniProtKB: P62805
PHAROS: P62805 GTEx: ENSG00000274618 ENSG00000197238 ENSG00000197837 ENSG00000158406 ENSG00000278705 ENSG00000197061 ENSG00000270882 ENSG00000270276 ENSG00000273542 ENSG00000277157 ENSG00000276966 ENSG00000276180 ENSG00000278637 ENSG00000275126
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P62805
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

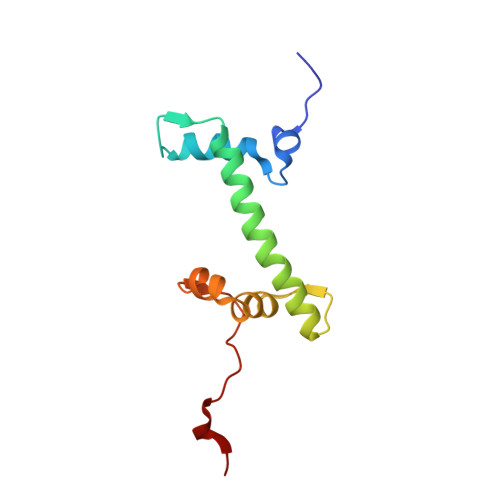

Histone H2A type 1-B/E	Q [auth S]	108	Homo sapiens	Mutation(s): 0 Gene Names: H2AC4, H2AFM, HIST1H2AB, H2AC8, H2AFA, HIST1H2AE
UniProt & NIH Common Fund Data Resources
Find proteins for P04908 (Homo sapiens) Explore P04908 Go to UniProtKB: P04908
PHAROS: P04908 GTEx: ENSG00000277075 ENSG00000278463
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P04908
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Histone H2B type 1-B	R [auth T]	92	Homo sapiens	Mutation(s): 0 Gene Names: H2BC3, H2BFF, HIST1H2BB
UniProt & NIH Common Fund Data Resources
Find proteins for P33778 (Homo sapiens) Explore P33778 Go to UniProtKB: P33778
PHAROS: P33778 GTEx: ENSG00000276410
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P33778
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Length	Organism	Image

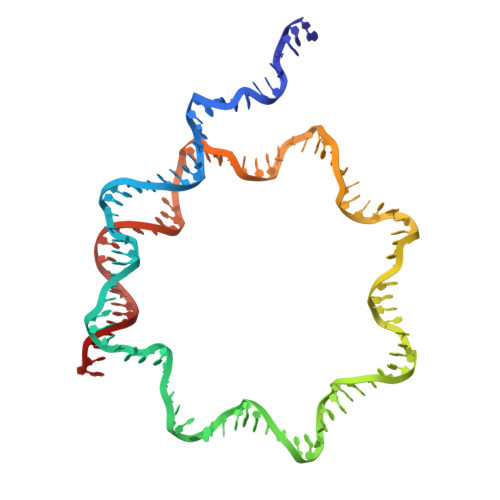

Hexasomal DNA Strand 1	K	113	synthetic construct
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Length	Organism	Image

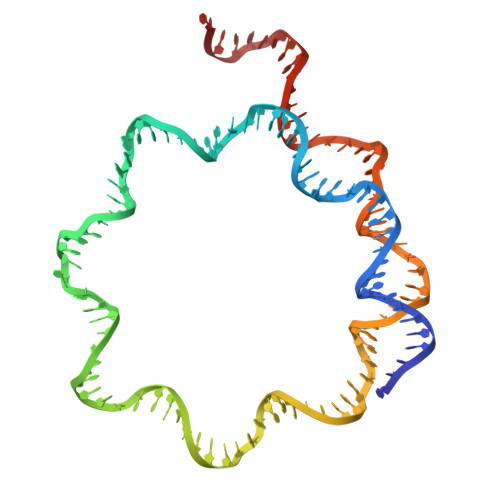

Hexasomal DNA strand 2	L	113	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP Query on ATP Download Ideal Coordinates CCD File SDF format, chain S [auth A] MOL2 format, chain S [auth A] mmCIF format, chain S [auth A]	S [auth A]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain S [auth A] Interactions & Density Focus chain S [auth A]
ADP Query on ADP Download Ideal Coordinates CCD File SDF format, chain AA [auth J] SDF format, chain T [auth B] SDF format, chain U [auth C] SDF format, chain V [auth D] SDF format, chain W [auth E] SDF format, chain X [auth F] SDF format, chain Y [auth G] MOL2 format, chain AA [auth J] MOL2 format, chain T [auth B] MOL2 format, chain U [auth C] MOL2 format, chain V [auth D] MOL2 format, chain W [auth E] MOL2 format, chain X [auth F] MOL2 format, chain Y [auth G] mmCIF format, chain AA [auth J] mmCIF format, chain T [auth B] mmCIF format, chain U [auth C] mmCIF format, chain V [auth D] mmCIF format, chain W [auth E] mmCIF format, chain X [auth F] mmCIF format, chain Y [auth G]	AA [auth J] T [auth B] U [auth C] V [auth D] W [auth E] AA [auth J], T [auth B], U [auth C], V [auth D], W [auth E], X [auth F], Y [auth G]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain AA [auth J] Focus chain T [auth B] Focus chain U [auth C] Focus chain V [auth D] Focus chain W [auth E] Focus chain X [auth F] Focus chain Y [auth G] Interactions & Density Focus chain AA [auth J] Focus chain T [auth B] Focus chain U [auth C] Focus chain V [auth D] Focus chain W [auth E] Focus chain X [auth F] Focus chain Y [auth G]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain Z [auth H] MOL2 format, chain Z [auth H] mmCIF format, chain Z [auth H]	Z [auth H]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain Z [auth H] Interactions & Density Focus chain Z [auth H]
