9U5U | pdb_00009u5u

The 1:1 cryo-EM structure of BAP1/ASXL1-K351Ub in complex with H2AK119Ub nucleosome

• PDB DOI: https://doi.org/10.2210/pdb9U5U/pdb
• NAKB: 9U5U
• EM Map EMD-63884: EMDB EMDataResource

• Classification: NUCLEAR PROTEIN/DNA
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2025-03-21 Released: 2026-01-14
• Deposition Author(s): Ai, H.S., Liu, L.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.12 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Unique Gluing Effect of ASXL1 K351 Monoubiquitination Stimulates PR-DUB-Mediated Nucleosomal H2AK119Ub Deubiquitination

Zhang, T., Zheng, J., Tong, Z., Deng, Z., He, Z., Wu, X., Wang, M., Du, Y., Xu, Z., Tao, S., Tian, X., Deng, H., Pan, M., Ai, H., Liu, L.

(2025) bioRxiv

• DOI: https://doi.org/10.1101/2025.04.25.650627

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 12-mer - A2B2C2D2E2F1G1 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 12-mer - A7B2C1D1E1

Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - E2 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Hetero 8-mer - A2B2C2D2

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 313.34 kDa
• Atom Count: 16,392
• Modeled Residue Count: 1,589
• Deposited Residue Count: 2,298
• Unique protein chains: 7
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

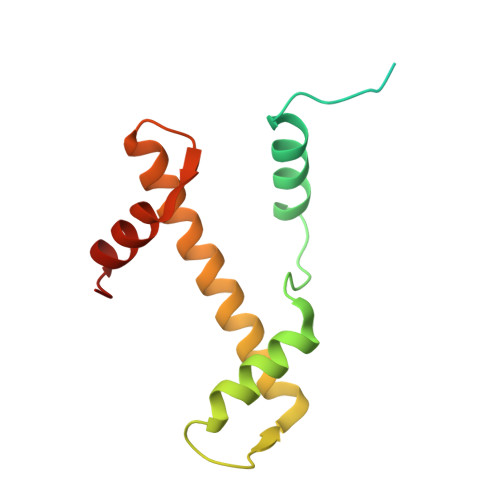

Histone H3.2	A, E	135	Homo sapiens	Mutation(s): 0  Gene Names: H3C15, HIST2H3A, H3C14, H3F2, H3FM, HIST2H3C, H3C13, HIST2H3D
UniProt & NIH Common Fund Data Resources
Find proteins for Q71DI3 (Homo sapiens) Explore Q71DI3  Go to UniProtKB:  Q71DI3
PHAROS:  Q71DI3 GTEx:  ENSG00000183598 ENSG00000203811 ENSG00000203852

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

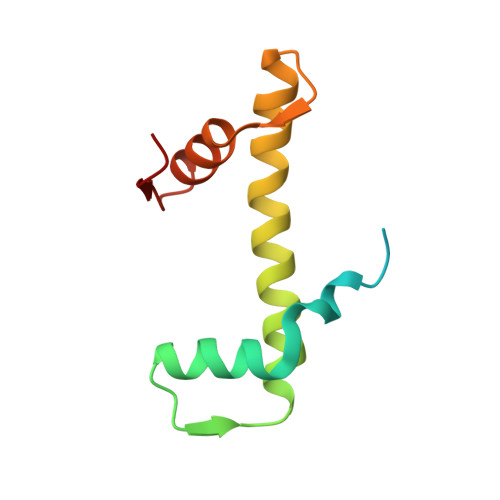

Histone H4	B, F	102	Homo sapiens	Mutation(s): 0  Gene Names:  H4C1, H4/A, H4FA, HIST1H4A, H4C2, H4/I, H4FI, HIST1H4B, H4C3, H4/G, H4FG, HIST1H4C, H4C4, H4/B, H4FB, HIST1H4D, H4C5, H4/J, H4FJ, HIST1H4E, H4C6, H4/C, H4FC, HIST1H4F, H4C8, H4/H, H4FH, HIST1H4H, H4C9, H4/M, H4FM, HIST1H4I, H4C11, H4/E, H4FE, HIST1H4J, H4C12, H4/D, H4FD, HIST1H4K, H4C13, H4/K, H4FK, HIST1H4L, H4C14, H4/N, H4F2, H4FN, HIST2H4, HIST2H4A, H4C15, H4/O, H4FO, HIST2H4B, H4C16, H4-16, HIST4H4
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens) Explore P62805  Go to UniProtKB:  P62805
PHAROS:  P62805 GTEx:  ENSG00000274618 ENSG00000197238 ENSG00000197837 ENSG00000158406 ENSG00000278705 ENSG00000197061 ENSG00000270882 ENSG00000270276 ENSG00000273542 ENSG00000277157 ENSG00000276966 ENSG00000276180 ENSG00000278637 ENSG00000275126

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

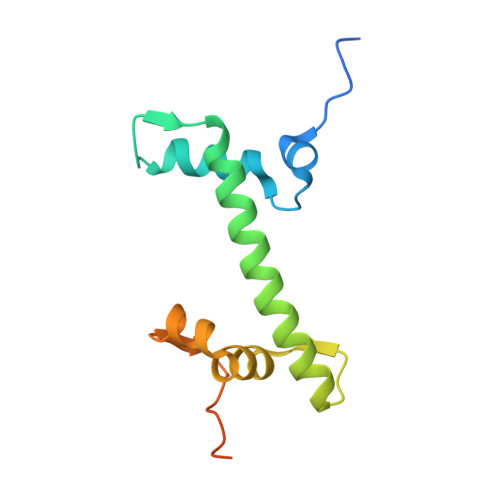

Histone H2A type 1-B/E	C, G	129	Homo sapiens	Mutation(s): 0  Gene Names: H2AC4, H2AFM, HIST1H2AB, H2AC8, H2AFA, HIST1H2AE
UniProt & NIH Common Fund Data Resources
Find proteins for P04908 (Homo sapiens) Explore P04908  Go to UniProtKB:  P04908
PHAROS:  P04908 GTEx:  ENSG00000277075 ENSG00000278463

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

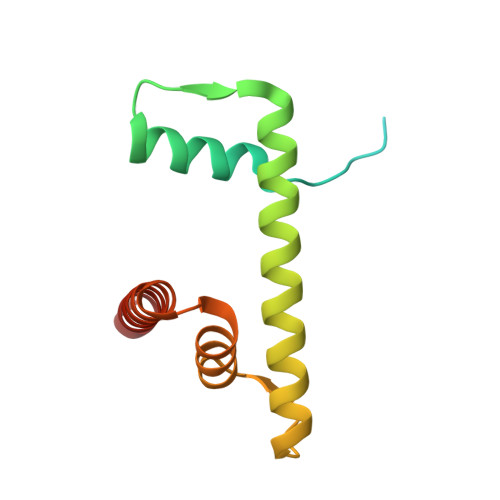

Histone H2B type 1-K	D, H	125	Homo sapiens	Mutation(s): 0  Gene Names: H2BC12, H2BFT, HIRIP1, HIST1H2BK
UniProt & NIH Common Fund Data Resources
Find proteins for O60814 (Homo sapiens) Explore O60814  Go to UniProtKB:  O60814
PHAROS:  O60814 GTEx:  ENSG00000197903

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

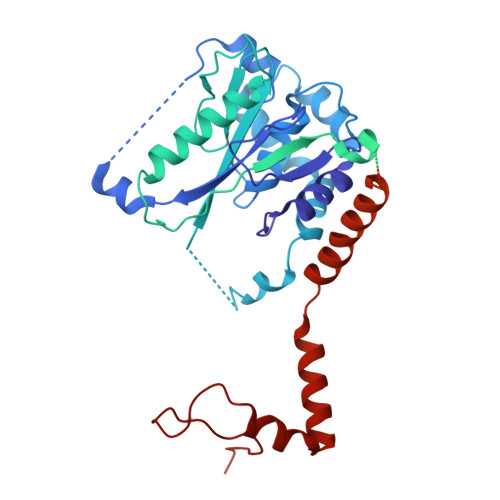

Ubiquitin carboxyl-terminal hydrolase BAP1	K [auth L]	711	Homo sapiens	Mutation(s): 0  Gene Names: BAP1, KIAA0272, hucep-6 EC: 3.4.19.12
UniProt & NIH Common Fund Data Resources
Find proteins for Q92560 (Homo sapiens) Explore Q92560  Go to UniProtKB:  Q92560
PHAROS:  Q92560 GTEx:  ENSG00000163930

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

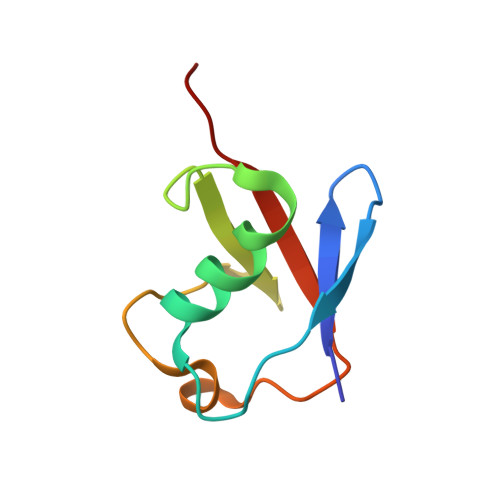

Ubiquitin	L [auth M], N [auth O]	76	Homo sapiens	Mutation(s): 0  Gene Names: RPS27A, UBA80, UBCEP1
UniProt & NIH Common Fund Data Resources
Find proteins for P62979 (Homo sapiens) Explore P62979  Go to UniProtKB:  P62979
PHAROS:  P62979 GTEx:  ENSG00000143947

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Polycomb group protein ASXL1	M [auth N]	159	Homo sapiens	Mutation(s): 0  Gene Names: ASXL1, KIAA0978
UniProt & NIH Common Fund Data Resources
Find proteins for Q8IXJ9 (Homo sapiens) Explore Q8IXJ9  Go to UniProtKB:  Q8IXJ9
PHAROS:  Q8IXJ9 GTEx:  ENSG00000171456

Entity ID: 5
Molecule	Chains	Length	Organism	Image

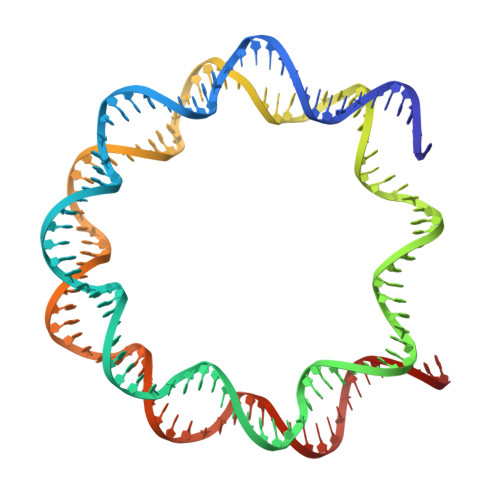

DNA (147-MER)	I	147	Homo sapiens

Entity ID: 6
Molecule	Chains	Length	Organism	Image
DNA (147-MER)	J	147	Homo sapiens

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.12 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	RELION	3.1.1

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-01-14
Deposition Author(s): Ai, H.S., Liu, L.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	nos. 22137005, 92253302, 22227810, and T2488301

Revision History

• Version 1.0: 2026-01-14
  Type: Initial release
