9RN2 | pdb_00009rn2

Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9RN2

This is version 1.0 of the entry. See complete history.

Literature

Structure of BAF in complex with OCT4-SOX2-bound nucleosome - SHL+6 class 2

Vecchia, L., Weiss, J., Cavadini, S., Kempf, G., Kater, L., Pathare, G., Thoma, N.H.

To be published.

Macromolecule Content

  • Total Structure Weight: 1,269.13 kDa
  • Atom Count: 23,353
  • Modeled Residue Count: 3,368
  • Deposited Residue Count: 10,715
  • Unique protein chains: 14
  • Unique nucleic acid chains: 2

Macromolecules


Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

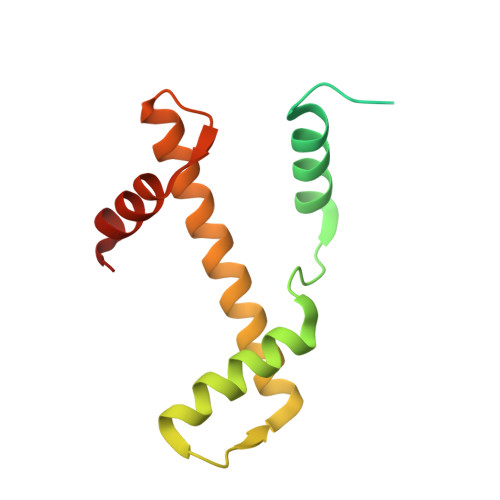

Histone H3.1
A, E
139Homo sapiensMutation(s): 0
Gene Names:
UniProt & NIH Common Fund Data Resources
Find proteins for P68431 (Homo sapiens)
Explore P68431
Go to UniProtKB:  P68431
PHAROS:  P68431
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68431
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

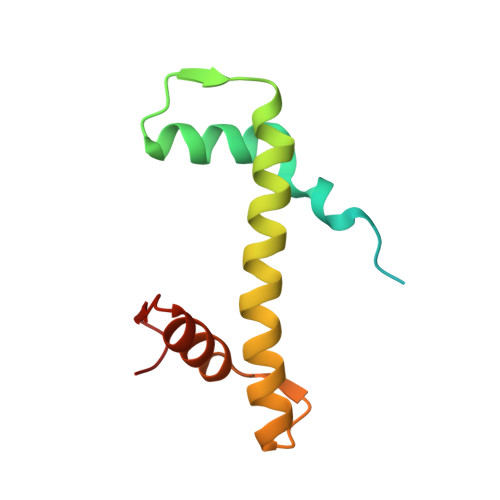

Histone H4
B, F
106Homo sapiensMutation(s): 0
Gene Names:
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens)
Explore P62805
Go to UniProtKB:  P62805
PHAROS:  P62805
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62805
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

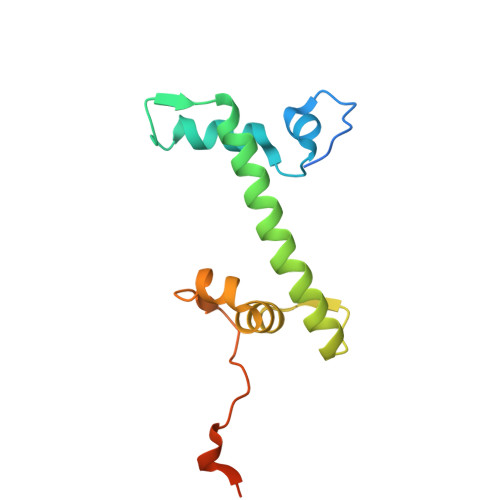

Histone H2A type 1-B/E
C, G
133Homo sapiensMutation(s): 0
Gene Names: HIST1H2AB, H2AFM, HIST1H2AE, H2AFA
UniProt & NIH Common Fund Data Resources
Find proteins for P04908 (Homo sapiens)
Explore P04908
Go to UniProtKB:  P04908
PHAROS:  P04908
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04908
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
Histone H2B type 1-J
D, H
128Homo sapiensMutation(s): 0
Gene Names: HIST1H2BJ, H2BFR
UniProt & NIH Common Fund Data Resources
Find proteins for P06899 (Homo sapiens)
Explore P06899
Go to UniProtKB:  P06899
PHAROS:  P06899
GTEx:  ENSG00000124635
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP06899
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription activator BRG11,647Homo sapiensMutation(s): 0
EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for P51532 (Homo sapiens)
Explore P51532
Go to UniProtKB:  P51532
PHAROS:  P51532
GTEx:  ENSG00000127616
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51532
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
Actin-like protein 6A429Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O96019 (Homo sapiens)
Explore O96019
Go to UniProtKB:  O96019
PHAROS:  O96019
GTEx:  ENSG00000136518
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO96019
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
Actin, cytoplasmic 1, N-terminally processed375Homo sapiensMutation(s): 0
EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for P60709 (Homo sapiens)
Explore P60709
Go to UniProtKB:  P60709
PHAROS:  P60709
GTEx:  ENSG00000075624
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60709
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage
AT-rich interactive domain-containing protein 1A2,285Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O14497 (Homo sapiens)
Explore O14497
Go to UniProtKB:  O14497
PHAROS:  O14497
GTEx:  ENSG00000117713
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO14497
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily B member 1385Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q12824 (Homo sapiens)
Explore Q12824
Go to UniProtKB:  Q12824
PHAROS:  Q12824
GTEx:  ENSG00000099956
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12824
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
SWI/SNF complex subunit SMARCC2
N, O
1,214Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TAQ2 (Homo sapiens)
Explore Q8TAQ2
Go to UniProtKB:  Q8TAQ2
PHAROS:  Q8TAQ2
GTEx:  ENSG00000139613
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8TAQ2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage
SWI/SNF-related matrix-associated actin-dependent regulator of chromatin subfamily D member 1515Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q96GM5 (Homo sapiens)
Explore Q96GM5
Go to UniProtKB:  Q96GM5
PHAROS:  Q96GM5
GTEx:  ENSG00000066117
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96GM5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

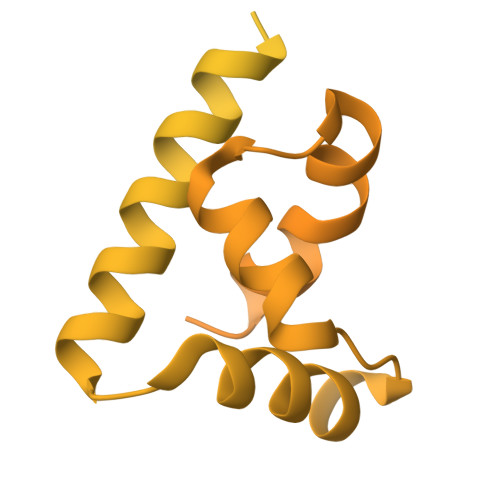

Zinc finger protein ubi-d4Q [auth R]435Homo sapiensMutation(s): 0
Gene Names: DPF2, BAF45D, REQ, UBID4
UniProt & NIH Common Fund Data Resources
Find proteins for Q92785 (Homo sapiens)
Explore Q92785
Go to UniProtKB:  Q92785
PHAROS:  Q92785
GTEx:  ENSG00000133884
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ92785
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
Green fluorescent protein,POU domain, class 5, transcription factor 1R [auth V]645Aequorea victoria, Homo sapiens
This entity is chimeric		Mutation(s): 0
Gene Names: GFP, POU5F1, OCT3, OCT4, OTF3
UniProt & NIH Common Fund Data Resources
Find proteins for P42212 (Aequorea victoria)
Explore P42212
Go to UniProtKB:  P42212
Find proteins for Q01860 (Homo sapiens)
Explore Q01860
Go to UniProtKB:  Q01860
PHAROS:  Q01860
GTEx:  ENSG00000204531
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP42212Q01860
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription factor SOX-2S [auth W]105Homo sapiensMutation(s): 0
Gene Names: SOX2
UniProt & NIH Common Fund Data Resources
Find proteins for P48431 (Homo sapiens)
Explore P48431
Go to UniProtKB:  P48431
PHAROS:  P48431
GTEx:  ENSG00000181449
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP48431
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 15
MoleculeChains LengthOrganismImage
DNA (147-MER)T [auth X]227synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 16
MoleculeChains LengthOrganismImage

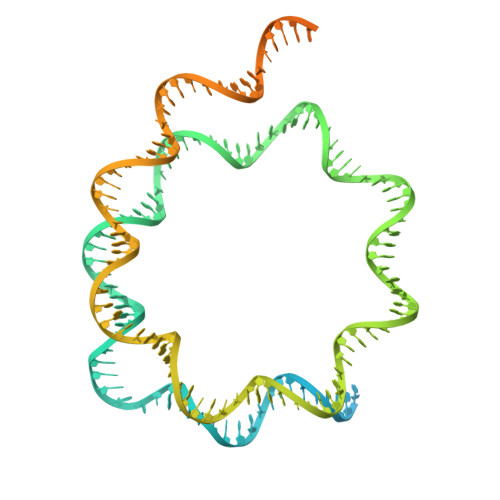

DNA (147-MER)U [auth Y]227synthetic construct
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
European Research Council (ERC)European Union--
Swiss National Science FoundationSwitzerland--
European Molecular Biology Organization (EMBO)European Union--
Other private--
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2026-02-11
    Type: Initial release
