8OSL

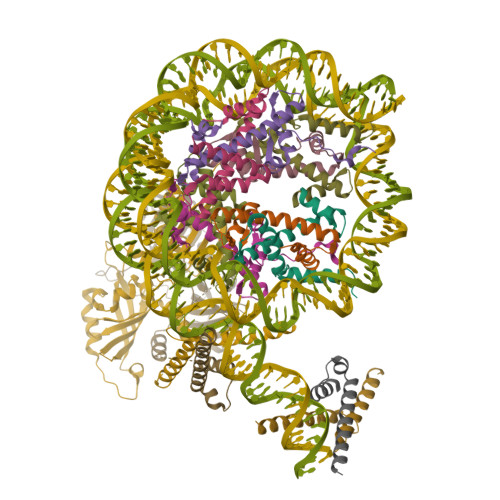

Cryo-EM structure of CLOCK-BMAL1 bound to the native Por enhancer nucleosome (map 2, additional 3D classification and flexible refinement)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.5 of the entry. See complete history


Literature

Cooperation between bHLH transcription factors and histones for DNA access.

Michael, A.K.Stoos, L.Crosby, P.Eggers, N.Nie, X.Y.Makasheva, K.Minnich, M.Healy, K.L.Weiss, J.Kempf, G.Cavadini, S.Kater, L.Seebacher, J.Vecchia, L.Chakraborty, D.Isbel, L.Grand, R.S.Andersch, F.Fribourgh, J.L.Schubeler, D.Zuber, J.Liu, A.C.Becker, P.B.Fierz, B.Partch, C.L.Menet, J.S.Thoma, N.H.

(2023) Nature 619: 385-393

  • DOI: https://doi.org/10.1038/s41586-023-06282-3
  • Primary Citation of Related Structures:
    8OSJ, 8OSK, 8OSL, 8OTS, 8OTT

  • PubMed Abstract:

    The basic helix-loop-helix (bHLH) family of transcription factors recognizes DNA motifs known as E-boxes (CANNTG) and includes 108 members 1 . Here we investigate how chromatinized E-boxes are engaged by two structurally diverse bHLH proteins: the proto-oncogene MYC-MAX and the circadian transcription factor CLOCK-BMAL1 (refs. 2,3 ). Both transcription factors bind to E-boxes preferentially near the nucleosomal entry-exit sites. Structural studies with engineered or native nucleosome sequences show that MYC-MAX or CLOCK-BMAL1 triggers the release of DNA from histones to gain access. Atop the H2A-H2B acidic patch 4 , the CLOCK-BMAL1 Per-Arnt-Sim (PAS) dimerization domains engage the histone octamer disc. Binding of tandem E-boxes 5-7 at endogenous DNA sequences occurs through direct interactions between two CLOCK-BMAL1 protomers and histones and is important for circadian cycling. At internal E-boxes, the MYC-MAX leucine zipper can also interact with histones H2B and H3, and its binding is indirectly enhanced by OCT4 elsewhere on the nucleosome. The nucleosomal E-box position and the type of bHLH dimerization domain jointly determine the histone contact, the affinity and the degree of competition and cooperativity with other nucleosome-bound factors.


  • Organizational Affiliation

    Friedrich Miescher Institute for Biomedical Research, Basel, Switzerland.


Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H3.1
A, E
139Homo sapiensMutation(s): 0
Gene Names:
UniProt & NIH Common Fund Data Resources
Find proteins for P68431 (Homo sapiens)
Explore P68431
Go to UniProtKB:  P68431
PHAROS:  P68431
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68431
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H4
B, F
106Homo sapiensMutation(s): 0
Gene Names:
UniProt & NIH Common Fund Data Resources
Find proteins for P62805 (Homo sapiens)
Explore P62805
Go to UniProtKB:  P62805
PHAROS:  P62805
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62805
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H2A type 1-B/E
C, G
133Homo sapiensMutation(s): 0
Gene Names: HIST1H2ABH2AFMHIST1H2AEH2AFA
UniProt & NIH Common Fund Data Resources
Find proteins for P04908 (Homo sapiens)
Explore P04908
Go to UniProtKB:  P04908
PHAROS:  P04908
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP04908
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Histone H2B type 1-J
D, H
128Homo sapiensMutation(s): 0
Gene Names: HIST1H2BJH2BFR
UniProt & NIH Common Fund Data Resources
Find proteins for P06899 (Homo sapiens)
Explore P06899
Go to UniProtKB:  P06899
PHAROS:  P06899
GTEx:  ENSG00000124635
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP06899
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Circadian locomoter output cycles protein kaputK [auth M],
M [auth O]
375Mus musculusMutation(s): 0
Gene Names: Clock
EC: 2.3.1.48
UniProt & NIH Common Fund Data Resources
Find proteins for O08785 (Mus musculus)
Explore O08785
Go to UniProtKB:  O08785
IMPC:  MGI:99698
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO08785
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
Basic helix-loop-helix ARNT-like protein 1L [auth N],
N [auth P]
384Mus musculusMutation(s): 0
Gene Names: Bmal1Arntl
UniProt
Find proteins for Q9WTL8 (Mus musculus)
Explore Q9WTL8
Go to UniProtKB:  Q9WTL8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9WTL8
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains LengthOrganismImage
DNA (147-MER)147Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains LengthOrganismImage
DNA (147-MER)147Homo sapiens
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.90 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTRosettaEM
MODEL REFINEMENTPHENIX

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
European Research Council (ERC)European Union884331
Human Frontier Science Program (HFSP)FranceLT000646/2018-L5

Revision History  (Full details and data files)

  • Version 1.0: 2023-05-24
    Type: Initial release
  • Version 1.1: 2023-06-28
    Changes: Database references, Structure summary
  • Version 1.2: 2023-07-12
    Changes: Database references
  • Version 1.3: 2023-07-19
    Changes: Database references
  • Version 1.4: 2023-07-26
    Changes: Database references
  • Version 1.5: 2024-07-24
    Changes: Data collection, Refinement description
