 9OFY | pdb_00009ofy

GluN1/GluN3A in complex with CGP and DCKA, TMD focused, in antagonist-bound conformation

  • Classification: TRANSPORT PROTEIN
  • Organism(s): Rattus norvegicus
  • Expression System: Homo sapiens
  • Mutation(s): No

  • Deposited: 2025-04-30 Released: 2026-08-26
  • Deposition Author(s): Kim, J., Gouaux, E.
  • Funding Organization(s): National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.12 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9OFY

This is version 1.1 of the entry. See complete history.

Literature

Structural and mechanistic insights into gating and allosteric modulation of GluN1-GluN3A NMDA receptors.

Kim, J., Benton, A.J., Lotti, J.S., Rouzbeh, N., Hansen, K.B., Gouaux, E.

(2026) Nat Struct Mol Biol 33: 1299-1310

  • DOI: https://doi.org/10.1038/s41594-026-01866-9
  • Primary Citation Related Structures:
    9OEH, 9OEM, 9OEN, 9OEO, 9OFI, 9OFM, 9OFY, 9OFZ

  • PubMed Abstract:

    N-methyl-D-aspartate receptors (NMDARs) mediate excitatory signaling essential for synaptic plasticity and memory. Unlike GluN2-containing NMDARs, GluN3-containing receptors are activated solely by glycine and exhibit profound desensitization and paradoxical potentiation by GluN1-selective antagonists, including CGP-78608 (CGP). Although GluN3A-containing NMDARs regulate synapse pruning and excitotoxicity, and are associated with schizophrenia, autism and stroke, their native stoichiometry and gating mechanism are poorly defined. Here, using single-molecule pull-down analysis, we show that native GluN3A-containing receptors are diheteromeric assemblies. Cryogenic-electron microscopy analysis of GluN1-GluN3A receptors in antagonist-bound, preactive, active and desensitized states, augmented by electrophysiology and pharmacology experiments, show how glycine activates the receptor solely via GluN3A-dependent conformational changes, opening the gate with two-fold symmetry, and induces a roughly four-fold symmetric desensitized state. CGP-bound GluN1 restricts GluN3A rotation, promoting glycine-induced activation by blocking desensitization. These findings illuminate how CGP potentiates GluN1-GluN3A receptor activity, place the receptor gating mechanism on a structural foundation and define the molecular basis for pharmacological modulation.


  • Organizational Affiliation:
    • Vollum Institute, Oregon Health and Science University, Portland, OR, USA.

Macromolecule Content

  • Total Structure Weight: 412.31 kDa
  • Atom Count: 2,658
  • Modeled Residue Count: 428
  • Deposited Residue Count: 3,680
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure

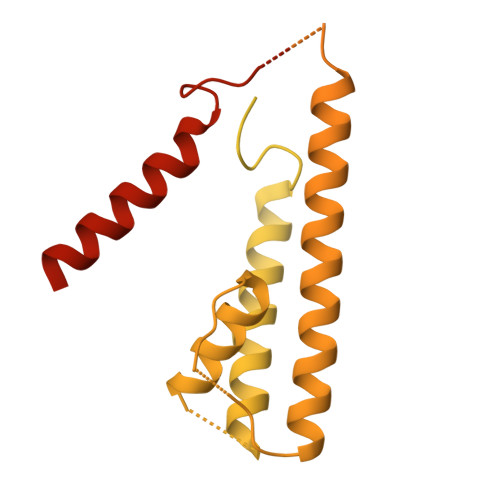

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Isoform E of Glutamate receptor ionotropic, NMDA 1A,
B [auth C]
870Rattus norvegicusMutation(s): 0
Gene Names: Grin1, Nmdar1
UniProt
Find proteins for P35439 (Rattus norvegicus)
Explore P35439
Go to UniProtKB:  P35439
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35439
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure

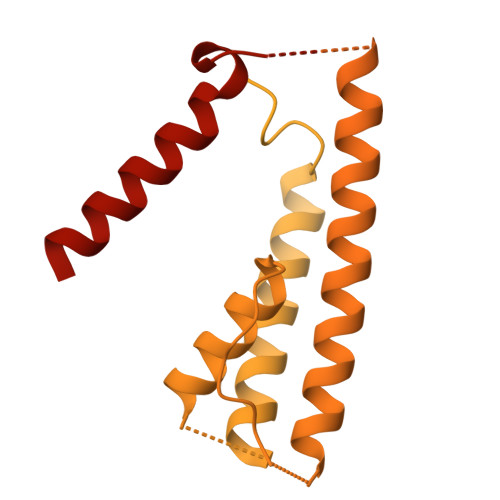

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Glutamate receptor ionotropic, NMDA 3AC [auth B],
D
970Rattus norvegicusMutation(s): 0
Gene Names: Grin3a
UniProt
Find proteins for Q9R1M7 (Rattus norvegicus)
Explore Q9R1M7
Go to UniProtKB:  Q9R1M7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9R1M7
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.12 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487
RECONSTRUCTIONcryoSPARC4.4

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2026-08-26
    Type: Initial release
  • Version 1.1: 2026-10-21
    Changes: Data collection, Database references
