9OMY | pdb_00009omy

Cryo-EM structure of an octameric RAD51-XRCC3-RAD51C (RAD51-X3C) complex

PDB DOI: https://doi.org/10.2210/pdb9OMY/pdb
EM Map EMD-70624: EMDB EMDataResource

Classification: DNA BINDING PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli, Trichoplusia ni
Mutation(s): No

Deposited: 2025-05-14 Released: 2026-04-01
Deposition Author(s): Jia, L., Ruben, E.A., Olsen, S.K., Wasmuth, E.V., Rawal, Y., Kwon, Y., Sung, P.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.25 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9OMY

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of an octameric RAD51-XRCC3-RAD51C (RAD51-X3C) complex.

Jia, L., Ruben, E.A., Olsen, S.K., Wasmuth, E.A., Rawal, Y., Kwon, Y., Sung, P.

To be published.

Macromolecule Content

Total Structure Weight: 311.36 kDa
Atom Count: 18,444
Modeled Residue Count: 2,368
Deposited Residue Count: 2,800
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

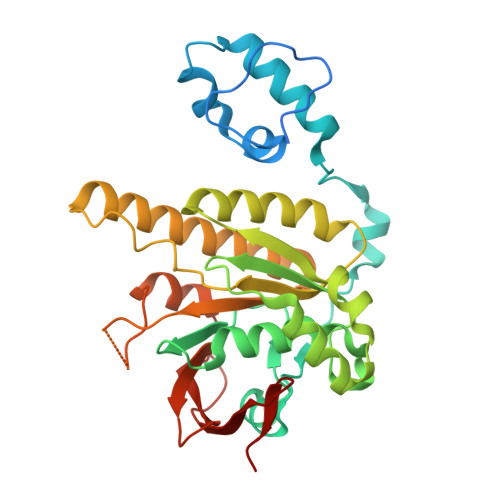

DNA repair protein RAD51 homolog 1	A, B, E [auth D], F [auth E]	339	Homo sapiens	Mutation(s): 0 Gene Names: RAD51, RAD51A, RECA EC: 3.6.4
UniProt & NIH Common Fund Data Resources
Find proteins for Q06609 (Homo sapiens) Explore Q06609 Go to UniProtKB: Q06609
PHAROS: Q06609 GTEx: ENSG00000051180
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q06609
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

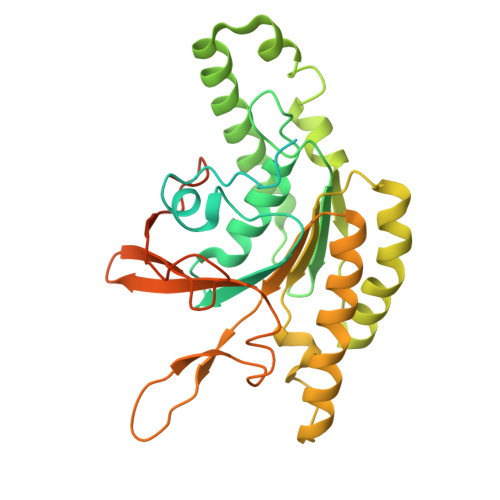

DNA repair protein RAD51 homolog 3	C, G [auth F]	376	Homo sapiens	Mutation(s): 0 Gene Names: RAD51C, RAD51L2
UniProt & NIH Common Fund Data Resources
Find proteins for O43502 (Homo sapiens) Explore O43502 Go to UniProtKB: O43502
PHAROS: O43502 GTEx: ENSG00000108384
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O43502
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

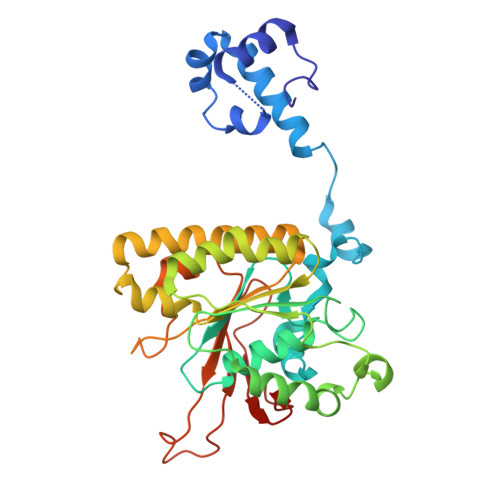

DNA repair protein XRCC3	D [auth X], H [auth G]	346	Homo sapiens	Mutation(s): 0 Gene Names: XRCC3
UniProt & NIH Common Fund Data Resources
Find proteins for O43542 (Homo sapiens) Explore O43542 Go to UniProtKB: O43542
PHAROS: O43542 GTEx: ENSG00000126215
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O43542
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ANP (Subject of Investigation/LOI) Query on ANP Download:Ideal Coordinates CCD File SDF format, chain N [auth G] SDF format, chain M [auth F] SDF format, chain L [auth D] SDF format, chain K [auth X] SDF format, chain J [auth C] SDF format, chain I [auth A] MOL2 format, chain N [auth G] MOL2 format, chain M [auth F] MOL2 format, chain L [auth D] MOL2 format, chain K [auth X] MOL2 format, chain J [auth C] MOL2 format, chain I [auth A] mmCIF format, chain N [auth G] mmCIF format, chain M [auth F] mmCIF format, chain L [auth D] mmCIF format, chain K [auth X] mmCIF format, chain J [auth C] mmCIF format, chain I [auth A]	I [auth A] J [auth C] K [auth X] L [auth D] M [auth F] I [auth A], J [auth C], K [auth X], L [auth D], M [auth F], N [auth G]	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER C₁₀ H₁₇ N₆ O₁₂ P₃ PVKSNHVPLWYQGJ-KQYNXXCUSA-N		Interactions Focus chain I [auth A] Focus chain J [auth C] Focus chain K [auth X] Focus chain L [auth D] Focus chain M [auth F] Focus chain N [auth G] Interactions & Density Focus chain I [auth A] Focus chain J [auth C] Focus chain K [auth X] Focus chain L [auth D] Focus chain M [auth F] Focus chain N [auth G]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.25 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-04-01
Type: Initial release
