9ON2 | pdb_00009on2

Cryo-EM structure of a tetrameric XRCC3-RAD51C-RAD51D-XRCC2 complex

• PDB DOI: https://doi.org/10.2210/pdb9ON2/pdb
• EM Map EMD-70627: EMDB EMDataResource

• Classification: DNA BINDING PROTEIN
• Organism(s): Homo sapiens
• Expression System: Trichoplusia ni
• Mutation(s): No


• Deposited: 2025-05-14 Released: 2026-04-01
• Deposition Author(s): Ruben, E.A., Jia, L., Olsen, S.K., Wasmuth, E.V., Rawal, Y., Kwon, Y., Sung, P.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.16 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM structure of a tetrameric XRCC3-RAD51C-RAD51D-XRCC2 complex.

Ruben, E.A., Jia, L., Olsen, S.K., Wasmuth, E.V., Rawal, Y., Kwon, Y., Sung, P.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 4-mer - A1B1C1D1 Pseudo Symmetry: Helical - H  (Explore in 3D)
Pseudo Stoichiometry: Homo 4-mer - A4

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 149.25 kDa
• Atom Count: 9,317
• Modeled Residue Count: 1,181
• Deposited Residue Count: 1,330
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

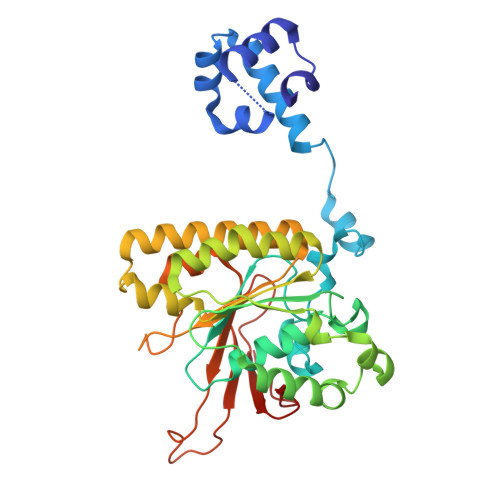

DNA repair protein XRCC3	A	346	Homo sapiens	Mutation(s): 0  Gene Names: XRCC3
UniProt & NIH Common Fund Data Resources
Find proteins for O43542 (Homo sapiens) Explore O43542  Go to UniProtKB:  O43542
PHAROS:  O43542 GTEx:  ENSG00000126215

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

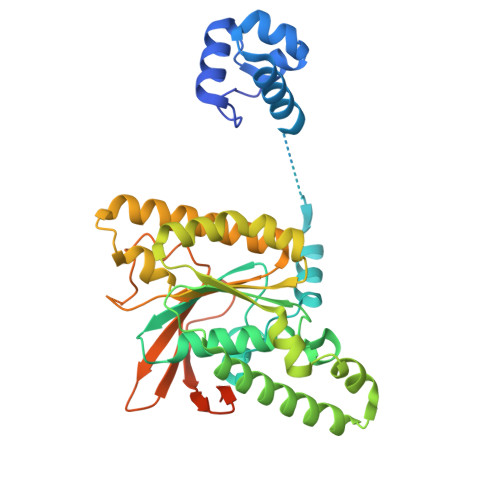

DNA repair protein RAD51 homolog 3	B [auth C]	376	Homo sapiens	Mutation(s): 0  Gene Names: RAD51C, RAD51L2
UniProt & NIH Common Fund Data Resources
Find proteins for O43502 (Homo sapiens) Explore O43502  Go to UniProtKB:  O43502
PHAROS:  O43502 GTEx:  ENSG00000108384

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

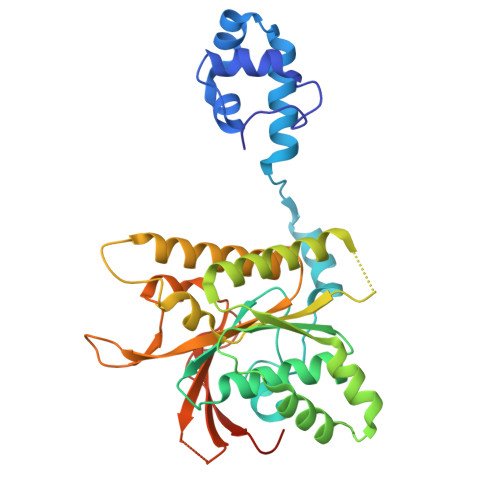

DNA repair protein RAD51 homolog 4	C [auth D]	328	Homo sapiens	Mutation(s): 0  Gene Names: RAD51D, RAD51L3
UniProt & NIH Common Fund Data Resources
Find proteins for O75771 (Homo sapiens) Explore O75771  Go to UniProtKB:  O75771
PHAROS:  O75771 GTEx:  ENSG00000185379

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

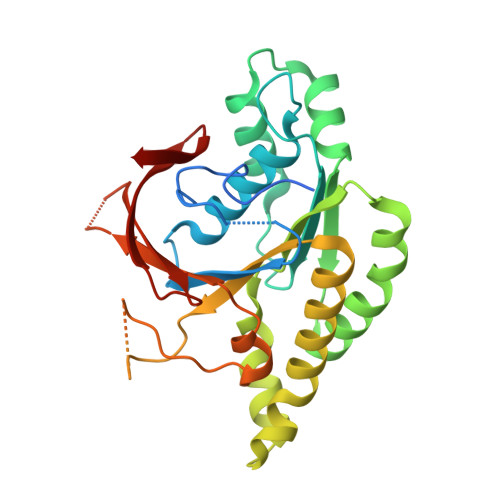

DNA repair protein XRCC2	D [auth X]	280	Homo sapiens	Mutation(s): 0  Gene Names: XRCC2
UniProt & NIH Common Fund Data Resources
Find proteins for O43543 (Homo sapiens) Explore O43543  Go to UniProtKB:  O43543
PHAROS:  O43543 GTEx:  ENSG00000196584

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ANP (Subject of Investigation/LOI)	E [auth A], F [auth C], G [auth D], H [auth X]	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER C10 H17 N6 O12 P3 PVKSNHVPLWYQGJ-KQYNXXCUSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.16 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-04-01
Deposition Author(s): Ruben, E.A., Jia, L., Olsen, S.K., Wasmuth, E.V., Rawal, Y., Kwon, Y., Sung, P.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History

• Version 1.0: 2026-04-01
  Type: Initial release
