9L80 | pdb_00009l80

Structure of GPR119-Gs complex bound to an allosteric modulator


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.33 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9L80

This is version 1.1 of the entry. See complete history

Literature

A GPCR-G protein-beta-arrestin megacomplex enabled by a versatile allosteric modulator.

He, G.Sun, Q.Xu, X.Kong, F.Zhang, S.Ye, K.Sun, X.Lin, B.Chen, X.Yan, C.Liu, X.

(2026) Cell 189: 1434-1450.e22

  • DOI: https://doi.org/10.1016/j.cell.2025.12.023
  • Primary Citation Related Structures:
    9L80, 9L84, 9L8L

  • PubMed Abstract:

    Approximately one-third of clinical drugs mediate their therapeutic effects through G protein-coupled receptors (GPCRs), highlighting their immense therapeutic relevance. Novel approaches to modulate GPCR activity have the potential to yield unique pharmacological profiles. Conventionally, the G protein and β-arrestin signaling pathways downstream of GPCRs have been viewed as mutually exclusive. Using the in-house developed survival pressure selection (SPS) method, a high-throughput platform for GPCR agonist discovery, we identified an allosteric ligand that stabilizes a GPCR-G protein-β-arrestin megacomplex, thereby mediating sustained receptor signaling following internalization. Remarkably, this compound, atazanavir, exhibits pan-receptor activation across multiple family A GPCRs, including GPR119, β 1 AR, and β 2 AR, demonstrating the broad applicability of this regulatory mechanism. This discovery uncovers a distinct mechanism of GPCR regulation, opening alternative avenues for the development of therapeutics targeting GPCRs.


  • Organizational Affiliation
    • State Key Laboratory of Membrane Biology, Tsinghua-Peking Center for Life Sciences, School of Pharmaceutical Sciences, Tsinghua University, Beijing, China; Beijing Frontier Research Center for Biological Structure, Beijing Advanced Innovation Center for Structural Biology, Tsinghua University, Beijing, China.

Macromolecule Content

  • Total Structure Weight: 157.91 kDa
  • Atom Count: 9,490
  • Modeled Residue Count: 1,236
  • Deposited Residue Count: 1,420
  • Unique protein chains: 6

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

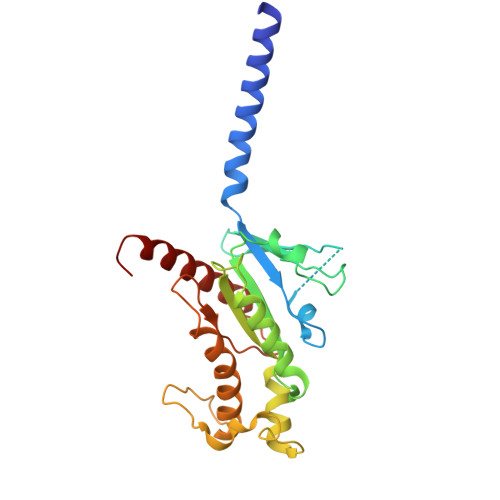

Guanine nucleotide-binding protein G(s) subunit alpha isoforms short245Homo sapiensMutation(s): 5
Gene Names: GNASGNAS1GSP
EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63092 (Homo sapiens)
Explore P63092
Go to UniProtKB:  P63092
PHAROS:  P63092
GTEx:  ENSG00000087460
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63092
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1351Rattus norvegicusMutation(s): 0
Gene Names: Gnb1
UniProt
Find proteins for P54311 (Rattus norvegicus)
Explore P54311
Go to UniProtKB:  P54311
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP54311
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

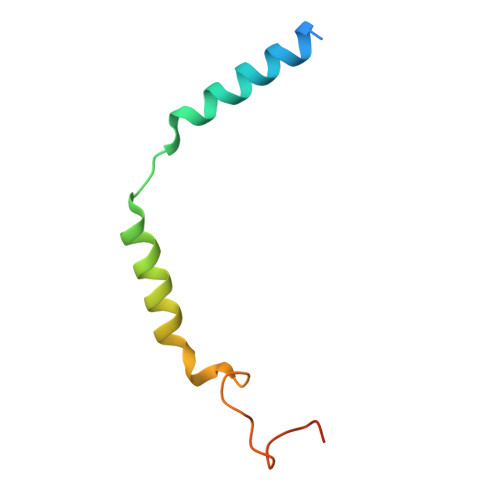

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2C [auth G]68Bos taurusMutation(s): 0
Gene Names: GNG2
UniProt
Find proteins for P63212 (Bos taurus)
Explore P63212
Go to UniProtKB:  P63212
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63212
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
NB35D [auth N]138Lama glamaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

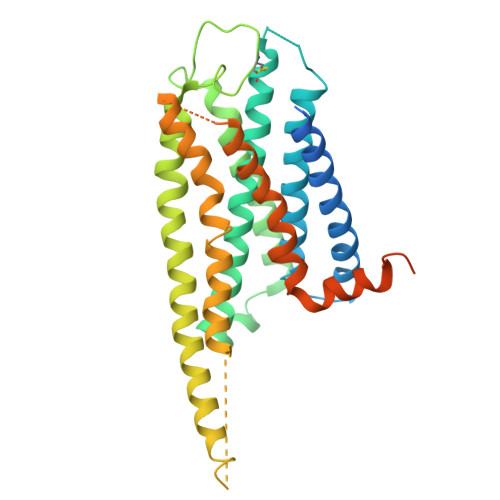

Glucose-dependent insulinotropic receptorE [auth R]359Homo sapiensMutation(s): 0
Gene Names: GPR119
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TDV5 (Homo sapiens)
Explore Q8TDV5
Go to UniProtKB:  Q8TDV5
PHAROS:  Q8TDV5
GTEx:  ENSG00000147262
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8TDV5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

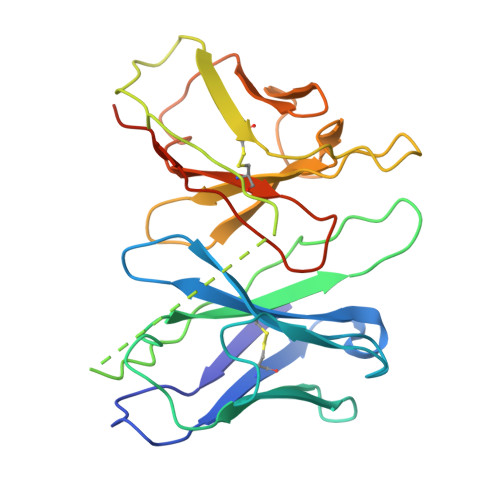

scFv16F [auth S]259Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
DR7
(Subject of Investigation/LOI)

Query on DR7



Download:Ideal Coordinates CCD File
G [auth R](3S,8S,9S,12S)-3,12-BIS(1,1-DIMETHYLETHYL)-8-HYDROXY-4,11-DIOXO-9-(PHENYLMETHYL)-6-[[4-(2-PYRIDINYL)PHENYL]METHYL]-2,5, 6,10,13-PENTAAZATETRADECANEDIOIC ACID DIMETHYL ESTER
C38 H52 N6 O7
AXRYRYVKAWYZBR-GASGPIRDSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.33 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China32122041
National Natural Science Foundation of China (NSFC)China32100968

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-31
    Type: Initial release
  • Version 1.1: 2026-07-15
    Changes: Data collection, Database references
