9W4W | pdb_00009w4w

Structure of transcription factor in complex with L-Ile


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.39 Å
  • R-Value Free:
    0.195 (Depositor), 0.207 (DCC)
  • R-Value Work:
    0.178 (Depositor), 0.191 (DCC)
  • R-Value Observed:
    0.179 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9W4W

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

A distinct gene expression mechanism for d-amino acid utilization in hyperthermophilic archaeon Pyrococcus horikoshii.

Kawakami, R.Kawase, T.Uehara, T.Sakuraba, H.Matsuzawa, T.Hayashi, J.Ohshima, T.

(2026) FEBS J

  • DOI: https://doi.org/10.1111/febs.70545
  • Primary Citation Related Structures:
    9W4V, 9W4W

  • PubMed Abstract:

    Growing the hyperthermophilic archaeon Pyrococcus horikoshii OT-3 in medium supplemented with d-allo-Ile instead of l-Ile markedly upregulates the activity of broad substrate specificity amino acid racemase (BAR). In P. horikoshii genome, the BAR gene (PH0138) forms a cluster with PH0137, which encodes a putative transporter protein, and PH0140 that encodes a feast/famine regulatory protein (FFRP), involved in the transcriptional regulation of metabolic pathway genes. Here, we performed gene expression, protein-DNA interaction, and crystallographic analyses to elucidate the expression mechanism of the BAR cluster. Gene expression analysis revealed that d-allo-Ile simultaneously induces PH0138 and PH0137. Electrophoretic mobility shift assays demonstrated that the PH0140 protein binds to the PH0137 promoter in the presence of l-Ile, but this interaction is disrupted by d-allo-Ile, identifying PH0140 as a d-amino acid-responsive regulatory protein (DARP). The crystal structures of DARP bound to l-Ile and d-allo-Ile were compared with those of another FFRP family member, P. horikoshii FL11. Our findings reveal a dimeric arrangement of l-Ile-bound DARP resembling the DNA-bound (open) form of FL11, whereas d-allo-Ile-bound DARP corresponds to the DNA-unbound (closed) form. These conformational changes result from subtle alterations in hydrogen bonding around the coregulators. Furthermore, cultivation in d-allo-Ile substitution medium only impacted the expression of PH0138 and PH0137, and not the other genes, suggesting that DARP regulates a more limited gene set than FL11. Cumulatively, these results reveal a distinct mechanism by which an FFRP homolog controls d-amino acid utilization.


  • Organizational Affiliation
    • Division of Bioscience and Bioindustry, Graduate School of Technology, Industrial and Social Sciences, Tokushima University, Japan.

Macromolecule Content

  • Total Structure Weight: 20.45 kDa
  • Atom Count: 1,351
  • Modeled Residue Count: 149
  • Deposited Residue Count: 178
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

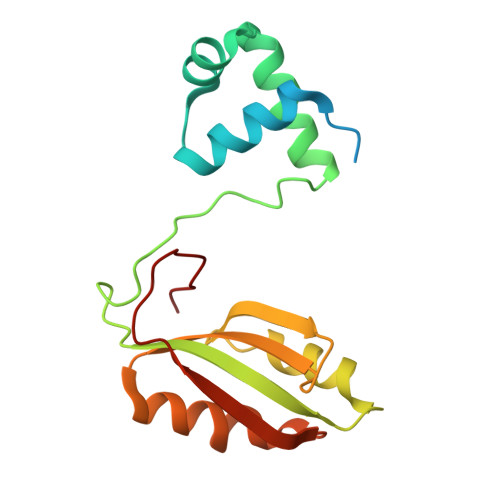

Uncharacterized HTH-type transcriptional regulator PH0140178Pyrococcus horikoshiiMutation(s): 0
Gene Names: PH0140
UniProt
Find proteins for O57880 (Pyrococcus horikoshii (strain ATCC 700860 / DSM 12428 / JCM 9974 / NBRC 100139 / OT-3))
Explore O57880
Go to UniProtKB:  O57880
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO57880
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.39 Å
  • R-Value Free:  0.195 (Depositor), 0.207 (DCC)
  • R-Value Work:  0.178 (Depositor), 0.191 (DCC)
  • R-Value Observed: 0.179 (Depositor)
Space Group: I 4 2 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 101.116α = 90
b = 101.116β = 90
c = 70.41γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-25
    Type: Initial release
  • Version 1.1: 2026-04-29
    Changes: Database references
