9QKT | pdb_00009qkt

Cryo-EM structure of the CDK11B-cyclin L2-SAP30BP bound to OTS964 (conformation 1)


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9QKT

This is version 1.1 of the entry. See complete history

Literature

Cryo-EM structures of the CDK11-cyclin L-SAP30BP complex reveal mechanisms of CDK11 regulation.

McGeoch, A.J.S.Cushing, V.I.Roumeliotis, T.I.Cronin, N.B.Hearnshaw, S.J.Choudhary, J.S.Alfieri, C.Greber, B.J.

(2026) Nat Commun

  • DOI: https://doi.org/10.1038/s41467-026-72329-4
  • Primary Citation Related Structures:
    9QJJ, 9QJN, 9QKT, 9QKZ, 9QL1

  • PubMed Abstract:

    The cyclin-dependent kinase CDK11 functions in transcription, mitotic progression, and mRNA splicing. Specifically, spliceosome activation during the B to B act transition depends on phosphorylation of the U2 snRNP component SF3B1 by the CDK11-cyclin L-SAP30BP complex. Here, we present the structure of this spliceosome-activating CDK-cyclin complex, determined by cryogenic electron microscopy at 2.3 Å resolution. Our structure and biochemical experiments show that SAP30BP forms extensive interactions with cyclin L2, thereby stabilising it, and forms critical interactions with the C-terminal kinase lobe of CDK11 that promote complex assembly. Destabilisation of cyclin L2 in the absence of SAP30BP suggests that these principles are applicable to all CDK11-cyclin L complexes. Furthermore, we identify a pseudo-substrate sequence near the CDK11 C-terminus and provide evidence for a role of this segment in CDK11 auto-regulation. Finally, the structure of the CDK11-cyclin L-SAP30BP complex bound to the clinical high-affinity CDK11 inhibitor OTS964 and a comparison to OTS964-bound off-target complexes provide insight into the mechanism of OTS964 selectivity and specificity.


  • Organizational Affiliation
    • Division of Structural Biology, The Institute of Cancer Research, London, UK.

Macromolecule Content

  • Total Structure Weight: 120.32 kDa
  • Atom Count: 5,649
  • Modeled Residue Count: 681
  • Deposited Residue Count: 1,075
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure

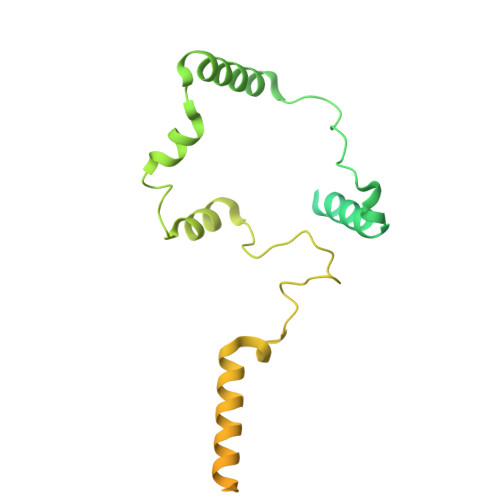

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
SAP30-binding protein311Homo sapiensMutation(s): 0
Gene Names: SAP30BPHCNGPHTRGHTRP
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UHR5 (Homo sapiens)
Explore Q9UHR5
Go to UniProtKB:  Q9UHR5
PHAROS:  Q9UHR5
GTEx:  ENSG00000161526
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UHR5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure

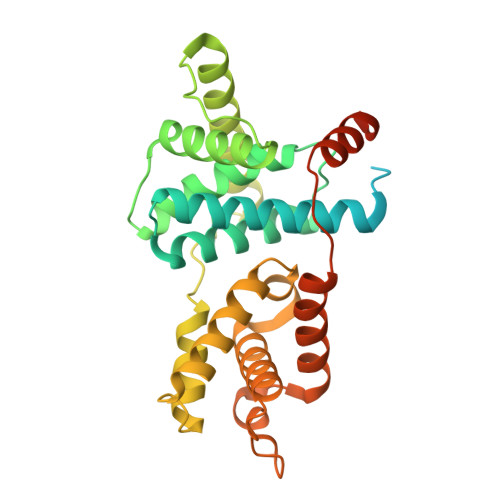

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Cyclin-L2B [auth C]322Homo sapiensMutation(s): 0
Gene Names: CCNL2SB138
UniProt & NIH Common Fund Data Resources
Find proteins for Q96S94 (Homo sapiens)
Explore Q96S94
Go to UniProtKB:  Q96S94
PHAROS:  Q96S94
GTEx:  ENSG00000221978
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ96S94
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure

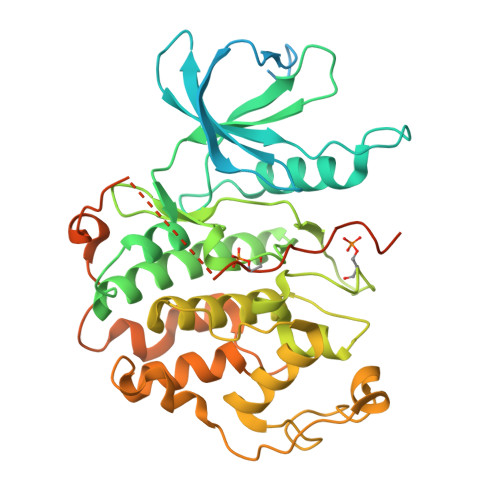

Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Cyclin-dependent kinase 11BC [auth B]442Homo sapiensMutation(s): 0
Gene Names: CDK11BCDC2L1CDK11PITSLREAPK58
EC: 2.7.11.22 (PDB Primary Data), 2.7.11.23 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P21127 (Homo sapiens)
Explore P21127
Go to UniProtKB:  P21127
GTEx:  ENSG00000248333
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP21127
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NK3

Query on NK3



Download:Ideal Coordinates CCD File
D [auth B]OTS964
C23 H24 N2 O2 S
XCFRUAOZMVFDPQ-AWEZNQCLSA-N
Modified Residues  2 Unique
IDChains TypeFormula2D DiagramParent
SEP
Query on SEP
C [auth B]L-PEPTIDE LINKINGC3 H8 N O6 PSER
TPO
Query on TPO
C [auth B]L-PEPTIDE LINKINGC4 H10 N O6 PTHR

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION5.0-beta
MODEL REFINEMENTPHENIX1.21rc1_4985

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomMR/V009354/1

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-18
    Type: Initial release
  • Version 1.1: 2026-05-06
    Changes: Data collection, Database references
