9G6H | pdb_00009g6h

active PSII dimer from native Peak4 PSII dimers

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9G6H

This is version 1.0 of the entry. See complete history.

Literature

active PSII dimer from native Peak4 PSII dimers

Zhao, Z., Vercellino, I., Nixon, P.J., Sazanov, L.A.

To be published.

Macromolecule Content

  • Total Structure Weight: 765.46 kDa
  • Atom Count: 51,092
  • Modeled Residue Count: 5,239
  • Deposited Residue Count: 5,650
  • Unique protein chains: 19

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

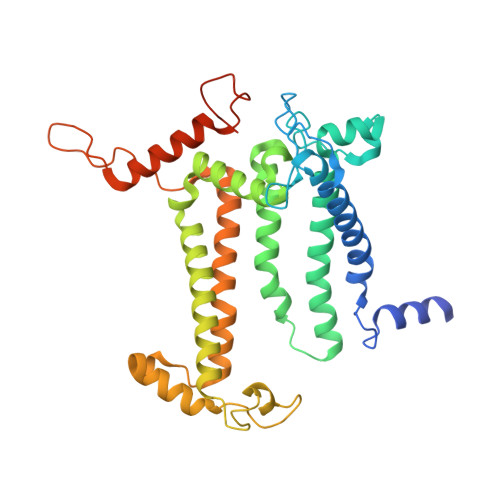

Photosystem II protein D1 1A,
T [auth a]		360Thermosynechococcus vestitus BP-1Mutation(s): 0
EC: 1.10.3.9
UniProt
Find proteins for P0A444 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore P0A444
Go to UniProtKB:  P0A444
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A444
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

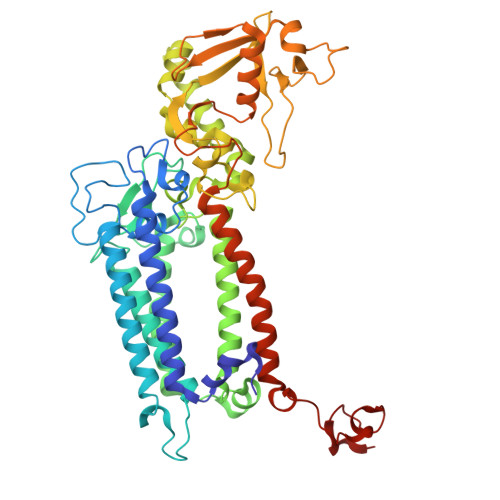

Photosystem II CP47 reaction center proteinB,
U [auth b]		510Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DIQ1 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DIQ1
Go to UniProtKB:  Q8DIQ1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DIQ1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

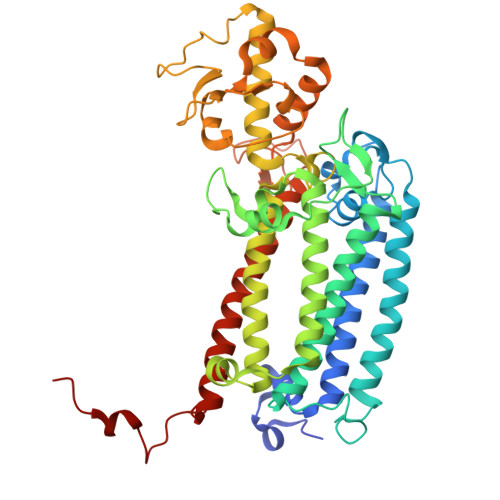

Photosystem II CP43 reaction center proteinC,
V [auth c]		461Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DIF8 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DIF8
Go to UniProtKB:  Q8DIF8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DIF8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

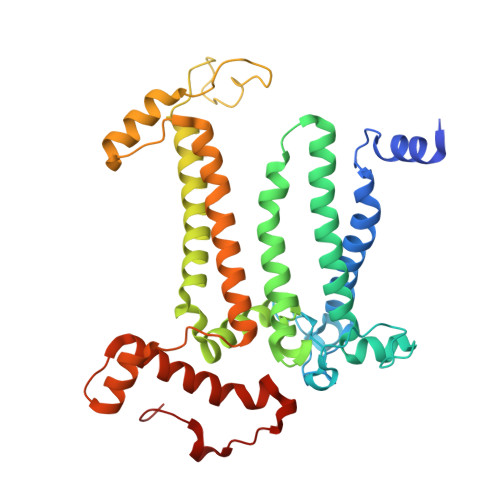

Photosystem II D2 proteinD,
W [auth d]		352Thermosynechococcus vestitus BP-1Mutation(s): 0
EC: 1.10.3.9
UniProt
Find proteins for Q8CM25 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8CM25
Go to UniProtKB:  Q8CM25
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8CM25
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

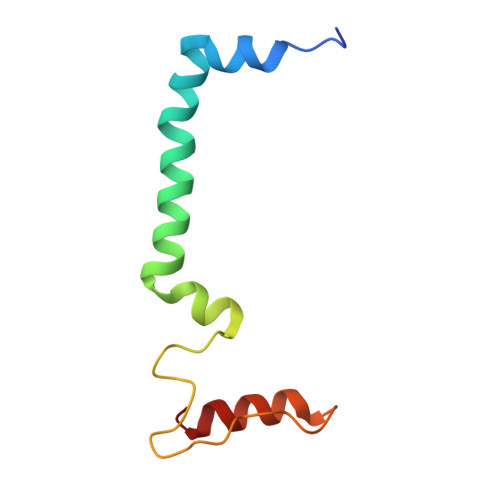

Cytochrome b559 subunit alphaE,
X [auth e]		84Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DIP0 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DIP0
Go to UniProtKB:  Q8DIP0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DIP0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

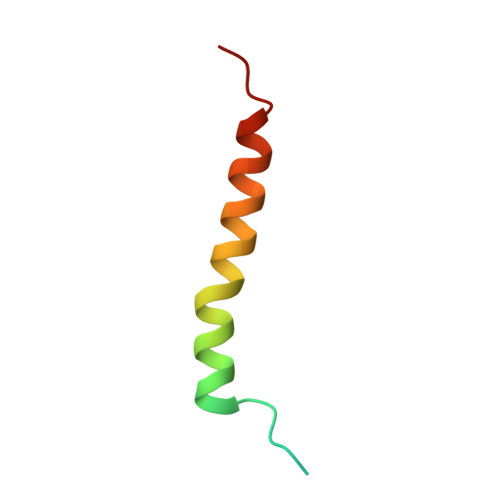

Cytochrome b559 subunit betaF,
Y [auth f]		45Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DIN9 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DIN9
Go to UniProtKB:  Q8DIN9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DIN9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

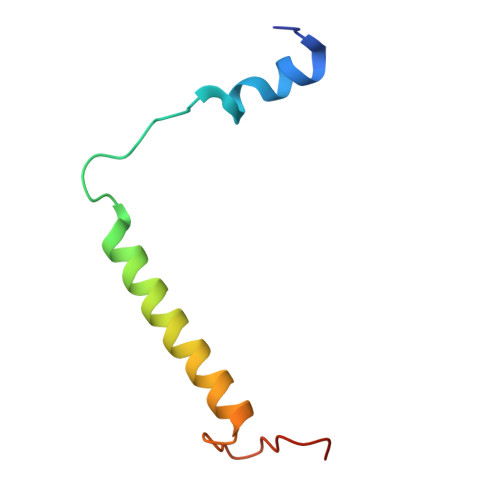

Photosystem II reaction center protein HG [auth H],
Z [auth h]		66Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DJ43 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DJ43
Go to UniProtKB:  Q8DJ43
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DJ43
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

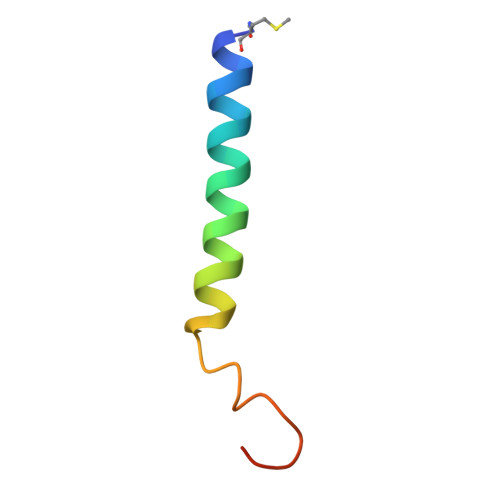

Photosystem II reaction center protein IAA [auth i],
H [auth I]		38Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DJZ6 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DJZ6
Go to UniProtKB:  Q8DJZ6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DJZ6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

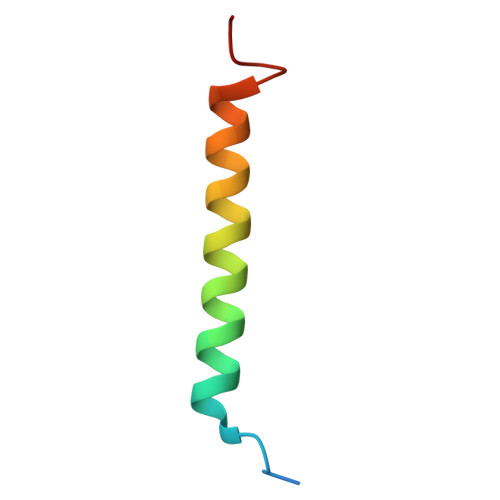

Photosystem II reaction center protein JBA [auth j],
I [auth J]		40Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for P59087 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore P59087
Go to UniProtKB:  P59087
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP59087
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage

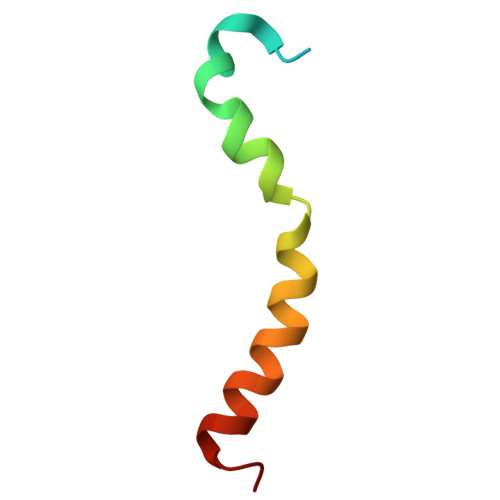

Photosystem II reaction center protein KCA [auth k],
J [auth K]		46Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q9F1K9 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q9F1K9
Go to UniProtKB:  Q9F1K9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9F1K9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein LDA [auth l],
K [auth L]		37Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DIN8 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DIN8
Go to UniProtKB:  Q8DIN8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DIN8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

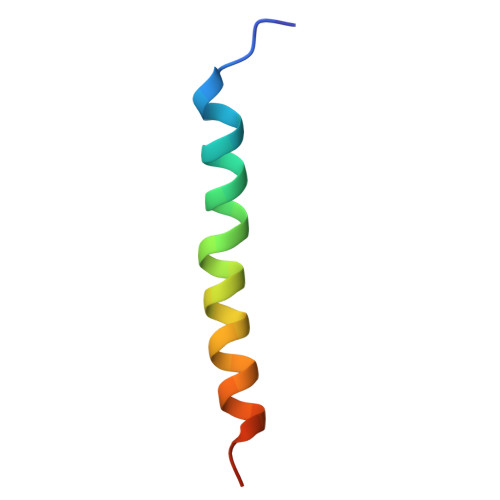

Photosystem II reaction center protein MEA [auth m],
L [auth M]		36Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DHA7 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DHA7
Go to UniProtKB:  Q8DHA7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DHA7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II manganese-stabilizing polypeptideFA [auth o],
M [auth O]		272Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for P0A431 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore P0A431
Go to UniProtKB:  P0A431
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A431
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

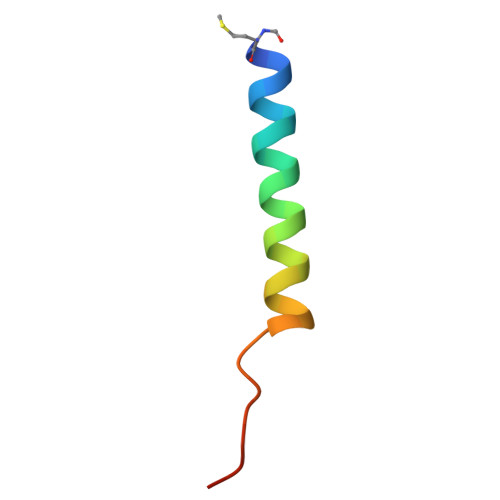

Photosystem II reaction center protein TGA [auth t],
N [auth T]		32Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DIQ0 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DIQ0
Go to UniProtKB:  Q8DIQ0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DIQ0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage

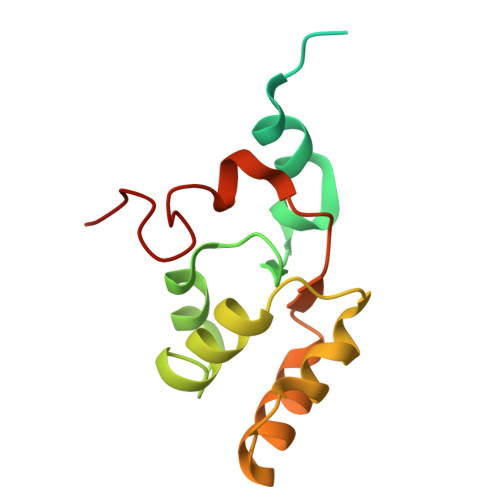

Photosystem II 12 kDa extrinsic proteinHA [auth u],
O [auth U]		134Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q9F1L5 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q9F1L5
Go to UniProtKB:  Q9F1L5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9F1L5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage
Cytochrome c-550IA [auth v],
P [auth V]		163Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for P0A386 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore P0A386
Go to UniProtKB:  P0A386
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A386
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center X proteinJA [auth x],
Q [auth X]		41Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q9F1R6 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q9F1R6
Go to UniProtKB:  Q9F1R6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9F1R6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 18
MoleculeChains  Sequence LengthOrganismDetailsImage

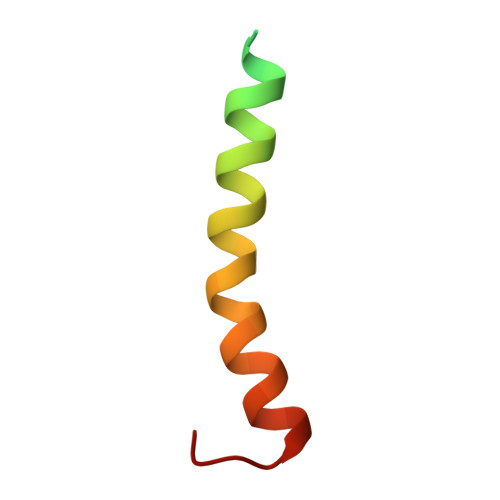

Photosystem II reaction center protein Ycf12KA [auth y],
R [auth Y]		46Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DJI1 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DJI1
Go to UniProtKB:  Q8DJI1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DJI1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage

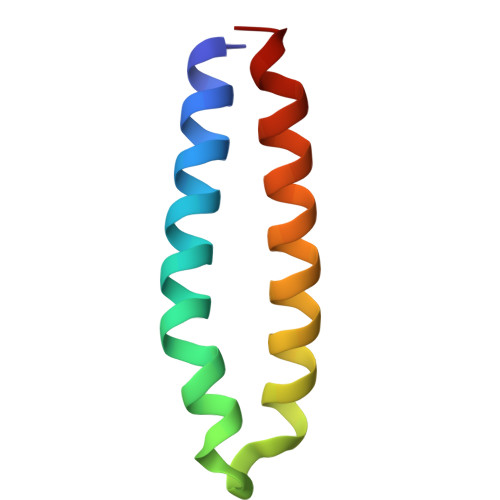

Photosystem II reaction center protein ZLA [auth z],
S [auth Z]		62Thermosynechococcus vestitus BP-1Mutation(s): 0
UniProt
Find proteins for Q8DHJ2 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1))
Explore Q8DHJ2
Go to UniProtKB:  Q8DHJ2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8DHJ2
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 19 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
DGD

Query on DGD


Download:Ideal Coordinates CCD File
CH [auth c]
DE [auth H]
DH [auth c]
EH [auth c]
HI [auth d]
CH [auth c],
DE [auth H],
DH [auth c],
EH [auth c],
HI [auth d],
LE [auth J],
OC [auth C],
PC [auth C],
PI [auth h],
VD [auth D]
DIGALACTOSYL DIACYL GLYCEROL (DGDG)
C51 H96 O15
LDQFLSUQYHBXSX-HXXRYREZSA-N
CLA

Query on CLA


Download:Ideal Coordinates CCD File
AD [auth C]
AI [auth d]
BD [auth C]
BG [auth b]
BI [auth d]
AD [auth C],
AI [auth d],
BD [auth C],
BG [auth b],
BI [auth d],
CD [auth C],
CG [auth b],
DG [auth b],
EG [auth b],
FB [auth B],
FG [auth b],
FH [auth c],
GB [auth B],
GG [auth b],
GH [auth c],
HB [auth B],
HG [auth b],
HH [auth c],
IB [auth B],
IF [auth a],
IG [auth b],
IH [auth c],
JB [auth B],
JF [auth a],
JG [auth b],
JH [auth c],
KB [auth B],
KG [auth b],
KH [auth c],
LB [auth B],
LD [auth D],
LF [auth a],
LG [auth b],
LH [auth c],
MB [auth B],
MG [auth b],
MH [auth c],
NB [auth B],
NG [auth b],
NH [auth c],
OB [auth B],
OG [auth b],
OH [auth c],
PA [auth A],
PB [auth B],
PD [auth D],
PG [auth b],
PH [auth c],
QA [auth A],
QB [auth B],
QC [auth C],
QD [auth D],
QG [auth b],
QH [auth c],
RB [auth B],
RC [auth C],
RH [auth c],
SA [auth A],
SB [auth B],
SC [auth C],
TB [auth B],
TC [auth C],
UB [auth B],
UC [auth C],
VC [auth C],
WC [auth C],
XC [auth C],
YC [auth C],
YH [auth d],
ZC [auth C]
CHLOROPHYLL A
C55 H72 Mg N4 O5
ATNHDLDRLWWWCB-AENOIHSZSA-M
PHO

Query on PHO


Download:Ideal Coordinates CCD File
KF [auth a],
ND [auth D],
RA [auth A],
XF [auth a]		PHEOPHYTIN A
C55 H74 N4 O5
CQIKWXUXPNUNDV-RCBXBCQGSA-N
SQD

Query on SQD


Download:Ideal Coordinates CCD File
AB [auth A]
AJ [auth l]
JI [auth d]
OF [auth a]
UF [auth a]
AB [auth A],
AJ [auth l],
JI [auth d],
OF [auth a],
UF [auth a],
VA [auth A],
WD [auth D],
ZF [auth b]
1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL
C41 H78 O12 S
RVUUQPKXGDTQPG-JUDHQOGESA-N
LMG

Query on LMG


Download:Ideal Coordinates CCD File
BF [auth Y]
BJ [auth m]
ED [auth C]
EI [auth d]
HJ [auth y]
BF [auth Y],
BJ [auth m],
ED [auth C],
EI [auth d],
HJ [auth y],
KD [auth C],
RE [auth M],
SH [auth c],
TD [auth D],
XH [auth c]
1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE
C45 H86 O10
DCLTVZLYPPIIID-CVELTQQQSA-N
PL9

Query on PL9


Download:Ideal Coordinates CCD File
NF [auth a],
OD [auth D],
UA [auth A],
ZH [auth d]		2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE
C53 H80 O2
FKUYMLZIRPABFK-UHFFFAOYSA-N
LHG

Query on LHG


Download:Ideal Coordinates CCD File
CB [auth A]
CI [auth d]
DI [auth d]
PE [auth L]
RD [auth D]
CB [auth A],
CI [auth d],
DI [auth d],
PE [auth L],
RD [auth D],
SD [auth D],
SF [auth a],
XD [auth E],
YF [auth a],
ZI [auth l]
1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
C38 H75 O10 P
BIABMEZBCHDPBV-MPQUPPDSSA-N
HEM

Query on HEM


Download:Ideal Coordinates CCD File
AE [auth E],
FJ [auth v],
MI [auth e],
ZE [auth V]		PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
RRX

Query on RRX


Download:Ideal Coordinates CCD File
EE [auth H],
QI [auth h]		(3R)-beta,beta-caroten-3-ol
C40 H56 O
DMASLKHVQRHNES-FKKUPVFPSA-N
BCR

Query on BCR


Download:Ideal Coordinates CCD File
AG [auth b]
AH [auth c]
BE [auth F]
BH [auth c]
CF [auth Y]
AG [auth b],
AH [auth c],
BE [auth F],
BH [auth c],
CF [auth Y],
IJ [auth y],
KC [auth B],
MC [auth C],
MF [auth a],
NC [auth C],
NI [auth f],
OE [auth K],
RG [auth b],
SG [auth b],
TA [auth A],
VB [auth B],
WB [auth B],
XB [auth B],
XE [auth T],
YI [auth k]
BETA-CAROTENE
C40 H56
OENHQHLEOONYIE-JLTXGRSLSA-N
LMT

Query on LMT


Download:Ideal Coordinates CCD File
BC [auth B]
CJ [auth m]
DD [auth C]
DF [auth Z]
EB [auth A]
BC [auth B],
CJ [auth m],
DD [auth C],
DF [auth Z],
EB [auth A],
GC [auth B],
IC [auth B],
JJ [auth z],
LC [auth B],
ME [auth J],
OI [auth f],
SE [auth M],
SI [auth i],
VE [auth T],
VI [auth j],
YE [auth T],
YG [auth b]
DODECYL-BETA-D-MALTOSIDE
C24 H46 O11
NLEBIOOXCVAHBD-QKMCSOCLSA-N
OEX
(Subject of Investigation/LOI)

Query on OEX


Download:Ideal Coordinates CCD File
TF [auth a],
ZA [auth A]		CA-MN4-O5 CLUSTER
Ca Mn4 O5
SEXWDHMBWJEXOJ-UHFFFAOYSA-N
LFA

Query on LFA


Download:Ideal Coordinates CCD File
CC [auth B]
EC [auth B]
FE [auth H]
FI [auth d]
GD [auth C]
CC [auth B],
EC [auth B],
FE [auth H],
FI [auth d],
GD [auth C],
GI [auth d],
HE [auth I],
IE [auth I],
JC [auth B],
JE [auth I],
KE [auth J],
NE [auth J],
QF [auth a],
RF [auth a],
RI [auth i],
TI [auth i],
UI [auth i],
VF [auth a],
VG [auth b],
WE [auth T],
WG [auth b],
XA [auth A],
YB [auth B],
YD [auth E]
EICOSANE
C20 H42
CBFCDTFDPHXCNY-UHFFFAOYSA-N
PLM

Query on PLM


Download:Ideal Coordinates CCD File
AC [auth B]
AF [auth X]
CE [auth F]
DC [auth B]
EJ [auth t]
AC [auth B],
AF [auth X],
CE [auth F],
DC [auth B],
EJ [auth t],
FC [auth B],
FD [auth C],
GE [auth H],
GJ [auth x],
HC [auth B],
HD [auth C],
ID [auth C],
II [auth d],
JD [auth C],
KI [auth e],
LI [auth e],
MD [auth D],
PF [auth a],
QE [auth L],
TE [auth M],
TG [auth b],
TH [auth c],
UD [auth D],
UG [auth b],
UH [auth c],
VH [auth c],
WA [auth A],
WH [auth c],
WI [auth j],
XG [auth b],
XI [auth j],
YA [auth A],
ZB [auth B],
ZD [auth E],
ZG [auth b]
PALMITIC ACID
C16 H32 O2
IPCSVZSSVZVIGE-UHFFFAOYSA-N
GOL

Query on GOL


Download:Ideal Coordinates CCD File
DB [auth A],
EF [auth a]		GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
BCT

Query on BCT


Download:Ideal Coordinates CCD File
BB [auth A],
WF [auth a]		BICARBONATE ION
C H O3
BVKZGUZCCUSVTD-UHFFFAOYSA-M
FE2

Query on FE2


Download:Ideal Coordinates CCD File
FF [auth a],
MA [auth A]		FE (II) ION
Fe
CWYNVVGOOAEACU-UHFFFAOYSA-N
CA

Query on CA


Download:Ideal Coordinates CCD File
DJ [auth o],
UE [auth O]		CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
CL

Query on CL


Download:Ideal Coordinates CCD File
GF [auth a],
HF [auth a],
NA [auth A],
OA [auth A]		CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
FME
Query on FME		AA [auth i],
H [auth I]		L-PEPTIDE LINKINGC6 H11 N O3 SMET

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONRELION4.0.0
MODEL REFINEMENTPHENIXdev_4933+SVN

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/I00937X/1
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/V002007/1

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-30
    Type: Initial release
