 8VOS | pdb_00008vos

Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 60 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8VOS

This is version 1.1 of the entry. See complete history.

Literature

Structural basis of long-range transcription-translation coupling.

Wang, C., Molodtsov, V., Shandilya, S., You, L., Zhang, J., Kuznedelov, K., Nickels, B.E., Kaelber, J.T., Blaha, G., Ebright, R.H.

(2026) Proc Natl Acad Sci U S A 123: e2528970123-e2528970123

  • DOI: https://doi.org/10.1073/pnas.2528970123
  • Primary Citation Related Structures:
    8VKV, 8VL1, 8VOO, 8VOP, 8VOQ, 8VOR, 8VOS, 9W0N, 9Y79

  • PubMed Abstract:

    Structures recently have been reported of molecular assemblies that mediate transcription-translation coupling in Escherichia coli . In these molecular assemblies, termed "coupled transcription-translation complexes" or "TTC-B," RNA polymerase (RNAP) directly interacts with the ribosome, the transcription elongation factor NusG or its paralog RfaH forms a bridge between RNAP and ribosome, and the transcription elongation factor NusA optionally forms a second bridge between RNAP and ribosome. Here, we report structures of coupled transcription-translation complexes having mRNA spacers between RNAP and ribosome longer than the maximum-length mRNA spacer compatible with formation of TTC-B. The results define a class of coupled transcription-translation complex, termed "TTC-LC," where "LC" denotes "long-range coupling." TTC-LC differs from TTC-B by a ~60° rotation and ~70 Å translation of RNAP relative to ribosome, resulting in loss of direct interactions between RNAP and ribosome and creation of a ~70 Å gap between RNAP and ribosome. TTC-LC accommodates long mRNA spacers by looping out mRNA from the gap between RNAP and ribosome. We present evidence that TTC-LC is a functional intermediate in assembling and disassembling TTC-B, mediating pre-TTC-B transcription-translation coupling before a ribosome catches up to RNAP, and mediating post-TTC-B transcription-translation coupling after a ribosome stops moving and RNAP continues moving. We show that TTC-B, but not TTC-LC, is severely defective in RNA-hairpin-dependent transcription termination, and that both TTC-B and TTC-LC are severely defective in Rho-dependent transcription termination.


  • Organizational Affiliation:
    • Waksman Institute and Department of Chemistry and Chemical Biology, Rutgers University, Piscataway, NJ 08854.

Macromolecule Content

  • Total Structure Weight: 2,806.39 kDa
  • Atom Count: 181,260
  • Modeled Residue Count: 14,971
  • Deposited Residue Count: 15,939
  • Unique protein chains: 59
  • Unique nucleic acid chains: 7

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Ribosomal protein L21A [auth 0]103Escherichia coliMutation(s): 0
UniProt
Find proteins for P0AG48 (Escherichia coli (strain K12))
Explore P0AG48
Go to UniProtKB:  P0AG48
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG48
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L22B [auth 1]110Escherichia coliMutation(s): 0
Gene Names: rplV, eryB, b3315, JW3277
UniProt
Find proteins for P61175 (Escherichia coli (strain K12))
Explore P61175
Go to UniProtKB:  P61175
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61175
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L23C [auth 2]100Escherichia coliMutation(s): 0
Gene Names:
rplW, rplW_1, A5U30_004552, A8502_004023, A9X72_02185, ACN81_25520, ACU57_20960, AM464_09220, AW118_24900, AWP47_12645, B6R15_004069, B6R31_004968, BANRA_04328, BCB93_004293, BER14_25190, BF481_004930, BG944_001133, BGM66_003593, BJI68_08675, BJJ90_02125, BK292_20505, BK383_24645, BKL28_004543, BTB68_004356, BTQ06_10690, BvCmsKKP061_03030, BvCmsSIP010_02685, BXT93_05475, C0P57_002668, C1Q91_004904, C2121_004162, C2M16_25405, C2R31_004633, C3F40_19720, C9E67_02725, C9Z68_22635, CA593_09650, CF22_004849, CG692_20185, CG704_20870, CG831_003649, CIG67_10675, CQ986_004881, CR538_02420, CR539_21900, CR628_001366, CTR35_003630, CV83915_02780, CY655_21320, D1912_09370, D3C88_31150, D3G36_23050, D4M65_20655, D4N09_20255, D9D43_22550, D9E49_05240, D9J61_16735, DD762_23630, DIV22_15175, DNQ45_03840, DNX30_25395, DQ87_004776, DS732_24345, DTL43_20915, DU321_12085, E4K51_21575, E5H86_24440, E6D34_21675, EAI46_07560, EC95NR1_02709, ECs4183, EEP55_004492, EIA08_24040, EIZ93_12385, EN85_004349, EPS76_07130, EPS97_20010, EWK56_25080, ExPECSC038_03640, F7F11_22640, F7N46_23925, F9407_19210, F9413_21150, F9461_25570, F9B07_24600, FEJ01_22430, FIJ20_21110, FJQ40_18390, FKO60_25720, FOI11_019175, FOI11_04005, FPI65_20390, FPS11_25345, FTV92_20630, FV293_22380, FVB16_04955, FWK02_12650, FZN31_02550, FZU14_21905, G3V95_19930, G3W53_21040, G4A38_21595, G4A47_20865, G5603_24670, G8C01_22470, G9448_16990, GAI89_24745, GAJ12_24635, GGB84_004451, GJ11_21470, GKF66_21630, GNW61_16715, GOP25_22790, GP711_23390, GP954_00860, GP965_04380, GP975_01270, GP979_01920, GQA06_03865, GQM04_10650, GQM13_25285, GQM21_11315, GQN34_23350, GQW07_21465, GRO95_20730, GRW05_09145, GRW24_04670, GRW56_00380, GRW57_03455, GTP92_23110, GUC01_21265, H0O72_19500, HCQ42_003932, HEP30_018720, HEP34_004754, HHH44_004519, HI055_004156, HIE29_005203, HJQ60_004995, HLX92_09990, HLZ50_22095, HMV95_19690, HV109_02105, HV146_21755, HV209_14630, HVW04_17450, HVW43_18585, HVY77_02090, HVZ29_19180, HX086_19490, HX136_02110, I0E88_004501, I6H00_20840, I6H02_12075, IFB95_004822, IUC12_004844, J0541_004413, J5U05_004071, JNP96_25390, KV259_004342, KV317_004314, KV371_004328, KV406_004321, KV449_004356, KV455_004319, KV463_004341, KV469_004334, KV499_004405, KV500_004292, NCTC10082_02823, NCTC10089_00486, NCTC10090_03511, NCTC10418_00674, NCTC10429_01077, NCTC10764_03847, NCTC10767_01500, NCTC10865_00642, NCTC10974_00533, NCTC11112_01052, NCTC11124_04730, NCTC11126_02754, NCTC11181_02722, NCTC11341_01905, NCTC12950_00463, NCTC13148_03456, NCTC4450_02459, NCTC7927_00535, NCTC7928_02533, NCTC8009_01493, NCTC8179_05925, NCTC8333_00473, NCTC8500_00318, NCTC8621_00492, NCTC8622_00522, NCTC8959_03277, NCTC8960_03054, NCTC8985_04965, NCTC9001_04236, NCTC9044_01376, NCTC9045_00549, NCTC9073_00398, NCTC9075_00708, NCTC9081_00901, NCTC9117_00740, NCTC9702_00521, NCTC9706_02721, NCTC9962_06781, NEP60_26375, O5851_12245, RG28_21695, SAMEA3752557_01968, TUM18780_04200

UniProt
Find proteins for P0ADZ0 (Escherichia coli (strain K12))
Explore P0ADZ0
Go to UniProtKB:  P0ADZ0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADZ0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L24D [auth 3]104Escherichia coliMutation(s): 0
Gene Names:
rplX, A8502_004032, A9X72_02230, ACN81_25475, ACU57_21005, AM464_09175, AW118_24855, AWP47_12690, B6R15_004078, B6R31_004977, BANRA_04319, BCB93_004284, BER14_25145, BF481_004939, BG944_001124, BGM66_003602, BJI68_08720, BJJ90_02170, BK292_20460, BK383_24690, BKL28_004552, BTB68_004365, BTQ06_10645, BvCmsKKP061_03021, BvCmsSIP010_02676, BXT93_05520, C0P57_002659, C1Q91_004913, C2121_004171, C2M16_25450, C2R31_004624, C3F40_19765, C9E67_02770, C9Z68_22590, CA593_09695, CF22_004858, CG704_20915, CG831_003640, CIG67_10720, CQ986_004890, CR538_02465, CR539_21855, CR628_001357, CTR35_003621, CV83915_02789, CY655_21275, D4M65_20610, D9D43_22595, DD762_23585, DIV22_15220, DNQ45_03795, DNX30_25440, DQ87_004785, DS732_24300, DTL43_20960, DU321_12040, E4K51_21530, E5H86_24485, E6D34_21720, EAI46_07515, EC95NR1_02700, ECs4174, EEP55_004501, EIA08_23995, EIZ93_12430, EN85_004358, EPS97_20055, ExPECSC038_03649, F7F11_22685, F7N46_23970, F9407_19255, F9413_21195, F9461_25615, F9B07_24645, FEJ01_22475, FIJ20_21155, FJQ40_18345, FKO60_25675, FOI11_019220, FOI11_03960, FPS11_25390, FTV92_20675, FTV93_20860, FV293_22425, FVB16_04910, FWK02_06310, FZN31_02595, FZU14_21860, G3V95_19885, G4A38_21550, G4A47_20820, G5603_24625, G8C01_22515, G9448_17035, GAI89_24790, GAJ12_24680, GJ11_21425, GKF66_21585, GNW61_16670, GOP25_22745, GP954_00905, GP965_04335, GP975_01225, GP979_01965, GQA06_03910, GQM04_10605, GQM13_25240, GQM21_11270, GQW07_21510, GRO95_20775, GRW05_09100, GRW24_04715, GRW56_00335, GRW57_03500, GTP92_23155, GUC01_21220, H0O72_19455, HCQ42_003941, HEP30_018675, HEP34_004763, HHH44_004528, HI055_004147, HJQ60_005004, HLX92_10035, HLZ50_22140, HMV95_19645, HV109_02150, HV146_21710, HV209_14675, HVW04_17495, HVW43_18630, HVY77_02135, HVZ29_19135, HX086_19445, HX136_02155, I0E88_004510, I6H00_20885, I6H02_12030, IUC12_004853, J0541_004404, J5U05_004080, JNP96_25345, KV259_004351, KV317_004323, KV371_004337, KV406_004330, KV449_004365, KV455_004328, KV463_004350, KV469_004343, KV499_004414, KV500_004301, NCTC10082_02832, NCTC10418_00684, NCTC10764_03856, NCTC10865_00652, NCTC10974_00542, NCTC11124_04721, NCTC11181_02731, NCTC11341_01896, NCTC12950_00472, NCTC7922_04049, NCTC7927_00544, NCTC8009_01504, NCTC8179_05935, NCTC8333_00482, NCTC8500_00327, NCTC8621_00501, NCTC8622_00513, NCTC8960_03063, NCTC8985_04975, NCTC9044_01365, NCTC9045_00558, NCTC9077_00597, NCTC9117_00749, NCTC9702_00530, NCTC9706_02730, NEP60_26330, O5851_12290, RG28_21650, SAMEA3752557_01959, TUM18780_04290, WR15_19645

UniProt
Find proteins for P60624 (Escherichia coli (strain K12))
Explore P60624
Go to UniProtKB:  P60624
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60624
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL25E [auth 4]94Escherichia coliMutation(s): 0
Gene Names: rplY
UniProt
Find proteins for P68919 (Escherichia coli (strain K12))
Explore P68919
Go to UniProtKB:  P68919
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68919
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L10I [auth 9]165Escherichia coliMutation(s): 0
Gene Names: rplJ, b3985, JW3948
UniProt
Find proteins for P0A7J3 (Escherichia coli (strain K12))
Explore P0A7J3
Go to UniProtKB:  P0A7J3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7J3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit betaK [auth AA]1,342Escherichia coliMutation(s): 0
Gene Names: rpoB, groN, nitB, rif, ron, stl, stv, tabD, b3987, JW3950
EC: 2.7.7.6
UniProt
Find proteins for P0A8V2 (Escherichia coli (strain K12))
Explore P0A8V2
Go to UniProtKB:  P0A8V2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A8V2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription termination/antitermination protein NusGL [auth AB]181Escherichia coliMutation(s): 0
Gene Names: nusG, Z5555, ECs4905
UniProt
Find proteins for P0AFG0 (Escherichia coli (strain K12))
Explore P0AFG0
Go to UniProtKB:  P0AFG0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AFG0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit alphaM [auth AC],
N [auth AD]
329Escherichia coliMutation(s): 0
Gene Names: rpoA, pez, phs, sez, b3295, JW3257
EC: 2.7.7.6
UniProt
Find proteins for P0A7Z4 (Escherichia coli (strain K12))
Explore P0A7Z4
Go to UniProtKB:  P0A7Z4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Z4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit beta'O [auth AE]1,407Escherichia coliMutation(s): 0
Gene Names: rpoC, tabB, b3988, JW3951
EC: 2.7.7.6
UniProt
Find proteins for P0A8T7 (Escherichia coli (strain K12))
Explore P0A8T7
Go to UniProtKB:  P0A8T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A8T7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit omegaP [auth AF]91Escherichia coliMutation(s): 0
Gene Names: rpoZ, b3649, JW3624
EC: 2.7.7.6
UniProt
Find proteins for P0A800 (Escherichia coli (strain K12))
Explore P0A800
Go to UniProtKB:  P0A800
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A800
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription termination/antitermination protein NusAQ [auth AG]495Escherichia coliMutation(s): 0
Gene Names: nusA
UniProt
Find proteins for P0AFF6 (Escherichia coli (strain K12))
Explore P0AFF6
Go to UniProtKB:  P0AFF6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AFF6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS18S [auth C]75Escherichia coliMutation(s): 0
Gene Names: rpsR
UniProt
Find proteins for P0A7T7 (Escherichia coli (strain K12))
Explore P0A7T7
Go to UniProtKB:  P0A7T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS20U [auth E]87Escherichia coliMutation(s): 0
Gene Names: rpsT
UniProt
Find proteins for P0A7U7 (Escherichia coli (strain K12))
Explore P0A7U7
Go to UniProtKB:  P0A7U7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7U7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 20
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS21V [auth F]71Escherichia coliMutation(s): 0
Gene Names: rpsU
UniProt
Find proteins for P68679 (Escherichia coli (strain K12))
Explore P68679
Go to UniProtKB:  P68679
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68679
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 21
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S2W [auth G]241Escherichia coliMutation(s): 0
Gene Names: rpsB
UniProt
Find proteins for P0A7V0 (Escherichia coli (strain K12))
Explore P0A7V0
Go to UniProtKB:  P0A7V0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 22
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS1X [auth H]557Escherichia coliMutation(s): 0
Gene Names: rpsA, Z1257, ECs0994
UniProt
Find proteins for P0AG67 (Escherichia coli (strain K12))
Explore P0AG67
Go to UniProtKB:  P0AG67
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG67
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 23
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS3Y [auth I]233Escherichia coliMutation(s): 0
Gene Names: rpsC
UniProt
Find proteins for P0A7V3 (Escherichia coli (strain K12))
Explore P0A7V3
Go to UniProtKB:  P0A7V3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 24
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS4Z [auth J]206Escherichia coliMutation(s): 0
Gene Names: rpsD, ramA, b3296, JW3258
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12))
Explore P0A7V8
Go to UniProtKB:  P0A7V8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 25
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS5AA [auth K]167Escherichia coliMutation(s): 0
Gene Names: rpsE, spc, b3303, JW3265
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12))
Explore P0A7W1
Go to UniProtKB:  P0A7W1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 26
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS6BA [auth L]135Escherichia coliMutation(s): 0
Gene Names: rpsF, b4200, JW4158
UniProt
Find proteins for P02358 (Escherichia coli (strain K12))
Explore P02358
Go to UniProtKB:  P02358
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02358
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 27
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS7CA [auth M]179Escherichia coliMutation(s): 0
Gene Names: rpsG, b3341, JW3303
UniProt
Find proteins for P02359 (Escherichia coli (strain K12))
Explore P02359
Go to UniProtKB:  P02359
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02359
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 28
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS8DA [auth N]130Escherichia coliMutation(s): 0
Gene Names: rpsH
UniProt
Find proteins for P0A7W7 (Escherichia coli (strain K12))
Explore P0A7W7
Go to UniProtKB:  P0A7W7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 29
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS9EA [auth O]130Escherichia coliMutation(s): 0
Gene Names: rpsI
UniProt
Find proteins for P0A7X3 (Escherichia coli (strain K12))
Explore P0A7X3
Go to UniProtKB:  P0A7X3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7X3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 30
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS10FA [auth P]103Escherichia coliMutation(s): 0
Gene Names: rpsJ
UniProt
Find proteins for P0A7R5 (Escherichia coli (strain K12))
Explore P0A7R5
Go to UniProtKB:  P0A7R5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 31
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S11GA [auth Q]129Escherichia coliMutation(s): 0
Gene Names: rpsK
UniProt
Find proteins for P0A7R9 (Escherichia coli (strain K12))
Explore P0A7R9
Go to UniProtKB:  P0A7R9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 32
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S12HA [auth R]124Escherichia coliMutation(s): 0
Gene Names: rpsL, strA, b3342, JW3304
UniProt
Find proteins for P0A7S3 (Escherichia coli (strain K12))
Explore P0A7S3
Go to UniProtKB:  P0A7S3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7S3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 33
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS14IA [auth S]101Escherichia coliMutation(s): 0
Gene Names: rpsN, NCTC9073_00385
UniProt
Find proteins for P0AG59 (Escherichia coli (strain K12))
Explore P0AG59
Go to UniProtKB:  P0AG59
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG59
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 34
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS15JA [auth T]89Escherichia coliMutation(s): 0
Gene Names: rpsO
UniProt
Find proteins for P0ADZ4 (Escherichia coli (strain K12))
Explore P0ADZ4
Go to UniProtKB:  P0ADZ4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADZ4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 35
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein bS16KA [auth U]82Escherichia coliMutation(s): 0
Gene Names: rpsP
UniProt
Find proteins for P0A7T3 (Escherichia coli (strain K12))
Explore P0A7T3
Go to UniProtKB:  P0A7T3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 36
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS17LA [auth V]84Escherichia coliMutation(s): 0
Gene Names: rpsQ
UniProt
Find proteins for P0AG63 (Escherichia coli (strain K12))
Explore P0AG63
Go to UniProtKB:  P0AG63
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG63
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 37
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS19MA [auth W]92Escherichia coliMutation(s): 0
Gene Names: rpsS
UniProt
Find proteins for P0A7U3 (Escherichia coli (strain K12))
Explore P0A7U3
Go to UniProtKB:  P0A7U3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7U3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 38
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS13NA [auth X]118Escherichia coliMutation(s): 0
Gene Names: rpsM, G711_03878
UniProt
Find proteins for P0A7S9 (Escherichia coli (strain K12))
Explore P0A7S9
Go to UniProtKB:  P0A7S9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7S9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 39
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L11OA [auth Y]142Escherichia coliMutation(s): 0
Gene Names: rplK, relC, b3983, JW3946
UniProt
Find proteins for P0A7J7 (Escherichia coli (strain K12))
Explore P0A7J7
Go to UniProtKB:  P0A7J7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7J7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 40
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL12PA [auth Z]121Escherichia coliMutation(s): 0
Gene Names:
rplL, A2J79_004435, A5U30_004587, ABE91_020830, ACU57_23195, AWP47_16720, B6R15_000402, B6R31_004824, BANRA_00090, BANRA_02961, BANRA_05058, BCB93_004499, BG944_004750, BGM66_002188, BK300_15065, BK383_27730, BKL28_004341, BMT50_08100, BMT91_03295, BRV02_004441, BTB68_004075, BTQ06_27275, BvCmsKKP061_02984, BXT93_25165, C0P57_003016, C1Q91_004814, C2M16_25120, C2R31_004868, C3F40_15470, C6669_07605, C719_004809, C7B02_25775, C9160_23390, C9194_21585, C9Z68_22025, CCS08_08130, CF22_004729, CG702_19645, CIG67_06960, CQ842_10390, CQ842_21780, CR538_24220, CTR35_004064, CWS33_24560, D3G36_22415, D4M65_19265, D4N09_21560, D9D43_22305, D9E49_24265, D9J61_19505, DD762_22290, DIV22_03735, DL968_14800, DNQ45_05175, DNX30_24155, DS732_01540, DTL43_13710, DU321_23435, E2863_04083, E4K51_22910, E5H86_23035, E6D34_20870, EAI46_11705, ECs4909, EIA08_23400, EIZ93_16325, EN85_004183, EPS76_13580, EPS97_19160, EWK56_25660, ExPECSC038_04329, EXX87_24990, F7F11_23825, F7N46_22870, F9413_20755, F9461_25100, F9B07_23660, FGAF848_44570, FIJ20_20100, FJQ40_20825, FKO60_24825, FOI11_015720, FOI11_24360, FPI65_24515, FPS11_24515, FTV93_16950, FV293_23420, FVB16_05300, FZU14_22845, G3V95_20440, G3W53_22325, G4A38_22930, G4A47_22790, G5603_24110, GAI89_24235, GAJ12_23545, GKF66_20535, GNW61_19020, GNZ05_25250, GOP25_23370, GP711_23605, GP944_20380, GP954_05265, GP965_06580, GP975_06490, GP979_07410, GQA06_03460, GQM04_07510, GQM21_14975, GQN24_22100, GRC73_22180, GRW05_10065, GRW24_04155, GTP92_22605, GUC01_23015, HEP30_021885, HEP34_005295, HHH44_004415, HI055_004309, HIE29_005266, HJQ60_004918, HKA49_004954, HLX92_23675, HLZ39_21235, HLZ50_21720, HMV95_21220, HV109_22430, HV209_21200, HVV39_13130, HVW04_13840, HVW43_14990, HVY77_24380, HX136_23645, I6H02_15710, IFC14_004534, IH772_15225, J0541_004715, J5U05_003961, J8F57_004531, JNA68_24645, JNP96_01270, NCTC10082_02083, NCTC10279_03474, NCTC10429_00090, NCTC10764_02974, NCTC10865_05897, NCTC10974_05353, NCTC11112_02279, NCTC11126_05452, NCTC11181_01967, NCTC11341_02772, NCTC7922_04997, NCTC7927_05251, NCTC7928_03628, NCTC8009_08435, NCTC8179_05098, NCTC8333_05560, NCTC8500_05327, NCTC8603_04078, NCTC8621_04874, NCTC8622_01626, NCTC8960_02342, NCTC8985_04032, NCTC9001_04471, NCTC9044_02302, NCTC9045_05544, NCTC9075_06429, NCTC9077_05938, NCTC9117_05906, NCTC9702_05641, NCTC9706_02005, NCTC9962_06032, NOI85_25205, NY836_12435, OFN31_22165, OGM49_00570, P6223_004405, PWL68_004987, Q2V20_25675, Q2V64_25165, QDW62_24500, QO046_17555, R8G00_17440, R8O40_005074, RZR61_19910, SAMEA3472044_04876, SAMEA3752557_04841, V9Z47_24995, WR15_01480

UniProt
Find proteins for P0A7K2 (Escherichia coli (strain K12))
Explore P0A7K2
Go to UniProtKB:  P0A7K2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7K2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 42
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL27RA [auth b]85Escherichia coliMutation(s): 0
Gene Names: rpmA
UniProt
Find proteins for P0A7L8 (Escherichia coli (strain K12))
Explore P0A7L8
Go to UniProtKB:  P0A7L8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7L8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 43
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L28SA [auth c]78Escherichia coliMutation(s): 0
Gene Names: rpmB, ECVG_03476
UniProt
Find proteins for P0A7M2 (Escherichia coli (strain K12))
Explore P0A7M2
Go to UniProtKB:  P0A7M2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7M2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 45
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL29UA [auth e]63Escherichia coliMutation(s): 0
Gene Names:
rpmC, A5U30_004546, A8502_004029, ACN81_25490, ACU57_20990, AW118_24870, AWP47_12675, B6R15_004075, B6R31_004974, BANRA_01943, BANRA_04322, BE932_15505, BER14_25160, BG944_001127, BGM66_003599, BGZ_02596, BGZ_04119, BJI68_08705, BK292_20475, BK383_24675, BKL28_004549, BTB68_004362, BTQ06_10660, BvCmsKKP061_03024, BvCmsSIP010_02679, BXT93_05505, C0P57_002662, C1Q91_004910, C2121_004168, C2M16_25435, C2R31_004627, C3F40_19750, C9Z68_22605, CF22_004855, CG704_20900, CG831_003643, CIG67_10705, CTR35_003624, CV83915_02786, D3G36_23080, D4M65_20625, D4N09_20225, D9D43_22580, D9E49_05210, D9J61_16705, DD762_23600, DIV22_15205, DNQ45_03810, DNX30_25425, DS732_24315, DTL43_20945, DU321_12055, E4K51_21545, E5H86_24470, E6D34_21705, EAI46_07530, ECs4177, EIA08_24010, EIMP300_17750, EIZ93_12415, EN85_004355, EPS76_07160, EPS97_20040, EWK56_25050, ExPECSC038_03646, F7F11_22670, F7N46_23955, F9413_21180, F9461_25600, F9B07_24630, FGAF848_25910, FIJ20_21140, FJQ40_18360, FKO60_25690, FOI11_019205, FOI11_03975, FORC44_0486, FPI65_20360, FPS11_25375, FTV93_20845, FVB16_04925, FWK02_06325, FZU14_21875, G3V95_19900, G3W53_21010, G4A38_21565, G4A47_20835, G5603_24640, GAI89_24775, GAJ12_24665, GKF66_21600, GNW61_16685, GOP25_22760, GP711_23360, GP954_00890, GP965_04350, GP975_01240, GP979_01950, GQA06_03895, GQE86_20135, GQM04_10620, GQM13_25255, GQM21_11285, GQN34_23320, GQW07_21495, GRC73_21695, GRO95_20760, GRW05_09115, GRW24_04700, GRW56_00350, GRW57_03485, GUC01_21235, H0O72_19470, HEP30_018690, HEP34_004760, HHH44_004525, HI055_004150, HIE29_005197, HJQ60_005001, HLX92_10020, HLZ50_22125, HMV95_19660, HV109_02135, HV209_14660, HVV39_09320, HVW04_17480, HVW43_18615, HVY77_02120, I6H00_20870, I6H02_12045, IFB95_004816, J0541_004407, J5U05_004077, JNP96_25360, KV499_004411, NCTC10082_02829, NCTC10089_00492, NCTC10418_00681, NCTC10429_01084, NCTC10764_03853, NCTC10767_01506, NCTC10865_00649, NCTC10974_00539, NCTC11126_02760, NCTC11181_02728, NCTC11341_01899, NCTC7922_04052, NCTC7927_00541, NCTC7928_02527, NCTC8009_01501, NCTC8179_05932, NCTC8333_00479, NCTC8500_00324, NCTC8621_00498, NCTC8622_00516, NCTC8959_03271, NCTC8960_03060, NCTC8985_04972, NCTC9001_04244, NCTC9044_01368, NCTC9045_00555, NCTC9075_00714, NCTC9077_00594, NCTC9081_00907, NCTC9117_00746, NCTC9702_00527, NCTC9706_02727, NCTC9962_06787, NEP60_26345, OGM49_22385, QDW62_02140, RZR61_12945, SAMEA3472112_00683, SAMEA3752557_01962, WR15_19660

UniProt
Find proteins for P0A7M6 (Escherichia coli (strain K12))
Explore P0A7M6
Go to UniProtKB:  P0A7M6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7M6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 46
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L30VA [auth f]59Escherichia coliMutation(s): 0
Gene Names:
rpmD, A5U30_004536, A6592_25715, A8499_003316, A8502_004039, A9X72_02265, AC065_15925, ACN81_25440, ACU57_21040, AM464_09140, APX88_16155, AW118_24820, AWP47_12725, B6R12_002823, B6R15_004085, B6R17_004958, B6R31_004984, B6R48_005051, B6R87_004961, BANRA_04312, BB540_01660, BER14_25110, BF481_004946, BG944_001117, BGM66_003609, BHS81_19755, BJI68_08755, BJJ90_02205, BK292_20425, BK383_24725, BKL28_004559, BMT50_12295, BMT91_19990, BR158_003774, BTB68_004372, BTQ06_10610, BUO55_004713, BvCmsKKP061_03014, BvCmsSIP010_02669, BXT93_05555, BZL69_25950, C0P57_002652, C1Q91_004920, C2121_004178, C2M16_25485, C2R31_004617, C3F40_19800, C5N07_23570, C9E67_02805, C9Z68_22555, CA593_09730, CCS08_00135, CCU84_002918, CDL36_25590, CF22_004865, CG692_20265, CG704_20950, CG831_003633, CIG67_10755, CQ986_004897, CQB02_00630, CR538_02500, CR539_21820, CR628_001350, CRM83_22925, CTR35_003614, CV83915_02796, CWS33_24860, CX938_003815, CY655_21240, D1912_11425, D3G36_23130, D4M65_20575, D4N09_20175, D6T60_05695, D9D43_22630, D9E34_23605, D9E49_05160, D9H94_20830, D9J03_20055, D9J61_16655, DD762_23550, DIV22_15255, DNQ45_03760, DNX30_25475, DS732_24265, DTL43_20995, DTL90_24695, DTM45_24550, DU321_12005, E0I52_20145, E4K51_21495, E5H86_24520, E6D34_21755, EA239_22795, EAI46_07480, EB534_RS01705, EC95NR1_02693, ECs4167, EIA08_23960, EIZ93_12465, EN85_004365, EPS76_07210, EPS97_20090, ERS085406_04406, ERS139208_04354, EWK56_25000, ExPECSC038_03656, F3P10_05565, F7F11_22720, F7N46_24005, F9413_21230, F9461_25650, F9B07_24680, FA868_22750, FEJ01_22510, FFF58_25450, FGG80_25130, FHD44_21270, FHQ97_20115, FIJ20_21190, FJQ40_18310, FKO60_25640, FN993_004711, FOI11_019255, FOI11_03925, FPI65_20310, FPS11_25425, FTV92_20710, FTV93_20895, FV293_22460, FVB16_04875, FWK02_06275, FZN31_02630, FZU14_21825, G3V95_19850, G3W53_20960, G4A38_21515, G4A47_20785, G5603_24590, G9448_17070, GAI89_24825, GAJ12_24715, GAJ26_22015, GGB84_004467, GIB53_19395, GJ11_21390, GKF52_21245, GKF66_21550, GKF89_18475, GNW61_16635, GOP14_004273, GOP25_22710, GP711_23310, GP954_00940, GP965_04300, GP975_01190, GP979_02000, GQA06_03945, GQM04_10570, GQM13_25205, GQM17_19920, GQM21_11235, GQN34_23270, GQW07_21545, GRO95_20810, GRW05_09065, GRW24_04750, GRW56_00300, GRW57_03535, GSM54_23325, GSY44_20005, GUC01_21185, GUI33_20050, H0O53_20825, H0O72_19420, H0P11_20920, H5Z35_004789, H6Y26_003164, HCQ42_003948, HEP30_018640, HEP34_004770, HHH44_004535, HI055_004140, HIE29_005187, HJY54_004753, HKA49_005035, HLQ92_22595, HLV18_23335, HLX92_10070, HLZ50_22175, HMV95_19610, HMW38_23110, HV109_02185, HV146_21675, HV209_14710, HVV39_09270, HVW04_17530, HVW43_18665, HVY77_02170, HVZ29_19100, HVZ30_02050, HVZ71_02355, HX136_02190, I6H00_20920, I6H02_11995, IFB95_004806, IUD45_003540, J0541_004397, J4S20_004802, J5U05_004087, J7T50_001453, JFD_01884, JFD_03713, JNP96_25310, KQ660_11775, NCTC10082_02839, NCTC10089_00502, NCTC10090_03527, NCTC10418_00690, NCTC10429_01095, NCTC10487_00445, NCTC10764_03863, NCTC10767_01516, NCTC10865_00661, NCTC10974_00551, NCTC11126_02771, NCTC11127_03223, NCTC11181_02738, NCTC11341_01889, NCTC12950_00479, NCTC13127_00786, NCTC4450_02475, NCTC7922_04042, NCTC7927_00551, NCTC7928_02516, NCTC8009_01511, NCTC8179_05942, NCTC8333_00489, NCTC8450_04937, NCTC8500_00335, NCTC8621_00508, NCTC8622_00507, NCTC8959_03261, NCTC8960_03070, NCTC8985_04982, NCTC9001_04254, NCTC9044_01356, NCTC9045_00566, NCTC9050_03611, NCTC9071_00483, NCTC9073_00380, NCTC9075_00724, NCTC9077_00604, NCTC9081_00918, NCTC9111_00867, NCTC9117_00756, NCTC9702_00537, NCTC9706_02737, NCTC9775_04003, NCTC9777_01891, NEP60_26295, OS110_25120, RG28_21615, SAMEA3472044_01162, SAMEA3472056_05411, SAMEA3752557_01952, SAMEA3753106_04634, TUM18780_04360, WR15_19610

UniProt
Find proteins for P0AG51 (Escherichia coli (strain K12))
Explore P0AG51
Go to UniProtKB:  P0AG51
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG51
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 47
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L31WA [auth g]70Escherichia coliMutation(s): 0
Gene Names: rpmE, b3936, JW3907
UniProt
Find proteins for P0A7M9 (Escherichia coli (strain K12))
Explore P0A7M9
Go to UniProtKB:  P0A7M9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7M9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 48
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L2XA [auth h]273Escherichia coliMutation(s): 0
Gene Names: rplB, b3317, JW3279
UniProt
Find proteins for P60422 (Escherichia coli (strain K12))
Explore P60422
Go to UniProtKB:  P60422
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60422
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 49
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L32YA [auth i]57Escherichia coliMutation(s): 0
Gene Names:
rpmF, rpmF_1, A5U30_002830, A8502_000661, A9X72_15435, ACN81_09130, ACU57_04225, AM464_23480, AW118_12110, AWP47_13180, B6R15_001792, B6R31_003138, BANRA_01624, BCB93_002043, BER14_10210, BF481_002131, BG944_003607, BGM66_002729, BJI68_20640, BJJ90_15780, BK292_02505, BK383_03640, BKL28_002219, BTB68_003153, BTQ06_08080, BvCmsKKP061_02173, BvCmsSIP010_04163, BXT93_21825, C0P57_001747, C1Q91_003167, C2121_002257, C2M16_23600, C2R31_002348, C3F40_06530, C9E67_18185, C9Z68_07340, CA593_23040, CF22_003088, CG692_05970, CG704_04105, CG831_001542, CIG67_21935, CQ986_001084, CR538_15635, CR539_10135, CR628_002785, CTR35_002374, CV83915_00494, CY655_06595, D1912_08350, D3C88_19355, D3G36_11860, D4M65_04795, D4N09_11015, D9D43_11825, D9E49_23135, D9J61_04035, DD762_03625, DIV22_29035, DNQ45_10015, DNX30_12140, DQ87_002042, DS732_10505, DTL43_16270, DU321_22840, E4K51_18340, E5H86_12535, E6D34_10935, EAI46_03975, EC95NR1_05485, ECs1467, EEP55_000822, EIA08_02925, EIZ93_13150, EN85_002840, EPS76_00770, EPS97_06370, EWK56_20060, ExPECSC038_03490, F7F11_10320, F7N46_02450, F9413_18150, F9461_13585, F9B07_16900, FEJ01_12565, FIJ20_07300, FJQ40_00940, FKO60_17370, FOI11_007500, FOI11_14470, FPI65_06540, FPS11_20235, FTV92_08325, FTV93_08485, FV293_19565, FVB16_04695, FWK02_15570, FZN31_14620, FZU14_20010, G3V95_08050, G3W53_15755, G4A38_16050, G4A47_15410, G5603_00600, G8C01_10030, G9448_05130, GAI89_13280, GAJ12_13930, GGB84_000483, GJ11_06555, GKF66_05180, GNW61_10640, GOP25_17405, GP711_16475, GP954_12815, GP965_04045, GP975_03585, GP979_13150, GQA06_08430, GQM04_02110, GQM13_14340, GQM21_06935, GQN34_10245, GQW07_08880, GRO95_10420, GRW05_02410, GRW24_27585, GRW56_06550, GRW57_07595, GTP92_19120, GUC01_01680, H0O72_16850, HCQ42_001914, HEP30_011955, HEP34_001075, HHH44_003019, HI055_001485, HIE29_000052, HJQ60_005092, HLX92_03690, HLZ50_01830, HMV95_16370, HV109_14610, HV146_09250, HV209_29060, HVV39_00410, HVW04_05590, HVW43_06430, HVY77_15765, HVZ29_08715, HX086_07035, HX136_15650, I0E88_003516, I6H00_08540, I6H02_24530, IFB95_003696, IUC12_000121, J0541_003169, J5U05_002959, JNP96_10710, KV259_001392, KV317_003230, KV371_000953, KV406_001102, KV449_001342, KV455_003227, KV463_001049, KV469_000542, KV499_000679, KV500_001199, NCTC10082_00641, NCTC10089_03005, NCTC10090_00680, NCTC10418_04509, NCTC10764_02647, NCTC10767_05044, NCTC10865_03684, NCTC10974_03416, NCTC11126_00919, NCTC11181_00164, NCTC11341_04894, NCTC12950_03296, NCTC13148_05706, NCTC4450_04127, NCTC7922_00634, NCTC7927_03385, NCTC7928_00455, NCTC8009_05657, NCTC8179_02874, NCTC8333_03590, NCTC8621_03238, NCTC8622_05813, NCTC8959_00826, NCTC8960_00763, NCTC8985_01747, NCTC9044_04397, NCTC9045_03550, NCTC9073_01975, NCTC9075_04022, NCTC9077_03763, NCTC9081_03511, NCTC9117_03837, NCTC9706_00412, NCTC9962_06984, NEP60_22810, O5851_21660, RG28_16890, SAMEA3752557_01555, TUM18780_25170, WR15_23855

UniProt
Find proteins for P0A7N4 (Escherichia coli (strain K12))
Explore P0A7N4
Go to UniProtKB:  P0A7N4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7N4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 50
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L3ZA [auth j]209Escherichia coliMutation(s): 0
Gene Names: rplC, b3320, JW3282
UniProt
Find proteins for P60438 (Escherichia coli (strain K12))
Explore P60438
Go to UniProtKB:  P60438
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60438
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 51
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L33AB [auth k]55Escherichia coliMutation(s): 0
Gene Names:
rpmG, rpmG_1, A5U30_004136, A6592_21955, A8499_000792, A8502_002345, A9X72_00400, AC065_17670, ACN81_07125, ACU57_07205, AM464_10960, APX88_07835, AW118_10740, AWP47_15985, B6R12_001909, B6R15_003224, B6R17_003336, B6R31_002865, B6R48_003283, B6R87_003156, BANRA_04677, BB540_10150, BER14_16165, BF481_000671, BG944_002239, BGM66_003973, BHS81_21690, BJI68_21710, BJJ90_00390, BK292_09690, BK383_09650, BKL28_001549, BMT50_10565, BMT91_13845, BR158_003843, BTB68_002398, BTQ06_17850, BUO55_001749, BvCmsKKP061_03496, BvCmsSIP010_04504, BXT93_06220, BZL69_22230, C0P57_003843, C1Q91_001907, C2121_003322, C2M16_17175, C2R31_004081, C3F40_17705, C5N07_22255, C9E67_00890, C9Z68_15420, CA593_07900, CCS08_06865, CCU84_004237, CDL36_16035, CF22_002026, CG692_01875, CG704_10010, CG831_000991, CIG67_03795, CQ986_000108, CQB02_22645, CR538_00630, CR539_23800, CR628_001528, CRM83_20955, CTR35_001077, CV83915_02464, CWS33_14490, CX938_000998, CY655_23100, D3C88_33140, D3G36_09395, D4M65_14910, D4N09_11500, D6T60_21010, D9D43_20690, D9E34_16170, D9E49_10195, D9H94_14645, D9J03_19890, D9J61_14005, DD762_15060, DIV22_25130, DNQ45_17840, DNX30_21910, DS732_26145, DTL43_17805, DTL90_19180, DTM45_13255, DU321_24275, E0I52_14235, E4K51_19990, E5H86_15640, E6D34_14175, EA239_11595, EB534_RS18180, EC95NR1_03037, ECs4511, EIA08_13065, EIMP300_11190, EIZ93_22910, EN85_002943, EPS76_16410, EPS97_14120, ERS085406_02634, ERS139208_03027, EWK56_19235, ExPECSC038_00886, F3P10_10725, F7F11_22995, F7N46_06895, F9413_20155, F9461_04500, F9B07_09850, FA868_19515, FEJ01_05435, FFF58_21805, FGG80_07720, FHD44_20765, FHQ97_14415, FIJ20_14735, FJQ40_22750, FKO60_20795, FN993_001905, FOI11_017545, FOI11_05635, FPI65_22380, FPS11_15665, FTV92_18865, FTV93_19030, FV293_17885, FVB16_08575, FWK02_20790, FZN31_00850, FZU14_11310, G3V95_06555, G3W53_09755, G4A38_07645, G4A47_07035, G5603_14155, G9448_15395, GAI89_21025, GAJ12_25750, GAJ26_19905, GGB84_002816, GIB53_07680, GJ11_23260, GKF52_07040, GKF66_06090, GKF89_01305, GNW61_15010, GOP14_002925, GOP25_22240, GP711_14020, GP965_18420, GP975_06785, GQM04_18880, GQM13_19245, GQM17_16535, GQM21_20675, GQN34_13365, GQW07_04785, GRO95_05820, GRW05_17070, GRW24_04500, GRW56_13140, GRW57_14295, GSM54_05345, GSY44_19835, GUC01_19125, GUI33_04785, H0O53_07375, H0O72_08715, H0P11_12255, H5Z35_003529, H6Y26_001161, HCQ42_003479, HEP30_004320, HEP34_000581, HHH44_001955, HI055_001939, HIE29_002315, HJQ60_004388, HJY54_003834, HKA49_003561, HLQ92_16260, HLV18_18020, HLX92_21165, HLZ50_07765, HMV95_17960, HMW38_12345, HV109_00345, HV146_00330, HV209_24710, HVV39_10960, HVW04_15855, HVW43_16870, HVY77_00425, HVZ29_00305, HVZ30_00460, HVZ71_00385, HX136_00340, I6H00_19205, I6H02_13660, IFB95_001325, IUD45_003655, J0541_001519, J4S20_003173, J5U05_003670, J7T50_004317, JFD_02865, JFD_02951, JNP96_26980, KQ660_13480, NCTC10082_02483, NCTC10089_00164, NCTC10090_03179, NCTC10418_00180, NCTC10429_00616, NCTC10487_00103, NCTC10764_03481, NCTC10767_01151, NCTC10865_00201, NCTC10974_00127, NCTC11112_01599, NCTC11126_01709, NCTC11127_03609, NCTC11181_02394, NCTC11341_02337, NCTC12950_00092, NCTC13127_00380, NCTC4450_02132, NCTC7922_04520, NCTC7927_00189, NCTC7928_02970, NCTC8009_00971, NCTC8179_05536, NCTC8333_00121, NCTC8450_04550, NCTC8500_05792, NCTC8621_00171, NCTC8959_03599, NCTC8960_02723, NCTC8985_04527, NCTC9001_03782, NCTC9044_01835, NCTC9045_00169, NCTC9050_03266, NCTC9071_00140, NCTC9073_06389, NCTC9075_00237, NCTC9077_00137, NCTC9081_00502, NCTC9111_00516, NCTC9117_00296, NCTC9702_00106, NCTC9706_02375, NCTC9775_03637, NCTC9777_01519, NCTC9962_01072, NEP60_12970, OS110_19615, RG28_23350, SAMEA3472044_00655, SAMEA3472056_04704, SAMEA3752557_01144, SAMEA3753106_03495, TUM18780_00760, WR15_15810

UniProt
Find proteins for P0A7N9 (Escherichia coli (strain K12))
Explore P0A7N9
Go to UniProtKB:  P0A7N9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7N9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 52
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL4BB [auth l]201Escherichia coliMutation(s): 0
Gene Names: rplD, eryA, b3319, JW3281
UniProt
Find proteins for P60723 (Escherichia coli (strain K12))
Explore P60723
Go to UniProtKB:  P60723
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60723
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 53
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L34CB [auth m]46Escherichia coliMutation(s): 0
Gene Names: rpmH
UniProt
Find proteins for P0A7P5 (Escherichia coli (strain K12))
Explore P0A7P5
Go to UniProtKB:  P0A7P5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7P5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 54
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL5DB [auth n]179Escherichia coliMutation(s): 0
Gene Names: rplE, b3308, JW3270
UniProt
Find proteins for P62399 (Escherichia coli (strain K12))
Explore P62399
Go to UniProtKB:  P62399
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62399
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 55
MoleculeChains  Sequence LengthOrganismDetailsImage

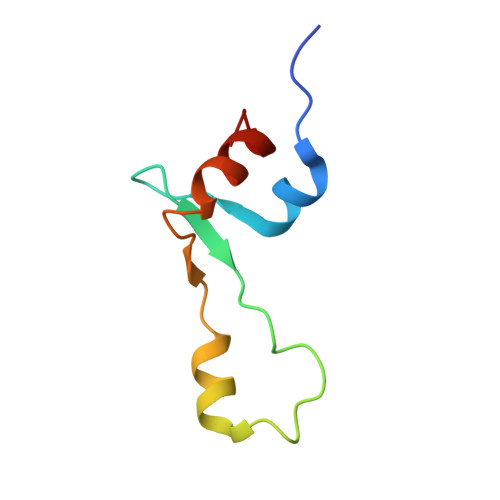

50S ribosomal protein L35EB [auth o]65Escherichia coliMutation(s): 0
Gene Names: rpmI, b1717, JW1707
UniProt
Find proteins for P0A7Q1 (Escherichia coli (strain K12))
Explore P0A7Q1
Go to UniProtKB:  P0A7Q1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Q1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 56
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL6FB [auth p]177Escherichia coliMutation(s): 0
Gene Names: rplF, b3305, JW3267
UniProt
Find proteins for P0AG55 (Escherichia coli (strain K12))
Explore P0AG55
Go to UniProtKB:  P0AG55
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG55
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 57
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L36GB [auth q]38Escherichia coliMutation(s): 0
Gene Names: rpmJ
UniProt
Find proteins for P0A7Q6 (Escherichia coli (strain K12))
Explore P0A7Q6
Go to UniProtKB:  P0A7Q6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Q6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 58
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL9HB [auth r]149Escherichia coliMutation(s): 0
Gene Names: rplI, b4203, JW4161
UniProt
Find proteins for P0A7R1 (Escherichia coli (strain K12))
Explore P0A7R1
Go to UniProtKB:  P0A7R1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 59
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL13IB [auth s]142Escherichia coliMutation(s): 0
Gene Names: rplM, b3231, JW3200
UniProt
Find proteins for P0AA10 (Escherichia coli (strain K12))
Explore P0AA10
Go to UniProtKB:  P0AA10
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AA10
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 60
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL14JB [auth t]123Escherichia coliMutation(s): 0
Gene Names: rplN, b3310, JW3272
UniProt
Find proteins for P0ADY3 (Escherichia coli (strain K12))
Explore P0ADY3
Go to UniProtKB:  P0ADY3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADY3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 61
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL15KB [auth u]144Escherichia coliMutation(s): 0
Gene Names: rplO, b3301, JW3263
UniProt
Find proteins for P02413 (Escherichia coli (strain K12))
Explore P02413
Go to UniProtKB:  P02413
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02413
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 62
MoleculeChains  Sequence LengthOrganismDetailsImage

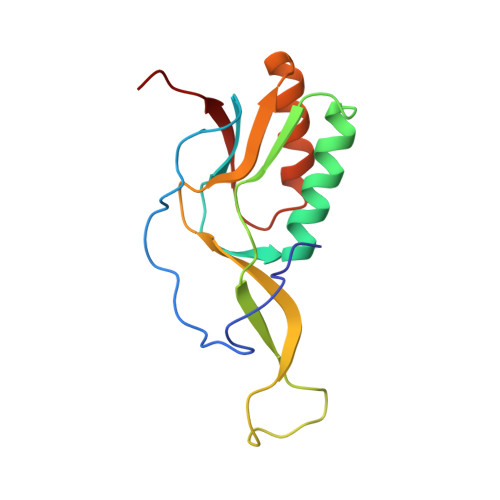

50S ribosomal protein L16LB [auth v]136Escherichia coliMutation(s): 0
Gene Names: rplP, b3313, JW3275
UniProt
Find proteins for P0ADY7 (Escherichia coli (strain K12))
Explore P0ADY7
Go to UniProtKB:  P0ADY7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADY7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 63
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL17MB [auth w]127Escherichia coliMutation(s): 0
Gene Names: rplQ, b3294, JW3256
UniProt
Find proteins for P0AG44 (Escherichia coli (strain K12))
Explore P0AG44
Go to UniProtKB:  P0AG44
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG44
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 64
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL18NB [auth x]117Escherichia coliMutation(s): 0
Gene Names: rplR, b3304, JW3266
UniProt
Find proteins for P0C018 (Escherichia coli (strain K12))
Explore P0C018
Go to UniProtKB:  P0C018
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0C018
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 65
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL19OB [auth y]115Escherichia coliMutation(s): 0
Gene Names: rplS
UniProt
Find proteins for P0A7K6 (Escherichia coli (strain K12))
Explore P0A7K6
Go to UniProtKB:  P0A7K6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7K6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 66
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L20PB [auth z]118Escherichia coliMutation(s): 0
Gene Names: rplT
UniProt
Find proteins for P0A7L3 (Escherichia coli (strain K12))
Explore P0A7L3
Go to UniProtKB:  P0A7L3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7L3
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 6
MoleculeChains LengthOrganismImage
NT DNAF [auth 5]36synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 7
MoleculeChains LengthOrganismImage
T DNAG [auth 6]36synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 8
MoleculeChains LengthOrganismImage
mRNA with 60 nt long spacerH [auth 7]77synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 10
MoleculeChains LengthOrganismImage
E-site and P-site tRNA (fMet)J [auth A],
R [auth B]
76Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 18
MoleculeChains LengthOrganismImage
16S rRNAT [auth D]1,542Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 41
MoleculeChains LengthOrganismImage
23S rRNAQA [auth a]2,904Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 44
MoleculeChains LengthOrganismImage
5S rRNATA [auth d]120Escherichia coli
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-23
    Type: Initial release
  • Version 1.1: 2026-06-24
    Changes: Data collection, Database references
