 8VOQ | pdb_00008voq

Escherichia coli transcription-translation loosely coupled complex (TTC-LC) containing mRNA with a 39 nt long spacer, NusG, NusA, and fMet-tRNAs in E-site and P-site


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 9.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8VOQ

This is version 1.1 of the entry. See complete history.

Literature

Structural basis of long-range transcription-translation coupling.

Wang, C., Molodtsov, V., Shandilya, S., You, L., Zhang, J., Kuznedelov, K., Nickels, B.E., Kaelber, J.T., Blaha, G., Ebright, R.H.

(2026) Proc Natl Acad Sci U S A 123: e2528970123-e2528970123

  • DOI: https://doi.org/10.1073/pnas.2528970123
  • Primary Citation Related Structures:
    8VKV, 8VL1, 8VOO, 8VOP, 8VOQ, 8VOR, 8VOS, 9W0N, 9Y79

  • PubMed Abstract:

    Structures recently have been reported of molecular assemblies that mediate transcription-translation coupling in Escherichia coli . In these molecular assemblies, termed "coupled transcription-translation complexes" or "TTC-B," RNA polymerase (RNAP) directly interacts with the ribosome, the transcription elongation factor NusG or its paralog RfaH forms a bridge between RNAP and ribosome, and the transcription elongation factor NusA optionally forms a second bridge between RNAP and ribosome. Here, we report structures of coupled transcription-translation complexes having mRNA spacers between RNAP and ribosome longer than the maximum-length mRNA spacer compatible with formation of TTC-B. The results define a class of coupled transcription-translation complex, termed "TTC-LC," where "LC" denotes "long-range coupling." TTC-LC differs from TTC-B by a ~60° rotation and ~70 Å translation of RNAP relative to ribosome, resulting in loss of direct interactions between RNAP and ribosome and creation of a ~70 Å gap between RNAP and ribosome. TTC-LC accommodates long mRNA spacers by looping out mRNA from the gap between RNAP and ribosome. We present evidence that TTC-LC is a functional intermediate in assembling and disassembling TTC-B, mediating pre-TTC-B transcription-translation coupling before a ribosome catches up to RNAP, and mediating post-TTC-B transcription-translation coupling after a ribosome stops moving and RNAP continues moving. We show that TTC-B, but not TTC-LC, is severely defective in RNA-hairpin-dependent transcription termination, and that both TTC-B and TTC-LC are severely defective in Rho-dependent transcription termination.


  • Organizational Affiliation:
    • Waksman Institute and Department of Chemistry and Chemical Biology, Rutgers University, Piscataway, NJ 08854.

Macromolecule Content

  • Total Structure Weight: 2,799.96 kDa
  • Atom Count: 181,260
  • Modeled Residue Count: 14,971
  • Deposited Residue Count: 15,918
  • Unique protein chains: 59
  • Unique nucleic acid chains: 7

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Ribosomal protein L21A [auth 0]103Escherichia coliMutation(s): 0
UniProt
Find proteins for P0AG48 (Escherichia coli (strain K12))
Explore P0AG48
Go to UniProtKB:  P0AG48
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG48
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L22B [auth 1]110Escherichia coliMutation(s): 0
Gene Names: rplV, eryB, b3315, JW3277
UniProt
Find proteins for P61175 (Escherichia coli (strain K12))
Explore P61175
Go to UniProtKB:  P61175
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61175
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L23C [auth 2]100Escherichia coliMutation(s): 0
UniProt
Find proteins for P0ADZ0 (Escherichia coli (strain K12))
Explore P0ADZ0
Go to UniProtKB:  P0ADZ0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADZ0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L24D [auth 3]104Escherichia coliMutation(s): 0
Gene Names: rplX, EAVG_03047
UniProt
Find proteins for P60624 (Escherichia coli (strain K12))
Explore P60624
Go to UniProtKB:  P60624
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60624
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

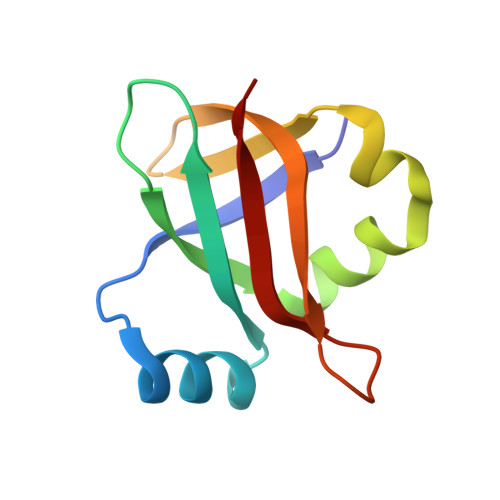

50S ribosomal protein L25E [auth 4]94Escherichia coliMutation(s): 0
Gene Names: rplY
UniProt
Find proteins for P68919 (Escherichia coli (strain K12))
Explore P68919
Go to UniProtKB:  P68919
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68919
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L10I [auth 9]165Escherichia coliMutation(s): 0
Gene Names: rplJ, b3985, JW3948
UniProt
Find proteins for P0A7J3 (Escherichia coli (strain K12))
Explore P0A7J3
Go to UniProtKB:  P0A7J3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7J3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit betaK [auth AA]1,342Escherichia coliMutation(s): 0
Gene Names: rpoB, groN, nitB, rif, ron, stl, stv, tabD, b3987, JW3950
EC: 2.7.7.6
UniProt
Find proteins for P0A8V2 (Escherichia coli (strain K12))
Explore P0A8V2
Go to UniProtKB:  P0A8V2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A8V2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription termination/antitermination protein NusGL [auth AB]181Escherichia coliMutation(s): 0
Gene Names: nusG
UniProt
Find proteins for P0AFG0 (Escherichia coli (strain K12))
Explore P0AFG0
Go to UniProtKB:  P0AFG0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AFG0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit alphaM [auth AC],
N [auth AD]
329Escherichia coliMutation(s): 0
Gene Names: rpoA, pez, phs, sez, b3295, JW3257
EC: 2.7.7.6
UniProt
Find proteins for P0A7Z4 (Escherichia coli (strain K12))
Explore P0A7Z4
Go to UniProtKB:  P0A7Z4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Z4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

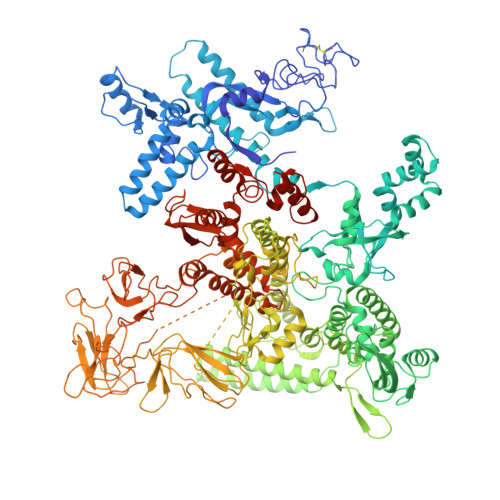

DNA-directed RNA polymerase subunit beta'O [auth AE]1,407Escherichia coliMutation(s): 0
Gene Names: rpoC, tabB, b3988, JW3951
EC: 2.7.7.6
UniProt
Find proteins for P0A8T7 (Escherichia coli (strain K12))
Explore P0A8T7
Go to UniProtKB:  P0A8T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A8T7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage
DNA-directed RNA polymerase subunit omegaP [auth AF]91Escherichia coliMutation(s): 0
Gene Names: rpoZ, b3649, JW3624
EC: 2.7.7.6
UniProt
Find proteins for P0A800 (Escherichia coli (strain K12))
Explore P0A800
Go to UniProtKB:  P0A800
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A800
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage
Transcription termination/antitermination protein NusAQ [auth AG]495Escherichia coliMutation(s): 0
Gene Names: nusA
UniProt
Find proteins for P0AFF6 (Escherichia coli (strain K12))
Explore P0AFF6
Go to UniProtKB:  P0AFF6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AFF6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S18S [auth C]75Escherichia coliMutation(s): 0
Gene Names: rpsR
UniProt
Find proteins for P0A7T7 (Escherichia coli (strain K12))
Explore P0A7T7
Go to UniProtKB:  P0A7T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S20U [auth E]87Escherichia coliMutation(s): 0
Gene Names: rpsT
UniProt
Find proteins for P0A7U7 (Escherichia coli (strain K12))
Explore P0A7U7
Go to UniProtKB:  P0A7U7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7U7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 20
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S21V [auth F]71Escherichia coliMutation(s): 0
Gene Names: rpsU
UniProt
Find proteins for P68679 (Escherichia coli (strain K12))
Explore P68679
Go to UniProtKB:  P68679
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP68679
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 21
MoleculeChains  Sequence LengthOrganismDetailsImage

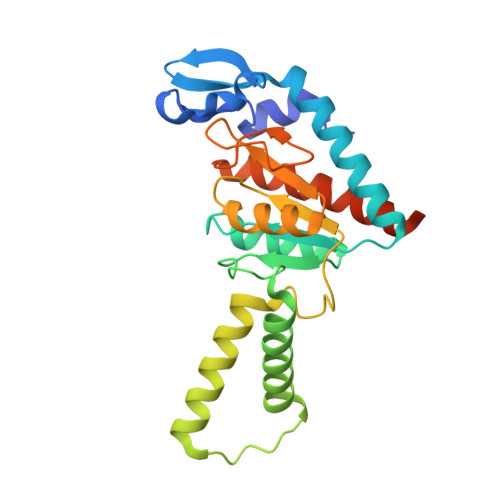

30S ribosomal protein S2W [auth G]241Escherichia coliMutation(s): 0
Gene Names: rpsB
UniProt
Find proteins for P0A7V0 (Escherichia coli (strain K12))
Explore P0A7V0
Go to UniProtKB:  P0A7V0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 22
MoleculeChains  Sequence LengthOrganismDetailsImage

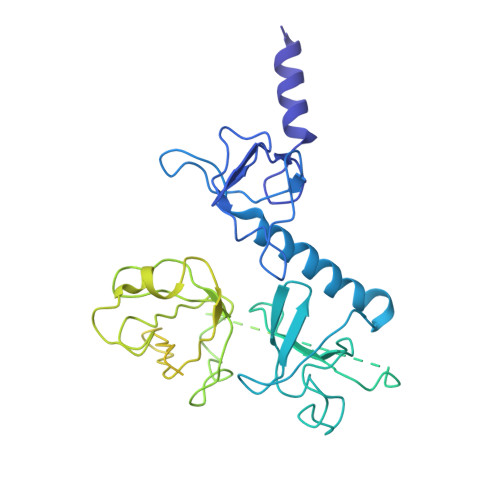

30S ribosomal protein S1X [auth H]557Escherichia coliMutation(s): 0
Gene Names: EAXG_00304
UniProt
Find proteins for P0AG67 (Escherichia coli (strain K12))
Explore P0AG67
Go to UniProtKB:  P0AG67
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG67
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 23
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S3Y [auth I]233Escherichia coliMutation(s): 0
Gene Names: rpsC
UniProt
Find proteins for P0A7V3 (Escherichia coli (strain K12))
Explore P0A7V3
Go to UniProtKB:  P0A7V3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 24
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S4Z [auth J]206Escherichia coliMutation(s): 0
Gene Names: rpsD, ramA, b3296, JW3258
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12))
Explore P0A7V8
Go to UniProtKB:  P0A7V8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 25
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S5AA [auth K]167Escherichia coliMutation(s): 0
Gene Names: rpsE, spc, b3303, JW3265
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12))
Explore P0A7W1
Go to UniProtKB:  P0A7W1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 26
MoleculeChains  Sequence LengthOrganismDetailsImage

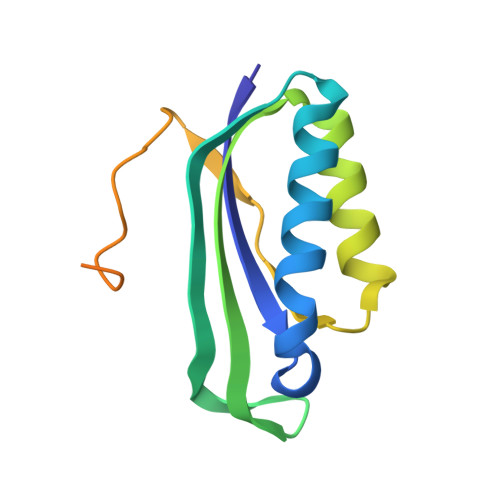

30S ribosomal protein S6BA [auth L]135Escherichia coliMutation(s): 0
Gene Names: rpsF, b4200, JW4158
UniProt
Find proteins for P02358 (Escherichia coli (strain K12))
Explore P02358
Go to UniProtKB:  P02358
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02358
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 27
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S7CA [auth M]179Escherichia coliMutation(s): 0
Gene Names: rpsG, b3341, JW3303
UniProt
Find proteins for P02359 (Escherichia coli (strain K12))
Explore P02359
Go to UniProtKB:  P02359
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02359
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 28
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S8DA [auth N]130Escherichia coliMutation(s): 0
Gene Names: rpsH, HMPREF9536_01683
UniProt
Find proteins for P0A7W7 (Escherichia coli (strain K12))
Explore P0A7W7
Go to UniProtKB:  P0A7W7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 29
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S9EA [auth O]130Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7X3 (Escherichia coli (strain K12))
Explore P0A7X3
Go to UniProtKB:  P0A7X3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7X3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 30
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S10FA [auth P]103Escherichia coliMutation(s): 0
Gene Names: rpsJ, HMPREF1620_00582
UniProt
Find proteins for P0A7R5 (Escherichia coli (strain K12))
Explore P0A7R5
Go to UniProtKB:  P0A7R5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 31
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S11GA [auth Q]129Escherichia coliMutation(s): 0
Gene Names: rpsK
UniProt
Find proteins for P0A7R9 (Escherichia coli (strain K12))
Explore P0A7R9
Go to UniProtKB:  P0A7R9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 32
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S12HA [auth R]124Escherichia coliMutation(s): 0
Gene Names: rpsL, strA, b3342, JW3304
UniProt
Find proteins for P0A7S3 (Escherichia coli (strain K12))
Explore P0A7S3
Go to UniProtKB:  P0A7S3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7S3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 33
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S14IA [auth S]101Escherichia coliMutation(s): 0
Gene Names: rpsN, HMPREF1591_00914
UniProt
Find proteins for P0AG59 (Escherichia coli (strain K12))
Explore P0AG59
Go to UniProtKB:  P0AG59
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG59
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 34
MoleculeChains  Sequence LengthOrganismDetailsImage
Small ribosomal subunit protein uS15JA [auth T]89Escherichia coliMutation(s): 0
Gene Names: rpsO
UniProt
Find proteins for P0ADZ4 (Escherichia coli (strain K12))
Explore P0ADZ4
Go to UniProtKB:  P0ADZ4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADZ4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 35
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S16KA [auth U]82Escherichia coliMutation(s): 0
Gene Names: rpsP
UniProt
Find proteins for P0A7T3 (Escherichia coli (strain K12))
Explore P0A7T3
Go to UniProtKB:  P0A7T3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 36
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S17LA [auth V]84Escherichia coliMutation(s): 0
Gene Names: rpsQ
UniProt
Find proteins for P0AG63 (Escherichia coli (strain K12))
Explore P0AG63
Go to UniProtKB:  P0AG63
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG63
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 37
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S19MA [auth W]92Escherichia coliMutation(s): 0
Gene Names: rpsS, A1UI_03589
UniProt
Find proteins for P0A7U3 (Escherichia coli (strain K12))
Explore P0A7U3
Go to UniProtKB:  P0A7U3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7U3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 38
MoleculeChains  Sequence LengthOrganismDetailsImage
30S ribosomal protein S13NA [auth X]118Escherichia coliMutation(s): 0
Gene Names: rpsM, G711_03878
UniProt
Find proteins for P0A7S9 (Escherichia coli (strain K12))
Explore P0A7S9
Go to UniProtKB:  P0A7S9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7S9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 39
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L11OA [auth Y]142Escherichia coliMutation(s): 0
Gene Names: rplK, relC, b3983, JW3946
UniProt
Find proteins for P0A7J7 (Escherichia coli (strain K12))
Explore P0A7J7
Go to UniProtKB:  P0A7J7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7J7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 40
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L7/L12PA [auth Z]121Escherichia coliMutation(s): 0
Gene Names: rplL
UniProt
Find proteins for P0A7K2 (Escherichia coli (strain K12))
Explore P0A7K2
Go to UniProtKB:  P0A7K2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7K2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 42
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L27RA [auth b]85Escherichia coliMutation(s): 0
Gene Names: rpmA, b3185, JW3152
UniProt
Find proteins for P0A7L8 (Escherichia coli (strain K12))
Explore P0A7L8
Go to UniProtKB:  P0A7L8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7L8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 43
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L28SA [auth c]78Escherichia coliMutation(s): 0
Gene Names: rpmB, ECVG_03476
UniProt
Find proteins for P0A7M2 (Escherichia coli (strain K12))
Explore P0A7M2
Go to UniProtKB:  P0A7M2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7M2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 45
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L29UA [auth e]63Escherichia coliMutation(s): 0
Gene Names: rpmC, ECDG_03892
UniProt
Find proteins for P0A7M6 (Escherichia coli (strain K12))
Explore P0A7M6
Go to UniProtKB:  P0A7M6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7M6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 46
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L30VA [auth f]59Escherichia coliMutation(s): 0
Gene Names: rpmD, HMPREF1611_03432
UniProt
Find proteins for P0AG51 (Escherichia coli (strain K12))
Explore P0AG51
Go to UniProtKB:  P0AG51
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG51
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 47
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L31WA [auth g]70Escherichia coliMutation(s): 0
Gene Names: rpmE, b3936, JW3907
UniProt
Find proteins for P0A7M9 (Escherichia coli (strain K12))
Explore P0A7M9
Go to UniProtKB:  P0A7M9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7M9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 48
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L2XA [auth h]273Escherichia coliMutation(s): 0
Gene Names: rplB, b3317, JW3279
UniProt
Find proteins for P60422 (Escherichia coli (strain K12))
Explore P60422
Go to UniProtKB:  P60422
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60422
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 49
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L32YA [auth i]57Escherichia coliMutation(s): 0
Gene Names: rpmF, HMPREF9536_00655
UniProt
Find proteins for P0A7N4 (Escherichia coli (strain K12))
Explore P0A7N4
Go to UniProtKB:  P0A7N4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7N4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 50
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L3ZA [auth j]209Escherichia coliMutation(s): 0
Gene Names: rplC, b3320, JW3282
UniProt
Find proteins for P60438 (Escherichia coli (strain K12))
Explore P60438
Go to UniProtKB:  P60438
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60438
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 51
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L33AB [auth k]55Escherichia coliMutation(s): 0
Gene Names: rpmG, SSJG_04343
UniProt
Find proteins for P0A7N9 (Escherichia coli (strain K12))
Explore P0A7N9
Go to UniProtKB:  P0A7N9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7N9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 52
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L4BB [auth l]201Escherichia coliMutation(s): 0
UniProt
Find proteins for P60723 (Escherichia coli (strain K12))
Explore P60723
Go to UniProtKB:  P60723
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60723
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 53
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L34CB [auth m]46Escherichia coliMutation(s): 0
Gene Names: rpmH
UniProt
Find proteins for P0A7P5 (Escherichia coli (strain K12))
Explore P0A7P5
Go to UniProtKB:  P0A7P5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7P5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 54
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L5DB [auth n]179Escherichia coliMutation(s): 0
UniProt
Find proteins for P62399 (Escherichia coli (strain K12))
Explore P62399
Go to UniProtKB:  P62399
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62399
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 55
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L35EB [auth o]65Escherichia coliMutation(s): 0
Gene Names: rpmI, b1717, JW1707
UniProt
Find proteins for P0A7Q1 (Escherichia coli (strain K12))
Explore P0A7Q1
Go to UniProtKB:  P0A7Q1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Q1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 56
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L6FB [auth p]177Escherichia coliMutation(s): 0
Gene Names:
rplF, A5U30_004539, A8499_003319, A8502_004036, A9X72_02250, AAG43_004459, AAS29_002175, ACN68_01830, ACN81_25455, ACU57_21025, AM464_09155, APX88_16140, AT845_004391, AW118_24835, AW119_26645, AWP47_12710, B6R12_002820, B6R15_004082, B6R31_004981, B6R48_005048, B6R87_004958, BANRA_04315, BANRA_04463, BEA19_23360, BER14_25125, BF481_004943, BG944_001120, BGM66_003606, BHS81_19770, BJI68_08740, BJJ90_02190, BK292_20440, BK383_24710, BKL28_004556, BLM69_000027, BMC79_004432, BMT50_12280, BON92_01205, BR158_003777, BRV02_004610, BRV34_003983, BRV41_004371, BSR05_22725, BTB68_004369, BTQ06_10625, BUO55_004710, BvCmsKKP061_03017, BXT93_05540, BZL69_25965, C0P57_002655, C1Q91_004917, C2121_004175, C2M16_25470, C2R31_004620, C3F40_19785, C5N07_23555, C9114_23825, C9E67_02790, C9Z68_22570, CA593_09715, CCS08_00150, CDL36_25575, CDL37_18610, CF22_004862, CG831_003636, CIG67_10740, CO706_15220, CQ986_004894, CR538_02485, CR539_21835, CR628_001353, CTR35_003617, CWS33_24875, CX938_003818, CY655_21255, D0X26_24515, D3G36_23115, D4M65_20590, D4N09_20190, D4U49_16165, D9D43_22615, D9E34_23590, D9E49_05175, D9H94_20815, D9J03_20070, D9J61_16670, DD762_23565, DIV22_15240, DN627_24350, DNQ45_03775, DNX30_25460, DRW19_25065, DS732_24280, DTL43_20980, DTL90_24710, DTM45_24535, DU321_12020, E0I42_22210, E3N34_07180, E4K51_21510, E5H86_24505, E6D34_21740, EA239_22810, EA435_23050, EAI46_07495, EAN77_23505, EAX79_10730, EBP16_21855, EC95NR1_02696, ECs4170, EHD79_24220, EIZ93_12450, EKI52_17645, EL79_0411, ELT17_22420, ELT48_22940, ELX68_21470, ELX76_22960, ELX79_22070, ELX96_16825, ELY41_18740, ELY48_23180, EN85_004362, EPS76_07195, ERS085406_04403, ERS139208_04351, EWK56_25015, ExPECSC038_03653, F3N40_22345, F7F11_22705, F7N46_23990, F9413_21215, F9461_25635, F9B07_24665, F9S83_19010, FA868_22765, FDM60_20820, FEJ01_22495, FFF58_25435, FGG80_25115, FHD44_21285, FIJ20_21175, FJQ40_18325, FJQ53_22895, FKO60_25655, FOI11_019240, FOI11_03940, FPI65_20325, FPS11_25410, FTV90_00770, FTV93_20880, FV293_22445, FVB16_04890, FWK02_06290, FZN31_02615, FZU14_21840, G3565_26335, G3V95_19865, G3W53_20975, G4A38_21530, G4A47_20800, G9448_17055, GAI89_24810, GAJ12_24700, GAJ26_22030, GF699_19755, GFY34_22880, GIB53_19380, GJ11_21405, GJO56_22755, GKF66_21565, GKF89_18490, GNW61_16650, GNZ05_25965, GOP25_22725, GP711_23325, GP944_18810, GP954_00925, GP965_04315, GP975_01205, GP979_01985, GQA06_03930, GQM04_10585, GQM13_25220, GQM21_11250, GQN34_23285, GQW07_21530, GRC73_21730, GRO95_20795, GRW05_09080, GRW24_04735, GRW56_00315, GRW57_03520, GSM54_23310, GSY44_20020, GUC01_21200, GUI33_20065, H0O51_24755, H0O53_20810, H0O72_19435, H6Y26_003167, HCQ42_003945, HEP30_018655, HEP34_004767, HHH44_004532, HI055_004143, HIE29_005190, HJ942_004435, HJQ60_005008, HKA49_005032, HL563_21530, HLV18_23320, HLX92_10055, HLZ50_22160, HMV95_19625, HV109_02170, HV209_14695, HVV39_09285, HVW43_18650, HVX31_01950, HVY77_02155, HVZ30_02035, HVZ71_02340, HX136_02175, I6H00_20905, I6H02_12010, IA00_004091, IFB95_004809, IH772_23995, IT029_004950, J0541_004400, J4S20_004799, J5U05_004084, JE86ST02C_37730, JE86ST05C_37760, JFD_03716, JNP96_25325, NCTC10082_02836, NCTC10089_00499, NCTC10090_03524, NCTC10418_00687, NCTC10764_03860, NCTC10767_01513, NCTC11112_01039, NCTC11126_02768, NCTC11181_02735, NCTC11341_01892, NCTC12950_00476, NCTC13127_00783, NCTC13148_03444, NCTC13216_01355, NCTC4450_02472, NCTC7927_00548, NCTC7928_02519, NCTC8009_01508, NCTC8333_00486, NCTC8450_04934, NCTC8621_00505, NCTC8959_03264, NCTC8960_03067, NCTC8985_04979, NCTC9001_04251, NCTC9044_01360, NCTC9077_00601, NCTC9081_00914, NCTC9111_00864, NCTC9117_00753, NCTC9702_00534, NCTC9706_02734, NCTC9775_04000, NCTC9777_01888, ND22_005153, RG28_21630, SAMEA3472044_01159, SAMEA3472056_05414, SAMEA3472147_04289, SAMEA3751407_00027, SAMEA3752557_01955, SAMEA3753106_04631, TUM18780_04330, WR15_19625

UniProt
Find proteins for P0AG55 (Escherichia coli (strain K12))
Explore P0AG55
Go to UniProtKB:  P0AG55
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG55
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 57
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L36GB [auth q]38Escherichia coliMutation(s): 0
Gene Names: rpmJ
UniProt
Find proteins for P0A7Q6 (Escherichia coli (strain K12))
Explore P0A7Q6
Go to UniProtKB:  P0A7Q6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7Q6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 58
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L9HB [auth r]149Escherichia coliMutation(s): 0
Gene Names: rplI, HMPREF1611_02665
UniProt
Find proteins for P0A7R1 (Escherichia coli (strain K12))
Explore P0A7R1
Go to UniProtKB:  P0A7R1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 59
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L13IB [auth s]142Escherichia coliMutation(s): 0
Gene Names: rplM, A1UI_03510
UniProt
Find proteins for P0AA10 (Escherichia coli (strain K12))
Explore P0AA10
Go to UniProtKB:  P0AA10
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AA10
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 60
MoleculeChains  Sequence LengthOrganismDetailsImage

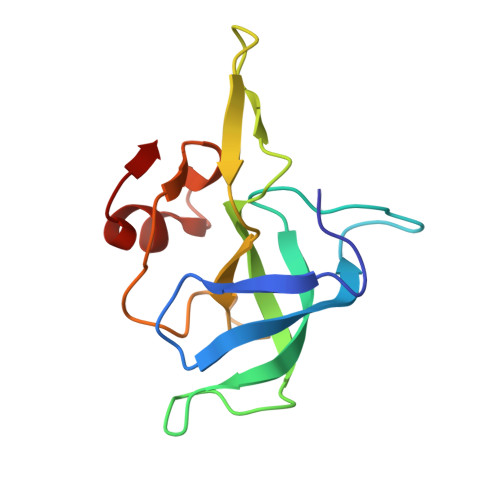

50S ribosomal protein L14JB [auth t]123Escherichia coliMutation(s): 0
Gene Names: rplN, A13A_03633
UniProt
Find proteins for P0ADY3 (Escherichia coli (strain K12))
Explore P0ADY3
Go to UniProtKB:  P0ADY3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADY3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 61
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L15KB [auth u]144Escherichia coliMutation(s): 0
Gene Names: rplO
UniProt
Find proteins for P02413 (Escherichia coli (strain K12))
Explore P02413
Go to UniProtKB:  P02413
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02413
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 62
MoleculeChains  Sequence LengthOrganismDetailsImage

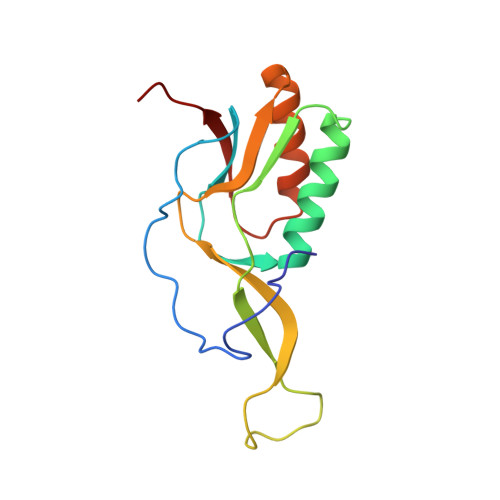

50S ribosomal protein L16LB [auth v]136Escherichia coliMutation(s): 0
Gene Names: rplP, b3313, JW3275
UniProt
Find proteins for P0ADY7 (Escherichia coli (strain K12))
Explore P0ADY7
Go to UniProtKB:  P0ADY7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADY7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 63
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L17MB [auth w]127Escherichia coliMutation(s): 0
Gene Names: rplQ, EAXG_02993
UniProt
Find proteins for P0AG44 (Escherichia coli (strain K12))
Explore P0AG44
Go to UniProtKB:  P0AG44
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG44
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 64
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L18NB [auth x]117Escherichia coliMutation(s): 0
UniProt
Find proteins for P0C018 (Escherichia coli (strain K12))
Explore P0C018
Go to UniProtKB:  P0C018
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0C018
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 65
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L19OB [auth y]115Escherichia coliMutation(s): 0
Gene Names: rplS, HMPREF1620_00384
UniProt
Find proteins for P0A7K6 (Escherichia coli (strain K12))
Explore P0A7K6
Go to UniProtKB:  P0A7K6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7K6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 66
MoleculeChains  Sequence LengthOrganismDetailsImage
50S ribosomal protein L20PB [auth z]118Escherichia coliMutation(s): 0
Gene Names: rplT
UniProt
Find proteins for P0A7L3 (Escherichia coli (strain K12))
Explore P0A7L3
Go to UniProtKB:  P0A7L3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7L3
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 6
MoleculeChains LengthOrganismImage
NT DNAF [auth 5]36synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 7
MoleculeChains LengthOrganismImage
T DNAG [auth 6]36synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 8
MoleculeChains LengthOrganismImage

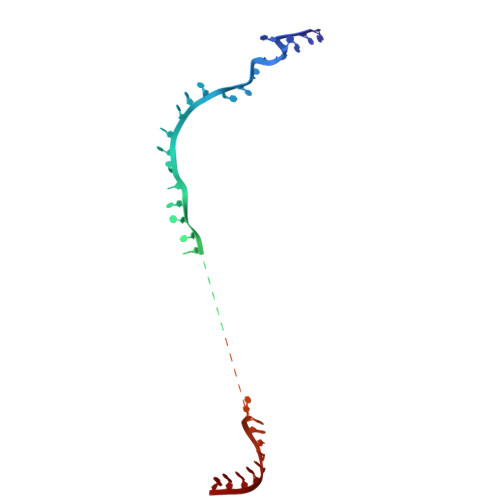

mRNA with 39 nt long spacerH [auth 7]56synthetic construct
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 10
MoleculeChains LengthOrganismImage

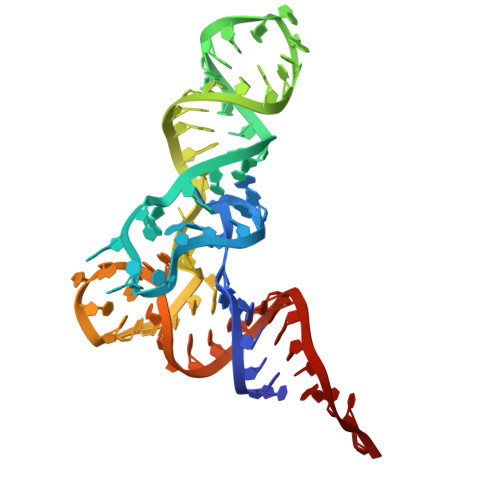

E-site and P-site tRNA (fMet)J [auth A],
R [auth B]
76Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 18
MoleculeChains LengthOrganismImage
16S rRNAT [auth D]1,542Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 41
MoleculeChains LengthOrganismImage
23S rRNAQA [auth a]2,904Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 44
MoleculeChains LengthOrganismImage
5S rRNATA [auth d]120Escherichia coli
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 9.30 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States--

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-23
    Type: Initial release
  • Version 1.1: 2026-06-24
    Changes: Data collection, Database references
