8D5E

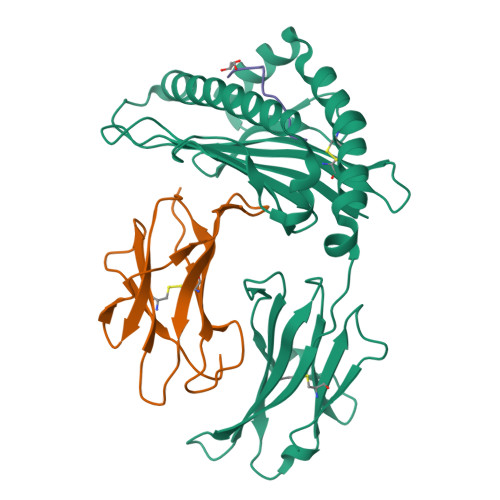

The complex of Gtf2b Peptide TGAASFDEF Presented by H2-Dd


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.46 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.199

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Structural and physical features that distinguish tumor-controlling from inactive cancer neoepitopes.

Custodio, J.M.Ayres, C.M.Rosales, T.J.Brambley, C.A.Arbuiso, A.G.Landau, L.M.Keller, G.L.J.Srivastava, P.K.Baker, B.M.

(2023) Proc Natl Acad Sci U S A 120: e2312057120-e2312057120

  • DOI: https://doi.org/10.1073/pnas.2312057120
  • Primary Citation of Related Structures:
    8D5E, 8D5F, 8D5K

  • PubMed Abstract:

    Neoepitopes arising from amino acid substitutions due to single nucleotide polymorphisms are targets of T cell immune responses to cancer and are of significant interest in the development of cancer vaccines. However, understanding the characteristics of rare protective neoepitopes that truly control tumor growth has been a challenge, due to their scarcity as well as the challenge of verifying true, neoepitope-dependent tumor control in humans. Taking advantage of recent work in mouse models that circumvented these challenges, here, we compared the structural and physical properties of neoepitopes that range from fully protective to immunologically inactive. As neoepitopes are derived from self-peptides that can induce immune tolerance, we studied not only how the various neoepitopes differ from each other but also from their wild-type counterparts. We identified multiple features associated with protection, including features that describe how neoepitopes differ from self as well as features associated with recognition by diverse T cell receptor repertoires. We demonstrate both the promise and limitations of neoepitope structural analysis and predictive modeling and illustrate important aspects that can be incorporated into neoepitope prediction pipelines.


  • Organizational Affiliation

    Department of Chemistry and Biochemistry and the Harper Cancer Research Institute, University of Notre Dame, Notre Dame, IN 46556.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
H-2 class I histocompatibility antigen, D-D alpha chain274Mus musculusMutation(s): 0
Gene Names: H2-D1
UniProt
Find proteins for P01900 (Mus musculus)
Explore P01900
Go to UniProtKB:  P01900
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01900
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Beta-2-microglobulin100Mus musculusMutation(s): 0
Gene Names: B2m
UniProt & NIH Common Fund Data Resources
Find proteins for P01887 (Mus musculus)
Explore P01887
Go to UniProtKB:  P01887
IMPC:  MGI:88127
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP01887
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Transcription initiation factor IIBC [auth P]9Mus musculusMutation(s): 0
EC: 2.3.1.48
UniProt & NIH Common Fund Data Resources
Find proteins for P62915 (Mus musculus)
Explore P62915
Go to UniProtKB:  P62915
IMPC:  MGI:2385191
Entity Groups
UniProt GroupP62915
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download Ideal Coordinates CCD File
D [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.46 Å
  • R-Value Free: 0.242
  • R-Value Work: 0.199
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 53.75α = 90
b = 80.59β = 90
c = 100.02γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
SCALEPACKdata scaling
BUCCANEERmodel building
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35GM118166

Revision History  (Full details and data files)

  • Version 1.0: 2022-07-06
    Type: Initial release
  • Version 1.1: 2022-12-28
    Changes: Database references, Structure summary
  • Version 1.2: 2023-10-25
    Changes: Data collection, Refinement description
  • Version 1.3: 2024-01-17
    Changes: Database references
  • Version 1.4: 2024-11-13
    Changes: Structure summary
