6O7C | pdb_00006o7c

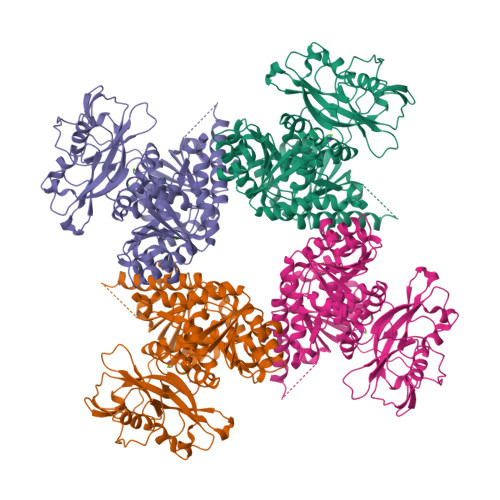

Crystal structure of the LjCASTOR gating ring in the Ca2+ and K+ state

  • Classification: TRANSPORT PROTEIN
  • Organism(s): Lotus japonicus
  • Expression System: Escherichia coli
  • Mutation(s): No

  • Deposited: 2019-03-07 Released: 2019-09-11
  • Deposition Author(s): Jiang, Y., Kim, S.
  • Funding Organization(s): Howard Hughes Medical Institute (HHMI), National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), Welch Foundation

Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:
    0.210 (Depositor), 0.211 (DCC)
  • R-Value Work:
    0.173 (Depositor), 0.174 (DCC)
  • R-Value Observed:
    0.175 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 6O7C

This is version 1.2 of the entry. See complete history

Literature

Ca2+-regulated Ca2+channels with an RCK gating ring control plant symbiotic associations.

Kim, S.Zeng, W.Bernard, S.Liao, J.Venkateshwaran, M.Ane, J.M.Jiang, Y.

(2019) Nat Commun 10: 3703-3703

  • DOI: https://doi.org/10.1038/s41467-019-11698-5
  • Primary Citation Related Structures:
    6O6J, 6O7A, 6O7C

  • PubMed Abstract:

    A family of plant nuclear ion channels, including DMI1 (Does not Make Infections 1) and its homologs CASTOR and POLLUX, are required for the establishment of legume-microbe symbioses by generating nuclear and perinuclear Ca 2+ spiking. Here we show that CASTOR from Lotus japonicus is a highly selective Ca 2+ channel whose activation requires cytosolic/nucleosolic Ca 2+ , contrary to the previous suggestion of it being a K + channel. Structurally, the cytosolic/nucleosolic ligand-binding soluble region of CASTOR contains two tandem RCK (Regulator of Conductance for K + ) domains, and four subunits assemble into the gating ring architecture, similar to that of large conductance, Ca 2+ -gated K + (BK) channels despite the lack of sequence similarity. Multiple ion binding sites are clustered at two locations within each subunit, and three of them are identified to be Ca 2+ sites. Our in vitro and in vivo assays also demonstrate the importance of these gating-ring Ca 2+ binding sites to the physiological function of CASTOR as well as DMI1.


  • Organizational Affiliation
    • Howard Hughes Medical Institute and Department of Physiology, University of Texas Southwestern Medical Center, Dallas, TX, USA.

Macromolecule Content

  • Total Structure Weight: 60.74 kDa
  • Atom Count: 4,269
  • Modeled Residue Count: 506
  • Deposited Residue Count: 542
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Ion channel CASTOR542Lotus japonicusMutation(s): 0
Gene Names: CASTOR
UniProt
Find proteins for Q5H8A6 (Lotus japonicus)
Explore Q5H8A6
Go to UniProtKB:  Q5H8A6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5H8A6
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CA
(Subject of Investigation/LOI)

Query on CA



Download:Ideal Coordinates CCD File
B [auth A],
C [auth A],
D [auth A]
CALCIUM ION
Ca
BHPQYMZQTOCNFJ-UHFFFAOYSA-N
K
(Subject of Investigation/LOI)

Query on K



Download:Ideal Coordinates CCD File
F [auth A]POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG
(Subject of Investigation/LOI)

Query on MG



Download:Ideal Coordinates CCD File
E [auth A]MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
NA
(Subject of Investigation/LOI)

Query on NA



Download:Ideal Coordinates CCD File
G [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.85 Å
  • R-Value Free:  0.210 (Depositor), 0.211 (DCC)
  • R-Value Work:  0.173 (Depositor), 0.174 (DCC)
  • R-Value Observed: 0.175 (Depositor)
Space Group: I 4
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 125.569α = 90
b = 125.569β = 90
c = 82.787γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data collection
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United StatesY.J.
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM079179
Welch FoundationUnited StatesI-1578

Revision History  (Full details and data files)

  • Version 1.0: 2019-09-11
    Type: Initial release
  • Version 1.1: 2019-11-20
    Changes: Author supporting evidence
  • Version 1.2: 2024-03-13
    Changes: Data collection, Database references, Derived calculations
