 6C3E | pdb_00006c3e

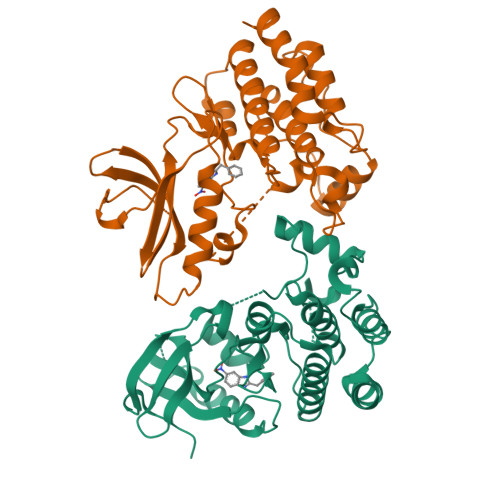

CRYSTAL STRUCTURE OF RIP1 KINASE BOUND TO INHIBITOR


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:
    0.307 (Depositor), 0.301 (DCC)
  • R-Value Work:
    0.259 (Depositor), 0.260 (DCC)
  • R-Value Observed:
    0.261 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 6C3E

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history.

Literature

Discovery of 7-Oxo-2,4,5,7-tetrahydro-6 H-pyrazolo[3,4- c]pyridine Derivatives as Potent, Orally Available, and Brain-Penetrating Receptor Interacting Protein 1 (RIP1) Kinase Inhibitors: Analysis of Structure-Kinetic Relationships.

Yoshikawa, M., Saitoh, M., Katoh, T., Seki, T., Bigi, S.V., Shimizu, Y., Ishii, T., Okai, T., Kuno, M., Hattori, H., Watanabe, E., Saikatendu, K.S., Zou, H., Nakakariya, M., Tatamiya, T., Nakada, Y., Yogo, T.

(2018) J Med Chem 61: 2384-2409

  • DOI: https://doi.org/10.1021/acs.jmedchem.7b01647
  • Primary Citation Related Structures:
    6C3E, 6C4D

  • PubMed Abstract:

    We report the discovery of 7-oxo-2,4,5,7-tetrahydro-6 H-pyrazolo[3,4- c]pyridine derivatives as a novel class of receptor interacting protein 1 (RIP1) kinase inhibitors. On the basis of the overlay study between HTS hit 10 and GSK2982772 (6) in RIP1 kinase, we designed and synthesized a novel class of RIP1 kinase inhibitor 11 possessing moderate RIP1 kinase inhibitory activity and P-gp mediated efflux. The optimization of the core structure and the exploration of appropriate substituents utilizing SBDD approach led to the discovery of 22, a highly potent, orally available, and brain-penetrating RIP1 kinase inhibitor with excellent PK profiles. Compound 22 significantly suppressed necroptotic cell death both in mouse and human cells. Oral administration of 22 (10 mg/kg, bid) attenuated disease progression in the mouse experimental autoimmune encephalomyelitis (EAE) model of multiple sclerosis (MS). Moreover, analysis of structure-kinetic relationship (SKR) for our novel chemical series was also discussed.


  • Organizational Affiliation:
    • Research , Takeda Pharmaceutical Company Limited , 26-1 Muraoka-Higashi 2-chome , Fujisawa , Kanagawa 251-8555 , Japan.

Macromolecule Content

  • Total Structure Weight: 67.7 kDa
  • Atom Count: 4,195
  • Modeled Residue Count: 517
  • Deposited Residue Count: 594
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Receptor-interacting serine/threonine-protein kinase 1
A, B
297Homo sapiensMutation(s): 0
Gene Names: RIPK1, RIP, RIP1
EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q13546 (Homo sapiens)
Explore Q13546
Go to UniProtKB:  Q13546
PHAROS:  Q13546
GTEx:  ENSG00000137275
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ13546
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Binding Affinity Annotations
IDSourceBinding Affinity
EJY BindingDB:  6C3E Ki: 63 (nM) from 1 assay(s)

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free:  0.307 (Depositor), 0.301 (DCC)
  • R-Value Work:  0.259 (Depositor), 0.260 (DCC)
  • R-Value Observed: 0.261 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 42.262α = 90
b = 95.094β = 90
c = 134.444γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2018-03-21
    Type: Initial release
  • Version 1.1: 2018-04-04
    Changes: Data collection, Database references
  • Version 1.2: 2024-03-13
    Changes: Data collection, Database references
