5U59

Coiled Coil Peptide Metal Coordination Framework: Dimer Fold Grown with Citrate

• PDB DOI: https://doi.org/10.2210/pdb5U59/pdb

• Classification: DE NOVO PROTEIN
• Organism(s): synthetic construct
• Mutation(s): No


• Deposited: 2016-12-06 Released: 2017-02-22
• Deposition Author(s): Tavenor, N.A., Murnin, M.J., Horne, W.S.
• Funding Organization(s): National Science Foundation (NSF, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free: 0.257
• R-Value Work: 0.226
• R-Value Observed: 0.229

Starting Model: experimental

Literature

Supramolecular Metal-Coordination Polymers, Nets, and Frameworks from Synthetic Coiled-Coil Peptides.

Tavenor, N.A., Murnin, M.J., Horne, W.S.

(2017) J Am Chem Soc 139: 2212-2215

• PubMed: 28161945
• DOI: https://doi.org/10.1021/jacs.7b00651
• Primary Citation of Related Structures:
  5U59, 5U5A, 5U5B, 5U5C


• PubMed Abstract:


  Metal coordination and peptide-directed self-assembly are two proven methods for creating defined supramolecular architectures. Here, we report a new class of crystalline materials based on coiled-coil peptides bearing unnatural metal-chelating terpyridine moieties. High-resolution structural characterization of lattices formed in the presence of Cu ²⁺ reveals a general assembly mechanism. Subtle sequence variation in the modular synthetic ligand dictates assembly morphology.

---

Organizational Affiliation:

Department of Chemistry, University of Pittsburgh , Pittsburgh, Pennsylvania 15260, United States.

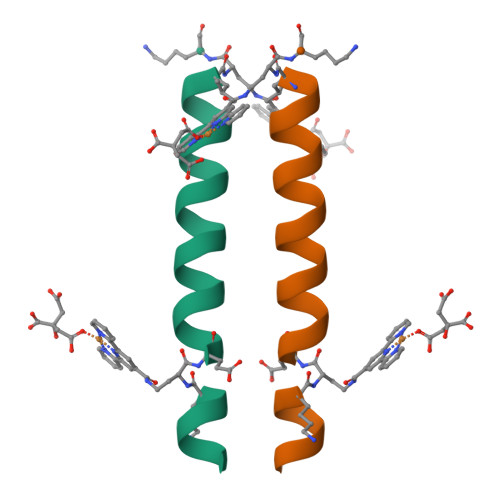

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 4.1 kDa
• Atom Count: 312
• Modelled Residue Count: 30
• Deposited Residue Count: 31
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Designed dimeric coiled coil peptide with two terpyridine side chains	A	31	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CIT	D [auth A], E [auth A]	CITRIC ACID C6 H8 O7 KRKNYBCHXYNGOX-UHFFFAOYSA-N
CU	B [auth A], C [auth A]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free: 0.257
• R-Value Work: 0.226
• R-Value Observed: 0.229
• Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 36.326	α = 90
b = 52.17	β = 103.98
c = 25.581	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
d*TREK	data reduction
d*TREK	data scaling
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2017-02-22
Deposition Author(s): Tavenor, N.A., Murnin, M.J., Horne, W.S.

---

Funding Organization	Location	Grant Number
National Science Foundation (NSF, United States)	United States	DMR1149067

Revision History

• Version 1.0: 2017-02-22
  Type: Initial release

• Version 1.1: 2017-09-20
  Changes: Author supporting evidence
• Version 1.2: 2019-11-27
  Changes: Author supporting evidence
• Version 1.3: 2023-10-04
  Changes: Data collection, Database references, Derived calculations, Refinement description
• Version 1.4: 2023-11-15
  Changes: Data collection, Derived calculations
• Version 1.5: 2024-10-16
  Changes: Structure summary
