5OR9 | pdb_00005or9

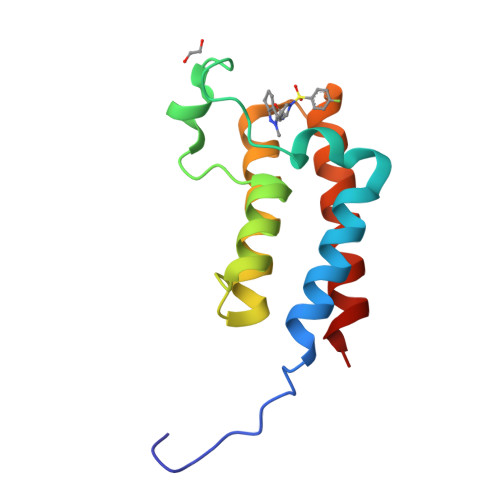

Crystal Structure of BAZ2B bromodomain in complex with 1-methyl-cyclopentapyrazole compound 13


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free:
    0.208 (Depositor), 0.216 (DCC)
  • R-Value Work:
    0.187 (Depositor), 0.196 (DCC)
  • R-Value Observed:
    0.189 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 5OR9

Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history

Literature

Discovery of Inhibitors of Four Bromodomains by Fragment-Anchored Ligand Docking.

Marchand, J.R.Dalle Vedove, A.Lolli, G.Caflisch, A.

(2017) J Chem Inf Model 57: 2584-2597

  • DOI: https://doi.org/10.1021/acs.jcim.7b00336
  • Primary Citation Related Structures:
    5OR8, 5OR9, 5ORB

  • PubMed Abstract:

    The high-throughput docking protocol called ALTA-VS (anchor-based library tailoring approach for virtual screening) was developed in 2005 for the efficient in silico screening of large libraries of compounds by preselection of only those molecules that have optimal fragments (anchors) for the protein target. Here we present an updated version of ALTA-VS with a broader range of potential applications. The evaluation of binding energy makes use of a classical force field with implicit solvent in the continuum dielectric approximation. In about 2 days per protein target on a 96-core compute cluster (equipped with Xeon E3-1280 quad core processors at 2.5 GHz), the screening of a library of nearly 77 000 diverse molecules with the updated ALTA-VS protocol has resulted in the identification of 19, 3, 3, and 2 μM inhibitors of the human bromodomains ATAD2, BAZ2B, BRD4(1), and CREBBP, respectively. The success ratio (i.e., number of actives in a competition binding assay in vitro divided by the number of compounds tested) ranges from 8% to 13% in dose-response measurements. The poses predicted by fragment-based docking for the three ligands of the BAZ2B bromodomain were confirmed by protein X-ray crystallography.


  • Organizational Affiliation
    • Department of Biochemistry, University of Zürich , CH-8057, Zürich, Switzerland.

Macromolecule Content

  • Total Structure Weight: 14.07 kDa
  • Atom Count: 1,082
  • Modeled Residue Count: 116
  • Deposited Residue Count: 117
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Bromodomain adjacent to zinc finger domain protein 2B117Homo sapiensMutation(s): 0
Gene Names: BAZ2BKIAA1476
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UIF8 (Homo sapiens)
Explore Q9UIF8
Go to UniProtKB:  Q9UIF8
PHAROS:  Q9UIF8
GTEx:  ENSG00000123636
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UIF8
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
JR5

Query on JR5



Download:Ideal Coordinates CCD File
B [auth A](2~{S})-1-(4-fluorophenyl)sulfonyl-~{N}-(2-methyl-5,6-dihydro-4~{H}-cyclopenta[c]pyrazol-3-yl)pyrrolidine-2-carboxamide
C18 H21 F N4 O3 S
ZYGWHQCDHVLXGI-INIZCTEOSA-N
EDO

Query on EDO



Download:Ideal Coordinates CCD File
C [auth A]1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free:  0.208 (Depositor), 0.216 (DCC)
  • R-Value Work:  0.187 (Depositor), 0.196 (DCC)
  • R-Value Observed: 0.189 (Depositor)
Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 81.444α = 90
b = 96.646β = 90
c = 57.584γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
PHASERphasing
PDB_EXTRACTdata extraction
XDSdata reduction

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Swiss Cancer Society (Krebsliga Schweiz)SwitzerlandKLS-3098- 02-2013

Revision History  (Full details and data files)

  • Version 1.0: 2017-09-13
    Type: Initial release
  • Version 1.1: 2017-11-01
    Changes: Database references
  • Version 1.2: 2024-01-17
    Changes: Data collection, Database references, Refinement description
