5M5T

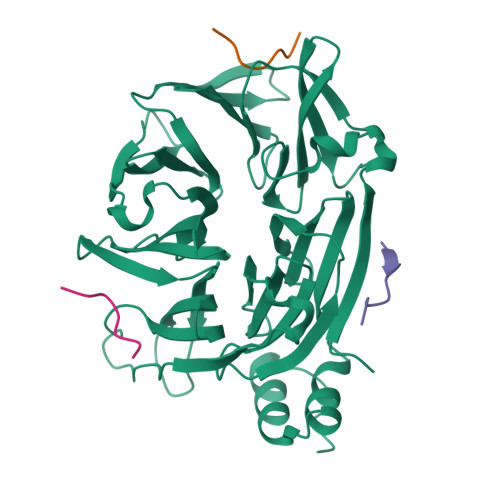

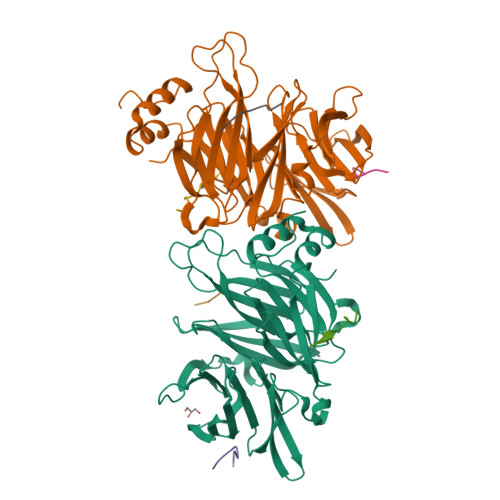

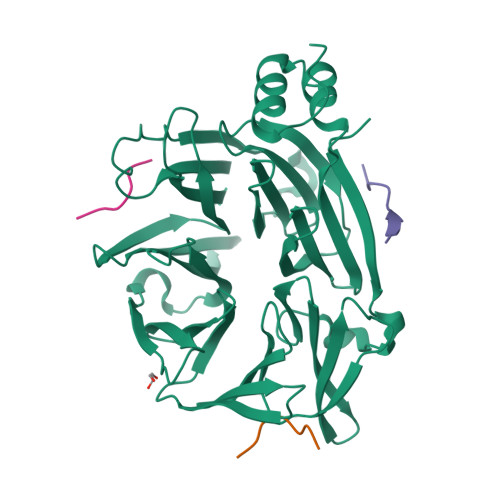

Clathrin heavy chain N-terminal domain bound to a non-natural clathrin-box motif peptide (Amph4T1)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.185
  • R-Value Work: 0.158
  • R-Value Observed: 0.159

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Cellular and viral peptides bind multiple sites on the N-terminal domain of clathrin.

Muenzner, J.Traub, L.M.Kelly, B.T.Graham, S.C.

(2017) Traffic 18: 44-57

  • DOI: https://doi.org/10.1111/tra.12457
  • Primary Citation of Related Structures:
    5M5R, 5M5S, 5M5T, 5M5U, 5M5V, 5M61

  • PubMed Abstract:

    Short peptide motifs in unstructured regions of clathrin-adaptor proteins recruit clathrin to membranes to facilitate post-Golgi membrane transport. Three consensus clathrin-binding peptide sequences have been identified and structural studies show that each binds distinct sites on the clathrin heavy chain N-terminal domain (NTD). A fourth binding site for adaptors on NTD has been functionally identified but not structurally characterised. We have solved high resolution structures of NTD bound to peptide motifs from the cellular clathrin adaptors β2 adaptin and amphiphysin plus a putative viral clathrin adaptor, hepatitis D virus large antigen (HDAg-L). Surprisingly, with each peptide we observe simultaneous peptide binding at multiple sites on NTD and viral peptides binding to the same sites as cellular peptides. Peptides containing clathrin-box motifs (CBMs) with the consensus sequence LΦxΦ[DE] bind at the 'arrestin box' on NTD, between β-propeller blades 4 and 5, which had previously been thought to bind a distinct consensus sequence. Further, we structurally define the fourth peptide binding site on NTD, which we term the Royle box. In vitro binding assays show that clathrin is more readily captured by cellular CBMs than by HDAg-L, and site-directed mutagenesis confirms that multiple binding sites on NTD contribute to efficient capture by CBM peptides.


  • Organizational Affiliation

    Department of Pathology, University of Cambridge, Cambridge, UK.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Clathrin heavy chain 1
A, B
365Bos taurusMutation(s): 0
Gene Names: CLTC
UniProt
Find proteins for P49951 (Bos taurus)
Explore P49951
Go to UniProtKB:  P49951
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49951
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Amphiphysin10Rattus norvegicusMutation(s): 2
UniProt
Find proteins for O08838 (Rattus norvegicus)
Explore O08838
Go to UniProtKB:  O08838
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO08838
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
GOL
Query on GOL

Download Ideal Coordinates CCD File
I [auth A]GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.185
  • R-Value Work: 0.158
  • R-Value Observed: 0.159
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 137.81α = 90
b = 130.97β = 116.17
c = 79.12γ = 90
Software Package:
Software NamePurpose
REFMACrefinement
XDSdata reduction
XSCALEdata scaling
REFMACphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Wellcome Trust and Royal SocietyUnited Kingdom098406/Z/12/Z
Wellcome TrustUnited Kingdom090909/Z/09/Z
National Institutes of HealthUnited StatesGM106963

Revision History  (Full details and data files)

  • Version 1.0: 2016-11-16
    Type: Initial release
  • Version 1.1: 2017-01-11
    Changes: Database references
  • Version 1.2: 2024-01-17
    Changes: Data collection, Database references, Refinement description
