34WX | pdb_000034wx

GAL-3 protein with galactose

PDB DOI: https://doi.org/10.2210/pdb34WX/pdb

Classification: SUGAR BINDING PROTEIN
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2026-10-09 Released: 2026-10-21
Deposition Author(s): Plewka, J., Barnowski, K.
Funding Organization(s): Polish National Science Centre

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.03 Å
R-Value Free:
0.183 (Depositor), 0.183 (DCC)
R-Value Work:
0.171 (Depositor), 0.171 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 34WX

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

GAL-3 with galactose

Barnowski, K., Plewka, J.

To be published.

Macromolecule Content

Total Structure Weight: 16.21 kDa
Atom Count: 1,416
Modeled Residue Count: 139
Deposited Residue Count: 141
Unique protein chains: 1

Macromolecules

Find similar proteins by:

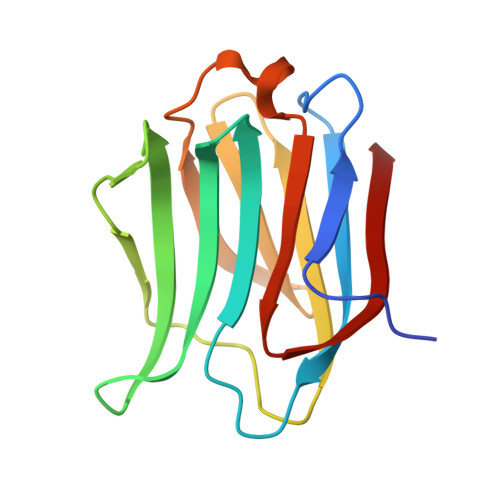

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Galectin-3	A	141	Homo sapiens	Mutation(s): 0 Gene Names: LGALS3, MAC2
UniProt & NIH Common Fund Data Resources
Find proteins for P17931 (Homo sapiens) Explore P17931 Go to UniProtKB: P17931
PHAROS: P17931 GTEx: ENSG00000131981
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P17931
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GAL (Subject of Investigation/LOI) Query on GAL Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	beta-D-galactopyranose C₆ H₁₂ O₆ WQZGKKKJIJFFOK-FPRJBGLDSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.03 Å
R-Value Free: 0.183 (Depositor), 0.183 (DCC)
R-Value Work: 0.171 (Depositor), 0.171 (DCC)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 37.122	α = 90
b = 58.217	β = 90
c = 62.643	γ = 90

Software Package:

Software Name	Purpose
Aimless	data scaling
gemmi	data extraction
REFMAC	refinement
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-21

Deposition Author(s):

Funding Organization	Location	Grant Number
Polish National Science Centre	Poland	UMO-2024/55/D/NZ7/01736

Revision History (Full details and data files)

Version 1.0: 2026-10-21
Type: Initial release
