 9Y1N | pdb_00009y1n

Cryo EM Structure of Full lengthmGluR8 Bound to Agonist L-AP4 and PAM VU6005649 in complex with G proteins

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens, Mus musculus
  • Expression System: Homo sapiens
  • Mutation(s): No

  • Deposited: 2025-08-29 Released: 2026-09-30
  • Deposition Author(s): Marx, D.C., Levitz, J.T.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 6.18 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9Y1N

This is version 1.0 of the entry. See complete history.

Literature

Structural basis of active state coupling of metabotropic glutamate receptor 8 to beta-arrestins.

Marx, D.C., Huynh, K., Gonzalez-Hernandez, A.J., Strauss, A., Rico, C., Gallo, P.N., Sharghi Moshtaghin, S., Arefin, A., Broichhagen, J., Eliezer, D., Khelashvili, G., Levitz, J.

(2026) Nat Commun 17

  • DOI: https://doi.org/10.1038/s41467-026-77556-3
  • Primary Citation Related Structures:
    9N8Y, 9N8Z, 9Y1M, 9Y1N

  • PubMed Abstract:

    Metabotropic glutamate receptors (mGluRs) are prototypical, dimeric family C G protein-coupled receptors (GPCR) that perform crucial modulatory roles throughout the nervous system. While mGluR activation and signaling through G proteins has been studied extensively, how these receptors interact with and are desensitized by β-arrestins (β-arrs) is not well understood. Here, we use an integrative biophysical and structural approach to probe the coupling of mGluR8 and β-arrs. Using negative stain electron microscopy (EM), we identify tail- and core-bound orientations and stoichiometries of mGluR8/β-arr complexes. Cryo-EM structures of mGluR8 alone or bound to either G proteins or β-arr1 reveal mGluR8 active states with transducer-specific differences. The mGluR8/β-arr structure shows a distinct complex orientation compared to other GPCR/β-arr structures which supports a steric mechanism of mGluR desensitization involving interactions with both subunits and the lipid bilayer. Coupling of mGluR8 to β-arr1 in an active-like conformation is verified by live-cell and single molecule FRET analysis. Finally, molecular dynamics simulations further define the positioning and dynamics of mGluR8-bound β-arr1 and the importance of critical mGluR8 residues for stabilizing β-arr1 complexes. Together, our data provide a framework for agonist-driven family C GPCR/β-arr coupling.


  • Organizational Affiliation:
    • Department of Biochemistry and Biophysics, Weill Cornell Medicine, New York, NY, USA.

Macromolecule Content

  • Total Structure Weight: 304.46 kDa
  • Atom Count: 17,725
  • Modeled Residue Count: 2,432
  • Deposited Residue Count: 2,723
  • Unique protein chains: 5

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Metabotropic glutamate receptor 8
A, B
841Homo sapiensMutation(s): 0
Gene Names: GRM8, GPRC1H, MGLUR8
UniProt & NIH Common Fund Data Resources
Find proteins for O00222 (Homo sapiens)
Explore O00222
Go to UniProtKB:  O00222
PHAROS:  O00222
GTEx:  ENSG00000179603
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00222
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

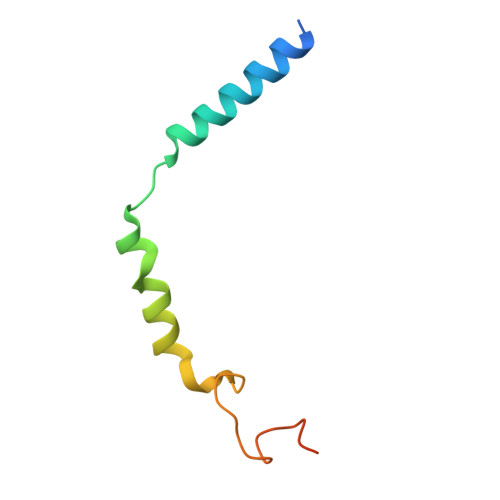

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-271Homo sapiensMutation(s): 0
Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens)
Explore P59768
Go to UniProtKB:  P59768
PHAROS:  P59768
GTEx:  ENSG00000186469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP59768
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

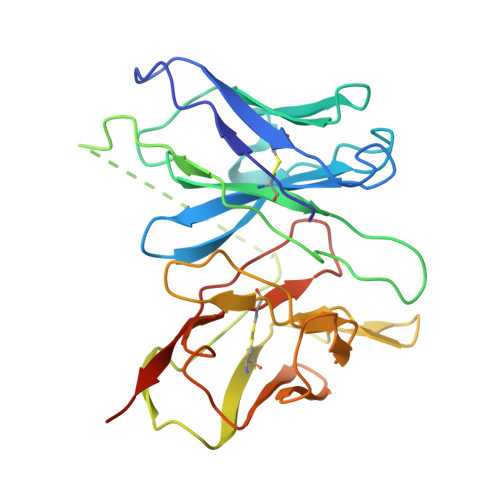

scFv-14259Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
Guanine nucleotide-binding protein G(i) subunit alpha-1354Homo sapiensMutation(s): 0
Gene Names: GNAI1
EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63096 (Homo sapiens)
Explore P63096
Go to UniProtKB:  P63096
PHAROS:  P63096
GTEx:  ENSG00000127955
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP63096
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

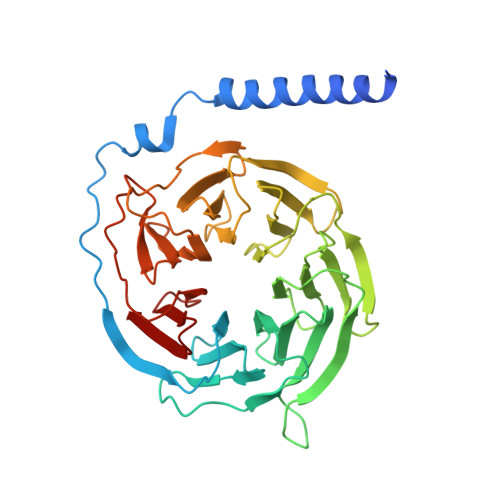

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1F [auth G]357Homo sapiensMutation(s): 0
Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens)
Explore P62873
Go to UniProtKB:  P62873
PHAROS:  P62873
GTEx:  ENSG00000078369
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62873
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 6.18 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesF32GM148001
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)United StatesR01NS129904
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)United StatesF31NS129320

Revision History  (Full details and data files)

  • Version 1.0: 2026-09-30
    Type: Initial release
