9XK7 | pdb_00009xk7

In situ C2S2M2L4-type PSII-LHCII supercomplex, strongly bound (S-) LHCII trimer with CP26, protomer 2

PDB DOI: https://doi.org/10.2210/pdb9XK7/pdb
EM Map EMD-66950: EMDB EMDataResource

Classification: PHOTOSYNTHESIS
Organism(s): Oryza sativa Japonica Group
Mutation(s): No

Deposited: 2025-11-05 Released: 2026-10-07
Deposition Author(s): Li, J., Elias, E., Zhang, K., Croce, R., Zhu, J.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.25 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

In situ structures of plant photosystem supercomplexes.

Li, J., Elias, E., Zhang, K., Croce, R., Zhu, J.

(2026) Nature 657: 1094-1103

PubMed: 42527593 Search on PubMed Search on PubMed Central
DOI: https://doi.org/10.1038/s41586-026-10847-3
Primary Citation Related Structures:
21WD, 21WG, 21WH, 21WI, 21WV, 27UR, 27UT, 9XJ1, 9XJ9, 9XK3, 9XK4, 9XK6, 9XK7, 9XK8, 9XK9

PubMed Abstract:
Photosynthesis sustains life on Earth by converting light to chemical energy through the coordinated action of photosystem I (PSI) and photosystem II (PSII) within thylakoid membranes ^1-4. Although structures of isolated photosystems are available, their native organization in chloroplasts remains unknown. Here, using in situ cryo-electron microscopy, we directly imaged Oryza sativa (rice) chloroplasts and determined structures of photosystem supercomplexes in their native membrane environment. We resolved a C ₂S ₂M ₂L ₄-type PSII-light harvesting complex II (LHCII) supercomplex, including four LHCII antenna trimers that were not retained in purified preparations. Excitation energy transfer calculations based on this architecture closely reproduce in vivo measurements, indicating its physiological relevance. We also resolved asymmetric PSII-LHCII dimers, including side-by-side, trans-lumenal and trans-stromal architectures, and higher-order assemblies of trimers and tetramers. On the basis of these observations, we propose that PSII forms a trans-lumenal and trans-stromal 'skeleton' that shapes thylakoid morphology and supports grana stacking. In addition, we obtained high-resolution structures of PSI-LHCI-LHCII and PSI-LHCI supercomplexes. Together, these structures reveal extensive networks of lipids, pigments and cofactors, providing the first molecular framework for understanding how the native architecture of plant photosystem supports the exceptional photon-to-electron efficiency of photosynthesis.

Organizational Affiliation

Department of Cardiology, The First Affiliated Hospital of USTC, MOE Key Laboratory for Cellular Dynamics, Center for Advanced Interdisciplinary Science and Biomedicine of IHM, Division of Life Sciences and Medicine, Hefei National Research Center for Interdisciplinary Sciences at the Microscale, University of Science and Technology of China, Hefei, China. jiao.li@ustc.edu.cn.

Macromolecule Content

Total Structure Weight: 153.26 kDa
Atom Count: 9,950
Modeled Residue Count: 874
Deposited Residue Count: 875
Unique protein chains: 2

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Chlorophyll a-b binding protein 2, chloroplastic	A [auth 09], B [auth 1g], C [auth 1n]	219	Oryza sativa Japonica Group	Mutation(s): 0
UniProt
Find proteins for P12331 (Oryza sativa subsp. japonica) Explore P12331 Go to UniProtKB: P12331
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P12331
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

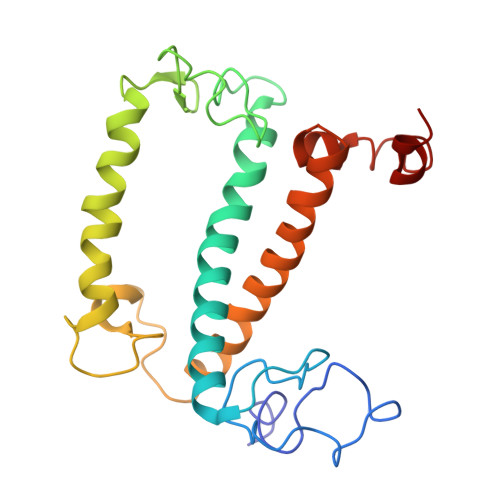

Chlorophyll a-b binding protein, chloroplastic	D [auth 1s]	218	Oryza sativa Japonica Group	Mutation(s): 0
UniProt
Find proteins for Q53N83 (Oryza sativa subsp. japonica) Explore Q53N83 Go to UniProtKB: Q53N83
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q53N83
Sequence Annotations Expand
Reference Sequence
