9TLH | pdb_00009tlh

Cryo-EM Structure of the oligomeric LPOR:Chlide:NADPH Complexes HF-23

PDB DOI: https://doi.org/10.2210/pdb9TLH/pdb
EM Map EMD-56055: EMDB EMDataResource

Classification: PHOTOSYNTHESIS
Organism(s): Arabidopsis thaliana
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-12-10 Released: 2026-08-12
Deposition Author(s): Gabruk, M., Desfosses, A., Estrozi, L.F., Pintscher, S., Rawski, M.
Funding Organization(s): Polish National Science Centre

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.03 Å
Aggregation State: HELICAL ARRAY
Reconstruction Method: HELICAL

wwPDB Validation 3D Report Full Report

Validation slider image for 9TLH

This is version 1.0 of the entry. See complete history.

Literature

Structures of LPOR-Chlide complexes reveal the structural basis of membrane remodeling and photocatalysis

Gabruk, M., Desfosses, A., Estrozi, L.F., Pintscher, S., Rawski, M., Wazny, G., Garbacz, A., Zbyradowski, M., Kruk, J., Fiedor, L.

(2026) Nat Commun

DOI: https://doi.org/10.1038/s41467-026-76316-7

Macromolecule Content

Total Structure Weight: 1,776.89 kDa
Atom Count: 112,359
Modeled Residue Count: 13,994
Deposited Residue Count: 15,532
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

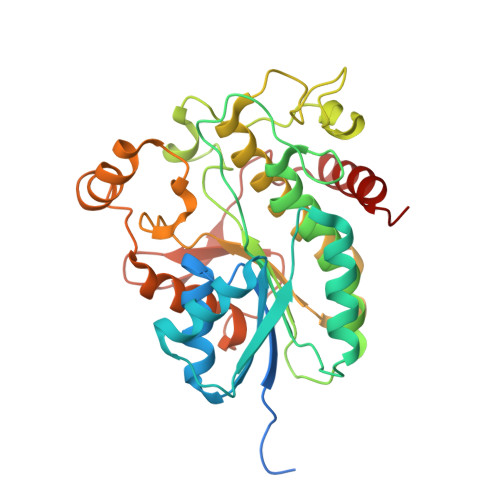

Protochlorophyllide reductase B, chloroplastic	A [auth AA] AA [auth CC] B [auth AB] BA [auth CD] C [auth AC] A [auth AA], AA [auth CC], B [auth AB], BA [auth CD], C [auth AC], CA [auth CE], D [auth AD], DA [auth CF], E [auth AE], EA [auth CG], F [auth AF], FA [auth CH], G [auth AG], GA [auth CI], H [auth AH], HA [auth CJ], I [auth AI], IA [auth CK], J [auth AJ], JA [auth CL], K [auth AK], KA [auth DA], L [auth AL], LA [auth DB], M [auth BA], MA [auth DC], N [auth BB], NA [auth DD], O [auth BC], OA [auth DE], P [auth BD], PA [auth DF], Q [auth BE], QA [auth DG], R [auth BF], RA [auth DH], S [auth BG], T [auth BH], U [auth BI], V [auth BJ], W [auth BK], X [auth BL], Y [auth CA], Z [auth CB]	353	Arabidopsis thaliana	Mutation(s): 0 Gene Names: PORB, At4g27440, F27G19.40 EC: 1.3.1.33
UniProt
Find proteins for P21218 (Arabidopsis thaliana) Explore P21218 Go to UniProtKB: P21218
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P21218
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
LMG (Subject of Investigation/LOI) Query on LMG Download:Ideal Coordinates CCD File SDF format, chain ZC [auth BH] SDF format, chain ZB [auth AL] SDF format, chain YE [auth DA] SDF format, chain YA [auth AC] SDF format, chain XB [auth AK] SDF format, chain XA [auth AB] SDF format, chain WC [auth BG] SDF format, chain VD [auth CD] SDF format, chain UE [auth CL] SDF format, chain TB [auth AJ] SDF format, chain TA [auth AA] SDF format, chain SF [auth DH] SDF format, chain SE [auth CK] SDF format, chain SD [auth CC] SDF format, chain SC [auth BF] SDF format, chain RD [auth CB] SDF format, chain RB [auth AI] SDF format, chain QF [auth DG] SDF format, chain PC [auth BE] SDF format, chain OE [auth CJ] SDF format, chain OB [auth AH] SDF format, chain ND [auth CA] SDF format, chain LF [auth DF] SDF format, chain LD [auth BL] SDF format, chain LC [auth BD] SDF format, chain LB [auth AG] SDF format, chain KF [auth DE] SDF format, chain KE [auth CI] SDF format, chain KC [auth BC] SDF format, chain IE [auth CH] SDF format, chain IB [auth AF] SDF format, chain GF [auth DD] SDF format, chain GD [auth BK] SDF format, chain GC [auth BB] SDF format, chain GB [auth AE] SDF format, chain FE [auth CG] SDF format, chain EF [auth DC] SDF format, chain DD [auth BJ] SDF format, chain DC [auth BA] SDF format, chain CB [auth AD] SDF format, chain BF [auth DB] SDF format, chain BE [auth CF] SDF format, chain BD [auth BI] SDF format, chain AE [auth CE] MOL2 format, chain ZC [auth BH] MOL2 format, chain ZB [auth AL] MOL2 format, chain YE [auth DA] MOL2 format, chain YA [auth AC] MOL2 format, chain XB [auth AK] MOL2 format, chain XA [auth AB] MOL2 format, chain WC [auth BG] MOL2 format, chain VD [auth CD] MOL2 format, chain UE [auth CL] MOL2 format, chain TB [auth AJ] MOL2 format, chain TA [auth AA] MOL2 format, chain SF [auth DH] MOL2 format, chain SE [auth CK] MOL2 format, chain SD [auth CC] MOL2 format, chain SC [auth BF] MOL2 format, chain RD [auth CB] MOL2 format, chain RB [auth AI] MOL2 format, chain QF [auth DG] MOL2 format, chain PC [auth BE] MOL2 format, chain OE [auth CJ] MOL2 format, chain OB [auth AH] MOL2 format, chain ND [auth CA] MOL2 format, chain LF [auth DF] MOL2 format, chain LD [auth BL] MOL2 format, chain LC [auth BD] MOL2 format, chain LB [auth AG] MOL2 format, chain KF [auth DE] MOL2 format, chain KE [auth CI] MOL2 format, chain KC [auth BC] MOL2 format, chain IE [auth CH] MOL2 format, chain IB [auth AF] MOL2 format, chain GF [auth DD] MOL2 format, chain GD [auth BK] MOL2 format, chain GC [auth BB] MOL2 format, chain GB [auth AE] MOL2 format, chain FE [auth CG] MOL2 format, chain EF [auth DC] MOL2 format, chain DD [auth BJ] MOL2 format, chain DC [auth BA] MOL2 format, chain CB [auth AD] MOL2 format, chain BF [auth DB] MOL2 format, chain BE [auth CF] MOL2 format, chain BD [auth BI] MOL2 format, chain AE [auth CE] mmCIF format, chain ZC [auth BH] mmCIF format, chain ZB [auth AL] mmCIF format, chain YE [auth DA] mmCIF format, chain YA [auth AC] mmCIF format, chain XB [auth AK] mmCIF format, chain XA [auth AB] mmCIF format, chain WC [auth BG] mmCIF format, chain VD [auth CD] mmCIF format, chain UE [auth CL] mmCIF format, chain TB [auth AJ] mmCIF format, chain TA [auth AA] mmCIF format, chain SF [auth DH] mmCIF format, chain SE [auth CK] mmCIF format, chain SD [auth CC] mmCIF format, chain SC [auth BF] mmCIF format, chain RD [auth CB] mmCIF format, chain RB [auth AI] mmCIF format, chain QF [auth DG] mmCIF format, chain PC [auth BE] mmCIF format, chain OE [auth CJ] mmCIF format, chain OB [auth AH] mmCIF format, chain ND [auth CA] mmCIF format, chain LF [auth DF] mmCIF format, chain LD [auth BL] mmCIF format, chain LC [auth BD] mmCIF format, chain LB [auth AG] mmCIF format, chain KF [auth DE] mmCIF format, chain KE [auth CI] mmCIF format, chain KC [auth BC] mmCIF format, chain IE [auth CH] mmCIF format, chain IB [auth AF] mmCIF format, chain GF [auth DD] mmCIF format, chain GD [auth BK] mmCIF format, chain GC [auth BB] mmCIF format, chain GB [auth AE] mmCIF format, chain FE [auth CG] mmCIF format, chain EF [auth DC] mmCIF format, chain DD [auth BJ] mmCIF format, chain DC [auth BA] mmCIF format, chain CB [auth AD] mmCIF format, chain BF [auth DB] mmCIF format, chain BE [auth CF] mmCIF format, chain BD [auth BI] mmCIF format, chain AE [auth CE]	AE [auth CE] BD [auth BI] BE [auth CF] BF [auth DB] CB [auth AD] AE [auth CE], BD [auth BI], BE [auth CF], BF [auth DB], CB [auth AD], DC [auth BA], DD [auth BJ], EF [auth DC], FE [auth CG], GB [auth AE], GC [auth BB], GD [auth BK], GF [auth DD], IB [auth AF], IE [auth CH], KC [auth BC], KE [auth CI], KF [auth DE], LB [auth AG], LC [auth BD], LD [auth BL], LF [auth DF], ND [auth CA], OB [auth AH], OE [auth CJ], PC [auth BE], QF [auth DG], RB [auth AI], RD [auth CB], SC [auth BF], SD [auth CC], SE [auth CK], SF [auth DH], TA [auth AA], TB [auth AJ], UE [auth CL], VD [auth CD], WC [auth BG], XA [auth AB], XB [auth AK], YA [auth AC], YE [auth DA], ZB [auth AL], ZC [auth BH]	1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE C₄₅ H₈₆ O₁₀ DCLTVZLYPPIIID-CVELTQQQSA-N		Interactions Focus chain AE [auth CE] Focus chain BD [auth BI] Focus chain BE [auth CF] Focus chain BF [auth DB] Focus chain CB [auth AD] Focus chain DC [auth BA] Focus chain DD [auth BJ] Focus chain EF [auth DC] Focus chain FE [auth CG] Focus chain GB [auth AE] Focus chain GC [auth BB] Focus chain GD [auth BK] Focus chain GF [auth DD] Focus chain IB [auth AF] Focus chain IE [auth CH] Focus chain KC [auth BC] Focus chain KE [auth CI] Focus chain KF [auth DE] Focus chain LB [auth AG] Focus chain LC [auth BD] Focus chain LD [auth BL] Focus chain LF [auth DF] Focus chain ND [auth CA] Focus chain OB [auth AH] Focus chain OE [auth CJ] Focus chain PC [auth BE] Focus chain QF [auth DG] Focus chain RB [auth AI] Focus chain RD [auth CB] Focus chain SC [auth BF] Focus chain SD [auth CC] Focus chain SE [auth CK] Focus chain SF [auth DH] Focus chain TA [auth AA] Focus chain TB [auth AJ] Focus chain UE [auth CL] Focus chain VD [auth CD] Focus chain WC [auth BG] Focus chain XA [auth AB] Focus chain XB [auth AK] Focus chain YA [auth AC] Focus chain YE [auth DA] Focus chain ZB [auth AL] Focus chain ZC [auth BH] Interactions & Density Focus chain AE [auth CE] Focus chain BD [auth BI] Focus chain BE [auth CF] Focus chain BF [auth DB] Focus chain CB [auth AD] Focus chain DC [auth BA] Focus chain DD [auth BJ] Focus chain EF [auth DC] Focus chain FE [auth CG] Focus chain GB [auth AE] Focus chain GC [auth BB] Focus chain GD [auth BK] Focus chain GF [auth DD] Focus chain IB [auth AF] Focus chain IE [auth CH] Focus chain KC [auth BC] Focus chain KE [auth CI] Focus chain KF [auth DE] Focus chain LB [auth AG] Focus chain LC [auth BD] Focus chain LD [auth BL] Focus chain LF [auth DF] Focus chain ND [auth CA] Focus chain OB [auth AH] Focus chain OE [auth CJ] Focus chain PC [auth BE] Focus chain QF [auth DG] Focus chain RB [auth AI] Focus chain RD [auth CB] Focus chain SC [auth BF] Focus chain SD [auth CC] Focus chain SE [auth CK] Focus chain SF [auth DH] Focus chain TA [auth AA] Focus chain TB [auth AJ] Focus chain UE [auth CL] Focus chain VD [auth CD] Focus chain WC [auth BG] Focus chain XA [auth AB] Focus chain XB [auth AK] Focus chain YA [auth AC] Focus chain YE [auth DA] Focus chain ZB [auth AL] Focus chain ZC [auth BH]
NDP (Subject of Investigation/LOI) Query on NDP Download:Ideal Coordinates CCD File SDF format, chain YD [auth CE] SDF format, chain YC [auth BH] SDF format, chain WE [auth DA] SDF format, chain WD [auth CD] SDF format, chain WB [auth AK] SDF format, chain VB [auth AJ] SDF format, chain VA [auth AB] SDF format, chain UC [auth BG] SDF format, chain TE [auth CL] SDF format, chain TD [auth CC] SDF format, chain SA [auth AA] SDF format, chain RF [auth DH] SDF format, chain RC [auth BF] SDF format, chain QE [auth CK] SDF format, chain QB [auth AI] SDF format, chain PD [auth CB] SDF format, chain PB [auth AH] SDF format, chain OF [auth DG] SDF format, chain OD [auth CA] SDF format, chain OC [auth BE] SDF format, chain NF [auth DF] SDF format, chain NE [auth CJ] SDF format, chain ME [auth CI] SDF format, chain MC [auth BD] SDF format, chain MB [auth AG] SDF format, chain KD [auth BL] SDF format, chain JF [auth DE] SDF format, chain IC [auth BC] SDF format, chain HF [auth DD] SDF format, chain HE [auth CH] SDF format, chain HD [auth BK] SDF format, chain HB [auth AF] SDF format, chain FD [auth BJ] SDF format, chain FC [auth BB] SDF format, chain FB [auth AE] SDF format, chain EE [auth CG] SDF format, chain DF [auth DC] SDF format, chain CE [auth CF] SDF format, chain CD [auth BI] SDF format, chain CC [auth BA] SDF format, chain BC [auth AL] SDF format, chain BB [auth AD] SDF format, chain AF [auth DB] SDF format, chain AB [auth AC] MOL2 format, chain YD [auth CE] MOL2 format, chain YC [auth BH] MOL2 format, chain WE [auth DA] MOL2 format, chain WD [auth CD] MOL2 format, chain WB [auth AK] MOL2 format, chain VB [auth AJ] MOL2 format, chain VA [auth AB] MOL2 format, chain UC [auth BG] MOL2 format, chain TE [auth CL] MOL2 format, chain TD [auth CC] MOL2 format, chain SA [auth AA] MOL2 format, chain RF [auth DH] MOL2 format, chain RC [auth BF] MOL2 format, chain QE [auth CK] MOL2 format, chain QB [auth AI] MOL2 format, chain PD [auth CB] MOL2 format, chain PB [auth AH] MOL2 format, chain OF [auth DG] MOL2 format, chain OD [auth CA] MOL2 format, chain OC [auth BE] MOL2 format, chain NF [auth DF] MOL2 format, chain NE [auth CJ] MOL2 format, chain ME [auth CI] MOL2 format, chain MC [auth BD] MOL2 format, chain MB [auth AG] MOL2 format, chain KD [auth BL] MOL2 format, chain JF [auth DE] MOL2 format, chain IC [auth BC] MOL2 format, chain HF [auth DD] MOL2 format, chain HE [auth CH] MOL2 format, chain HD [auth BK] MOL2 format, chain HB [auth AF] MOL2 format, chain FD [auth BJ] MOL2 format, chain FC [auth BB] MOL2 format, chain FB [auth AE] MOL2 format, chain EE [auth CG] MOL2 format, chain DF [auth DC] MOL2 format, chain CE [auth CF] MOL2 format, chain CD [auth BI] MOL2 format, chain CC [auth BA] MOL2 format, chain BC [auth AL] MOL2 format, chain BB [auth AD] MOL2 format, chain AF [auth DB] MOL2 format, chain AB [auth AC] mmCIF format, chain YD [auth CE] mmCIF format, chain YC [auth BH] mmCIF format, chain WE [auth DA] mmCIF format, chain WD [auth CD] mmCIF format, chain WB [auth AK] mmCIF format, chain VB [auth AJ] mmCIF format, chain VA [auth AB] mmCIF format, chain UC [auth BG] mmCIF format, chain TE [auth CL] mmCIF format, chain TD [auth CC] mmCIF format, chain SA [auth AA] mmCIF format, chain RF [auth DH] mmCIF format, chain RC [auth BF] mmCIF format, chain QE [auth CK] mmCIF format, chain QB [auth AI] mmCIF format, chain PD [auth CB] mmCIF format, chain PB [auth AH] mmCIF format, chain OF [auth DG] mmCIF format, chain OD [auth CA] mmCIF format, chain OC [auth BE] mmCIF format, chain NF [auth DF] mmCIF format, chain NE [auth CJ] mmCIF format, chain ME [auth CI] mmCIF format, chain MC [auth BD] mmCIF format, chain MB [auth AG] mmCIF format, chain KD [auth BL] mmCIF format, chain JF [auth DE] mmCIF format, chain IC [auth BC] mmCIF format, chain HF [auth DD] mmCIF format, chain HE [auth CH] mmCIF format, chain HD [auth BK] mmCIF format, chain HB [auth AF] mmCIF format, chain FD [auth BJ] mmCIF format, chain FC [auth BB] mmCIF format, chain FB [auth AE] mmCIF format, chain EE [auth CG] mmCIF format, chain DF [auth DC] mmCIF format, chain CE [auth CF] mmCIF format, chain CD [auth BI] mmCIF format, chain CC [auth BA] mmCIF format, chain BC [auth AL] mmCIF format, chain BB [auth AD] mmCIF format, chain AF [auth DB] mmCIF format, chain AB [auth AC]	AB [auth AC] AF [auth DB] BB [auth AD] BC [auth AL] CC [auth BA] AB [auth AC], AF [auth DB], BB [auth AD], BC [auth AL], CC [auth BA], CD [auth BI], CE [auth CF], DF [auth DC], EE [auth CG], FB [auth AE], FC [auth BB], FD [auth BJ], HB [auth AF], HD [auth BK], HE [auth CH], HF [auth DD], IC [auth BC], JF [auth DE], KD [auth BL], MB [auth AG], MC [auth BD], ME [auth CI], NE [auth CJ], NF [auth DF], OC [auth BE], OD [auth CA], OF [auth DG], PB [auth AH], PD [auth CB], QB [auth AI], QE [auth CK], RC [auth BF], RF [auth DH], SA [auth AA], TD [auth CC], TE [auth CL], UC [auth BG], VA [auth AB], VB [auth AJ], WB [auth AK], WD [auth CD], WE [auth DA], YC [auth BH], YD [auth CE]	NADPH DIHYDRO-NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE C₂₁ H₃₀ N₇ O₁₇ P₃ ACFIXJIJDZMPPO-NNYOXOHSSA-N		Interactions Focus chain AB [auth AC] Focus chain AF [auth DB] Focus chain BB [auth AD] Focus chain BC [auth AL] Focus chain CC [auth BA] Focus chain CD [auth BI] Focus chain CE [auth CF] Focus chain DF [auth DC] Focus chain EE [auth CG] Focus chain FB [auth AE] Focus chain FC [auth BB] Focus chain FD [auth BJ] Focus chain HB [auth AF] Focus chain HD [auth BK] Focus chain HE [auth CH] Focus chain HF [auth DD] Focus chain IC [auth BC] Focus chain JF [auth DE] Focus chain KD [auth BL] Focus chain MB [auth AG] Focus chain MC [auth BD] Focus chain ME [auth CI] Focus chain NE [auth CJ] Focus chain NF [auth DF] Focus chain OC [auth BE] Focus chain OD [auth CA] Focus chain OF [auth DG] Focus chain PB [auth AH] Focus chain PD [auth CB] Focus chain QB [auth AI] Focus chain QE [auth CK] Focus chain RC [auth BF] Focus chain RF [auth DH] Focus chain SA [auth AA] Focus chain TD [auth CC] Focus chain TE [auth CL] Focus chain UC [auth BG] Focus chain VA [auth AB] Focus chain VB [auth AJ] Focus chain WB [auth AK] Focus chain WD [auth CD] Focus chain WE [auth DA] Focus chain YC [auth BH] Focus chain YD [auth CE] Interactions & Density Focus chain AB [auth AC] Focus chain AF [auth DB] Focus chain BB [auth AD] Focus chain BC [auth AL] Focus chain CC [auth BA] Focus chain CD [auth BI] Focus chain CE [auth CF] Focus chain DF [auth DC] Focus chain EE [auth CG] Focus chain FB [auth AE] Focus chain FC [auth BB] Focus chain FD [auth BJ] Focus chain HB [auth AF] Focus chain HD [auth BK] Focus chain HE [auth CH] Focus chain HF [auth DD] Focus chain IC [auth BC] Focus chain JF [auth DE] Focus chain KD [auth BL] Focus chain MB [auth AG] Focus chain MC [auth BD] Focus chain ME [auth CI] Focus chain NE [auth CJ] Focus chain NF [auth DF] Focus chain OC [auth BE] Focus chain OD [auth CA] Focus chain OF [auth DG] Focus chain PB [auth AH] Focus chain PD [auth CB] Focus chain QB [auth AI] Focus chain QE [auth CK] Focus chain RC [auth BF] Focus chain RF [auth DH] Focus chain SA [auth AA] Focus chain TD [auth CC] Focus chain TE [auth CL] Focus chain UC [auth BG] Focus chain VA [auth AB] Focus chain VB [auth AJ] Focus chain WB [auth AK] Focus chain WD [auth CD] Focus chain WE [auth DA] Focus chain YC [auth BH] Focus chain YD [auth CE]
A1JWG (Subject of Investigation/LOI) Query on A1JWG Download:Ideal Coordinates CCD File SDF format, chain ZE [auth DB] SDF format, chain ZD [auth CE] SDF format, chain ZA [auth AC] SDF format, chain YB [auth AK] SDF format, chain XE [auth DA] SDF format, chain XD [auth CD] SDF format, chain XC [auth BH] SDF format, chain WA [auth AB] SDF format, chain VE [auth CL] SDF format, chain VC [auth BG] SDF format, chain UD [auth CC] SDF format, chain UB [auth AJ] SDF format, chain UA [auth AA] SDF format, chain TF [auth DH] SDF format, chain TC [auth BF] SDF format, chain SB [auth AI] SDF format, chain RE [auth CK] SDF format, chain QD [auth CB] SDF format, chain QC [auth BE] SDF format, chain PF [auth DG] SDF format, chain PE [auth CJ] SDF format, chain NC [auth BD] SDF format, chain NB [auth AH] SDF format, chain MF [auth DF] SDF format, chain MD [auth CA] SDF format, chain LE [auth CI] SDF format, chain KB [auth AG] SDF format, chain JE [auth CH] SDF format, chain JD [auth BL] SDF format, chain JC [auth BC] SDF format, chain JB [auth AF] SDF format, chain IF [auth DE] SDF format, chain ID [auth BK] SDF format, chain HC [auth BB] SDF format, chain GE [auth CG] SDF format, chain FF [auth DD] SDF format, chain ED [auth BJ] SDF format, chain EC [auth BA] SDF format, chain EB [auth AE] SDF format, chain DE [auth CF] SDF format, chain DB [auth AD] SDF format, chain CF [auth DC] SDF format, chain AD [auth BI] SDF format, chain AC [auth AL] MOL2 format, chain ZE [auth DB] MOL2 format, chain ZD [auth CE] MOL2 format, chain ZA [auth AC] MOL2 format, chain YB [auth AK] MOL2 format, chain XE [auth DA] MOL2 format, chain XD [auth CD] MOL2 format, chain XC [auth BH] MOL2 format, chain WA [auth AB] MOL2 format, chain VE [auth CL] MOL2 format, chain VC [auth BG] MOL2 format, chain UD [auth CC] MOL2 format, chain UB [auth AJ] MOL2 format, chain UA [auth AA] MOL2 format, chain TF [auth DH] MOL2 format, chain TC [auth BF] MOL2 format, chain SB [auth AI] MOL2 format, chain RE [auth CK] MOL2 format, chain QD [auth CB] MOL2 format, chain QC [auth BE] MOL2 format, chain PF [auth DG] MOL2 format, chain PE [auth CJ] MOL2 format, chain NC [auth BD] MOL2 format, chain NB [auth AH] MOL2 format, chain MF [auth DF] MOL2 format, chain MD [auth CA] MOL2 format, chain LE [auth CI] MOL2 format, chain KB [auth AG] MOL2 format, chain JE [auth CH] MOL2 format, chain JD [auth BL] MOL2 format, chain JC [auth BC] MOL2 format, chain JB [auth AF] MOL2 format, chain IF [auth DE] MOL2 format, chain ID [auth BK] MOL2 format, chain HC [auth BB] MOL2 format, chain GE [auth CG] MOL2 format, chain FF [auth DD] MOL2 format, chain ED [auth BJ] MOL2 format, chain EC [auth BA] MOL2 format, chain EB [auth AE] MOL2 format, chain DE [auth CF] MOL2 format, chain DB [auth AD] MOL2 format, chain CF [auth DC] MOL2 format, chain AD [auth BI] MOL2 format, chain AC [auth AL] mmCIF format, chain ZE [auth DB] mmCIF format, chain ZD [auth CE] mmCIF format, chain ZA [auth AC] mmCIF format, chain YB [auth AK] mmCIF format, chain XE [auth DA] mmCIF format, chain XD [auth CD] mmCIF format, chain XC [auth BH] mmCIF format, chain WA [auth AB] mmCIF format, chain VE [auth CL] mmCIF format, chain VC [auth BG] mmCIF format, chain UD [auth CC] mmCIF format, chain UB [auth AJ] mmCIF format, chain UA [auth AA] mmCIF format, chain TF [auth DH] mmCIF format, chain TC [auth BF] mmCIF format, chain SB [auth AI] mmCIF format, chain RE [auth CK] mmCIF format, chain QD [auth CB] mmCIF format, chain QC [auth BE] mmCIF format, chain PF [auth DG] mmCIF format, chain PE [auth CJ] mmCIF format, chain NC [auth BD] mmCIF format, chain NB [auth AH] mmCIF format, chain MF [auth DF] mmCIF format, chain MD [auth CA] mmCIF format, chain LE [auth CI] mmCIF format, chain KB [auth AG] mmCIF format, chain JE [auth CH] mmCIF format, chain JD [auth BL] mmCIF format, chain JC [auth BC] mmCIF format, chain JB [auth AF] mmCIF format, chain IF [auth DE] mmCIF format, chain ID [auth BK] mmCIF format, chain HC [auth BB] mmCIF format, chain GE [auth CG] mmCIF format, chain FF [auth DD] mmCIF format, chain ED [auth BJ] mmCIF format, chain EC [auth BA] mmCIF format, chain EB [auth AE] mmCIF format, chain DE [auth CF] mmCIF format, chain DB [auth AD] mmCIF format, chain CF [auth DC] mmCIF format, chain AD [auth BI] mmCIF format, chain AC [auth AL]	AC [auth AL] AD [auth BI] CF [auth DC] DB [auth AD] DE [auth CF] AC [auth AL], AD [auth BI], CF [auth DC], DB [auth AD], DE [auth CF], EB [auth AE], EC [auth BA], ED [auth BJ], FF [auth DD], GE [auth CG], HC [auth BB], ID [auth BK], IF [auth DE], JB [auth AF], JC [auth BC], JD [auth BL], JE [auth CH], KB [auth AG], LE [auth CI], MD [auth CA], MF [auth DF], NB [auth AH], NC [auth BD], PE [auth CJ], PF [auth DG], QC [auth BE], QD [auth CB], RE [auth CK], SB [auth AI], TC [auth BF], TF [auth DH], UA [auth AA], UB [auth AJ], UD [auth CC], VC [auth BG], VE [auth CL], WA [auth AB], XC [auth BH], XD [auth CD], XE [auth DA], YB [auth AK], ZA [auth AC], ZD [auth CE], ZE [auth DB]	Chlorophyllide a C₃₅ H₃₄ Mg N₄ O₅ LRLVQWDKYFMPKX-NYABAGMLSA-L		Interactions Focus chain AC [auth AL] Focus chain AD [auth BI] Focus chain CF [auth DC] Focus chain DB [auth AD] Focus chain DE [auth CF] Focus chain EB [auth AE] Focus chain EC [auth BA] Focus chain ED [auth BJ] Focus chain FF [auth DD] Focus chain GE [auth CG] Focus chain HC [auth BB] Focus chain ID [auth BK] Focus chain IF [auth DE] Focus chain JB [auth AF] Focus chain JC [auth BC] Focus chain JD [auth BL] Focus chain JE [auth CH] Focus chain KB [auth AG] Focus chain LE [auth CI] Focus chain MD [auth CA] Focus chain MF [auth DF] Focus chain NB [auth AH] Focus chain NC [auth BD] Focus chain PE [auth CJ] Focus chain PF [auth DG] Focus chain QC [auth BE] Focus chain QD [auth CB] Focus chain RE [auth CK] Focus chain SB [auth AI] Focus chain TC [auth BF] Focus chain TF [auth DH] Focus chain UA [auth AA] Focus chain UB [auth AJ] Focus chain UD [auth CC] Focus chain VC [auth BG] Focus chain VE [auth CL] Focus chain WA [auth AB] Focus chain XC [auth BH] Focus chain XD [auth CD] Focus chain XE [auth DA] Focus chain YB [auth AK] Focus chain ZA [auth AC] Focus chain ZD [auth CE] Focus chain ZE [auth DB] Interactions & Density Focus chain AC [auth AL] Focus chain AD [auth BI] Focus chain CF [auth DC] Focus chain DB [auth AD] Focus chain DE [auth CF] Focus chain EB [auth AE] Focus chain EC [auth BA] Focus chain ED [auth BJ] Focus chain FF [auth DD] Focus chain GE [auth CG] Focus chain HC [auth BB] Focus chain ID [auth BK] Focus chain IF [auth DE] Focus chain JB [auth AF] Focus chain JC [auth BC] Focus chain JD [auth BL] Focus chain JE [auth CH] Focus chain KB [auth AG] Focus chain LE [auth CI] Focus chain MD [auth CA] Focus chain MF [auth DF] Focus chain NB [auth AH] Focus chain NC [auth BD] Focus chain PE [auth CJ] Focus chain PF [auth DG] Focus chain QC [auth BE] Focus chain QD [auth CB] Focus chain RE [auth CK] Focus chain SB [auth AI] Focus chain TC [auth BF] Focus chain TF [auth DH] Focus chain UA [auth AA] Focus chain UB [auth AJ] Focus chain UD [auth CC] Focus chain VC [auth BG] Focus chain VE [auth CL] Focus chain WA [auth AB] Focus chain XC [auth BH] Focus chain XD [auth CD] Focus chain XE [auth DA] Focus chain YB [auth AK] Focus chain ZA [auth AC] Focus chain ZD [auth CE] Focus chain ZE [auth DB]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.03 Å
Aggregation State: HELICAL ARRAY
Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC	4.3

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-12

Deposition Author(s):

Funding Organization	Location	Grant Number
Polish National Science Centre	Poland	2019/35/D/NZ1/00295

Revision History (Full details and data files)

Version 1.0: 2026-08-12
Type: Initial release
