9SWN | pdb_00009swn

Cryo-EM structure of yeast telomerase holoenzyme

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history.


Literature

Cryo-electron microscopy structure of the budding yeast telomerase holoenzyme.

Hu, H., Neumann, H., Teplitz, G.M., Franco-Echevarria, E., Chartrand, P., Wellinger, R.J., Nguyen, T.H.D.

(2026) Science 391: eadz5344-eadz5344

  • DOI: https://doi.org/10.1126/science.adz5344
  • Primary Citation Related Structures:
    9SWN, 9SWO

  • PubMed Abstract:

    Telomerase is a reverse transcriptase that synthesizes telomeric repeats at chromosome ends, safeguarding genome integrity. We present the cryo-electron microscopy structure of the budding yeast telomerase, which exhibits substantial divergence from its ciliate and vertebrate counterparts. The structure reveals a stable core formed by telomerase RNA TLC1; the three ever shorter telomere (Est) proteins, Est1, Est2 and Est3; and the Pop1/Pop6/Pop7 complex (Pop1/6/7). TLC1, Est3, and Pop1/6/7 serve critical roles in complex assembly. We identified a zinc finger (ZnF) motif in the telomerase reverse transcriptase (TERT) subunit Est2 that is crucial for telomerase function. Structure prediction suggests the presence of ZnFs in TERT from diverse species. These findings offer insights into the functional organization of yeast telomerase and underscore the evolutionary diversity of telomerase holoenzymes.

    • Organizational Affiliation:
    • MRC Laboratory of Molecular Biology, Cambridge, UK.

Macromolecules

Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

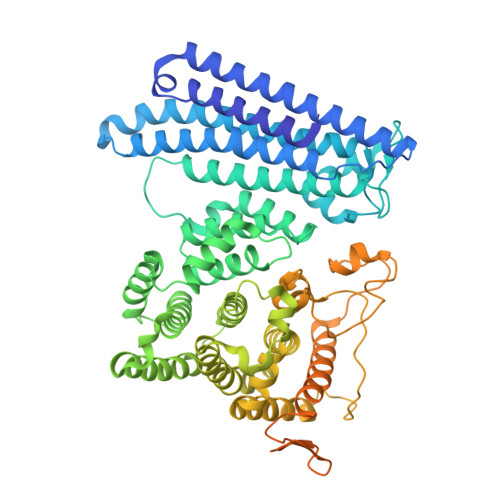

Telomere replication protein EST3A [auth C]181Saccharomyces cerevisiaeMutation(s): 0
Gene Names: EST3, YIL009C-A
UniProt
Find proteins for Q03096 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q03096
Go to UniProtKB:  Q03096
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ03096
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

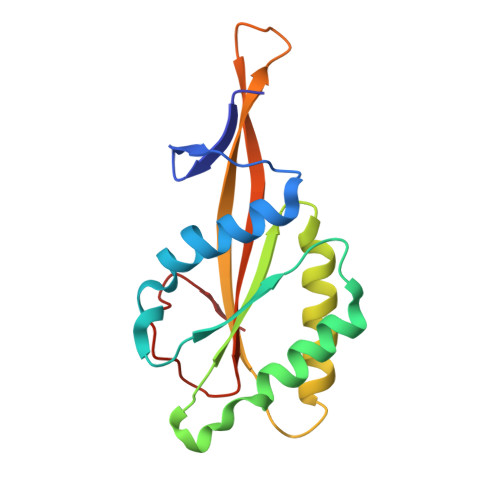

Ribonucleases P/MRP protein subunit POP6B [auth E]158Saccharomyces cerevisiaeMutation(s): 0
EC: 3.1.26.5
UniProt
Find proteins for P53218 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P53218
Go to UniProtKB:  P53218
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP53218
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

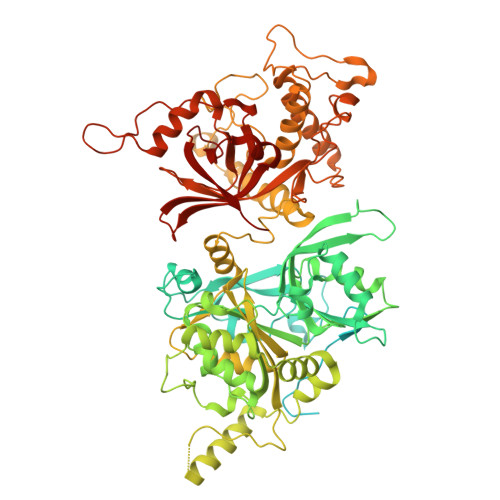

Telomere elongation protein EST1C [auth G]699Saccharomyces cerevisiaeMutation(s): 0
Gene Names: EST1, YLR233C, L8083.15
UniProt
Find proteins for P17214 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P17214
Go to UniProtKB:  P17214
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP17214
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

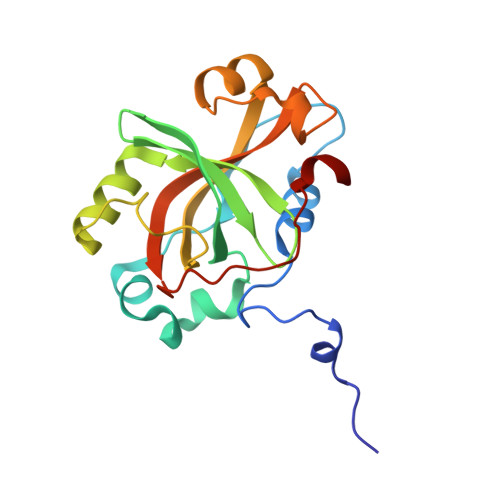

Ribonucleases P/MRP protein subunit POP7D [auth F]140Saccharomyces cerevisiaeMutation(s): 0
EC: 3.1.26.5
UniProt
Find proteins for P38291 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P38291
Go to UniProtKB:  P38291
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP38291
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

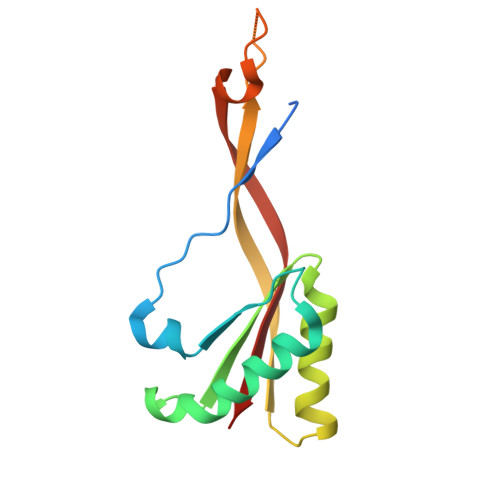

Ribonucleases P/MRP protein subunit POP1E [auth D]875Saccharomyces cerevisiaeMutation(s): 0
EC: 3.1.26.5
UniProt
Find proteins for P41812 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P41812
Go to UniProtKB:  P41812
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP41812
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:
(by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

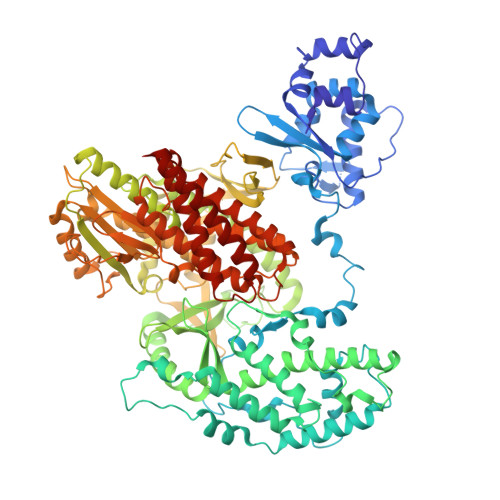

Telomerase reverse transcriptaseG [auth A]884Saccharomyces cerevisiaeMutation(s): 0
Gene Names: EST2, YLR318W, L8543.12
EC: 2.7.7.49
UniProt
Find proteins for Q06163 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore Q06163
Go to UniProtKB:  Q06163
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ06163
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 6
MoleculeChains LengthOrganismImage

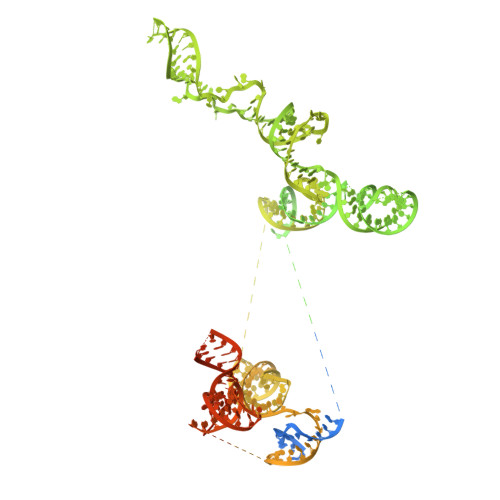

TLC1 RNAF [auth B]1,157Saccharomyces cerevisiae
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.00 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTREFMAC5.8.0430
RECONSTRUCTIONcryoSPARC4.5

Structure Validation

View Full Validation Report



View more in-depth experimental data
Entry History & Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
UK Research and Innovation (UKRI)United KingdomMC_UP_1201/19
European Molecular Biology Organization (EMBO)European Union--

Revision History  (Full details and data files)

  • Version 1.0: 2026-04-08
    Type: Initial release
