9RJV | pdb_00009rjv

W-formate dehydrogenase from Nitratidesulfovibrio vulgaris (Desulfovibrio vulgaris) - aerobic soaked with 55 bar oxygen

PDB DOI: https://doi.org/10.2210/pdb9RJV/pdb

Classification: OXIDOREDUCTASE
Organism(s): Nitratidesulfovibrio vulgaris str. Hildenborough
Expression System: Nitratidesulfovibrio vulgaris str. Hildenborough
Mutation(s): No

Deposited: 2025-06-12 Released: 2026-03-04
Deposition Author(s): Vilela-Alves, G., Manuel, R.R., Carpentier, P., Pereira, I.C., Romao, M.J., Mota, C.
Funding Organization(s): Fundacao para a Ciencia e a Tecnologia

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.83 Å
R-Value Free:
0.241 (Depositor), 0.247 (DCC)
R-Value Work:
0.195 (Depositor), 0.203 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Structural Insights into CO2 Transport Pathways in a W-Formate Dehydrogenase: Structural Basis for CO2 Reduction

Vilela-Alves, G., Manuel, R.R., Martins, G., Carpentier, P., Pereira, I.C., Romao, M.J., Mota, C.

(2026) Angew Chem Int Ed Engl

DOI: https://doi.org/10.1002/anie.202526133

Macromolecule Content

Total Structure Weight: 140.41 kDa
Atom Count: 9,830
Modeled Residue Count: 1,181
Deposited Residue Count: 1,228
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

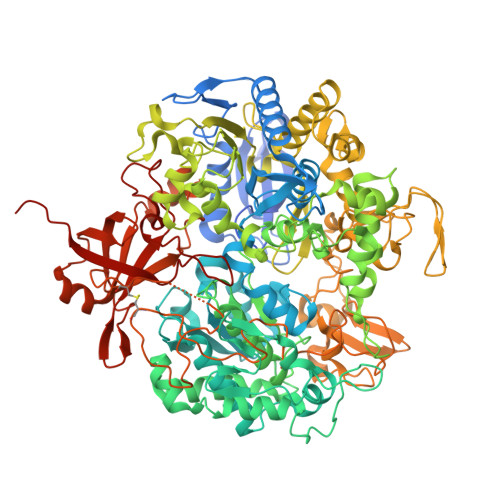

Formate dehydrogenase, alpha subunit, selenocysteine-containing	A	1,013	Nitratidesulfovibrio vulgaris str. Hildenborough	Mutation(s): 0 Gene Names: fdnG-1, DVU_0587 EC: 1.2.1.2
UniProt
Find proteins for Q72EJ1 (Nitratidesulfovibrio vulgaris (strain ATCC 29579 / DSM 644 / CCUG 34227 / NCIMB 8303 / VKM B-1760 / Hildenborough)) Explore Q72EJ1 Go to UniProtKB: Q72EJ1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q72EJ1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

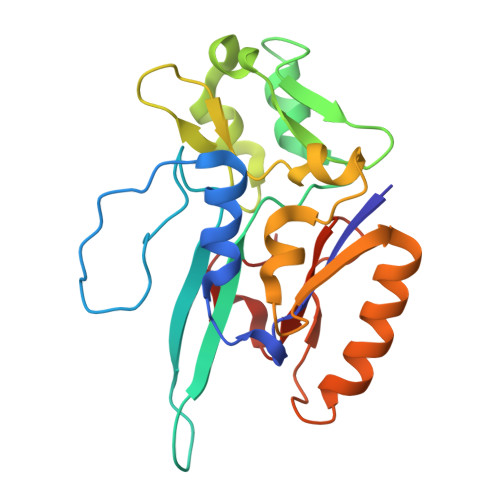

Formate dehydrogenase, beta subunit, putative	B	215	Nitratidesulfovibrio vulgaris str. Hildenborough	Mutation(s): 0 Gene Names: DVU_0588
UniProt
Find proteins for Q72EJ0 (Nitratidesulfovibrio vulgaris (strain ATCC 29579 / DSM 644 / CCUG 34227 / NCIMB 8303 / VKM B-1760 / Hildenborough)) Explore Q72EJ0 Go to UniProtKB: Q72EJ0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q72EJ0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 6 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MGD (Subject of Investigation/LOI) Query on MGD Download Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A]	C [auth A], D [auth A]	2-AMINO-5,6-DIMERCAPTO-7-METHYL-3,7,8A,9-TETRAHYDRO-8-OXA-1,3,9,10-TETRAAZA-ANTHRACEN-4-ONE GUANOSINE DINUCLEOTIDE C₂₀ H₂₆ N₁₀ O₁₃ P₂ S₂ VQAGYJCYOLHZDH-ILXWUORBSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A]
SF4 (Subject of Investigation/LOI) Query on SF4 Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain V [auth B] SDF format, chain W [auth B] SDF format, chain X [auth B] MOL2 format, chain E [auth A] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] MOL2 format, chain X [auth B] mmCIF format, chain E [auth A] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B] mmCIF format, chain X [auth B]	E [auth A], V [auth B], W [auth B], X [auth B]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Interactions & Density Focus chain E [auth A] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B]
W (Subject of Investigation/LOI) Query on W Download Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	TUNGSTEN ION W FZFRVZDLZISPFJ-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
GOL Query on GOL Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain T [auth A] SDF format, chain Y [auth B] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain T [auth A] MOL2 format, chain Y [auth B] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain T [auth A] mmCIF format, chain Y [auth B]	H [auth A], I [auth A], J [auth A], T [auth A], Y [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain T [auth A] Focus chain Y [auth B] Interactions & Density Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain T [auth A] Focus chain Y [auth B]
H2S (Subject of Investigation/LOI) Query on H2S Download Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	HYDROSULFURIC ACID H₂ S RWSOTUBLDIXVET-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]
OXY (Subject of Investigation/LOI) Query on OXY Download Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain BA [auth B] SDF format, chain K [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] SDF format, chain Q [auth A] SDF format, chain R [auth A] SDF format, chain S [auth A] SDF format, chain U [auth A] SDF format, chain Z [auth B] SDF format, chain L [auth A] MOL2 format, chain AA [auth B] MOL2 format, chain BA [auth B] MOL2 format, chain K [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth A] MOL2 format, chain S [auth A] MOL2 format, chain U [auth A] MOL2 format, chain Z [auth B] MOL2 format, chain L [auth A] mmCIF format, chain AA [auth B] mmCIF format, chain BA [auth B] mmCIF format, chain K [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth A] mmCIF format, chain S [auth A] mmCIF format, chain U [auth A] mmCIF format, chain Z [auth B] mmCIF format, chain L [auth A]	AA [auth B] BA [auth B] K [auth A] L [auth A] M [auth A] AA [auth B], BA [auth B], K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth A], S [auth A], U [auth A], Z [auth B]	OXYGEN MOLECULE O₂ MYMOFIZGZYHOMD-UHFFFAOYSA-N		Interactions Focus chain AA [auth B] Focus chain BA [auth B] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth A] Focus chain U [auth A] Focus chain Z [auth B] Interactions & Density Focus chain AA [auth B] Focus chain BA [auth B] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth A] Focus chain U [auth A] Focus chain Z [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.83 Å
R-Value Free: 0.241 (Depositor), 0.247 (DCC)
R-Value Work: 0.195 (Depositor), 0.203 (DCC)

Diffraction Data: https://doi.org/10.15151/ESRF-ES-643877202

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 64.837	α = 90
b = 128.376	β = 90
c = 148.809	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
autoPROC	data processing
STARANISO	data scaling
PHASER	phasing
XDS	data reduction
Aimless	data scaling
XSCALE	data scaling
pointless	data scaling

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

Entry History & Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
Fundacao para a Ciencia e a Tecnologia	Portugal	PTDC/BII-BBF/2050/2020
Fundacao para a Ciencia e a Tecnologia	Portugal	UIDP/04378/2020
Fundacao para a Ciencia e a Tecnologia	Portugal	UIDB/04378/2020
Fundacao para a Ciencia e a Tecnologia	Portugal	LA/P/0140/2020
Fundacao para a Ciencia e a Tecnologia	Portugal	LA/P/0087/2020
Fundacao para a Ciencia e a Tecnologia	Portugal	UIDB/04612/2020
Fundacao para a Ciencia e a Tecnologia	Portugal	UIDP/04612/2020
