9O1J | pdb_00009o1j

Pseudomonas aeruginosa ATPase State3 F1Fo focused


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.02 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Distinct structural features of Pseudomonas aeruginosa ATP synthase revealed by cryo-electron microscopy.

Sobti, M.Gunn, A.P.Brown, S.H.J.Zavan, L.Fraunfelter, V.M.Wolfe, A.L.McDevitt, C.A.Steed, P.R.Stewart, A.G.

(2025) Nat Commun

  • DOI: https://doi.org/10.1038/s41467-025-67100-0
  • Primary Citation of Related Structures:
    9O19, 9O1A, 9O1B, 9O1C, 9O1D, 9O1E, 9O1F, 9O1G, 9O1H, 9O1J, 9O1K

  • PubMed Abstract:

    F 1 F o ATP synthase is the ubiquitous enzyme that synthesizes cellular ATP by coupling proton-motive force with rotational catalysis. Structural differences between prokaryotic and eukaryotic ATP synthases offer potential targets for antimicrobial development. Here, we present the 2.0-2.4 Å resolution cryo-electron microscopy structures of the ATP synthase from Pseudomonas aeruginosa, an opportunistic bacterial pathogen capable of causing serious infections in humans. Our structures identify two distinctive features of this species' enzyme: a distinct binding site for the inhibitory ε subunit, and a coordinated metal ion capping the cytoplasmic proton channel. Lower-resolution maps of the enzyme following incubation with MgATP showed conformational rearrangements of the ε subunit during activation. Visualization of bound water molecules in the periplasmic half-channel supports a Grotthuss proton-transfer mechanism. Focused classification of the F o motor resolves distinct ~11° sub-steps in the c-ring, corresponding to protonation and deprotonation events. Functional analyses show that modifications to either the ε subunit or the metal binding site influence ATP synthesis and hydrolysis. Mass spectrometry analyses suggests that the physiological metal within the complex is zinc. Collectively, these findings define structural features of P. aeruginosa ATP synthase that could serve as targets for antimicrobial therapeutics.


  • Organizational Affiliation
    • Molecular, Structural and Computational Biology Division, The Victor Chang Cardiac Research Institute, Darlinghurst, NSW, Australia.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit alpha
A, B, C
514Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpAPSPA7_6358
EC: 7.1.2.2
UniProt
Find proteins for A6VF34 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF34
Go to UniProtKB:  A6VF34
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF34
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

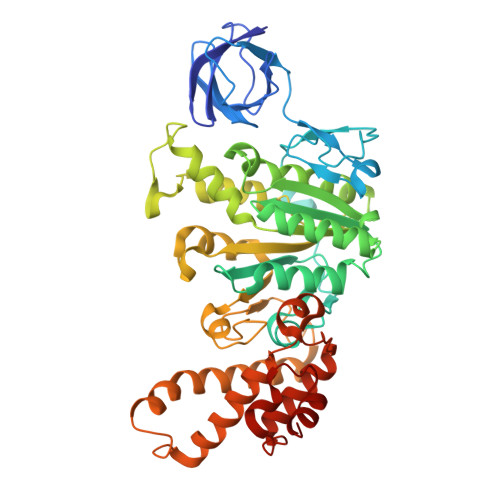

ATP synthase subunit beta
D, E, F
464Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpDPSPA7_6356
EC: 7.1.2.2
UniProt
Find proteins for A6VF32 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF32
Go to UniProtKB:  A6VF32
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF32
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

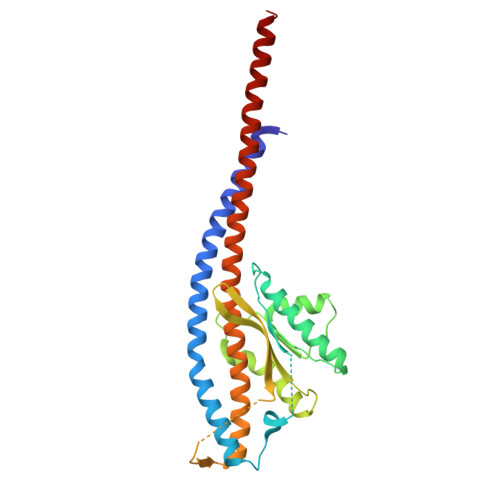

ATP synthase gamma chain286Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpGPSPA7_6357
UniProt
Find proteins for A6VF33 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF33
Go to UniProtKB:  A6VF33
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF33
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase epsilon chain141Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpCPSPA7_6355
UniProt
Find proteins for A6VF31 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF31
Go to UniProtKB:  A6VF31
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF31
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit c85Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpEPSPA7_6361
UniProt
Find proteins for A6VF37 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF37
Go to UniProtKB:  A6VF37
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF37
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit deltaS [auth W]178Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpHPSPA7_6359
UniProt
Find proteins for A6VF35 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF35
Go to UniProtKB:  A6VF35
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF35
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit bT [auth X],
U [auth Y]
156Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpFPA14_73290
UniProt
Find proteins for Q02DF0 (Pseudomonas aeruginosa (strain UCBPP-PA14))
Explore Q02DF0
Go to UniProtKB:  Q02DF0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ02DF0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit aV [auth a]289Pseudomonas aeruginosaMutation(s): 0
Gene Names: atpBPSPA7_6362
UniProt
Find proteins for A6VF38 (Pseudomonas paraeruginosa (strain DSM 24068 / PA7))
Explore A6VF38
Go to UniProtKB:  A6VF38
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6VF38
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP (Subject of Investigation/LOI)
Query on ATP

Download Ideal Coordinates CCD File
AA [auth C],
W [auth A],
Y [auth B]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
CA [auth D],
EA [auth E],
GA [auth F]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
BA [auth C],
DA [auth D],
FA [auth E],
X [auth A],
Z [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.02 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Health and Medical Research Council (NHMRC, Australia)Australia--

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-10
    Type: Initial release
  • Version 1.1: 2025-12-24
    Changes: Data collection, Database references
