9NT8 | pdb_00009nt8

Cryo-EM structure of GLP-1(9-36)-GLP_1R-Gs complex

• PDB DOI: https://doi.org/10.2210/pdb9NT8/pdb
• EM Map EMD-49755: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN/IMMUNE SYSTEM
• Organism(s): Homo sapiens, Lama glama, synthetic construct
• Expression System: Trichoplusia ni, Escherichia coli
• Mutation(s): Yes


• Deposited: 2025-03-18 Released: 2026-09-30
• Deposition Author(s): Zhang, X., Belousoff, M.J., Sexton, P.M., Wootten, D.
• Funding Organization(s): Australian Research Council (ARC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

cryo-EM structure of GLP-1(9-36)-GLP_1R-Gs complex

Zhang, X., Belousoff, M.J., Sexton, P.M., Wootten, D.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 6-mer - A1B1C1D1E1F1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 164.34 kDa
• Atom Count: 8,694
• Modeled Residue Count: 1,142
• Deposited Residue Count: 1,449
• Unique protein chains: 6

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

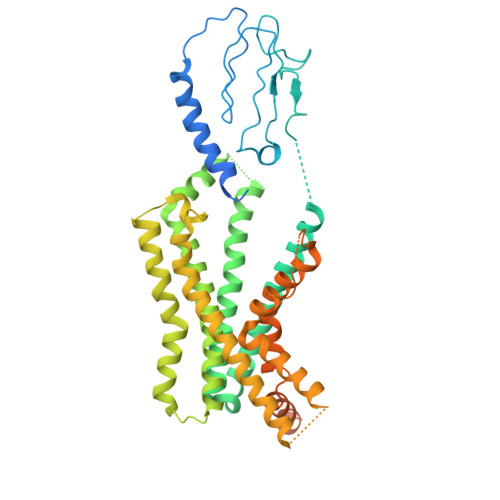

Glucagon-like peptide 1 receptor	A [auth R]	491	Homo sapiens	Mutation(s): 1  Gene Names: GLP1R
UniProt & NIH Common Fund Data Resources
Find proteins for P43220 (Homo sapiens) Explore P43220  Go to UniProtKB:  P43220
PHAROS:  P43220 GTEx:  ENSG00000112164

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

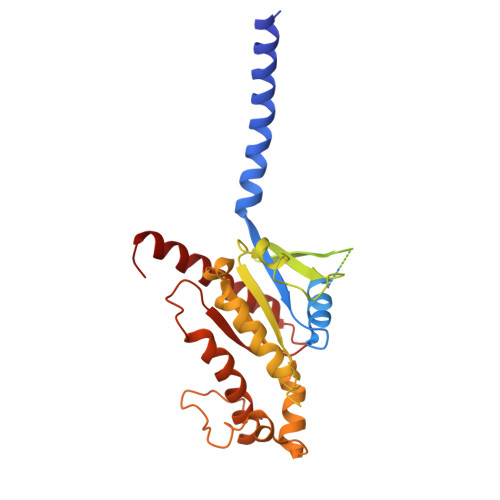

Guanine nucleotide-binding protein G(s) subunit alpha isoforms short	B [auth A]	394	Homo sapiens	Mutation(s): 9  Gene Names: GNAS, GNAS1, GSP EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63092 (Homo sapiens) Explore P63092  Go to UniProtKB:  P63092
PHAROS:  P63092 GTEx:  ENSG00000087460

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

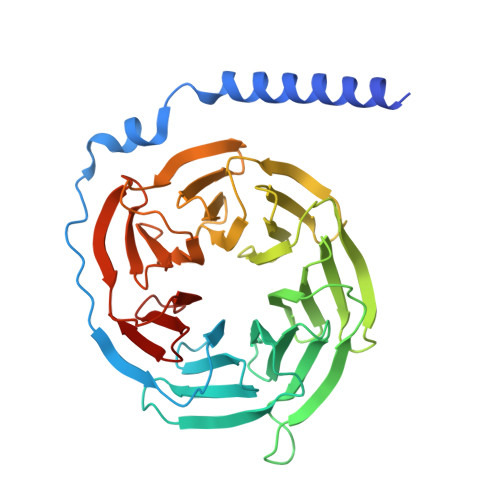

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1	C [auth B]	350	Homo sapiens	Mutation(s): 0  Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens) Explore P62873  Go to UniProtKB:  P62873
PHAROS:  P62873 GTEx:  ENSG00000078369

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

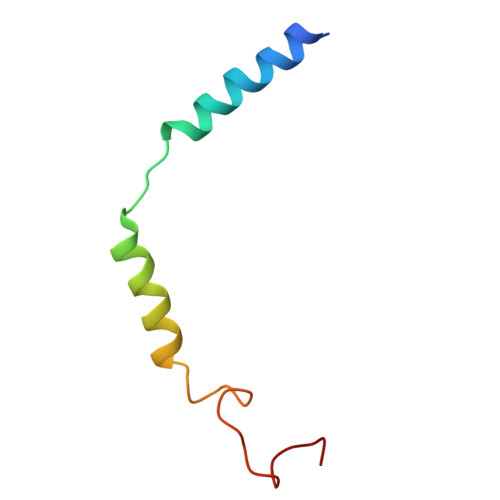

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2	D [auth G]	58	Homo sapiens	Mutation(s): 0  Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens) Explore P59768  Go to UniProtKB:  P59768
PHAROS:  P59768 GTEx:  ENSG00000186469

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

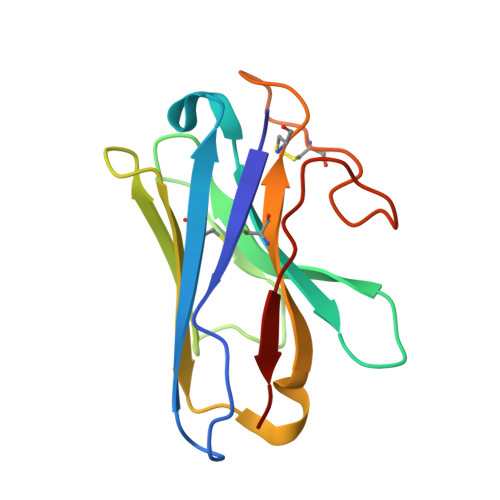

Nb35	E [auth N]	128	Lama glama	Mutation(s): 0

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

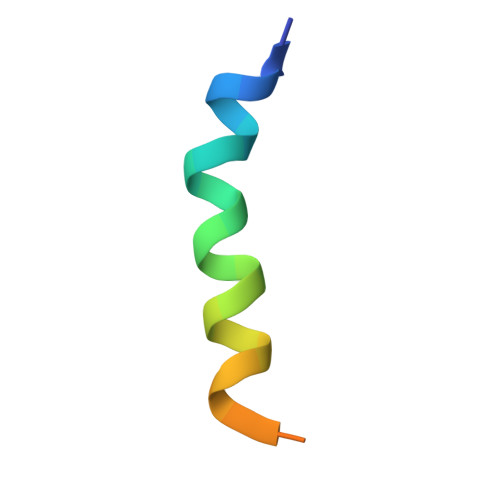

Glucagon-like peptide 1(7-36)	F [auth P]	28	synthetic construct	Mutation(s): 0
UniProt
Find proteins for P01274 (Sus scrofa) Explore P01274  Go to UniProtKB:  P01274

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.19.2_4158

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-09-30
Deposition Author(s): Zhang, X., Belousoff, M.J., Sexton, P.M., Wootten, D.

---

Funding Organization	Location	Grant Number
Australian Research Council (ARC)	Australia	DE230101681

Revision History

• Version 1.0: 2026-09-30
  Type: Initial release
