9M5H | pdb_00009m5h

D14.F25.S02 Fab complexed to DENV2-US/BID/V594/2006 virus (5f-3f map)

• PDB DOI: https://doi.org/10.2210/pdb9M5H/pdb
• EM Map EMD-63643: EMDB EMDataResource

• Classification: VIRUS
• Organism(s): dengue virus type 2, Homo sapiens
• Expression System: Cricetulus griseus
• Mutation(s): No


• Deposited: 2025-03-05 Released: 2026-04-22
• Deposition Author(s): Chatterjee, A.C., Mangala Prasad, V.
• Funding Organization(s): Science and Engineering Research Board (SERB), Wellcome Trust

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 4.09 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Models: in silico

Literature

Structural determinants of broadly neutralizing human antibodies binding to morphological dengue virus variants.

Chatterjee, A.C., Roy, A., Srinivasan, S., Charles, S., Lubow, J., Goo, L., Mangala Prasad, V.

To be published.

Biological Assembly 1

Global Symmetry: Icosahedral - I  (Explore in 3D)
Global Stoichiometry: Hetero 600-mer - A180B180C120D120 Pseudo Symmetry: Icosahedral - I  (Explore in 3D)
Pseudo Stoichiometry: Hetero 600-mer - A240B180C180

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 241.01 kDa
• Atom Count: 16,845
• Modeled Residue Count: 2,188
• Deposited Residue Count: 2,188
• Unique protein chains: 4

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

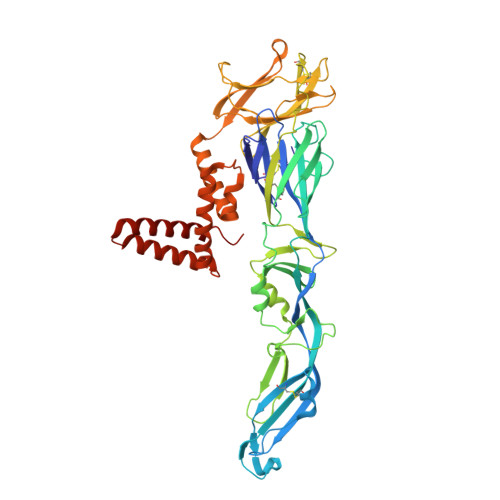

Envelope Glycoprotein E	A [auth C], B [auth A], I [auth E]	495	dengue virus type 2	Mutation(s): 0
UniProt
Find proteins for B1PP76 (Dengue virus type 2) Explore B1PP76  Go to UniProtKB:  B1PP76
Glycosylation
Glycosylation Sites: 2

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
D14.F25.S02 Fab light chain	C [auth L], G [auth M]	111	Homo sapiens	Mutation(s): 0  Gene Names: D14.F25.S02 light chain variable

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

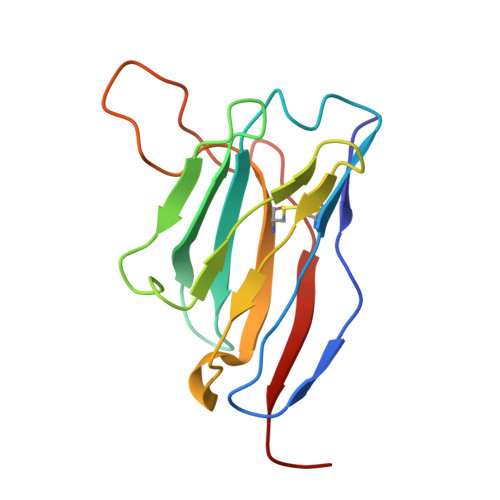

D14.F25.S02 Fab heavy chain	D [auth H], H [auth K]	128	Homo sapiens	Mutation(s): 0  Gene Names: D14.F25.S02 heavy chain

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

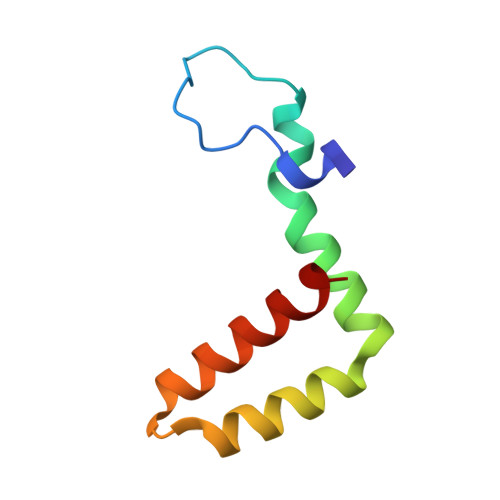

Membrane glycoprotein	E [auth B], F [auth D], J [auth F]	75	dengue virus type 2	Mutation(s): 0
UniProt
Find proteins for B1PP76 (Dengue virus type 2) Explore B1PP76  Go to UniProtKB:  B1PP76

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAG (Subject of Investigation/LOI)	K [auth C], L [auth C], M [auth A], N [auth A], O [auth E], P [auth E]	2-acetamido-2-deoxy-beta-D-glucopyranose C8 H15 N O6 OVRNDRQMDRJTHS-FMDGEEDCSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 4.09 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21_5207
RECONSTRUCTION	cryoSPARC	4.6.0

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-04-22
Deposition Author(s): Chatterjee, A.C., Mangala Prasad, V.

---

Funding Organization	Location	Grant Number
Science and Engineering Research Board (SERB)	India	SPG/2021/002433
Wellcome Trust	United Kingdom	IA/I/22/1/506233

Revision History

• Version 1.0: 2026-04-22
  Type: Initial release
