9M40 | pdb_00009m40

Cryo-EM structure of the agmatine-bound zTAAR13e-Gs complex

• PDB DOI: https://doi.org/10.2210/pdb9M40/pdb
• EM Map EMD-63613: EMDB EMDataResource

• Classification: STRUCTURAL PROTEIN
• Organism(s): Danio rerio, Homo sapiens, Lama glama
• Expression System: Spodoptera frugiperda, Escherichia
• Mutation(s): No


• Deposited: 2025-03-03 Released: 2026-03-11
• Deposition Author(s): Zheng, Y., Zhao, S.W.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.72 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Molecular recognition of diamines by combinatorial coding of the zebrafish TAAR13 family

Zheng, Y., Zhao, S.W.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 144.91 kDa
• Atom Count: 8,089
• Modeled Residue Count: 1,034
• Deposited Residue Count: 1,285
• Unique protein chains: 5

Macromolecules

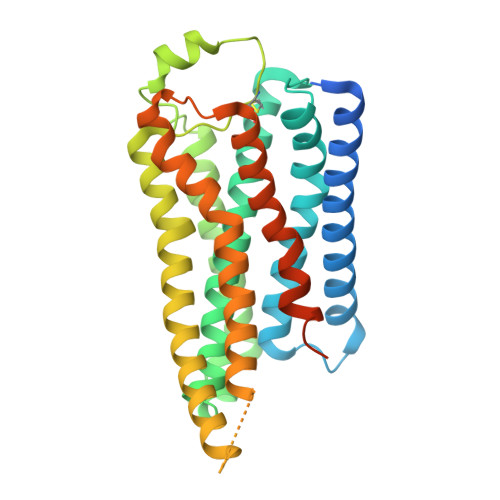

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Trace amine-associated receptor 13e	A [auth R]	341	Danio rerio	Mutation(s): 0  Gene Names: taar13e, si:dkey-7c18.7, ta66, taar66
UniProt
Find proteins for Q5QNP8 (Danio rerio) Explore Q5QNP8  Go to UniProtKB:  Q5QNP8

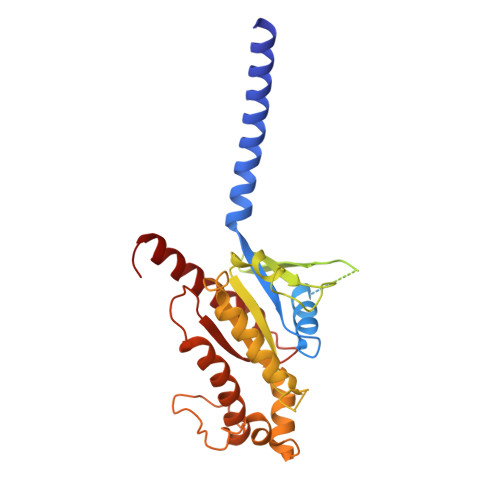

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Guanine nucleotide-binding protein G(s) subunit alpha isoforms short	B [auth A]	394	Homo sapiens	Mutation(s): 0  Gene Names: GNAS, GNAS1, GSP EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63092 (Homo sapiens) Explore P63092  Go to UniProtKB:  P63092
PHAROS:  P63092 GTEx:  ENSG00000087460

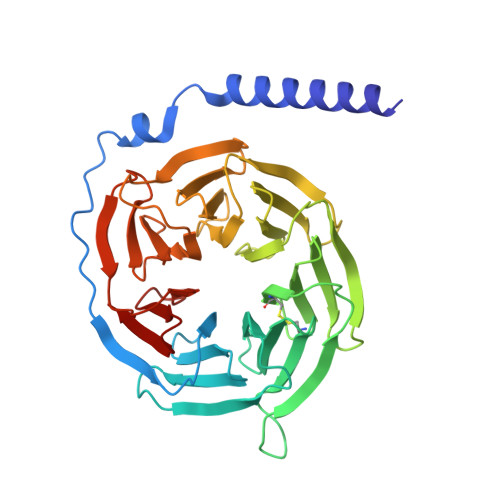

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1	C [auth B]	340	Homo sapiens	Mutation(s): 0  Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens) Explore P62873  Go to UniProtKB:  P62873
PHAROS:  P62873 GTEx:  ENSG00000078369

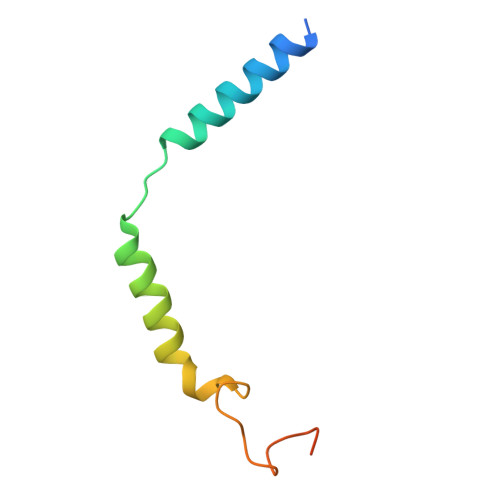

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2	D [auth C]	71	Homo sapiens	Mutation(s): 0  Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens) Explore P59768  Go to UniProtKB:  P59768
PHAROS:  P59768 GTEx:  ENSG00000186469

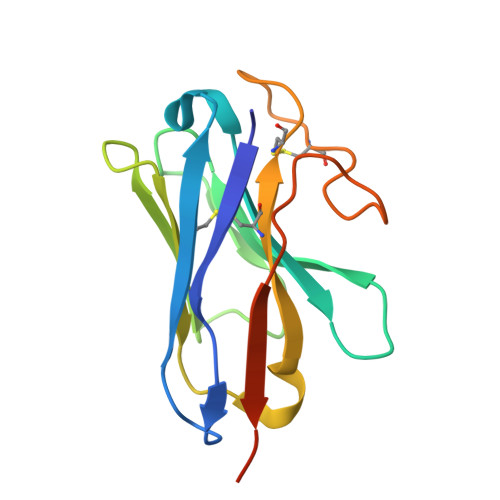

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
Nb35	E [auth N]	139	Lama glama	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
AG2 (Subject of Investigation/LOI)	F [auth R]	AGMATINE C5 H14 N4 QYPPJABKJHAVHS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.72 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.19_4092

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-03-11
Deposition Author(s): Zheng, Y., Zhao, S.W.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	2022YFA1302900

Revision History

• Version 1.0: 2026-03-11
  Type: Initial release
