9LQ7 | pdb_00009lq7

Deposited: 2025-01-28 Released: 2025-11-26
Deposition Author(s): Jin, X., Duan, B., Chen, Z., Zhao, B.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Macromolecule Content

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

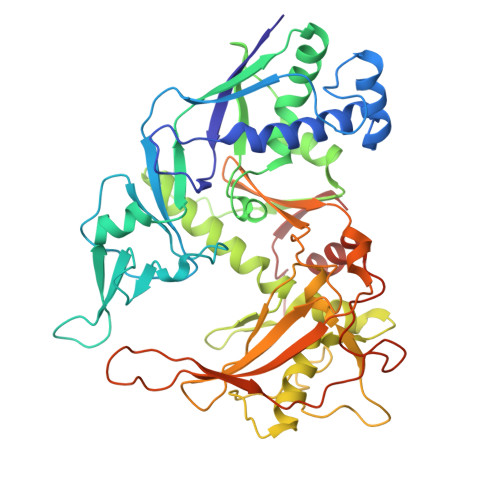

Cmr1	A	469	Bacteroides fragilis	Mutation(s): 0 Gene Names: F2Z89_11915, F3B44_04900, NXW39_14635
UniProt
Find proteins for A0A5M5QTL0 (Bacteroides fragilis) Explore A0A5M5QTL0 Go to UniProtKB: A0A5M5QTL0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A5M5QTL0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Type III-B CRISPR-associated protein Cas10/Cmr2	B	600	Bacteroides fragilis	Mutation(s): 0 Gene Names: cas10, F2Z29_06610, F3B44_04895, FSA06_24385, NXW39_14640
UniProt
Find proteins for A0A5C6J4N7 (Bacteroides fragilis) Explore A0A5C6J4N7 Go to UniProtKB: A0A5C6J4N7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A5C6J4N7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

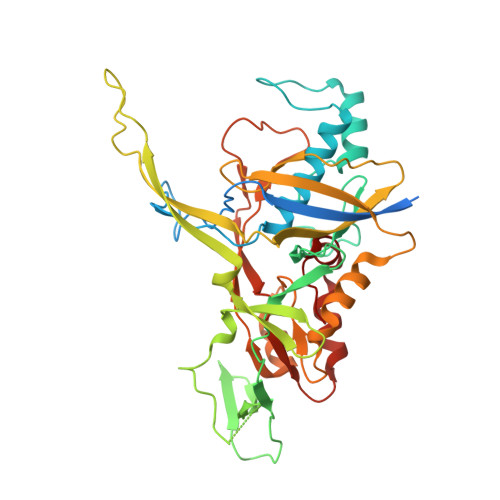

CRISPR-associated protein Cmr3	C	423	Bacteroides fragilis	Mutation(s): 0 Gene Names: NXW39_14645
UniProt
Find proteins for A0A9X9IKM4 (Bacteroides fragilis) Explore A0A9X9IKM4 Go to UniProtKB: A0A9X9IKM4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A9X9IKM4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

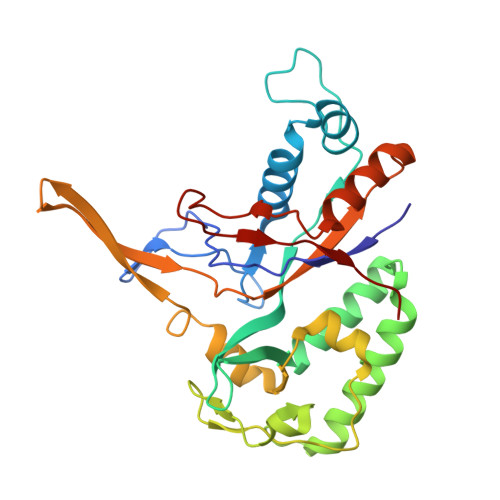

Type III-B CRISPR module RAMP protein Cmr4	D, E, F	279	Bacteroides fragilis	Mutation(s): 1 Gene Names: cmr4, NXW39_14650
UniProt
Find proteins for A0A9X9NER2 (Bacteroides fragilis) Explore A0A9X9NER2 Go to UniProtKB: A0A9X9NER2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A9X9NER2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

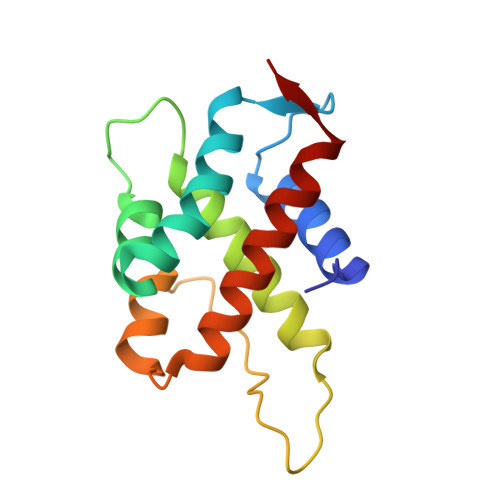

CRISPR type III-B/RAMP module-associated protein Cmr5	G, H	136	Bacteroides fragilis	Mutation(s): 0 Gene Names: CQW34_02195, F2Z29_06595, F2Z89_11935, F3B44_04880, FSA06_24400, NXW39_14655, NXX45_16700
UniProt
Find proteins for A0A2M9V7H9 (Bacteroides fragilis) Explore A0A2M9V7H9 Go to UniProtKB: A0A2M9V7H9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A2M9V7H9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

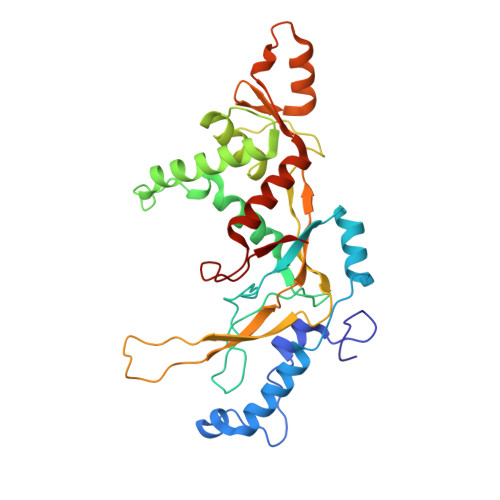

RAMP superfamily protein	I	314	Bacteroides fragilis	Mutation(s): 0 Gene Names: cmr6, CQW34_02194, F2Z89_11940, F3B44_04875, FSA06_24405, NXW39_14660, NXX45_16705
UniProt
Find proteins for A0A2M9V7I0 (Bacteroides fragilis) Explore A0A2M9V7I0 Go to UniProtKB: A0A2M9V7I0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A2M9V7I0
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 7

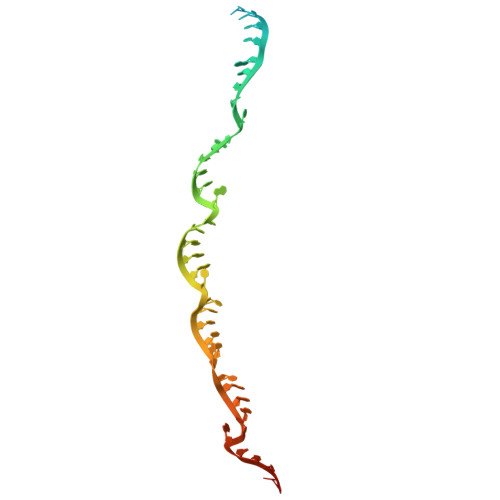

NTR	J [auth K]	49	Bacteroides fragilis
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 8

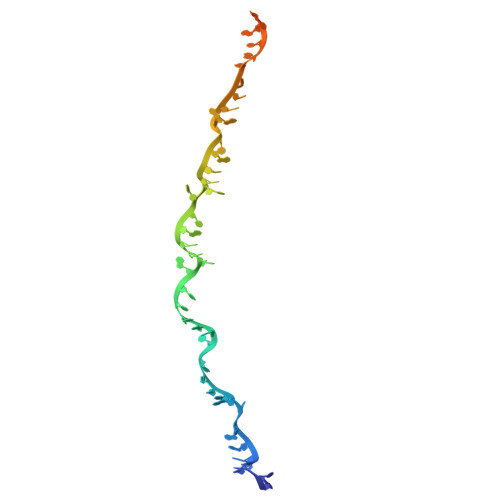

crRNA	K [auth J]	49	Bacteroides fragilis
Sequence Annotations Expand
Reference Sequence

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download:Ideal Coordinates CCD File SDF format, chain L [auth B] MOL2 format, chain L [auth B] mmCIF format, chain L [auth B]	L [auth B]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain L [auth B] Interactions & Density Focus chain L [auth B]
SAM (Subject of Investigation/LOI) Query on SAM Download:Ideal Coordinates CCD File SDF format, chain M [auth B] MOL2 format, chain M [auth B] mmCIF format, chain M [auth B]	M [auth B]	S-ADENOSYLMETHIONINE C₁₅ H₂₂ N₆ O₅ S MEFKEPWMEQBLKI-FCKMPRQPSA-N		Interactions Focus chain M [auth B] Interactions & Density Focus chain M [auth B]
MN (Subject of Investigation/LOI) Query on MN Download:Ideal Coordinates CCD File SDF format, chain N [auth B] MOL2 format, chain N [auth B] mmCIF format, chain N [auth B]	N [auth B]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain N [auth B] Interactions & Density Focus chain N [auth B]
