9I83 | pdb_00009i83

Cryo-EM structure of PSII intermediate Psb32-PSII

PDB DOI: https://doi.org/10.2210/pdb9I83/pdb
EM Map EMD-52706: EMDB EMDataResource

Classification: PHOTOSYNTHESIS
Organism(s): Thermosynechococcus vestitus BP-1
Mutation(s): No

Deposited: 2025-02-04 Released: 2026-08-19
Deposition Author(s): Bohn, S., Lo, Y.K., Lambertz, J., Furtges, T., Rudack, T., Nowaczyk, M.M., Schuller, J.M.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.90 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural insights into late-stage photosystem II assembly by Psb32

Bohn, S., Lo, Y.K., Lambertz, J., Meier-Credo, J., Furtges, T., Liauw, P., Gasper-Schonenbrucher, R., Wiens, D., Langer, J.D., Hochberg, G., Hofmann, E., Rudack, T., Nowaczyk, M.M., Schuller, J.M.

To be published.

Macromolecule Content

Total Structure Weight: 357.6 kDa
Atom Count: 23,670
Modeled Residue Count: 2,563
Deposited Residue Count: 2,781
Unique protein chains: 19

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

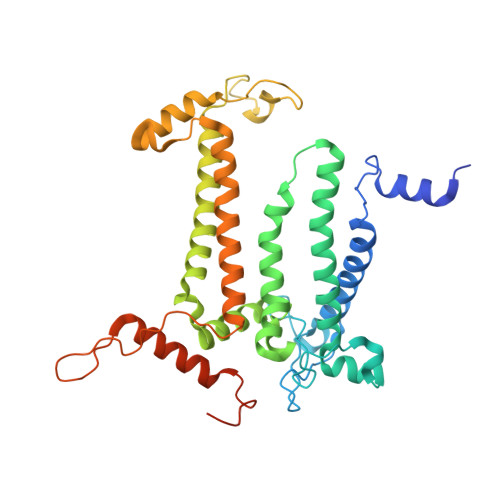

Photosystem II protein D1 1	A	360	Thermosynechococcus vestitus BP-1	Mutation(s): 0 EC: 1.10.3.9
UniProt
Find proteins for P0A444 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore P0A444 Go to UniProtKB: P0A444
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A444
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

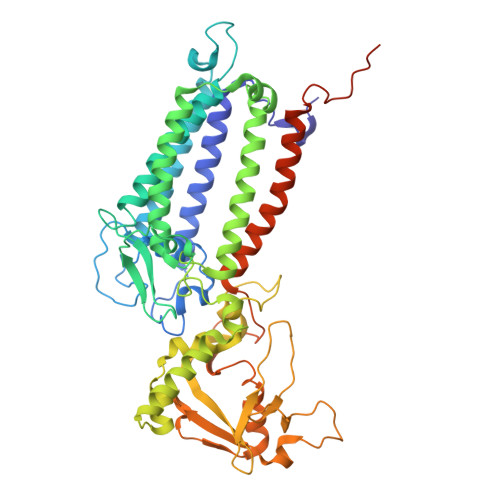

Photosystem II CP47 reaction center protein	B	510	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DIQ1 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DIQ1 Go to UniProtKB: Q8DIQ1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DIQ1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

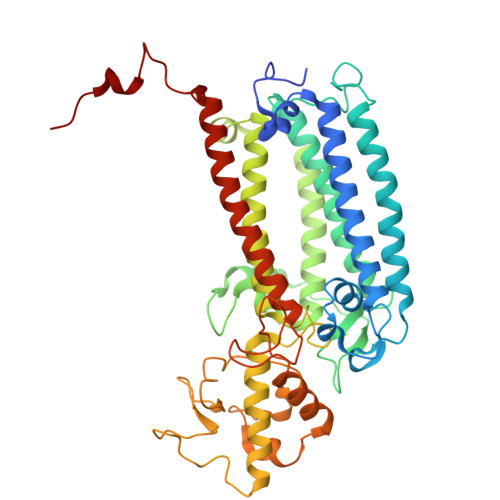

Photosystem II CP43 reaction center protein	C	461	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DIF8 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DIF8 Go to UniProtKB: Q8DIF8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DIF8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

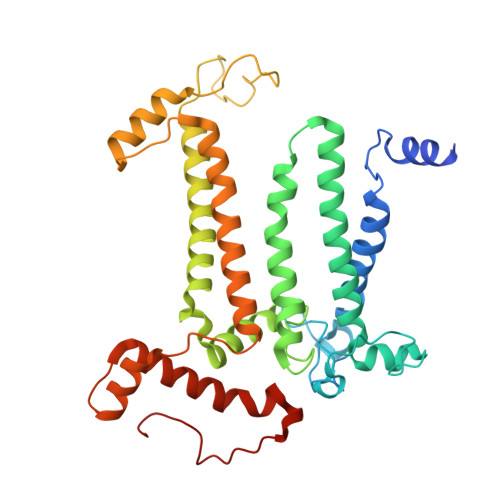

Photosystem II D2 protein	D	352	Thermosynechococcus vestitus BP-1	Mutation(s): 0 EC: 1.10.3.9
UniProt
Find proteins for Q8CM25 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8CM25 Go to UniProtKB: Q8CM25
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8CM25
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

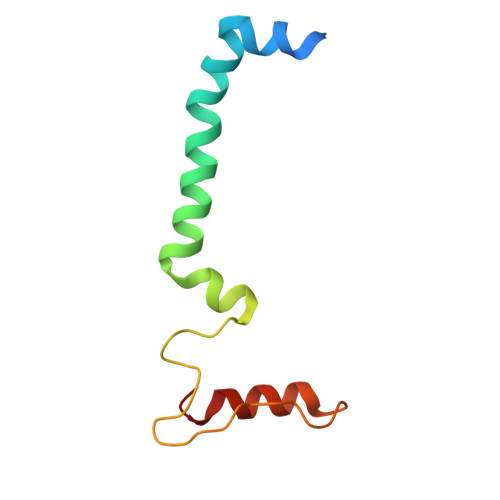

Cytochrome b559 subunit alpha	E	84	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DIP0 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DIP0 Go to UniProtKB: Q8DIP0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DIP0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

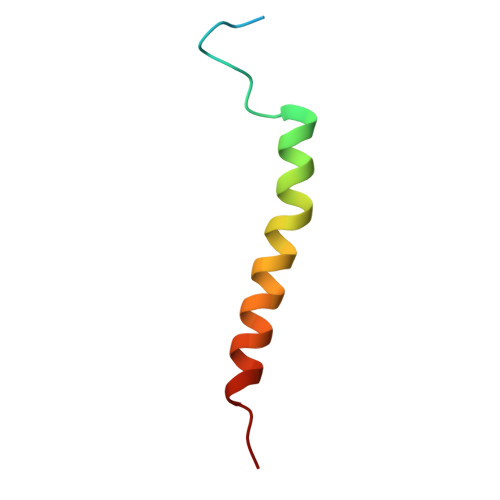

Cytochrome b559 subunit beta	F	45	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DIN9 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DIN9 Go to UniProtKB: Q8DIN9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DIN9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

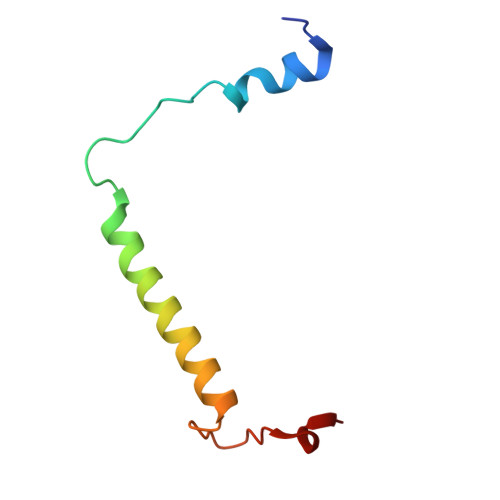

Photosystem II reaction center protein H	G [auth H]	66	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DJ43 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DJ43 Go to UniProtKB: Q8DJ43
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DJ43
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

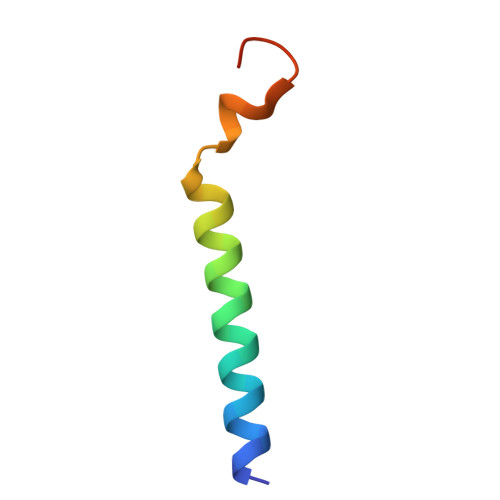

Photosystem II reaction center protein I	H [auth I]	38	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DJZ6 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DJZ6 Go to UniProtKB: Q8DJZ6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DJZ6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

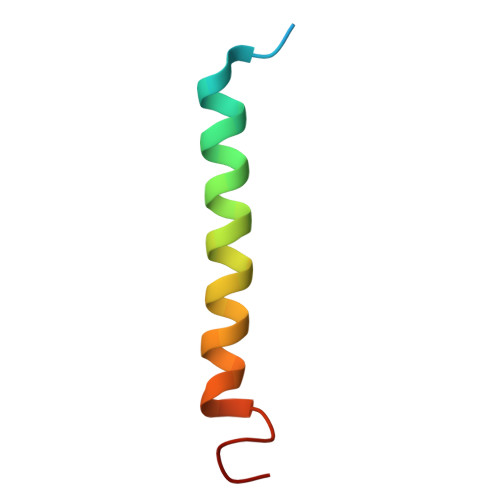

Photosystem II reaction center protein J	I [auth J]	40	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for P59087 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore P59087 Go to UniProtKB: P59087
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P59087
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

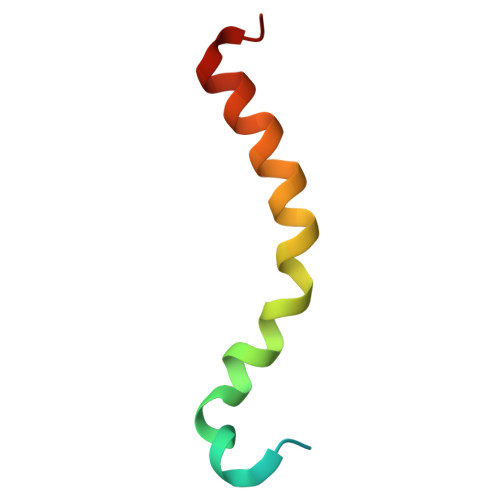

Photosystem II reaction center protein K	J [auth K]	46	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q9F1K9 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q9F1K9 Go to UniProtKB: Q9F1K9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9F1K9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

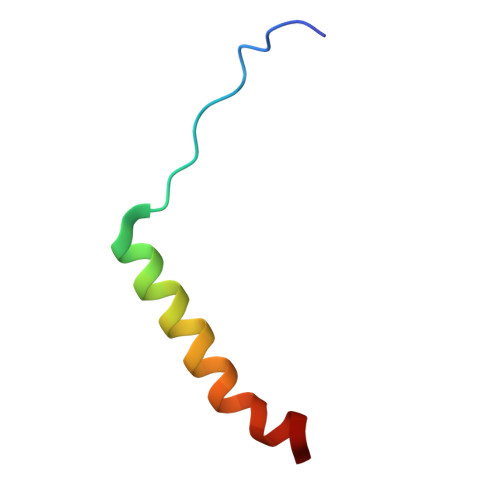

Photosystem II reaction center protein L	K [auth L]	37	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DIN8 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DIN8 Go to UniProtKB: Q8DIN8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DIN8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

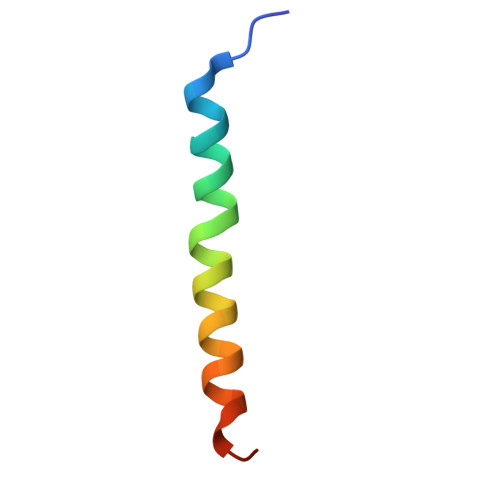

Photosystem II reaction center protein M	L [auth M]	36	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DHA7 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DHA7 Go to UniProtKB: Q8DHA7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DHA7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

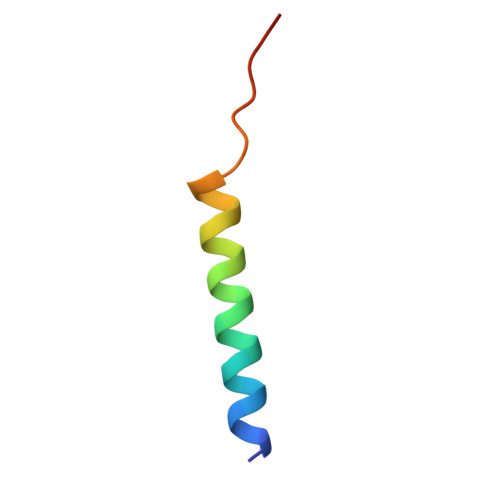

Photosystem II reaction center protein T	M [auth T]	32	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DIQ0 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DIQ0 Go to UniProtKB: Q8DIQ0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DIQ0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

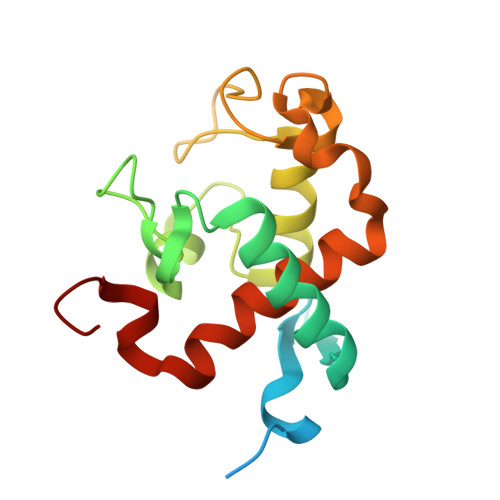

Cytochrome c-550	N [auth V]	163	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for P0A386 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore P0A386 Go to UniProtKB: P0A386
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A386
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

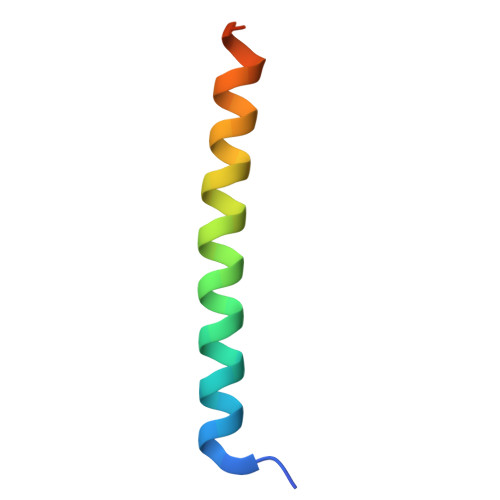

Photosystem II reaction center X protein	O [auth X]	41	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q9F1R6 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q9F1R6 Go to UniProtKB: Q9F1R6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9F1R6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

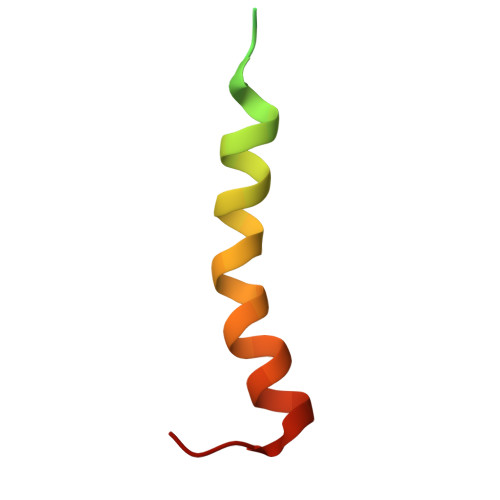

Photosystem II reaction center protein Ycf12	P [auth Y]	46	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DJI1 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DJI1 Go to UniProtKB: Q8DJI1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DJI1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

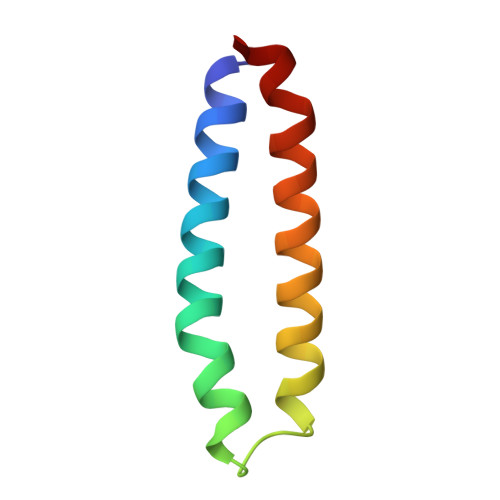

Photosystem II reaction center protein Z	Q [auth Z]	62	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DHJ2 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DHJ2 Go to UniProtKB: Q8DHJ2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DHJ2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image

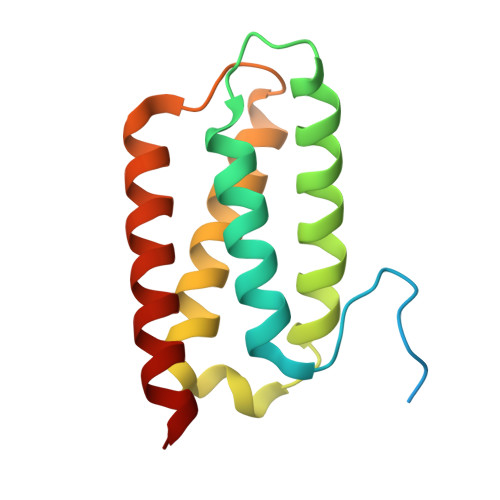

Photosystem II lipoprotein Psb27	R [auth 1]	134	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DG60 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DG60 Go to UniProtKB: Q8DG60
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DG60
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image

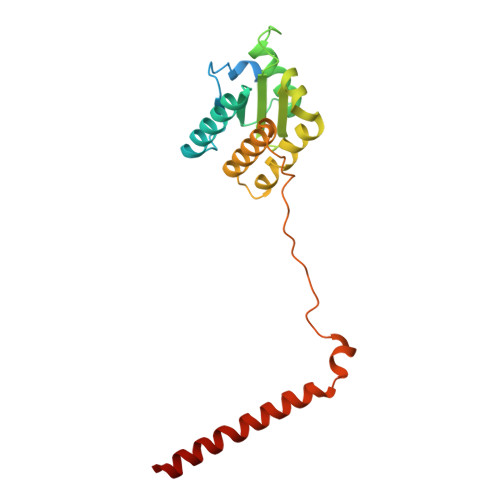

Tll0404 protein	S [auth 3]	228	Thermosynechococcus vestitus BP-1	Mutation(s): 0
UniProt
Find proteins for Q8DLS4 (Thermosynechococcus vestitus (strain NIES-2133 / IAM M-273 / BP-1)) Explore Q8DLS4 Go to UniProtKB: Q8DLS4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8DLS4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 10 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CLA (Subject of Investigation/LOI) Query on CLA Download:Ideal Coordinates CCD File SDF format, chain AB [auth C] SDF format, chain BB [auth C] SDF format, chain CB [auth C] SDF format, chain DB [auth C] SDF format, chain EB [auth C] SDF format, chain FB [auth C] SDF format, chain GA [auth B] SDF format, chain GB [auth C] SDF format, chain HA [auth B] SDF format, chain HB [auth C] SDF format, chain IA [auth B] SDF format, chain IB [auth C] SDF format, chain JA [auth B] SDF format, chain JB [auth C] SDF format, chain KA [auth B] SDF format, chain KB [auth C] SDF format, chain LA [auth B] SDF format, chain LB [auth C] SDF format, chain MA [auth B] SDF format, chain NA [auth B] SDF format, chain OA [auth B] SDF format, chain PA [auth B] SDF format, chain QA [auth B] SDF format, chain QB [auth D] SDF format, chain RA [auth B] SDF format, chain RB [auth D] SDF format, chain SA [auth B] SDF format, chain TA [auth B] SDF format, chain UA [auth B] SDF format, chain VA [auth B] SDF format, chain W [auth A] SDF format, chain X [auth A] SDF format, chain Y [auth A] SDF format, chain Z [auth A] SDF format, chain ZA [auth C] MOL2 format, chain AB [auth C] MOL2 format, chain BB [auth C] MOL2 format, chain CB [auth C] MOL2 format, chain DB [auth C] MOL2 format, chain EB [auth C] MOL2 format, chain FB [auth C] MOL2 format, chain GA [auth B] MOL2 format, chain GB [auth C] MOL2 format, chain HA [auth B] MOL2 format, chain HB [auth C] MOL2 format, chain IA [auth B] MOL2 format, chain IB [auth C] MOL2 format, chain JA [auth B] MOL2 format, chain JB [auth C] MOL2 format, chain KA [auth B] MOL2 format, chain KB [auth C] MOL2 format, chain LA [auth B] MOL2 format, chain LB [auth C] MOL2 format, chain MA [auth B] MOL2 format, chain NA [auth B] MOL2 format, chain OA [auth B] MOL2 format, chain PA [auth B] MOL2 format, chain QA [auth B] MOL2 format, chain QB [auth D] MOL2 format, chain RA [auth B] MOL2 format, chain RB [auth D] MOL2 format, chain SA [auth B] MOL2 format, chain TA [auth B] MOL2 format, chain UA [auth B] MOL2 format, chain VA [auth B] MOL2 format, chain W [auth A] MOL2 format, chain X [auth A] MOL2 format, chain Y [auth A] MOL2 format, chain Z [auth A] MOL2 format, chain ZA [auth C] mmCIF format, chain AB [auth C] mmCIF format, chain BB [auth C] mmCIF format, chain CB [auth C] mmCIF format, chain DB [auth C] mmCIF format, chain EB [auth C] mmCIF format, chain FB [auth C] mmCIF format, chain GA [auth B] mmCIF format, chain GB [auth C] mmCIF format, chain HA [auth B] mmCIF format, chain HB [auth C] mmCIF format, chain IA [auth B] mmCIF format, chain IB [auth C] mmCIF format, chain JA [auth B] mmCIF format, chain JB [auth C] mmCIF format, chain KA [auth B] mmCIF format, chain KB [auth C] mmCIF format, chain LA [auth B] mmCIF format, chain LB [auth C] mmCIF format, chain MA [auth B] mmCIF format, chain NA [auth B] mmCIF format, chain OA [auth B] mmCIF format, chain PA [auth B] mmCIF format, chain QA [auth B] mmCIF format, chain QB [auth D] mmCIF format, chain RA [auth B] mmCIF format, chain RB [auth D] mmCIF format, chain SA [auth B] mmCIF format, chain TA [auth B] mmCIF format, chain UA [auth B] mmCIF format, chain VA [auth B] mmCIF format, chain W [auth A] mmCIF format, chain X [auth A] mmCIF format, chain Y [auth A] mmCIF format, chain Z [auth A] mmCIF format, chain ZA [auth C]	AB [auth C] BB [auth C] CB [auth C] DB [auth C] EB [auth C] AB [auth C], BB [auth C], CB [auth C], DB [auth C], EB [auth C], FB [auth C], GA [auth B], GB [auth C], HA [auth B], HB [auth C], IA [auth B], IB [auth C], JA [auth B], JB [auth C], KA [auth B], KB [auth C], LA [auth B], LB [auth C], MA [auth B], NA [auth B], OA [auth B], PA [auth B], QA [auth B], QB [auth D], RA [auth B], RB [auth D], SA [auth B], TA [auth B], UA [auth B], VA [auth B], W [auth A], X [auth A], Y [auth A], Z [auth A], ZA [auth C]	CHLOROPHYLL A C₅₅ H₇₂ Mg N₄ O₅ ATNHDLDRLWWWCB-AENOIHSZSA-M		Interactions Focus chain AB [auth C] Focus chain BB [auth C] Focus chain CB [auth C] Focus chain DB [auth C] Focus chain EB [auth C] Focus chain FB [auth C] Focus chain GA [auth B] Focus chain GB [auth C] Focus chain HA [auth B] Focus chain HB [auth C] Focus chain IA [auth B] Focus chain IB [auth C] Focus chain JA [auth B] Focus chain JB [auth C] Focus chain KA [auth B] Focus chain KB [auth C] Focus chain LA [auth B] Focus chain LB [auth C] Focus chain MA [auth B] Focus chain NA [auth B] Focus chain OA [auth B] Focus chain PA [auth B] Focus chain QA [auth B] Focus chain QB [auth D] Focus chain RA [auth B] Focus chain RB [auth D] Focus chain SA [auth B] Focus chain TA [auth B] Focus chain UA [auth B] Focus chain VA [auth B] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A] Focus chain ZA [auth C] Interactions & Density Focus chain AB [auth C] Focus chain BB [auth C] Focus chain CB [auth C] Focus chain DB [auth C] Focus chain EB [auth C] Focus chain FB [auth C] Focus chain GA [auth B] Focus chain GB [auth C] Focus chain HA [auth B] Focus chain HB [auth C] Focus chain IA [auth B] Focus chain IB [auth C] Focus chain JA [auth B] Focus chain JB [auth C] Focus chain KA [auth B] Focus chain KB [auth C] Focus chain LA [auth B] Focus chain LB [auth C] Focus chain MA [auth B] Focus chain NA [auth B] Focus chain OA [auth B] Focus chain PA [auth B] Focus chain QA [auth B] Focus chain QB [auth D] Focus chain RA [auth B] Focus chain RB [auth D] Focus chain SA [auth B] Focus chain TA [auth B] Focus chain UA [auth B] Focus chain VA [auth B] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A] Focus chain ZA [auth C]
PHO (Subject of Investigation/LOI) Query on PHO Download:Ideal Coordinates CCD File SDF format, chain AA [auth A] SDF format, chain UB [auth D] MOL2 format, chain AA [auth A] MOL2 format, chain UB [auth D] mmCIF format, chain AA [auth A] mmCIF format, chain UB [auth D]	AA [auth A], UB [auth D]	PHEOPHYTIN A C₅₅ H₇₄ N₄ O₅ CQIKWXUXPNUNDV-RCBXBCQGSA-N		Interactions Focus chain AA [auth A] Focus chain UB [auth D] Interactions & Density Focus chain AA [auth A] Focus chain UB [auth D]
LMG (Subject of Investigation/LOI) Query on LMG Download:Ideal Coordinates CCD File SDF format, chain CC [auth L] SDF format, chain DC [auth M] SDF format, chain FC [auth Z] SDF format, chain NB [auth D] SDF format, chain SB [auth D] SDF format, chain TB [auth D] SDF format, chain YB [auth I] SDF format, chain BC [auth K] MOL2 format, chain CC [auth L] MOL2 format, chain DC [auth M] MOL2 format, chain FC [auth Z] MOL2 format, chain NB [auth D] MOL2 format, chain SB [auth D] MOL2 format, chain TB [auth D] MOL2 format, chain YB [auth I] MOL2 format, chain BC [auth K] mmCIF format, chain CC [auth L] mmCIF format, chain DC [auth M] mmCIF format, chain FC [auth Z] mmCIF format, chain NB [auth D] mmCIF format, chain SB [auth D] mmCIF format, chain TB [auth D] mmCIF format, chain YB [auth I] mmCIF format, chain BC [auth K]	BC [auth K] CC [auth L] DC [auth M] FC [auth Z] NB [auth D] BC [auth K], CC [auth L], DC [auth M], FC [auth Z], NB [auth D], SB [auth D], TB [auth D], YB [auth I]	1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE C₄₅ H₈₆ O₁₀ DCLTVZLYPPIIID-CVELTQQQSA-N		Interactions Focus chain BC [auth K] Focus chain CC [auth L] Focus chain DC [auth M] Focus chain FC [auth Z] Focus chain NB [auth D] Focus chain SB [auth D] Focus chain TB [auth D] Focus chain YB [auth I] Interactions & Density Focus chain BC [auth K] Focus chain CC [auth L] Focus chain DC [auth M] Focus chain FC [auth Z] Focus chain NB [auth D] Focus chain SB [auth D] Focus chain TB [auth D] Focus chain YB [auth I]
PL9 (Subject of Investigation/LOI) Query on PL9 Download:Ideal Coordinates CCD File SDF format, chain BA [auth A] SDF format, chain VB [auth D] MOL2 format, chain BA [auth A] MOL2 format, chain VB [auth D] mmCIF format, chain BA [auth A] mmCIF format, chain VB [auth D]	BA [auth A], VB [auth D]	2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE C₅₃ H₈₀ O₂ FKUYMLZIRPABFK-UHFFFAOYSA-N		Interactions Focus chain BA [auth A] Focus chain VB [auth D] Interactions & Density Focus chain BA [auth A] Focus chain VB [auth D]
LHG (Subject of Investigation/LOI) Query on LHG Download:Ideal Coordinates CCD File SDF format, chain WA [auth C] SDF format, chain CA [auth A] MOL2 format, chain WA [auth C] MOL2 format, chain CA [auth A] mmCIF format, chain WA [auth C] mmCIF format, chain CA [auth A]	CA [auth A], WA [auth C]	1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE C₃₈ H₇₅ O₁₀ P BIABMEZBCHDPBV-MPQUPPDSSA-N		Interactions Focus chain CA [auth A] Focus chain WA [auth C] Interactions & Density Focus chain CA [auth A] Focus chain WA [auth C]
HEM (Subject of Investigation/LOI) Query on HEM Download:Ideal Coordinates CCD File SDF format, chain EC [auth V] SDF format, chain WB [auth F] MOL2 format, chain EC [auth V] MOL2 format, chain WB [auth F] mmCIF format, chain EC [auth V] mmCIF format, chain WB [auth F]	EC [auth V], WB [auth F]	PROTOPORPHYRIN IX CONTAINING FE C₃₄ H₃₂ Fe N₄ O₄ KABFMIBPWCXCRK-RGGAHWMASA-L		Interactions Focus chain EC [auth V] Focus chain WB [auth F] Interactions & Density Focus chain EC [auth V] Focus chain WB [auth F]
BCR (Subject of Investigation/LOI) Query on BCR Download:Ideal Coordinates CCD File SDF format, chain AC [auth K] SDF format, chain DA [auth B] SDF format, chain EA [auth B] SDF format, chain FA [auth B] SDF format, chain MB [auth C] SDF format, chain PB [auth D] SDF format, chain V [auth A] SDF format, chain XA [auth C] SDF format, chain XB [auth H] SDF format, chain YA [auth C] SDF format, chain ZB [auth J] MOL2 format, chain AC [auth K] MOL2 format, chain DA [auth B] MOL2 format, chain EA [auth B] MOL2 format, chain FA [auth B] MOL2 format, chain MB [auth C] MOL2 format, chain PB [auth D] MOL2 format, chain V [auth A] MOL2 format, chain XA [auth C] MOL2 format, chain XB [auth H] MOL2 format, chain YA [auth C] MOL2 format, chain ZB [auth J] mmCIF format, chain AC [auth K] mmCIF format, chain DA [auth B] mmCIF format, chain EA [auth B] mmCIF format, chain FA [auth B] mmCIF format, chain MB [auth C] mmCIF format, chain PB [auth D] mmCIF format, chain V [auth A] mmCIF format, chain XA [auth C] mmCIF format, chain XB [auth H] mmCIF format, chain YA [auth C] mmCIF format, chain ZB [auth J]	AC [auth K] DA [auth B] EA [auth B] FA [auth B] MB [auth C] AC [auth K], DA [auth B], EA [auth B], FA [auth B], MB [auth C], PB [auth D], V [auth A], XA [auth C], XB [auth H], YA [auth C], ZB [auth J]	BETA-CAROTENE C₄₀ H₅₆ OENHQHLEOONYIE-JLTXGRSLSA-N		Interactions Focus chain AC [auth K] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain MB [auth C] Focus chain PB [auth D] Focus chain V [auth A] Focus chain XA [auth C] Focus chain XB [auth H] Focus chain YA [auth C] Focus chain ZB [auth J] Interactions & Density Focus chain AC [auth K] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain MB [auth C] Focus chain PB [auth D] Focus chain V [auth A] Focus chain XA [auth C] Focus chain XB [auth H] Focus chain YA [auth C] Focus chain ZB [auth J]
BCT (Subject of Investigation/LOI) Query on BCT Download:Ideal Coordinates CCD File SDF format, chain OB [auth D] MOL2 format, chain OB [auth D] mmCIF format, chain OB [auth D]	OB [auth D]	BICARBONATE ION C H O₃ BVKZGUZCCUSVTD-UHFFFAOYSA-M		Interactions Focus chain OB [auth D] Interactions & Density Focus chain OB [auth D]
FE (Subject of Investigation/LOI) Query on FE Download:Ideal Coordinates CCD File SDF format, chain T [auth A] MOL2 format, chain T [auth A] mmCIF format, chain T [auth A]	T [auth A]	FE (III) ION Fe VTLYFUHAOXGGBS-UHFFFAOYSA-N		Interactions Focus chain T [auth A] Interactions & Density Focus chain T [auth A]
CL (Subject of Investigation/LOI) Query on CL Download:Ideal Coordinates CCD File SDF format, chain U [auth A] MOL2 format, chain U [auth A] mmCIF format, chain U [auth A]	U [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain U [auth A] Interactions & Density Focus chain U [auth A]
