9HHL | pdb_00009hhl

Structure of Dynein-Dynactin-NuMA-LIS1

PDB DOI: https://doi.org/10.2210/pdb9HHL/pdb
EM Map EMD-52171: EMDB EMDataResource

Classification: MOTOR PROTEIN
Organism(s): Homo sapiens, Sus scrofa
Expression System: Spodoptera frugiperda
Mutation(s): Yes

Deposited: 2024-11-21 Released: 2025-12-03
Deposition Author(s): d'Amico, E.A., Carter, A.P.
Funding Organization(s): Wellcome Trust, UK Research and Innovation (UKRI)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 6.53 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural and functional insights into activation and regulation of the dynein-dynactin-NuMA complex

Aslan, M., d'Amico, E.A., Cho, N., Taheri, A., Zhao, Y., Zhong, J., Blaauw, M., Carter, A.P., Dumont, S., Yildiz, A.

To be published.

Macromolecule Content

Total Structure Weight: 3,953.07 kDa
Atom Count: 64,583
Modeled Residue Count: 12,994
Deposited Residue Count: 34,826
Unique protein chains: 16

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Cytoplasmic dynein 1 intermediate chain 2	A [auth p], AA [auth g], BA [auth h], FA [auth o]	612	Homo sapiens	Mutation(s): 0 Gene Names: DYNC1I2, DNCI2, DNCIC2
UniProt & NIH Common Fund Data Resources
Find proteins for Q13409 (Homo sapiens) Explore Q13409 Go to UniProtKB: Q13409
PHAROS: Q13409 GTEx: ENSG00000077380
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q13409
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Nuclear mitotic apparatus protein 1,Methylated-DNA--protein-cysteine methyltransferase	B [auth 1], C [auth 2]	889	Homo sapiens	Mutation(s): 20 Gene Names: NUMA1, NMP22, NUMA, MGMT EC: 2.1.1.63
UniProt & NIH Common Fund Data Resources
Find proteins for P16455 (Homo sapiens) Explore P16455 Go to UniProtKB: P16455
PHAROS: P16455 GTEx: ENSG00000170430
Find proteins for Q14980 (Homo sapiens) Explore Q14980 Go to UniProtKB: Q14980
PHAROS: Q14980 GTEx: ENSG00000137497
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Groups	P16455Q14980
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

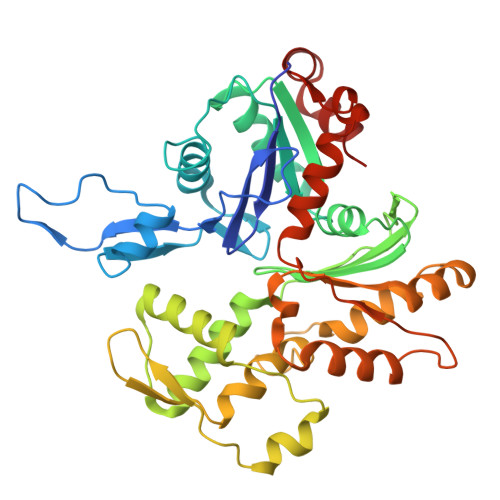

ARP1 actin related protein 1 homolog A	D [auth A] E [auth B] F [auth D] G [auth E] H [auth F] D [auth A], E [auth B], F [auth D], G [auth E], H [auth F], I [auth G], K [auth I], OA [auth C]	376	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for F2Z5G5 (Sus scrofa) Explore F2Z5G5 Go to UniProtKB: F2Z5G5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	F2Z5G5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Actin, cytoplasmic 1	J [auth H]	375	Sus scrofa	Mutation(s): 0 EC: 3.6.4
UniProt
Find proteins for Q6QAQ1 (Sus scrofa) Explore Q6QAQ1 Go to UniProtKB: Q6QAQ1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q6QAQ1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
Arp11	L [auth J]	417	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for I3LHK5 (Sus scrofa) Explore I3LHK5 Go to UniProtKB: I3LHK5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	I3LHK5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Capping protein (Actin filament) muscle Z-line, alpha 1	M [auth K]	286	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0PFK5 (Sus scrofa) Explore A0PFK5 Go to UniProtKB: A0PFK5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0PFK5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

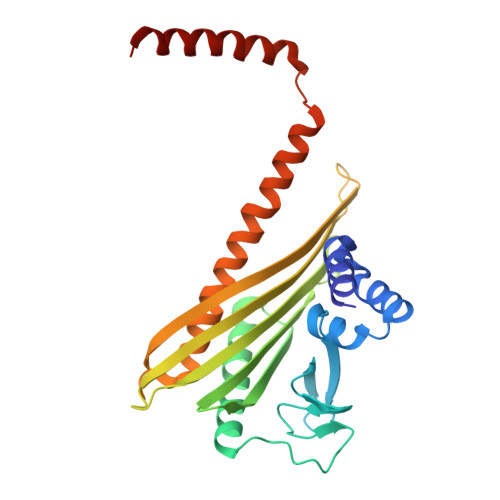

F-actin-capping protein subunit beta	N [auth L]	272	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0PFK7 (Sus scrofa) Explore A0PFK7 Go to UniProtKB: A0PFK7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0PFK7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Dynactin subunit 2	O [auth M], P [auth N], R [auth P], S [auth Q], V	405	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A5G2QD80 (Sus scrofa) Explore A0A5G2QD80 Go to UniProtKB: A0A5G2QD80
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A5G2QD80
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Dynactin subunit 3	Q [auth O], T [auth R]	186	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for F1SEC0 (Sus scrofa) Explore F1SEC0 Go to UniProtKB: F1SEC0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	F1SEC0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
Dynactin 6	U	190	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for D0G6S1 (Sus scrofa) Explore D0G6S1 Go to UniProtKB: D0G6S1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	D0G6S1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

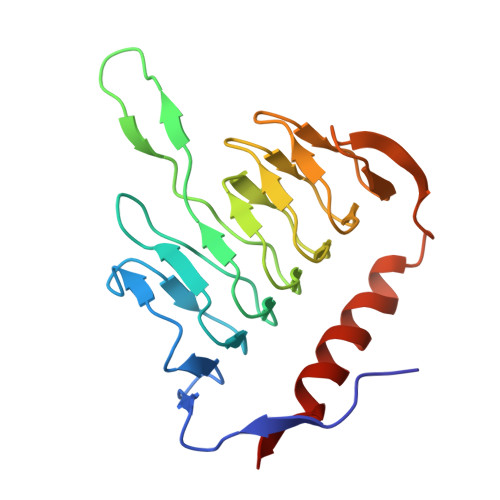

Dynactin subunit 5	W	182	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A286ZK88 (Sus scrofa) Explore A0A286ZK88 Go to UniProtKB: A0A286ZK88
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A286ZK88
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

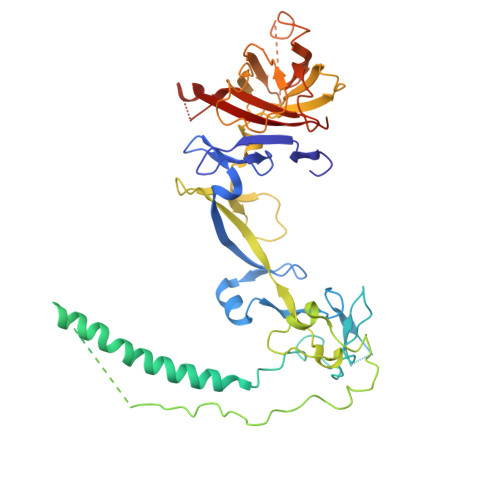

Dynactin subunit 4	X [auth Y]	467	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1TB62 (Sus scrofa) Explore A0A4X1TB62 Go to UniProtKB: A0A4X1TB62
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A4X1TB62
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

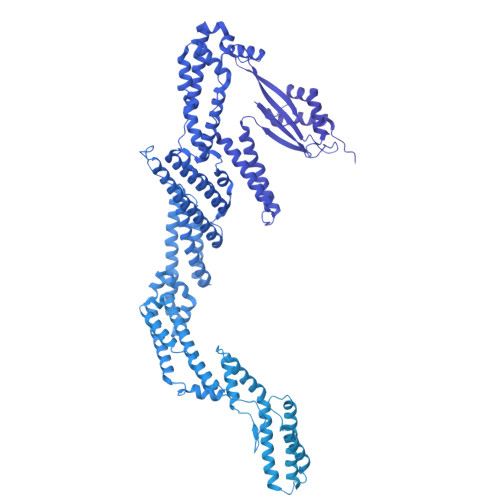

Cytoplasmic dynein 1 heavy chain 1	DA [auth m], EA [auth n], Y [auth e], Z [auth f]	4,646	Homo sapiens	Mutation(s): 2 Gene Names: DYNC1H1, DHC1, DNCH1, DNCL, DNECL, DYHC, KIAA0325
UniProt & NIH Common Fund Data Resources
Find proteins for Q14204 (Homo sapiens) Explore Q14204 Go to UniProtKB: Q14204
PHAROS: Q14204 GTEx: ENSG00000197102
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q14204
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

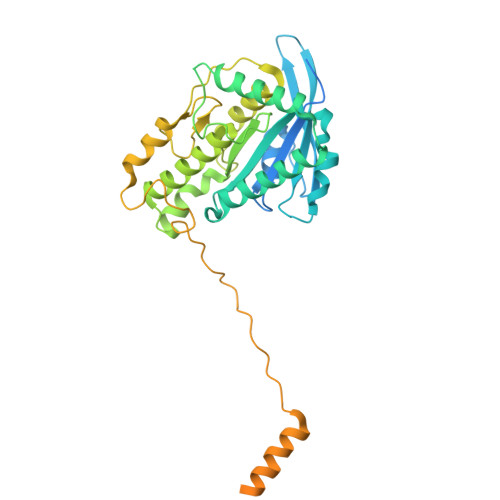

Cytoplasmic dynein 1 light intermediate chain 2	CA [auth j], GA [auth q], JA [auth u]	492	Homo sapiens	Mutation(s): 0 Gene Names: DYNC1LI2, DNCLI2, LIC2
UniProt & NIH Common Fund Data Resources
Find proteins for O43237 (Homo sapiens) Explore O43237 Go to UniProtKB: O43237
PHAROS: O43237 GTEx: ENSG00000135720
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O43237
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

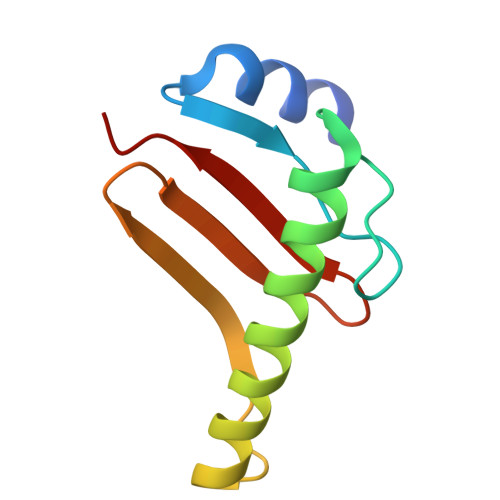

Dynein light chain roadblock-type 1	HA [auth s], IA [auth t], KA [auth w], LA [auth z]	96	Homo sapiens	Mutation(s): 0 Gene Names: DYNLRB1, BITH, DNCL2A, DNLC2A, ROBLD1, HSPC162
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NP97 (Homo sapiens) Explore Q9NP97 Go to UniProtKB: Q9NP97
PHAROS: Q9NP97 GTEx: ENSG00000125971
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9NP97
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
Dynactin subunit 1	MA [auth S], NA [auth T]	1,281	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A287B8J2 (Sus scrofa) Explore A0A287B8J2 Go to UniProtKB: A0A287B8J2
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A287B8J2
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP Query on ATP Download Ideal Coordinates CCD File SDF format, chain XA [auth J] SDF format, chain VA [auth H] MOL2 format, chain XA [auth J] MOL2 format, chain VA [auth H] mmCIF format, chain XA [auth J] mmCIF format, chain VA [auth H]	VA [auth H], XA [auth J]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain VA [auth H] Focus chain XA [auth J] Interactions & Density Focus chain VA [auth H] Focus chain XA [auth J]
ADP Query on ADP Download Ideal Coordinates CCD File SDF format, chain QA [auth B] SDF format, chain SA [auth E] SDF format, chain TA [auth F] SDF format, chain UA [auth G] SDF format, chain WA [auth I] SDF format, chain RA [auth D] SDF format, chain PA [auth A] SDF format, chain BB [auth C] MOL2 format, chain QA [auth B] MOL2 format, chain SA [auth E] MOL2 format, chain TA [auth F] MOL2 format, chain UA [auth G] MOL2 format, chain WA [auth I] MOL2 format, chain RA [auth D] MOL2 format, chain PA [auth A] MOL2 format, chain BB [auth C] mmCIF format, chain QA [auth B] mmCIF format, chain SA [auth E] mmCIF format, chain TA [auth F] mmCIF format, chain UA [auth G] mmCIF format, chain WA [auth I] mmCIF format, chain RA [auth D] mmCIF format, chain PA [auth A] mmCIF format, chain BB [auth C]	BB [auth C] PA [auth A] QA [auth B] RA [auth D] SA [auth E] BB [auth C], PA [auth A], QA [auth B], RA [auth D], SA [auth E], TA [auth F], UA [auth G], WA [auth I]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain BB [auth C] Focus chain PA [auth A] Focus chain QA [auth B] Focus chain RA [auth D] Focus chain SA [auth E] Focus chain TA [auth F] Focus chain UA [auth G] Focus chain WA [auth I] Interactions & Density Focus chain BB [auth C] Focus chain PA [auth A] Focus chain QA [auth B] Focus chain RA [auth D] Focus chain SA [auth E] Focus chain TA [auth F] Focus chain UA [auth G] Focus chain WA [auth I]
ZN Query on ZN Download Ideal Coordinates CCD File SDF format, chain ZA [auth Y] SDF format, chain YA [auth Y] SDF format, chain AB [auth Y] MOL2 format, chain ZA [auth Y] MOL2 format, chain YA [auth Y] MOL2 format, chain AB [auth Y] mmCIF format, chain ZA [auth Y] mmCIF format, chain YA [auth Y] mmCIF format, chain AB [auth Y]	AB [auth Y], YA [auth Y], ZA [auth Y]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain AB [auth Y] Focus chain YA [auth Y] Focus chain ZA [auth Y] Interactions & Density Focus chain AB [auth Y] Focus chain YA [auth Y] Focus chain ZA [auth Y]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 6.53 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-12-03

Deposition Author(s):

d'Amico, E.A.

Carter, A.P.

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	227434/Z/23/Z
UK Research and Innovation (UKRI)	United Kingdom	EP/Y026004/1

Revision History (Full details and data files)

Version 1.0: 2025-12-03
Type: Initial release
