9HD7 | pdb_00009hd7

Cryo-EM structure of photosystem II C2S2M2L2 supercomplex from the green alga Chlorella ohadii

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Chlorella ohadii
  • Mutation(s): No

  • Deposited: 2024-11-11 Released: 2025-11-12
  • Deposition Author(s): Kopecny, D., Kouril, R., Ardhad, R., Skalidis, I., Kastritis, P.
  • Funding Organization(s): Ministry of Education, Youth and Sports of the Czech Republic, Czech Science Foundation, Other government, German Research Foundation (DFG), German Federal Ministry for Education and Research, European Regional Development Fund

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.95 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HD7

This is version 1.1 of the entry. See complete history.

Literature

Cryo-EM structure of photosystem II supercomplex from a green microalga with extreme phototolerance.

Arshad, R., Skalidis, I., Kopecny, D., Brabencova, S., Opatikova, M., Ilik, P., Pospisil, P., Hamdi, F., Cavar Zeljkovic, S., Kopecna, M., Roudnicky, P., Lazar, D., Elias, E., Croce, R., Kastritis, P.L., Kouril, R.

(2026) Nat Commun 17: 341-341

  • DOI: https://doi.org/10.1038/s41467-025-65861-2
  • Primary Citation Related Structures:
    9HD7

  • PubMed Abstract:

    Photosystem II (PSII) is essential for energy conversion during oxygenic photosynthesis in plants and algae. Chlorella ohadii, one of the fastest multiplying green algae, thrives under the harsh desert sun but lacks the standard PSII photoprotective mechanisms involving LhcSR/PsbS proteins or protein phosphorylation. Here, we present the cryo-EM structure of the PSII supercomplex from C. ohadii at 2.9 Å resolution, which is used to determine whether the exceptional resistance to desert conditions has a structural basis in PSII. The structure reveals a distinct PsbO isoform and additional subunits, PsbR and PsbY, which enhance core complex stability through extensive interactions. Furthermore, the trimeric light-harvesting complexes (LHCII) are bound to the PSII core by specific light-harvesting proteins whose down-regulation in response to high-light conditions implies a reduction in the number of bound LHCII trimers. These structural modifications, together with the high accumulation of specific polyamines in the thylakoid membrane, play a key role in maintaining PSII stability and photoprotection, allowing C. ohadii to survive in extreme conditions.

    • Organizational Affiliation:
    • Department of Biophysics, Faculty of Science, Palacký University, Šlechtitelů 27, Olomouc, Czech Republic.

Macromolecule Content

  • Total Structure Weight: 2,098.24 kDa
  • Atom Count: 112,944
  • Modeled Residue Count: 10,626
  • Deposited Residue Count: 15,046
  • Unique protein chains: 29

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Chlorophyll a-b binding protein Lhcbm-I249Chlorella ohadiiMutation(s): 0
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
Chlorophyll a-b binding protein, chloroplastic247Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5DLH1 (Chlorella ohadii)
Explore A0AAD5DLH1
Go to UniProtKB:  A0AAD5DLH1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5DLH1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

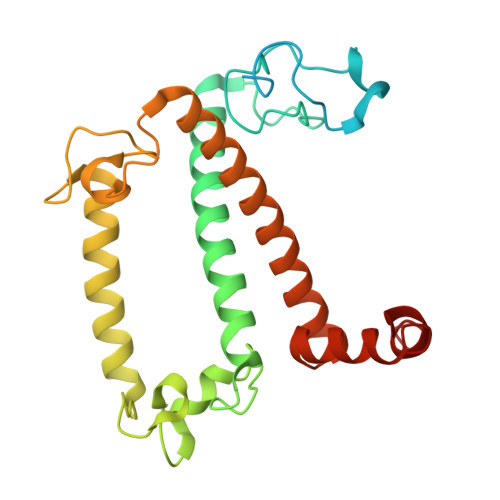

Chlorophyll a-b binding protein, chloroplasticC [auth 3],
F [auth 6]		259Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5DXI2 (Chlorella ohadii)
Explore A0AAD5DXI2
Go to UniProtKB:  A0AAD5DXI2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5DXI2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
Chloroplast photosystem II 10 kDa proteinG [auth 7],
H [auth 8]		140Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A5P4NAS4 (Chlorella ohadii)
Explore A0A5P4NAS4
Go to UniProtKB:  A0A5P4NAS4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5P4NAS4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

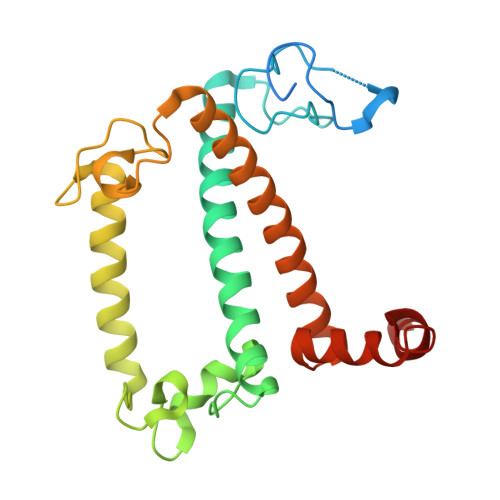

Chlorophyll a-b binding protein, chloroplasticK [auth 13],
N [auth 16]		243Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5H446 (Chlorella ohadii)
Explore A0AAD5H446
Go to UniProtKB:  A0AAD5H446
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5H446
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

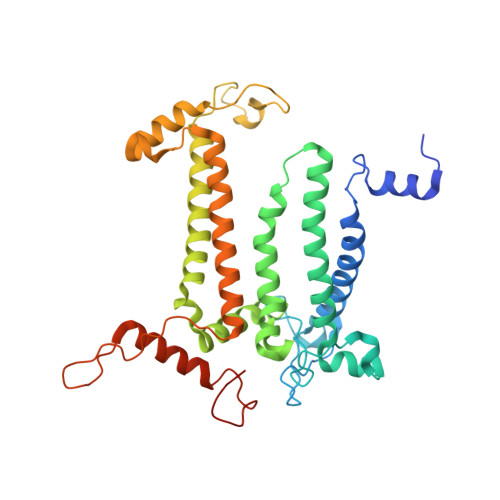

Photosystem II protein D1O [auth A],
OA [auth a]		353Chlorella ohadiiMutation(s): 0
EC: 1.10.3.9
UniProt
Find proteins for W8SIR2 (Chlorella sorokiniana)
Explore W8SIR2
Go to UniProtKB:  W8SIR2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8SIR2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

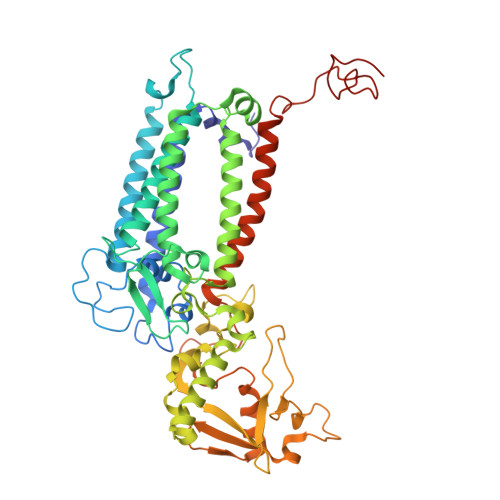

Photosystem II CP47 reaction center proteinP [auth B],
PA [auth b]		508Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for W8TIK4 (Chlorella sorokiniana)
Explore W8TIK4
Go to UniProtKB:  W8TIK4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8TIK4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

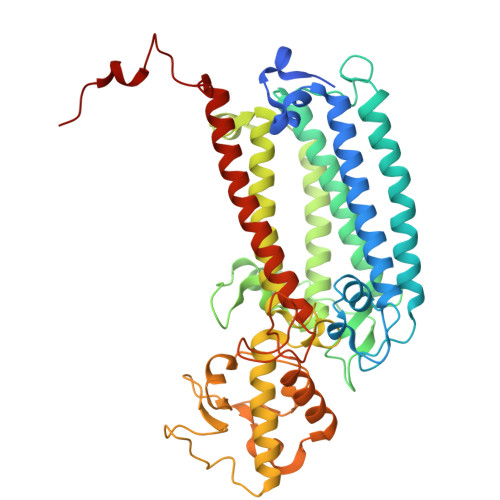

Photosystem II CP43 reaction center proteinQ [auth C],
QA [auth c]		473Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A076EAP1 (Chlorella sorokiniana)
Explore A0A076EAP1
Go to UniProtKB:  A0A076EAP1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A076EAP1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

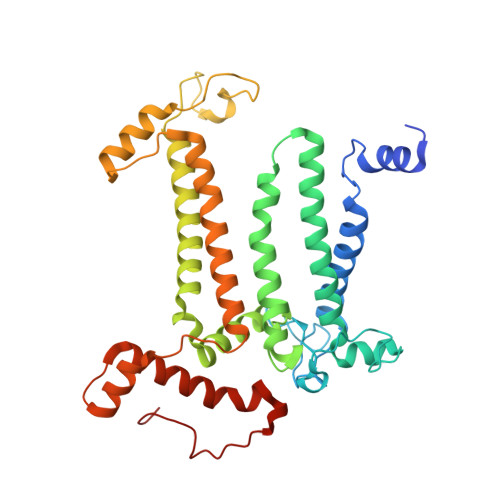

Photosystem II D2 proteinR [auth D],
RA [auth d]		352Chlorella ohadiiMutation(s): 0
EC: 1.10.3.9
UniProt
Find proteins for W8SYD4 (Chlorella sorokiniana)
Explore W8SYD4
Go to UniProtKB:  W8SYD4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8SYD4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
Cytochrome b559 subunit alphaS [auth E],
SA [auth e]		83Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for W8SU91 (Chlorella sorokiniana)
Explore W8SU91
Go to UniProtKB:  W8SU91
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8SU91
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

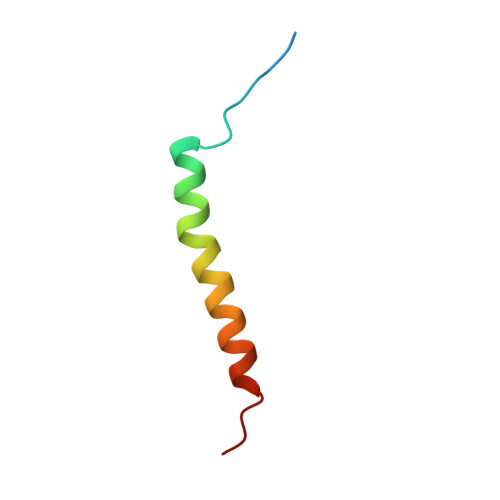

Cytochrome b559 subunit betaT [auth F],
TA [auth f]		41Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for W8SIQ3 (Chlorella sorokiniana)
Explore W8SIQ3
Go to UniProtKB:  W8SIQ3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8SIQ3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

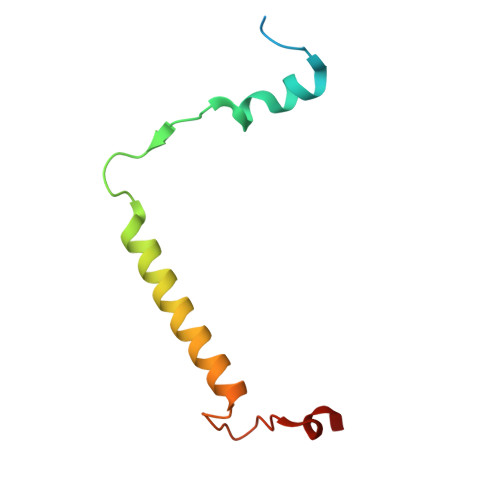

Photosystem II reaction center protein HV [auth H],
VA [auth h]		80Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for W8SIT0 (Chlorella sorokiniana)
Explore W8SIT0
Go to UniProtKB:  W8SIT0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8SIT0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage

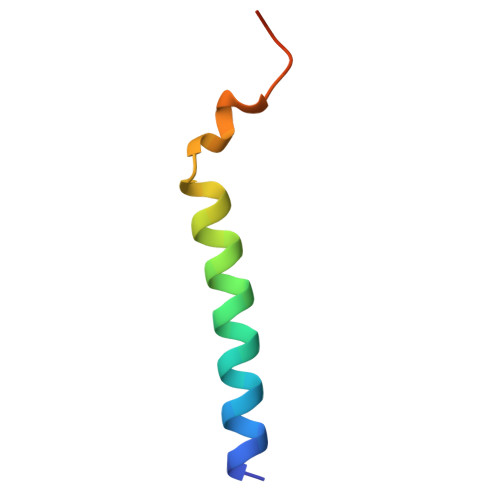

Photosystem II reaction center protein IW [auth I],
WA [auth i]		38Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A5P4ND48 (Chlorella ohadii)
Explore A0A5P4ND48
Go to UniProtKB:  A0A5P4ND48
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5P4ND48
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

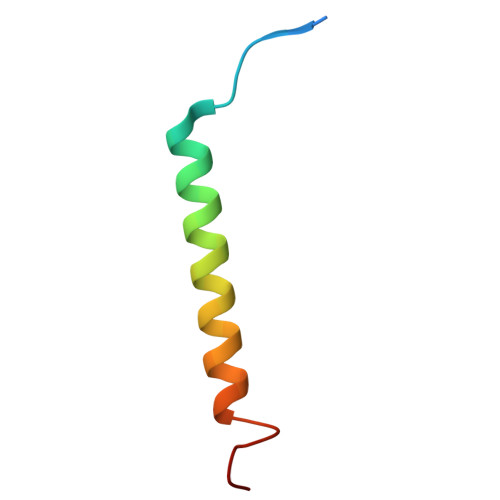

Photosystem II reaction center protein JX [auth J],
XA [auth j]		42Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for W8TIH6 (Chlorella sorokiniana)
Explore W8TIH6
Go to UniProtKB:  W8TIH6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8TIH6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage

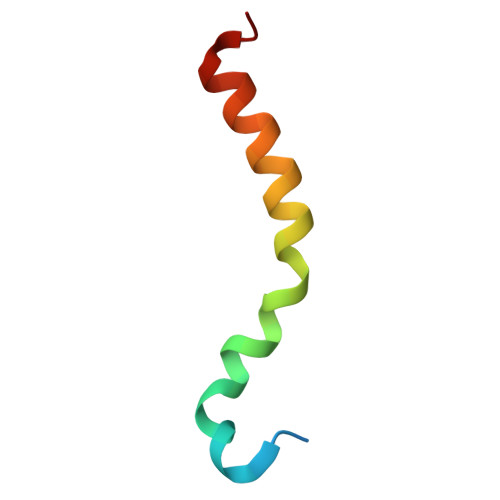

Photosystem II reaction center protein KY [auth K],
YA [auth k]		42Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for P56348 (Chlorella vulgaris)
Explore P56348
Go to UniProtKB:  P56348
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56348
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein LZ [auth L],
ZA [auth l]		38Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for P56339 (Chlorella vulgaris)
Explore P56339
Go to UniProtKB:  P56339
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56339
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein MAA [auth M],
AB [auth m]		34Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A5P4NAV9 (Chlorella ohadii)
Explore A0A5P4NAV9
Go to UniProtKB:  A0A5P4NAV9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5P4NAV9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 18
MoleculeChains  Sequence LengthOrganismDetailsImage

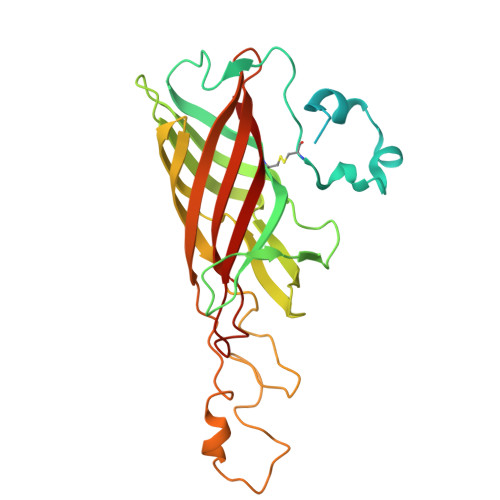

Chloroplast oxygen-evolving enhancer protein 1b (PsbO)CA [auth O],
CB [auth o]		305Chlorella ohadiiMutation(s): 0
Find similar proteins by:
|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage

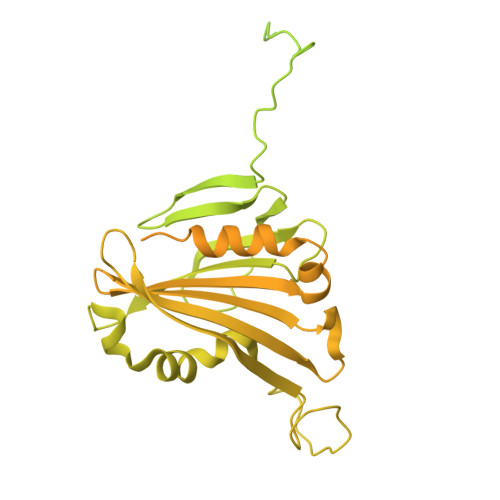

PWWP domain-containing proteinDA [auth P],
DB [auth p]		915Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5H4X0 (Chlorella ohadii)
Explore A0AAD5H4X0
Go to UniProtKB:  A0AAD5H4X0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5H4X0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 20
MoleculeChains  Sequence LengthOrganismDetailsImage

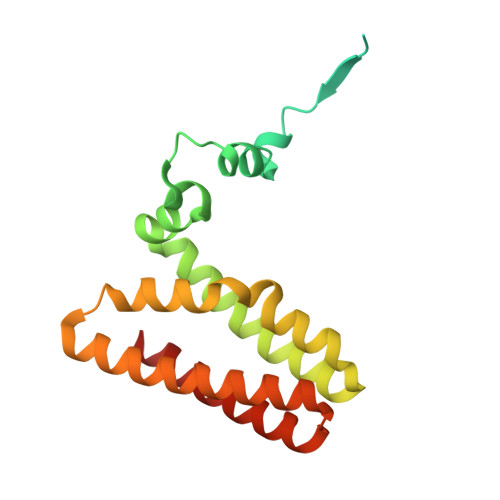

Chloroplast oxygen-evolving enhancer protein 3EA [auth Q],
EB [auth q]		203Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A5P4NB29 (Chlorella ohadii)
Explore A0A5P4NB29
Go to UniProtKB:  A0A5P4NB29
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5P4NB29
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 21
MoleculeChains  Sequence LengthOrganismDetailsImage

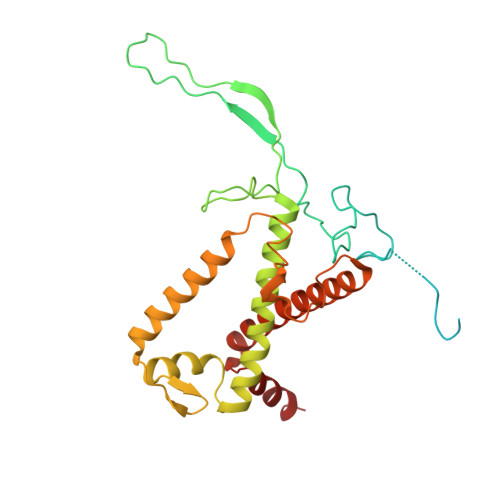

Chlorophyll a-b binding protein, chloroplasticFA [auth R],
FB [auth r]		297Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5E2W2 (Chlorella ohadii)
Explore A0AAD5E2W2
Go to UniProtKB:  A0AAD5E2W2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5E2W2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 22
MoleculeChains  Sequence LengthOrganismDetailsImage

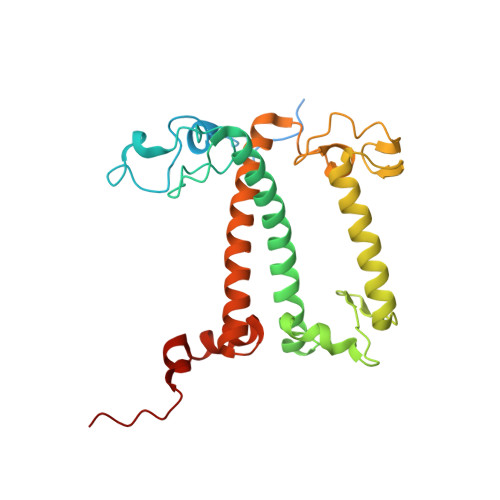

Chlorophyll a-b binding protein, chloroplasticGA [auth S],
GB [auth s]		293Chlorella ohadiiMutation(s): 0
Find similar proteins by:
|  3D Structure
Entity ID: 23
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein THA [auth T],
HB [auth t]		31Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for P56327 (Chlorella vulgaris)
Explore P56327
Go to UniProtKB:  P56327
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56327
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 24
MoleculeChains  Sequence LengthOrganismDetailsImage
Chloroplast PsbYIA [auth U],
IB [auth u]		367Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A5P4NEE0 (Chlorella ohadii)
Explore A0A5P4NEE0
Go to UniProtKB:  A0A5P4NEE0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A5P4NEE0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 25
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein Psb30JA [auth V],
JB [auth v]		33Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0A076EAR3 (Chlorella sorokiniana)
Explore A0A076EAR3
Go to UniProtKB:  A0A076EAR3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A076EAR3
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 26
MoleculeChains  Sequence LengthOrganismDetailsImage
PSII 6.1 kDa proteinKA [auth W],
KB [auth w]		447Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5DZE4 (Chlorella ohadii)
Explore A0AAD5DZE4
Go to UniProtKB:  A0AAD5DZE4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5DZE4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 27
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein X (PsbX)LA [auth X],
LB [auth x]		100Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5H2N2 (Chlorella ohadii)
Explore A0AAD5H2N2
Go to UniProtKB:  A0AAD5H2N2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5H2N2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 28
MoleculeChains  Sequence LengthOrganismDetailsImage
Chlorophyll a-b binding protein, chloroplasticMA [auth Y],
MB [auth y]		256Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for A0AAD5DNU0 (Chlorella ohadii)
Explore A0AAD5DNU0
Go to UniProtKB:  A0AAD5DNU0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AAD5DNU0
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 29
MoleculeChains  Sequence LengthOrganismDetailsImage
Photosystem II reaction center protein ZNA [auth Z],
NB [auth z]		62Chlorella ohadiiMutation(s): 0
UniProt
Find proteins for W8SKL0 (Chlorella sorokiniana)
Explore W8SKL0
Go to UniProtKB:  W8SKL0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupW8SKL0
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 21 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
DGD

Query on DGD


Download:Ideal Coordinates CCD File
BY [auth w]
DM [auth C]
EM [auth C]
FM [auth C]
OQ [auth W]
BY [auth w],
DM [auth C],
EM [auth C],
FM [auth C],
OQ [auth W],
QT [auth c],
RT [auth c],
ST [auth c]
DIGALACTOSYL DIACYL GLYCEROL (DGDG)
C51 H96 O15
LDQFLSUQYHBXSX-HXXRYREZSA-N
CHL
(Subject of Investigation/LOI)

Query on CHL


Download:Ideal Coordinates CCD File
AF [auth 6]
AG [auth 11]
AQ [auth S]
AR [auth Y]
BD [auth 3]
AF [auth 6],
AG [auth 11],
AQ [auth S],
AR [auth Y],
BD [auth 3],
BG [auth 11],
BN [auth G],
BR [auth Y],
CD [auth 3],
CG [auth 11],
CI [auth 14],
CP [auth R],
CR [auth Y],
DD [auth 3],
DG [auth 11],
DI [auth 14],
DO [auth N],
DP [auth R],
ED [auth 3],
EF [auth 6],
EG [auth 11],
EI [auth 14],
EP [auth R],
EY [auth y],
FD [auth 3],
FF [auth 6],
FH [auth 13],
FI [auth 14],
FN [auth G],
FX [auth s],
GC [auth 2],
GF [auth 6],
GI [auth 14],
GN [auth G],
GY [auth y],
HF [auth 6],
HJ [auth 16],
HN [auth G],
HO [auth N],
HV [auth g],
IF [auth 6],
IN [auth G],
IO [auth N],
IW [auth n],
JE [auth 5],
JH [auth 13],
JO [auth N],
KC [auth 2],
KH [auth 13],
KO [auth N],
KX [auth s],
KY [auth y],
LC [auth 2],
LH [auth 13],
LJ [auth 16],
LX [auth s],
LY [auth y],
MC [auth 2],
MH [auth 13],
MJ [auth 16],
MX [auth s],
MY [auth y],
NC [auth 2],
NE [auth 5],
NH [auth 13],
NJ [auth 16],
NY [auth y],
OB [auth 1],
OE [auth 5],
OJ [auth 16],
PE [auth 5],
PG [auth 12],
PJ [auth 16],
PU [auth g],
PV [auth n],
PW [auth r],
QE [auth 5],
QW [auth r],
RD [auth 4],
RI [auth 15],
RW [auth r],
SB [auth 1],
SQ [auth Y],
TB [auth 1],
TG [auth 12],
TN [auth G],
TP [auth S],
TU [auth g],
TV [auth n],
UB [auth 1],
UG [auth 12],
UU [auth g],
UV [auth n],
VB [auth 1],
VC [auth 2],
VD [auth 4],
VG [auth 12],
VI [auth 15],
VQ [auth Y],
VU [auth g],
VV [auth n],
WB [auth 1],
WD [auth 4],
WF [auth 11],
WG [auth 12],
WI [auth 15],
WO [auth N],
WU [auth g],
WV [auth n],
XC [auth 3],
XD [auth 4],
XI [auth 15],
YD [auth 4],
YE [auth 5],
YH [auth 14],
YI [auth 15],
YP [auth S],
ZD [auth 4],
ZP [auth S],
ZQ [auth Y]
CHLOROPHYLL B
C55 H70 Mg N4 O6
MWVCRINOIIOUAU-UYSPMESUSA-M
CLA
(Subject of Investigation/LOI)

Query on CLA


Download:Ideal Coordinates CCD File
AC [auth 1]
AD [auth 3]
AE [auth 4]
AH [auth 12]
AI [auth 14]
AC [auth 1],
AD [auth 3],
AE [auth 4],
AH [auth 12],
AI [auth 14],
AJ [auth 15],
AL [auth B],
AM [auth C],
AP [auth R],
AU [auth d],
AV [auth g],
AW [auth n],
BC [auth 1],
BE [auth 4],
BF [auth 6],
BH [auth 12],
BI [auth 14],
BJ [auth 15],
BK [auth A],
BL [auth B],
BP [auth R],
BQ [auth S],
BT [auth c],
BV [auth g],
BW [auth n],
CE [auth 4],
CF [auth 6],
CJ [auth 15],
CK [auth A],
CL [auth B],
CN [auth G],
CQ [auth S],
CT [auth c],
CU [auth d],
CW [auth n],
DE [auth 4],
DF [auth 6],
DJ [auth 15],
DK [auth A],
DL [auth B],
DN [auth G],
DQ [auth S],
DR [auth Y],
DS [auth b],
DT [auth c],
DU [auth d],
EE [auth 4],
EL [auth B],
EN [auth G],
EO [auth N],
EQ [auth S],
ER [auth Y],
ES [auth b],
ET [auth c],
FG [auth 11],
FK [auth A],
FO [auth N],
FP [auth R],
FQ [auth S],
FR [auth Y],
FS [auth b],
FT [auth c],
GD [auth 3],
GG [auth 11],
GH [auth 13],
GO [auth N],
GP [auth R],
GQ [auth S],
GR [auth Y],
GS [auth b],
GT [auth c],
GX [auth s],
HC [auth 2],
HD [auth 3],
HG [auth 11],
HH [auth 13],
HI [auth 14],
HP [auth R],
HQ [auth S],
HR [auth Y],
HS [auth b],
HT [auth c],
HX [auth s],
HY [auth y],
IC [auth 2],
ID [auth 3],
IG [auth 11],
IH [auth 13],
II [auth 14],
IJ [auth 16],
IP [auth R],
IS [auth b],
IT [auth c],
IX [auth s],
IY [auth y],
JC [auth 2],
JD [auth 3],
JF [auth 6],
JG [auth 11],
JI [auth 14],
JJ [auth 16],
JN [auth G],
JP [auth R],
JS [auth b],
JT [auth c],
JX [auth s],
JY [auth y],
KD [auth 3],
KE [auth 5],
KF [auth 6],
KI [auth 14],
KJ [auth 16],
KN [auth G],
KP [auth R],
KS [auth b],
KT [auth c],
LD [auth 3],
LE [auth 5],
LF [auth 6],
LI [auth 14],
LN [auth G],
LO [auth N],
LP [auth R],
LS [auth b],
LT [auth c],
LW [auth r],
ME [auth 5],
MF [auth 6],
MN [auth G],
MO [auth N],
MS [auth b],
MT [auth c],
MW [auth r],
NF [auth 6],
NN [auth G],
NO [auth N],
NS [auth b],
NT [auth c],
NW [auth r],
NX [auth s],
OC [auth 2],
OF [auth 6],
OH [auth 13],
OL [auth C],
OO [auth N],
OS [auth b],
OW [auth r],
OX [auth s],
OY [auth y],
PB [auth 1],
PC [auth 2],
PH [auth 13],
PK [auth B],
PL [auth C],
PM [auth D],
PO [auth N],
PS [auth b],
PX [auth s],
PY [auth y],
QB [auth 1],
QC [auth 2],
QG [auth 12],
QH [auth 13],
QJ [auth 16],
QK [auth B],
QL [auth C],
QM [auth D],
QO [auth N],
QS [auth b],
QU [auth g],
QV [auth n],
QX [auth s],
QY [auth y],
RB [auth 1],
RC [auth 2],
RE [auth 5],
RG [auth 12],
RH [auth 13],
RJ [auth 16],
RK [auth B],
RL [auth C],
RR [auth a],
RS [auth b],
RU [auth g],
RV [auth n],
RX [auth s],
RY [auth y],
SD [auth 4],
SE [auth 5],
SG [auth 12],
SH [auth 13],
SI [auth 15],
SJ [auth 16],
SK [auth B],
SL [auth C],
SR [auth a],
SS [auth b],
SU [auth g],
SV [auth n],
SW [auth r],
SX [auth s],
SY [auth y],
TD [auth 4],
TE [auth 5],
TH [auth 13],
TI [auth 15],
TJ [auth 16],
TK [auth B],
TL [auth C],
TQ [auth Y],
TW [auth r],
TX [auth s],
TY [auth y],
UD [auth 4],
UE [auth 5],
UI [auth 15],
UJ [auth 16],
UK [auth B],
UL [auth C],
UP [auth S],
UW [auth r],
VJ [auth 16],
VK [auth B],
VL [auth C],
VP [auth S],
VR [auth a],
VW [auth r],
WK [auth B],
WL [auth C],
WP [auth S],
WQ [auth Y],
WW [auth r],
XB [auth 1],
XF [auth 11],
XG [auth 12],
XK [auth B],
XL [auth C],
XP [auth S],
XQ [auth Y],
XU [auth g],
XV [auth n],
XW [auth r],
YB [auth 1],
YC [auth 3],
YF [auth 11],
YG [auth 12],
YK [auth B],
YL [auth C],
YO [auth R],
YQ [auth Y],
YU [auth g],
YV [auth n],
YW [auth r],
ZB [auth 1],
ZC [auth 3],
ZF [auth 11],
ZG [auth 12],
ZH [auth 14],
ZI [auth 15],
ZK [auth B],
ZL [auth C],
ZO [auth R],
ZU [auth g],
ZV [auth n]
CHLOROPHYLL A
C55 H72 Mg N4 O5
ATNHDLDRLWWWCB-AENOIHSZSA-M
PHO
(Subject of Investigation/LOI)

Query on PHO


Download:Ideal Coordinates CCD File
EK [auth A],
NM [auth D],
TR [auth a],
UR [auth a]		PHEOPHYTIN A
C55 H74 N4 O5
CQIKWXUXPNUNDV-RCBXBCQGSA-N
SQD

Query on SQD


Download:Ideal Coordinates CCD File
BO [auth L]
HK [auth A]
KU [auth d]
MU [auth d]
NV [auth l]
BO [auth L],
HK [auth A],
KU [auth d],
MU [auth d],
NV [auth l],
WM [auth D],
XR [auth a],
YM [auth D]
1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL
C41 H78 O12 S
RVUUQPKXGDTQPG-JUDHQOGESA-N
LMG

Query on LMG


Download:Ideal Coordinates CCD File
AO [auth K]
AY [auth w]
GM [auth C]
IK [auth A]
IM [auth C]
AO [auth K],
AY [auth w],
GM [auth C],
IK [auth A],
IM [auth C],
IQ [auth S],
IU [auth d],
JL [auth B],
JU [auth d],
KL [auth B],
MV [auth j],
NU [auth d],
TT [auth c],
UX [auth s],
VM [auth D],
VN [auth H],
VT [auth c],
WS [auth b],
XS [auth b],
ZM [auth D],
ZN [auth J],
ZX [auth v]
1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE
C45 H86 O10
DCLTVZLYPPIIID-CVELTQQQSA-N
PL9
(Subject of Investigation/LOI)

Query on PL9


Download:Ideal Coordinates CCD File
FU [auth d],
JK [auth A],
SM [auth D],
YR [auth a]		2,3-DIMETHYL-5-(3,7,11,15,19,23,27,31,35-NONAMETHYL-2,6,10,14,18,22,26,30,34-HEXATRIACONTANONAENYL-2,5-CYCLOHEXADIENE-1,4-DIONE-2,3-DIMETHYL-5-SOLANESYL-1,4-BENZOQUINONE
C53 H80 O2
FKUYMLZIRPABFK-UHFFFAOYSA-N
LHG

Query on LHG


Download:Ideal Coordinates CCD File
BS [auth a]
BX [auth r]
CC [auth 1]
CO [auth L]
CS [auth a]
BS [auth a],
BX [auth r],
CC [auth 1],
CO [auth L],
CS [auth a],
CV [auth g],
CX [auth r],
DW [auth n],
EX [auth s],
FE [auth 4],
FY [auth y],
GU [auth d],
HM [auth C],
HU [auth d],
IR [auth Y],
JQ [auth S],
JR [auth Y],
KG [auth 11],
KK [auth A],
KW [auth r],
LU [auth d],
MD [auth 3],
MI [auth 14],
MK [auth A],
ND [auth 3],
NK [auth A],
OK [auth A],
ON [auth G],
OP [auth R],
OV [auth l],
PF [auth 6],
PP [auth R],
PR [auth a],
QF [auth 6],
RO [auth N],
SP [auth S],
TM [auth D],
UH [auth 13],
UM [auth D],
UQ [auth Y],
UT [auth c],
UY [auth y],
VX [auth s],
VY [auth y],
WJ [auth 16],
XM [auth D],
XO [auth R],
ZR [auth a]
1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE
C38 H75 O10 P
BIABMEZBCHDPBV-MPQUPPDSSA-N
3PH

Query on 3PH


Download:Ideal Coordinates CCD File
IL [auth B]
ML [auth B]
NQ [auth T]
UF [auth 7]
VF [auth 8]
IL [auth B],
ML [auth B],
NQ [auth T],
UF [auth 7],
VF [auth 8],
ZS [auth b]
1,2-DIACYL-GLYCEROL-3-SN-PHOSPHATE
C39 H77 O8 P
YFWHNAWEOZTIPI-DIPNUNPCSA-N
HEM
(Subject of Investigation/LOI)

Query on HEM


Download:Ideal Coordinates CCD File
AN [auth F],
OU [auth f]		PROTOPORPHYRIN IX CONTAINING FE
C34 H32 Fe N4 O4
KABFMIBPWCXCRK-RGGAHWMASA-L
XAT
(Subject of Investigation/LOI)

Query on XAT


Download:Ideal Coordinates CCD File
AX [auth r]
GV [auth g]
NP [auth R]
OG [auth 11]
QI [auth 14]
AX [auth r],
GV [auth g],
NP [auth R],
OG [auth 11],
QI [auth 14],
SN [auth G],
WC [auth 3],
ZE [auth 6]
(3S,5R,6S,3'S,5'R,6'S)-5,6,5',6'-DIEPOXY-5,6,5',6'- TETRAHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL
C40 H56 O4
SZCBXWMUOPQSOX-WVJDLNGLSA-N
NEX

Query on NEX


Download:Ideal Coordinates CCD File
AZ [auth y]
EH [auth 12]
FC [auth 1]
FV [auth g]
GJ [auth 15]
AZ [auth y],
EH [auth 12],
FC [auth 1],
FV [auth g],
GJ [auth 15],
GW [auth n],
IE [auth 4],
JW [auth r],
MQ [auth S],
NG [auth 11],
OR [auth Y],
PI [auth 14],
QD [auth 3],
RN [auth G],
RP [auth R],
TF [auth 6],
UC [auth 2],
UO [auth N],
XE [auth 5],
XH [auth 13],
YX [auth s],
ZJ [auth 16]
(1R,3R)-6-{(3E,5E,7E,9E,11E,13E,15E,17E)-18-[(1S,4R,6R)-4-HYDROXY-2,2,6-TRIMETHYL-7-OXABICYCLO[4.1.0]HEPT-1-YL]-3,7,12,16-TETRAMETHYLOCTADECA-1,3,5,7,9,11,13,15,17-NONAENYLIDENE}-1,5,5-TRIMETHYLCYCLOHEXANE-1,3-DIOL
C40 H56 O4
PGYAYSRVSAJXTE-OQASCVKESA-N
LUT
(Subject of Investigation/LOI)

Query on LUT


Download:Ideal Coordinates CCD File
CH [auth 12]
DC [auth 1]
DH [auth 12]
DV [auth g]
EC [auth 1]
CH [auth 12],
DC [auth 1],
DH [auth 12],
DV [auth g],
EC [auth 1],
EJ [auth 15],
EV [auth g],
EW [auth n],
FJ [auth 15],
FW [auth n],
GE [auth 4],
HE [auth 4],
KQ [auth S],
LG [auth 11],
LQ [auth S],
MG [auth 11],
MP [auth R],
MR [auth Y],
NI [auth 14],
NR [auth Y],
OD [auth 3],
OI [auth 14],
PD [auth 3],
PN [auth G],
QN [auth G],
RF [auth 6],
SC [auth 2],
SF [auth 6],
SO [auth N],
TC [auth 2],
TO [auth N],
VE [auth 5],
VH [auth 13],
WE [auth 5],
WH [auth 13],
WX [auth s],
XJ [auth 16],
XX [auth s],
YJ [auth 16],
YY [auth y],
ZW [auth r],
ZY [auth y]
(3R,3'R,6S)-4,5-DIDEHYDRO-5,6-DIHYDRO-BETA,BETA-CAROTENE-3,3'-DIOL
C40 H56 O2
KBPHJBAIARWVSC-NSIPBSJQSA-N
BCR
(Subject of Investigation/LOI)

Query on BCR


Download:Ideal Coordinates CCD File
BM [auth C]
CM [auth C]
EU [auth d]
FL [auth B]
GK [auth A]
BM [auth C],
CM [auth C],
EU [auth d],
FL [auth B],
GK [auth A],
GL [auth B],
HL [auth B],
JV [auth h],
LM [auth C],
LV [auth j],
OT [auth c],
PT [auth c],
RM [auth D],
TS [auth b],
US [auth b],
VS [auth b],
WN [auth H],
WR [auth a],
YN [auth J],
YT [auth c]
BETA-CAROTENE
C40 H56
OENHQHLEOONYIE-JLTXGRSLSA-N
OEX

Query on OEX


Download:Ideal Coordinates CCD File
AK [auth A],
QR [auth a]		CA-MN4-O5 CLUSTER
Ca Mn4 O5
SEXWDHMBWJEXOJ-UHFFFAOYSA-N
STE

Query on STE


Download:Ideal Coordinates CCD File
LL [auth B],
YS [auth b]		STEARIC ACID
C18 H36 O2
QIQXTHQIDYTFRH-UHFFFAOYSA-N
LNL

Query on LNL


Download:Ideal Coordinates CCD File
AS [auth a]
BZ [auth y]
CY [auth w]
DX [auth r]
DY [auth x]
AS [auth a],
BZ [auth y],
CY [auth w],
DX [auth r],
DY [auth x],
IV [auth h],
JM [auth C],
KM [auth C],
KR [auth Y],
KV [auth i],
LK [auth A],
LR [auth Y],
PQ [auth W],
QP [auth R],
QQ [auth W],
RQ [auth X],
UN [auth H],
WT [auth c],
WY [auth y],
XN [auth I],
XT [auth c],
XY [auth y]
ALPHA-LINOLENIC ACID
C18 H30 O2
DTOSIQBPPRVQHS-PDBXOOCHSA-N
PAM

Query on PAM


Download:Ideal Coordinates CCD File
HW [auth n],
VO [auth N]		PALMITOLEIC ACID
C16 H30 O2
SECPZKHBENQXJG-FPLPWBNLSA-N
BCT

Query on BCT


Download:Ideal Coordinates CCD File
BU [auth d],
OM [auth D]		BICARBONATE ION
C H O3
BVKZGUZCCUSVTD-UHFFFAOYSA-M
FE2
(Subject of Investigation/LOI)

Query on FE2


Download:Ideal Coordinates CCD File
MM [auth D],
ZT [auth d]		FE (II) ION
Fe
CWYNVVGOOAEACU-UHFFFAOYSA-N
CL

Query on CL


Download:Ideal Coordinates CCD File
AT [auth c],
NL [auth C]		CHLORIDE ION
Cl
VEXZGXHMUGYJMC-UHFFFAOYSA-M

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.95 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419
RECONSTRUCTIONcryoSPARC4.3.1.

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Ministry of Education, Youth and Sports of the Czech RepublicCzech RepublicCZ.02.01.01/00/22_008/0004624
Czech Science FoundationCzech Republic23-07744S
Other governmentMZE-RO0423
German Research Foundation (DFG)Germany391498659 (RTG 2467); SFB 1664 (TP D1)
German Federal Ministry for Education and ResearchGermany03Z22HN23; 03Z22HI2; 03COV04
European Regional Development FundEuropean UnionZS/2016/04/78115

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-12
    Type: Initial release
  • Version 1.1: 2026-01-21
    Changes: Data collection, Database references
