9E4H | pdb_00009e4h

Human ASIC1a at pH 5.7 with rotated, domain-swapped transmembrane domain

PDB DOI: https://doi.org/10.2210/pdb9E4H/pdb
EM Map EMD-47510: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-10-24 Released: 2026-01-21
Deposition Author(s): Hartfield, K.A., Cahill, J., Baconguis, I.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.61 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Conformational plasticity of human acid-sensing ion channel 1a

Cahill, J., Hartfield, K.A., Heusser, S.A., Ritter, N., Poulsen, M.H., Yoshioka, C., Pless, S.A., Baconguis, I.

To be published.

Macromolecule Content

Total Structure Weight: 180.76 kDa
Atom Count: 10,287
Modeled Residue Count: 1,281
Deposited Residue Count: 1,593
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

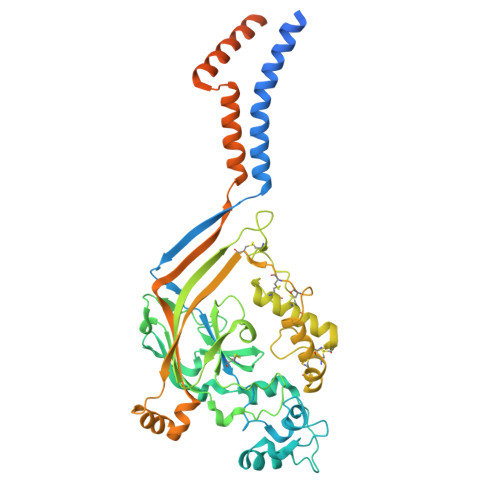

Acid-sensing ion channel 1	A, B, C	531	Homo sapiens	Mutation(s): 0 Gene Names: ASIC1, ACCN2, BNAC2
UniProt & NIH Common Fund Data Resources
Find proteins for P78348 (Homo sapiens) Explore P78348 Go to UniProtKB: P78348
PHAROS: P78348 GTEx: ENSG00000110881
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P78348
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.61 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-01-21

Deposition Author(s):

Hartfield, K.A.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM138862

Revision History (Full details and data files)

Version 1.0: 2026-01-21
Type: Initial release
