 9YNR | pdb_00009ynr

Local refinement of Fab-14/SARS-CoV-2 D614G spike complex, Mode I


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.55 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9YNR

This is version 1.1 of the entry. See complete history.

Literature

Neutralization of SARS-CoV-2 by IgM-14 via engagement of two distinct spike epitopes.

Wang, Y., Hu, Y., Ku, Z., Yeung, J., Zou, J., Woodson, M., Prokhorov, N.S., Knyazhanskaya, E.S., Zhao, H., Sherman, M.B., An, Z., Carroll, S.F., Shi, P.Y., Leiman, P.G., Xie, X.

(2026) PLoS Pathog 22: e1014071-e1014071

  • DOI: https://doi.org/10.1371/journal.ppat.1014071
  • Primary Citation Related Structures:
    9YNR, 9YNX, 9YOK, 9YPB, 9YPR

  • PubMed Abstract:

    Engineered immunoglobulin M (IgM) antibodies typically exhibit superior neutralization potency and avidity compared to their parental IgG counterparts, primarily due to multivalent binding to repeated epitopes on a targeting antigen. In this study, we characterize the neutralization breadth and mechanism of action of IgM-14, a previously reported intranasally deliverable antibody targeting SARS-CoV-2. IgM-14 demonstrates remarkably potent antiviral activity against all pre-Omicron variants but significantly reduced efficacy against Omicron BA.1, and complete loss of activity against the later subvariant JN.1. Resistance selection identified two key mutations in the receptor-binding domain (RBD), G476D and F486P, which disrupt IgM-14 binding and confer strong resistance. Cryo-electron microscopy analysis uncovered two distinct Fab-RBD interfaces: a primary interface overlapping the angiotensin-converting enzyme 2 (ACE2)-binding region, and a unique secondary interface formed only when the RBD adopts the ACE2-inaccessible "down" conformation, involving a neighboring spike protomer. Site-directed mutagenesis and structural modeling revealed a critical role of this secondary site in IgM-14-mediated neutralization. Unlike IgG-14, structural modeling suggested that IgM-14 can simultaneously engage both interfaces in diverse modes, indicating a noncanonical avidity mechanism. Collectively, these findings highlight the structural and functional uniqueness of IgM-14 and offer valuable insights into the rational design of next-generation spike-targeted antibody therapeutics with enhanced breadth and potency.


  • Organizational Affiliation:
    • Department of Microbiology and Immunology, University of Texas Medical Branch, Galveston, Texas, United States of America.

Macromolecule Content

  • Total Structure Weight: 335.63 kDa
  • Atom Count: 9,679
  • Modeled Residue Count: 1,217
  • Deposited Residue Count: 3,024
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

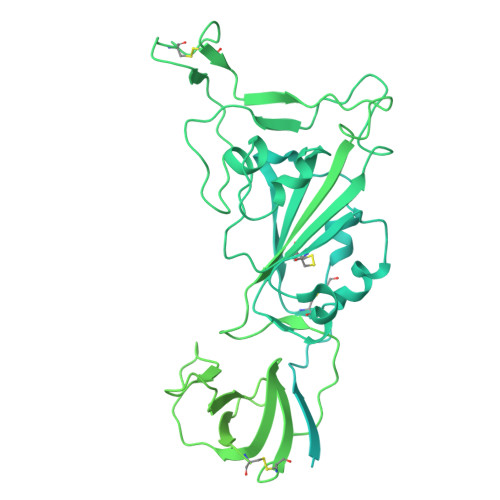

Spike glycoproteinA [auth B],
B [auth C]
1,288Severe acute respiratory syndrome coronavirus 2Mutation(s): 0
UniProt
Find proteins for A0A7U0LU78 (Severe acute respiratory syndrome coronavirus 2)
Explore A0A7U0LU78
Go to UniProtKB:  A0A7U0LU78
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A7U0LU78
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

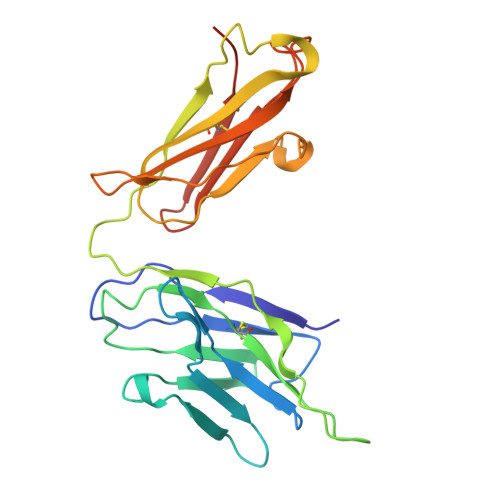

Fab-14 heavy chainC [auth D]235Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

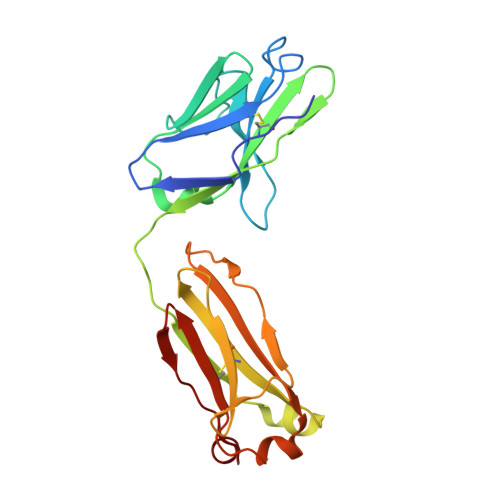

Fab-14 light chainD [auth E]213Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 4
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseE [auth A],
F,
G,
H
2N-Glycosylation
Glycosylation Resources
GlyTouCan: G42666HT
GlyCosmos: G42666HT
GlyGen: G42666HT

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.55 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM139034
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR35GM158090

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-18
    Type: Initial release
  • Version 1.1: 2026-04-08
    Changes: Data collection, Database references
