9XO2 | pdb_00009xo2

PEDV HNXX spike trimer with one D0 Down in complex with one N19 Fab

PDB DOI: https://doi.org/10.2210/pdb9XO2/pdb
EM Map EMD-67067: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Porcine epidemic diarrhea virus, Sus scrofa
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-11-13 Released: 2026-08-05
Deposition Author(s): Liu, J., Wang, S., Wang, J., Su, M., Li, Z., Xiong, X.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.71 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9XO2

This is version 1.0 of the entry. See complete history.

Literature

Locking Spike Domain 0 Conformation Impairs Fusion and Neutralizes Porcine Epidemic Diarrhea Virus

Wang, S., Liu, J.B., Wang, J.J., Su, M.Z., Li, Z.M., Wang, Z.C., Ma, Y., Li, Y., Liu, B.H., Zou, J.H., Habib, G., Xiao, S.B., Li, H.Y., Li, M., Liu, Y.T., Li, W.T., He, J., Chen, X.W., Zhou, H.B., Xiong, X.L.

To be published.

Macromolecule Content

Total Structure Weight: 478.74 kDa
Atom Count: 28,708
Modeled Residue Count: 3,621
Deposited Residue Count: 4,254
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Spike glycoprotein	A, D [auth B], E [auth C]	1,327	Porcine epidemic diarrhea virus	Mutation(s): 0
UniProt
Find proteins for A0A7G4RNN0 (Porcine epidemic diarrhea virus) Explore A0A7G4RNN0 Go to UniProtKB: A0A7G4RNN0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A7G4RNN0
Glycosylation
Glycosylation Sites: 13	Glycosylation Focus chain A Focus chain D [auth B] Focus chain E [auth C]
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

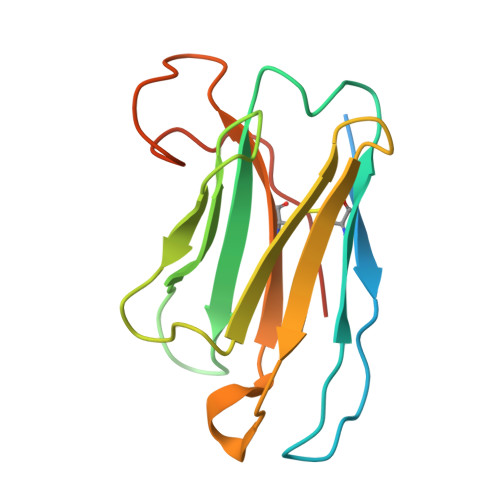

N19 VH	B [auth F]	144	Sus scrofa	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

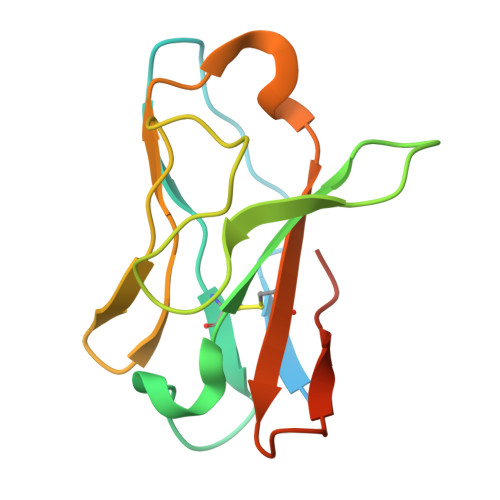

N19 VL	C [auth G]	129	Sus scrofa	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	F [auth D], G [auth E], H, K, L, F [auth D], G [auth E], H, K, L, N, O	2		N-Glycosylation	Interactions Focus chain F [auth D] Focus chain G [auth E] Focus chain H Focus chain K Focus chain L Focus chain N Focus chain O Interactions & Density Focus chain F [auth D] Focus chain G [auth E] Focus chain H Focus chain K Focus chain L Focus chain N Focus chain O

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	I, J, M	5		N-Glycosylation	Interactions Focus chain I Focus chain J Focus chain M Interactions & Density Focus chain I Focus chain J Focus chain M

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PAM Query on PAM Download:Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain BB [auth C] SDF format, chain NA [auth B] SDF format, chain OA [auth B] SDF format, chain Y [auth A] SDF format, chain Z [auth A] MOL2 format, chain AA [auth B] MOL2 format, chain BB [auth C] MOL2 format, chain NA [auth B] MOL2 format, chain OA [auth B] MOL2 format, chain Y [auth A] MOL2 format, chain Z [auth A] mmCIF format, chain AA [auth B] mmCIF format, chain BB [auth C] mmCIF format, chain NA [auth B] mmCIF format, chain OA [auth B] mmCIF format, chain Y [auth A] mmCIF format, chain Z [auth A]	AA [auth B] BB [auth C] NA [auth B] OA [auth B] Y [auth A] AA [auth B], BB [auth C], NA [auth B], OA [auth B], Y [auth A], Z [auth A]	PALMITOLEIC ACID C₁₆ H₃₀ O₂ SECPZKHBENQXJG-FPLPWBNLSA-N		Interactions Focus chain AA [auth B] Focus chain BB [auth C] Focus chain NA [auth B] Focus chain OA [auth B] Focus chain Y [auth A] Focus chain Z [auth A] Interactions & Density Focus chain AA [auth B] Focus chain BB [auth C] Focus chain NA [auth B] Focus chain OA [auth B] Focus chain Y [auth A] Focus chain Z [auth A]
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain AB [auth C] SDF format, chain BA [auth B] SDF format, chain CA [auth B] SDF format, chain DA [auth B] SDF format, chain EA [auth B] SDF format, chain FA [auth B] SDF format, chain GA [auth B] SDF format, chain HA [auth B] SDF format, chain IA [auth B] SDF format, chain JA [auth B] SDF format, chain KA [auth B] SDF format, chain LA [auth B] SDF format, chain MA [auth B] SDF format, chain P [auth A] SDF format, chain PA [auth C] SDF format, chain Q [auth A] SDF format, chain QA [auth C] SDF format, chain R [auth A] SDF format, chain RA [auth C] SDF format, chain S [auth A] SDF format, chain SA [auth C] SDF format, chain T [auth A] SDF format, chain TA [auth C] SDF format, chain U [auth A] SDF format, chain UA [auth C] SDF format, chain V [auth A] SDF format, chain VA [auth C] SDF format, chain W [auth A] SDF format, chain WA [auth C] SDF format, chain X [auth A] SDF format, chain XA [auth C] SDF format, chain YA [auth C] SDF format, chain ZA [auth C] MOL2 format, chain AB [auth C] MOL2 format, chain BA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain DA [auth B] MOL2 format, chain EA [auth B] MOL2 format, chain FA [auth B] MOL2 format, chain GA [auth B] MOL2 format, chain HA [auth B] MOL2 format, chain IA [auth B] MOL2 format, chain JA [auth B] MOL2 format, chain KA [auth B] MOL2 format, chain LA [auth B] MOL2 format, chain MA [auth B] MOL2 format, chain P [auth A] MOL2 format, chain PA [auth C] MOL2 format, chain Q [auth A] MOL2 format, chain QA [auth C] MOL2 format, chain R [auth A] MOL2 format, chain RA [auth C] MOL2 format, chain S [auth A] MOL2 format, chain SA [auth C] MOL2 format, chain T [auth A] MOL2 format, chain TA [auth C] MOL2 format, chain U [auth A] MOL2 format, chain UA [auth C] MOL2 format, chain V [auth A] MOL2 format, chain VA [auth C] MOL2 format, chain W [auth A] MOL2 format, chain WA [auth C] MOL2 format, chain X [auth A] MOL2 format, chain XA [auth C] MOL2 format, chain YA [auth C] MOL2 format, chain ZA [auth C] mmCIF format, chain AB [auth C] mmCIF format, chain BA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain DA [auth B] mmCIF format, chain EA [auth B] mmCIF format, chain FA [auth B] mmCIF format, chain GA [auth B] mmCIF format, chain HA [auth B] mmCIF format, chain IA [auth B] mmCIF format, chain JA [auth B] mmCIF format, chain KA [auth B] mmCIF format, chain LA [auth B] mmCIF format, chain MA [auth B] mmCIF format, chain P [auth A] mmCIF format, chain PA [auth C] mmCIF format, chain Q [auth A] mmCIF format, chain QA [auth C] mmCIF format, chain R [auth A] mmCIF format, chain RA [auth C] mmCIF format, chain S [auth A] mmCIF format, chain SA [auth C] mmCIF format, chain T [auth A] mmCIF format, chain TA [auth C] mmCIF format, chain U [auth A] mmCIF format, chain UA [auth C] mmCIF format, chain V [auth A] mmCIF format, chain VA [auth C] mmCIF format, chain W [auth A] mmCIF format, chain WA [auth C] mmCIF format, chain X [auth A] mmCIF format, chain XA [auth C] mmCIF format, chain YA [auth C] mmCIF format, chain ZA [auth C]	AB [auth C] BA [auth B] CA [auth B] DA [auth B] EA [auth B] AB [auth C], BA [auth B], CA [auth B], DA [auth B], EA [auth B], FA [auth B], GA [auth B], HA [auth B], IA [auth B], JA [auth B], KA [auth B], LA [auth B], MA [auth B], P [auth A], PA [auth C], Q [auth A], QA [auth C], R [auth A], RA [auth C], S [auth A], SA [auth C], T [auth A], TA [auth C], U [auth A], UA [auth C], V [auth A], VA [auth C], W [auth A], WA [auth C], X [auth A], XA [auth C], YA [auth C], ZA [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AB [auth C] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth B] Focus chain P [auth A] Focus chain PA [auth C] Focus chain Q [auth A] Focus chain QA [auth C] Focus chain R [auth A] Focus chain RA [auth C] Focus chain S [auth A] Focus chain SA [auth C] Focus chain T [auth A] Focus chain TA [auth C] Focus chain U [auth A] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain WA [auth C] Focus chain X [auth A] Focus chain XA [auth C] Focus chain YA [auth C] Focus chain ZA [auth C] Interactions & Density Focus chain AB [auth C] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth B] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth B] Focus chain P [auth A] Focus chain PA [auth C] Focus chain Q [auth A] Focus chain QA [auth C] Focus chain R [auth A] Focus chain RA [auth C] Focus chain S [auth A] Focus chain SA [auth C] Focus chain T [auth A] Focus chain TA [auth C] Focus chain U [auth A] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain WA [auth C] Focus chain X [auth A] Focus chain XA [auth C] Focus chain YA [auth C] Focus chain ZA [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.71 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-05

Deposition Author(s):

Funding Organization	Location	Grant Number
Other government	China	82341085

Revision History (Full details and data files)

Version 1.0: 2026-08-05
Type: Initial release
