9XE3 | pdb_00009xe3

Low resolution structure of mycobacterial FtsZ

PDB DOI: https://doi.org/10.2210/pdb9XE3/pdb

Classification: MOTOR PROTEIN
Organism(s): Mycobacterium tuberculosis H37Rv
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-10-27 Released: 2026-10-28
Deposition Author(s): Chaudhuri, B.
Funding Organization(s): Council of Scientific & Industrial Research (CSIR)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.20 Å
R-Value Free:
0.244 (Depositor), 0.244 (DCC)
R-Value Work:
0.194 (Depositor), 0.196 (DCC)
R-Value Observed:
0.197 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9XE3

This is version 1.0 of the entry. See complete history.

Literature

Low resolution structure of mycobacterial FtsZ

Chaudhuri, B.

To be published.

Macromolecule Content

Total Structure Weight: 81.31 kDa
Atom Count: 4,109
Modeled Residue Count: 589
Deposited Residue Count: 786
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

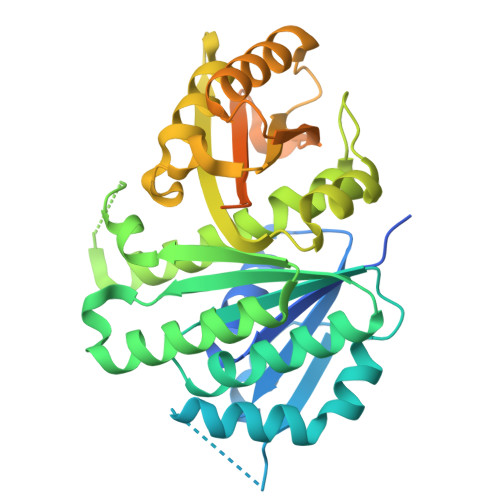

Cell division protein FtsZ	A, B	393	Mycobacterium tuberculosis H37Rv	Mutation(s): 0 Gene Names: ftsZ, Rv2150c, MTCY270.18
UniProt
Find proteins for P9WN95 (Mycobacterium tuberculosis (strain ATCC 25618 / H37Rv)) Explore P9WN95 Go to UniProtKB: P9WN95
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P9WN95
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CIT Query on CIT Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	CITRIC ACID C₆ H₈ O₇ KRKNYBCHXYNGOX-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.20 Å
R-Value Free: 0.244 (Depositor), 0.244 (DCC)
R-Value Work: 0.194 (Depositor), 0.196 (DCC)
R-Value Observed: 0.197 (Depositor)

Space Group: P 6₅

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 90.078	α = 90
b = 90.078	β = 90
c = 182.809	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHENIX	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-28

Deposition Author(s):

Funding Organization	Location	Grant Number
Council of Scientific & Industrial Research (CSIR)	India	MLP061

Revision History (Full details and data files)

Version 1.0: 2026-10-28
Type: Initial release
