9XA2 | pdb_00009xa2

Cryo-EM structure of the Tha-1-ORF61 complex

• PDB DOI: https://doi.org/10.2210/pdb9XA2/pdb
• EM Map EMD-66674: EMDB EMDataResource

• Classification: ANTIVIRAL PROTEIN
• Organism(s): Staphylococcus aureus
• Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
• Mutation(s): No


• Deposited: 2025-10-22 Released: 2026-10-28
• Deposition Author(s): Qi, H., Xia, Y.S., Wei, X.Y., Meng, Y.H., Zhang, J.T., Jia, N.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.24 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of the Tha-1-ORF61 at 3.24 Angstorms resolution

Qi, H., Xia, Y.S., Wei, X.Y., Meng, Y.H., Zhang, J.T., Jia, N.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 9-mer - A6B3 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 9-mer - A3B2C1D1E1F1 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - A6

Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 6-mer - A6

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 435.34 kDa
• Atom Count: 28,973
• Modeled Residue Count: 3,501
• Deposited Residue Count: 3,714
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

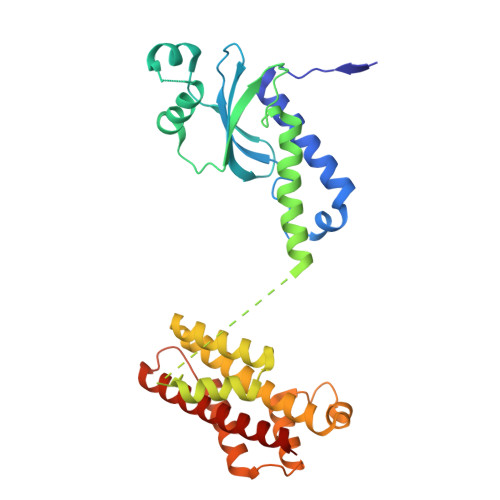

Tail-activated HEPN domain-containing anti-phage protein	A, B, C, D, E, F	301	Staphylococcus aureus	Mutation(s): 0  Gene Names: GO814_02995
UniProt
Find proteins for A0A6N8I7S9 (Staphylococcus aureus) Explore A0A6N8I7S9  Go to UniProtKB:  A0A6N8I7S9

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

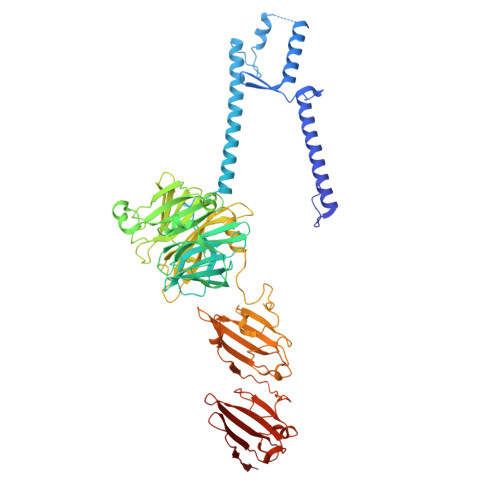

P68 RBP/TagC-like beta-propeller domain-containing protein	G, H, I	636	Staphylococcus aureus	Mutation(s): 0  Gene Names: GJH15_09750
UniProt
Find proteins for A0A6A8FFL1 (Staphylococcus aureus) Explore A0A6A8FFL1  Go to UniProtKB:  A0A6A8FFL1

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.24 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419:
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-10-28
Deposition Author(s): Qi, H., Xia, Y.S., Wei, X.Y., Meng, Y.H., Zhang, J.T., Jia, N.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2026-10-28
  Type: Initial release
