9WP3 | pdb_00009wp3

The crystal structure of PDE2A complexed with inhibitor 13j


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free:
    0.311 (Depositor), 0.316 (DCC)
  • R-Value Work:
    0.256 (Depositor), 0.264 (DCC)
  • R-Value Observed:
    0.259 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9WP3

Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history

Literature

Discovery of novel 2,4,5,6-tetrahydro-7H-pyrazolo[3,4-c]pyridine-7-one derivatives as PDE2 inhibitors with Alzheimer's disease therapeutic potential.

Yang, F.Guo, Q.Chen, M.Wang, W.Chen, X.Zhang, S.Bian, H.Li, J.Jiao, Z.Wang, Q.Xiong, W.Huang, Y.Y.Liu, Y.Xu, C.Huang, L.

(2026) Eur J Med Chem 302: 118302-118302

  • DOI: https://doi.org/10.1016/j.ejmech.2025.118302
  • Primary Citation Related Structures:
    9WP3

  • PubMed Abstract:

    Phosphodiesterase 2 (PDE2), a dual-substrate cyclic nucleotide hydrolase, represents a potential therapeutic target for cognitive impairment. This study aims to develop 2,4,5,6-tetrahydro-7H-pyrazolo[3,4-c]pyridine-7-one-based PDE2 inhibitors with favorable drug-like properties for the treatment of Alzheimer's disease. Through scaffold hopping and cocrystal structure analysis, compound 14c was identified as an effective PDE2 inhibitor (IC 50  = 0.6 μM, aqueous solubility = 60.36 μg/mL). Moreover, 14c demonstrated favorable hepatic microsomal stability, pharmacokinetic properties (t 1/2  = 4.4 h, F% = 95.66 %) and promising safety both in vitro and in vivo. In the OKA-induced AD mice models, administration of 14c significantly improved memory deficits and cognitive impairment. Molecular mechanism studies revealed that the neuroprotective effects of 14c were mediated through the PKA/CREB/BDNF signaling pathway. Collectively, these findings represent significant advances in developing PDE2 inhibitors with favorable drug-like properties and establish a solid foundation for their therapeutic application in AD.


  • Organizational Affiliation
    • Key Laboratory of Tropical Biological Resources of Ministry of Education, School of Pharmaceutical Sciences, Hainan University, Haikou, 570228, China.

Macromolecule Content

  • Total Structure Weight: 160.88 kDa
  • Atom Count: 10,150
  • Modeled Residue Count: 1,243
  • Deposited Residue Count: 1,360
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

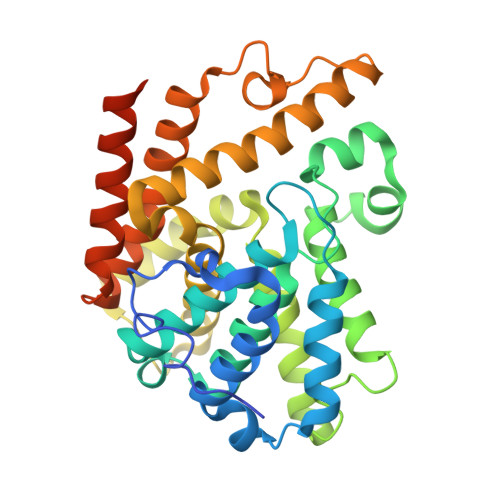

cGMP-dependent 3',5'-cyclic phosphodiesterase
A, B, C, D
340Homo sapiensMutation(s): 0
Gene Names: PDE2A
EC: 3.1.4.17
UniProt & NIH Common Fund Data Resources
Find proteins for O00408 (Homo sapiens)
Explore O00408
Go to UniProtKB:  O00408
PHAROS:  O00408
GTEx:  ENSG00000186642
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00408
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1E46
(Subject of Investigation/LOI)

Query on A1E46



Download:Ideal Coordinates CCD File
G [auth A],
J [auth B],
M [auth C],
P [auth D]
7-oxidanylidene-~{N}-[(1~{S})-1-[4-(trifluoromethyl)phenyl]propyl]-2,4,5,6-tetrahydropyrazolo[3,4-c]pyridine-3-carboxamide
C17 H17 F3 N4 O2
ABWGCLJAERQLEF-LBPRGKRZSA-N
ZN

Query on ZN



Download:Ideal Coordinates CCD File
E [auth A],
H [auth B],
K [auth C],
N [auth D]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG

Query on MG



Download:Ideal Coordinates CCD File
F [auth A],
I [auth B],
L [auth C],
O [auth D]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.50 Å
  • R-Value Free:  0.311 (Depositor), 0.316 (DCC)
  • R-Value Work:  0.256 (Depositor), 0.264 (DCC)
  • R-Value Observed: 0.259 (Depositor)
Space Group: P 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 55.782α = 109.62
b = 73.08β = 91.183
c = 91.114γ = 90.854
Software Package:
Software NamePurpose
REFMACrefinement
PHENIXrefinement
CrysalisProdata reduction
Aimlessdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China22277019

Revision History  (Full details and data files)

  • Version 1.0: 2026-02-18
    Type: Initial release
