9WDJ | pdb_00009wdj

Crystal structure of PI5P4K beta apo form using low energy X-ray

PDB DOI: https://doi.org/10.2210/pdb9WDJ/pdb

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-08-19 Released: 2026-09-02
Deposition Author(s): Senda, M., Takeuchi, K., Senda, T.
Funding Organization(s): Japan Agency for Medical Research and Development (AMED)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.15 Å
R-Value Free:
0.271 (Depositor), 0.271 (DCC)
R-Value Work:
0.210 (Depositor), 0.210 (DCC)
R-Value Observed:
0.213 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9WDJ

This is version 1.0 of the entry. See complete history.

Literature

Use of low-energy X-rays for MR-SAD phasing

Senda, M., Senda, T.

To be published.

Macromolecule Content

Total Structure Weight: 89.86 kDa
Atom Count: 4,720
Modeled Residue Count: 633
Deposited Residue Count: 786
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

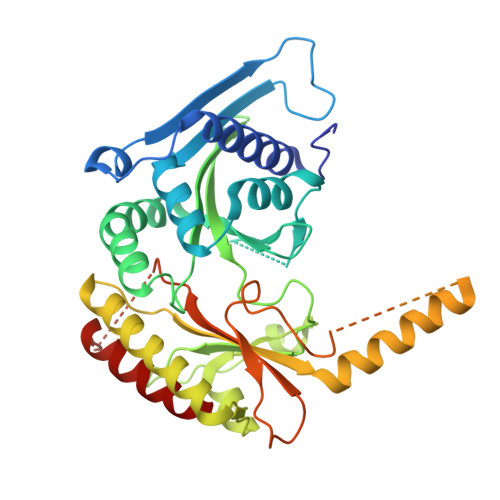

Phosphatidylinositol 5-phosphate 4-kinase type-2 beta	A, B	393	Homo sapiens	Mutation(s): 0 Gene Names: PIP4K2B, PIP5K2B EC: 2.7.1.149
UniProt & NIH Common Fund Data Resources
Find proteins for P78356 (Homo sapiens) Explore P78356 Go to UniProtKB: P78356
PHAROS: P78356 GTEx: ENSG00000276293
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P78356
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.15 Å
R-Value Free: 0.271 (Depositor), 0.271 (DCC)
R-Value Work: 0.210 (Depositor), 0.210 (DCC)
R-Value Observed: 0.213 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 106.924	α = 90
b = 184.032	β = 90
c = 105.494	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
Japan Agency for Medical Research and Development (AMED)	Japan	JP23am0100001

Revision History (Full details and data files)

Version 1.0: 2026-09-02
Type: Initial release
