9WBG | pdb_00009wbg

Structure of human 26S proteasome complexed with midnolin, 19S proteasome with Ubl and Catch domain resolved


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.23 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9WBG

This is version 1.1 of the entry. See complete history

Literature

Structural dynamics of the midnolin-proteasome during ubiquitin-independent substrate turnover.

Zhu, C.Qin, L.Dai, Z.Zuo, P.Yang, A.Zhong, L.Lin, Z.Liang, L.

(2026) Nat Commun 17

  • DOI: https://doi.org/10.1038/s41467-026-71002-0
  • Primary Citation Related Structures:
    22MM, 9MBO, 9MBP, 9MBQ, 9U3L, 9U4M, 9U7R, 9W39, 9WBG

  • PubMed Abstract:

    The 26S proteasome typically degrades proteins marked by ubiquitin chains. However, a distinct, ubiquitin-independent degradation pathway for nuclear proteins exists, mediated by the adaptor protein midnolin, yet its molecular mechanism remains poorly understood. Here, we present nine cryo-electron microscopy structures of the human 26S proteasome in complex with midnolin, which collectively delineate a near-complete catalytic cycle. Our structures reveal that midnolin binds to the proteasome via the RPN1 subunit by its C-terminal helix. Unexpectedly, its ubiquitin-like domain interacts with the RPN11 deubiquitinase in a non-catalytic role. This interaction positions the adjacent Catch domain, which is responsible for substrate binding, directly above the proteasomal entrance, potentially facilitating substrate entry into the proteasome. Furthermore, we observe four consecutive spiral staircase conformations of the AAA+ ATPase hexamer during substrate translocation. These findings provide insights into the mechanisms underlying ubiquitin-independent nuclear protein degradation and may help develop strategies for targeting nuclear proteins via direct proteasomal degradation.


  • Organizational Affiliation
    • Department of Biophysics, State Key Laboratory of Natural and Biomimetic Drugs, School of Basic Medical Sciences, Peking University Health Science Center, Beijing, China.

Macromolecule Content

  • Total Structure Weight: 965.66 kDa
  • Atom Count: 50,206
  • Modeled Residue Count: 6,310
  • Deposited Residue Count: 8,566
  • Unique protein chains: 20

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

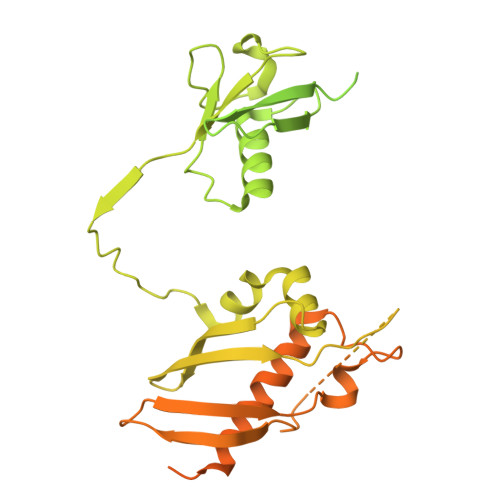

Maltose/maltodextrin-binding periplasmic protein,MidnolinA [auth f]856Escherichia coli K-12Homo sapiens
This entity is chimeric
Mutation(s): 0
Gene Names: malEb4034JW3994MIDN
UniProt & NIH Common Fund Data Resources
Find proteins for P0AEX9 (Escherichia coli (strain K12))
Explore P0AEX9
Go to UniProtKB:  P0AEX9
Find proteins for Q504T8 (Homo sapiens)
Explore Q504T8
Go to UniProtKB:  Q504T8
PHAROS:  Q504T8
GTEx:  ENSG00000167470
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsQ504T8P0AEX9
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

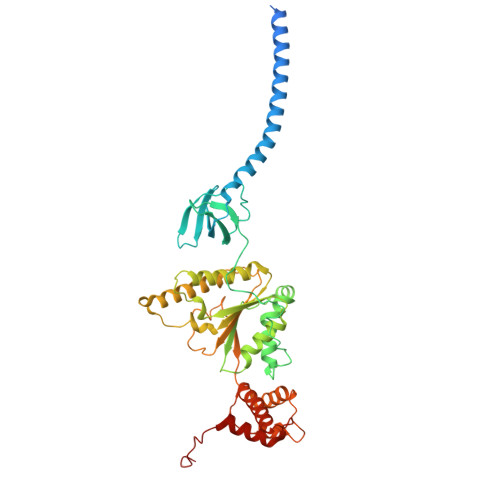

26S proteasome regulatory subunit 8B [auth C]406Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62195 (Homo sapiens)
Explore P62195
Go to UniProtKB:  P62195
PHAROS:  P62195
GTEx:  ENSG00000087191
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62195
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

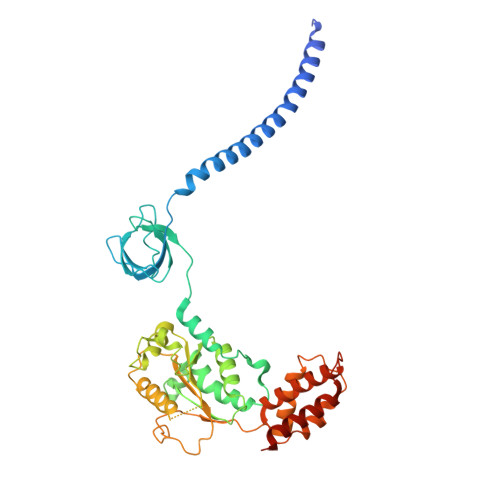

26S proteasome regulatory subunit 6BC [auth D]418Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P43686 (Homo sapiens)
Explore P43686
Go to UniProtKB:  P43686
PHAROS:  P43686
GTEx:  ENSG00000013275
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP43686
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

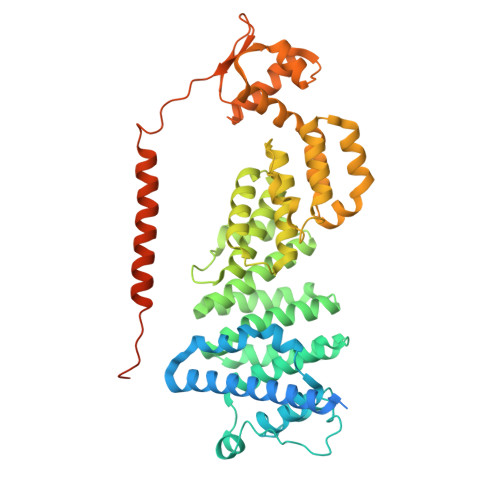

26S proteasome non-ATPase regulatory subunit 3D [auth V]534Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O43242 (Homo sapiens)
Explore O43242
Go to UniProtKB:  O43242
PHAROS:  O43242
GTEx:  ENSG00000108344
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO43242
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
26S proteasome non-ATPase regulatory subunit 12E [auth W]456Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O00232 (Homo sapiens)
Explore O00232
Go to UniProtKB:  O00232
PHAROS:  O00232
GTEx:  ENSG00000197170
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00232
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

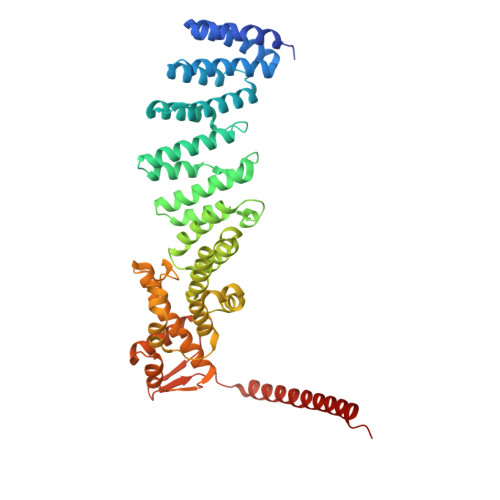

26S proteasome non-ATPase regulatory subunit 11F [auth X]422Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for O00231 (Homo sapiens)
Explore O00231
Go to UniProtKB:  O00231
PHAROS:  O00231
GTEx:  ENSG00000108671
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO00231
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage

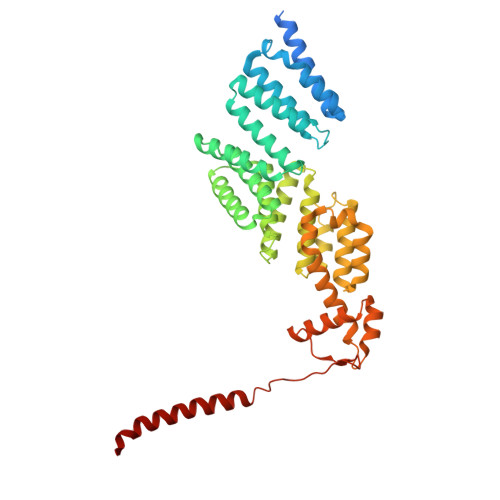

26S proteasome non-ATPase regulatory subunit 6G [auth Y]389Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q15008 (Homo sapiens)
Explore Q15008
Go to UniProtKB:  Q15008
PHAROS:  Q15008
GTEx:  ENSG00000163636
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ15008
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

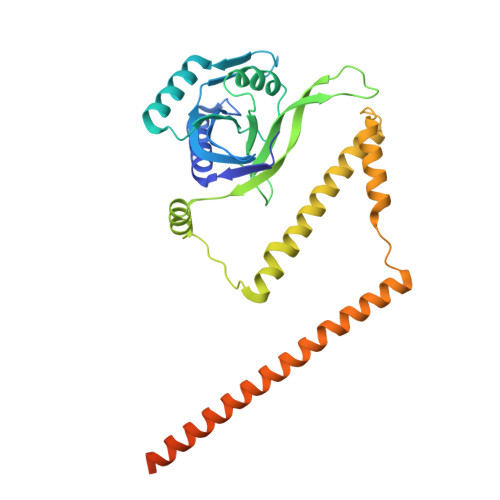

26S proteasome non-ATPase regulatory subunit 7H [auth Z]324Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P51665 (Homo sapiens)
Explore P51665
Go to UniProtKB:  P51665
PHAROS:  P51665
GTEx:  ENSG00000103035
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP51665
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

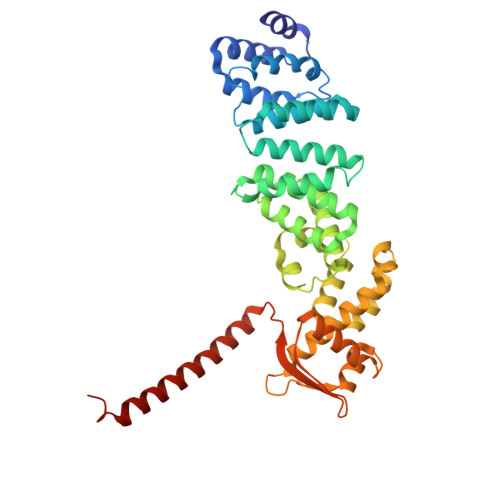

26S proteasome non-ATPase regulatory subunit 13I [auth a]376Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UNM6 (Homo sapiens)
Explore Q9UNM6
Go to UniProtKB:  Q9UNM6
PHAROS:  Q9UNM6
GTEx:  ENSG00000185627
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9UNM6
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage

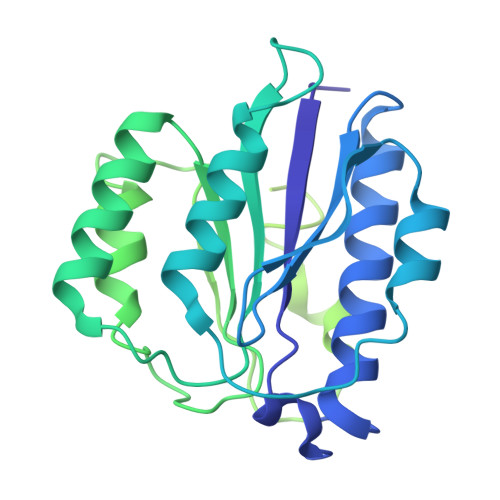

26S proteasome non-ATPase regulatory subunit 4J [auth b]377Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P55036 (Homo sapiens)
Explore P55036
Go to UniProtKB:  P55036
PHAROS:  P55036
GTEx:  ENSG00000159352
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP55036
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage

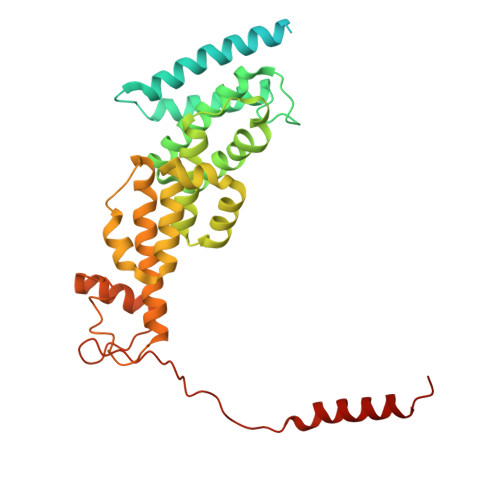

26S proteasome non-ATPase regulatory subunit 8K [auth d]350Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P48556 (Homo sapiens)
Explore P48556
Go to UniProtKB:  P48556
PHAROS:  P48556
GTEx:  ENSG00000099341
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP48556
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

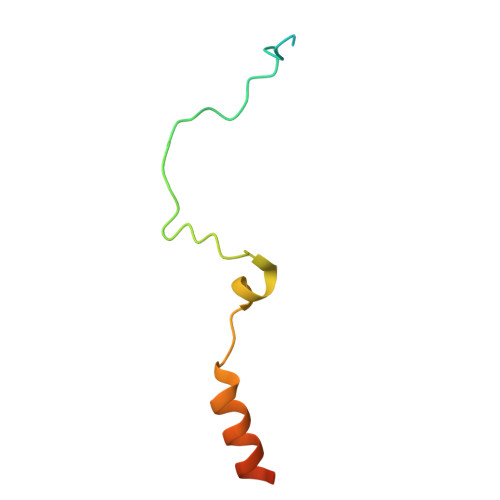

26S proteasome complex subunit SEM1L [auth e]70Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P60896 (Homo sapiens)
Explore P60896
Go to UniProtKB:  P60896
PHAROS:  P60896
GTEx:  ENSG00000127922
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60896
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage

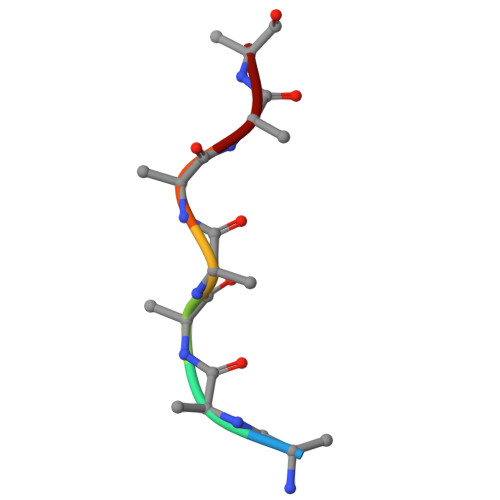

SubstrateM [auth v]7Homo sapiensMutation(s): 0
Find similar proteins by:|  3D Structure
Entity ID: 14
MoleculeChains  Sequence LengthOrganismDetailsImage

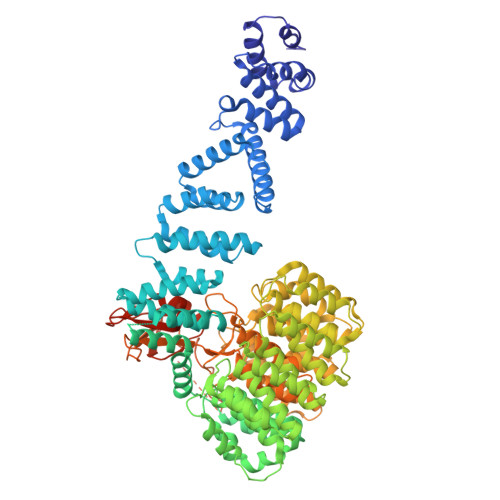

26S proteasome non-ATPase regulatory subunit 1N [auth U]953Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q99460 (Homo sapiens)
Explore Q99460
Go to UniProtKB:  Q99460
PHAROS:  Q99460
GTEx:  ENSG00000173692
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ99460
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 15
MoleculeChains  Sequence LengthOrganismDetailsImage

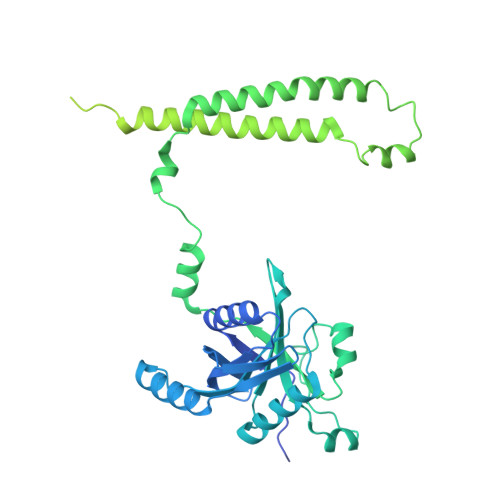

Ubiquitin C-terminal hydrolase PSMD14,Uncharacterized proteinO [auth c]590Homo sapiensPseudotamlana agarivorans
This entity is chimeric
Mutation(s): 0
Gene Names: PSMD14POH1KO493_00465
EC: 3.4.19.12
UniProt & NIH Common Fund Data Resources
Find proteins for O00487 (Homo sapiens)
Explore O00487
Go to UniProtKB:  O00487
PHAROS:  O00487
GTEx:  ENSG00000115233
Find proteins for A0ACC5U4E7 (Pseudotamlana agarivorans)
Explore A0ACC5U4E7
Go to UniProtKB:  A0ACC5U4E7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsO00487A0ACC5U4E7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 16
MoleculeChains  Sequence LengthOrganismDetailsImage

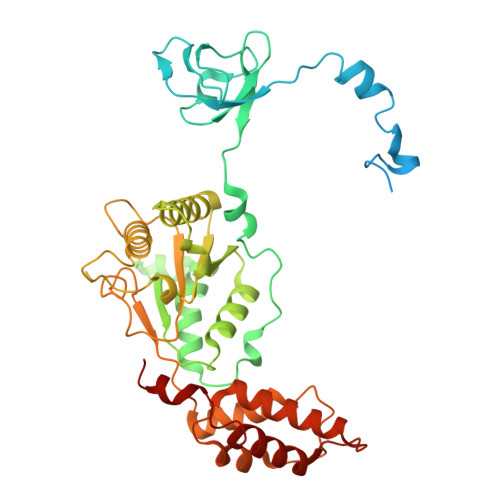

26S proteasome regulatory subunit 7P [auth A]433Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P35998 (Homo sapiens)
Explore P35998
Go to UniProtKB:  P35998
PHAROS:  P35998
GTEx:  ENSG00000161057
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP35998
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 17
MoleculeChains  Sequence LengthOrganismDetailsImage
26S proteasome regulatory subunit 4Q [auth B]440Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62191 (Homo sapiens)
Explore P62191
Go to UniProtKB:  P62191
GTEx:  ENSG00000100764
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62191
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 18
MoleculeChains  Sequence LengthOrganismDetailsImage

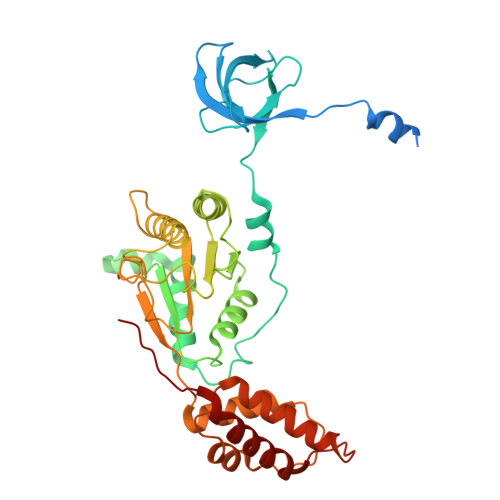

26S proteasome regulatory subunit 10BR [auth E]389Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P62333 (Homo sapiens)
Explore P62333
Go to UniProtKB:  P62333
GTEx:  ENSG00000100519
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62333
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 19
MoleculeChains  Sequence LengthOrganismDetailsImage

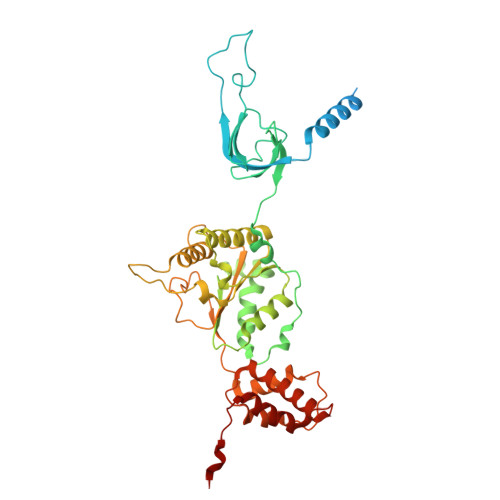

26S proteasome regulatory subunit 6AS [auth F]439Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for P17980 (Homo sapiens)
Explore P17980
Go to UniProtKB:  P17980
PHAROS:  P17980
GTEx:  ENSG00000165916
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP17980
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 20
MoleculeChains  Sequence LengthOrganismDetailsImage

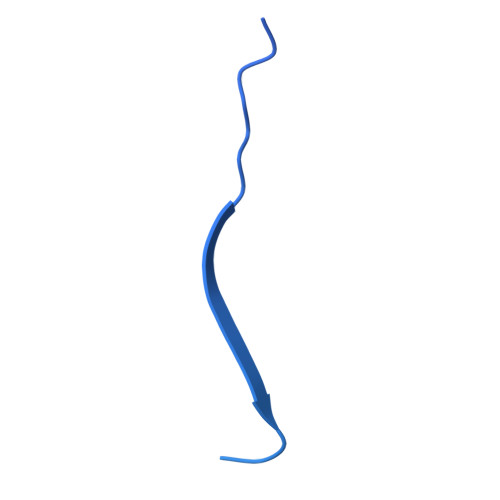

Early growth response protein 1T [auth w]337Homo sapiensMutation(s): 0
Gene Names: EGR1KROX24ZNF225

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
ATP
(Subject of Investigation/LOI)

Query on ATP



Download:Ideal Coordinates CCD File
AA [auth E],
V [auth D],
X [auth A],
Y [auth B]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
ADP
(Subject of Investigation/LOI)

Query on ADP



Download:Ideal Coordinates CCD File
CA [auth F],
U [auth C]
ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
ZN
(Subject of Investigation/LOI)

Query on ZN



Download:Ideal Coordinates CCD File
W [auth c]ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG
(Subject of Investigation/LOI)

Query on MG



Download:Ideal Coordinates CCD File
BA [auth E],
DA [auth F],
Z [auth B]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.23 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487:
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China32171224

Revision History  (Full details and data files)

  • Version 1.0: 2026-04-01
    Type: Initial release
  • Version 1.1: 2026-04-08
    Changes: Data collection, Database references
