9VXU | pdb_00009vxu

Cryo-EM structure of STING mutant complex with cGAMP

PDB DOI: https://doi.org/10.2210/pdb9VXU/pdb
EM Map EMD-65441: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2025-07-20 Released: 2026-07-22
Deposition Author(s): Shang, G.J., Liu, S.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9VXU

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of STING mutant complex with cGAMP

Shang, G.J., Liu, S.

To be published.

Macromolecule Content

Total Structure Weight: 170.2 kDa
Atom Count: 10,533
Modeled Residue Count: 1,310
Deposited Residue Count: 1,516
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

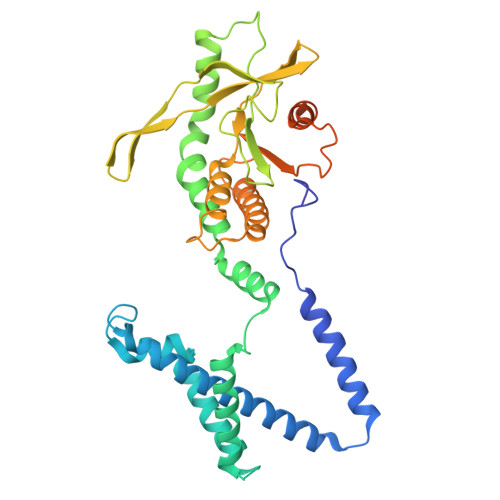

Stimulator of interferon genes protein	A, B, C, D	379	Homo sapiens	Mutation(s): 3 Gene Names: STING1, ERIS, MITA, STING, TMEM173
UniProt & NIH Common Fund Data Resources
Find proteins for Q86WV6 (Homo sapiens) Explore Q86WV6 Go to UniProtKB: Q86WV6
GTEx: ENSG00000184584
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q86WV6
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
1SY (Subject of Investigation/LOI) Query on 1SY Download:Ideal Coordinates CCD File SDF format, chain E [auth B] SDF format, chain F [auth C] MOL2 format, chain E [auth B] MOL2 format, chain F [auth C] mmCIF format, chain E [auth B] mmCIF format, chain F [auth C]	E [auth B], F [auth C]	cGAMP C₂₀ H₂₄ N₁₀ O₁₃ P₂ XRILCFTWUCUKJR-INFSMZHSSA-N		Interactions Focus chain E [auth B] Focus chain F [auth C] Interactions & Density Focus chain E [auth B] Focus chain F [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.19.2_4158
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-22

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-07-22
Type: Initial release
