9VFQ | pdb_00009vfq

Structure of mature CVA6 virus

• PDB DOI: https://doi.org/10.2210/pdb9VFQ/pdb
• EM Map EMD-65031: EMDB EMDataResource

• Classification: VIRUS
• Organism(s): Coxsackievirus A6
• Mutation(s): No


• Deposited: 2025-06-11 Released: 2025-11-26
• Deposition Author(s): Ke, X., Li, X., Liu, Z., Liu, K., Yan, X., Shu, B., Zhang, C.
• Funding Organization(s): National Science Foundation (NSF, China)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.23 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental

Literature

Structure of mature CVA6 virus

Ke, X., Li, X., Liu, Z., Liu, K., Yan, X., Shu, B., Zhang, C.

To be published.

Biological Assembly 1

Global Symmetry: Icosahedral - I  (Explore in 3D)
Global Stoichiometry: Hetero 240-mer - A60B60C60D60 Pseudo Symmetry: Icosahedral - I  (Explore in 3D)
Pseudo Stoichiometry: Hetero 240-mer - A120B60C60

Biological assembly 1 assigned by authors and generated by UCSF CHIMERA 1.18_b42531. (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 95.82 kDa
• Atom Count: 6,270
• Modeled Residue Count: 826
• Deposited Residue Count: 870
• Unique protein chains: 4

Macromolecules

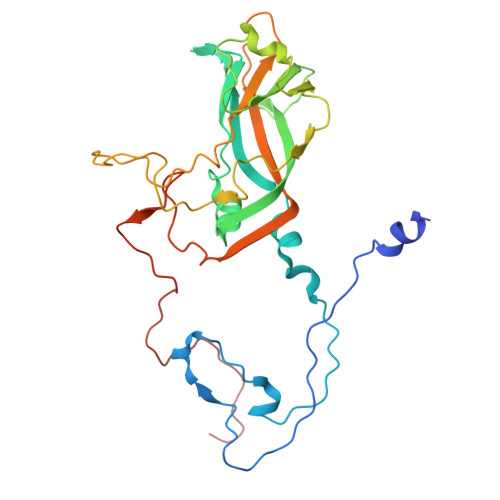

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
VP1	A	305	Coxsackievirus A6	Mutation(s): 0
UniProt
Find proteins for A0A222NWY2 (Coxsackievirus A6) Explore A0A222NWY2  Go to UniProtKB:  A0A222NWY2

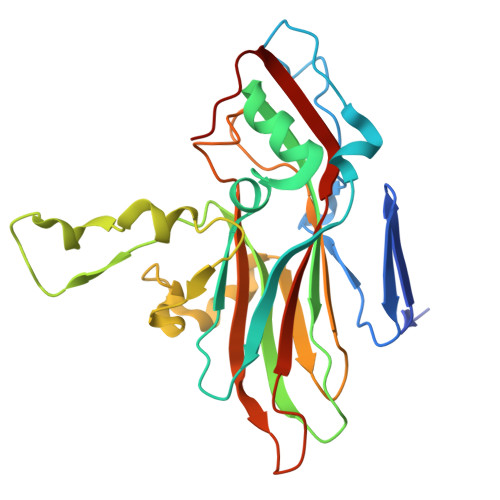

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
VP2	B	256	Coxsackievirus A6	Mutation(s): 0  EC: 3.4.22.29 (PDB Primary Data), 3.6.1.15 (PDB Primary Data), 3.4.22.28 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt
Find proteins for A0A7D0TR32 (Coxsackievirus A6) Explore A0A7D0TR32  Go to UniProtKB:  A0A7D0TR32

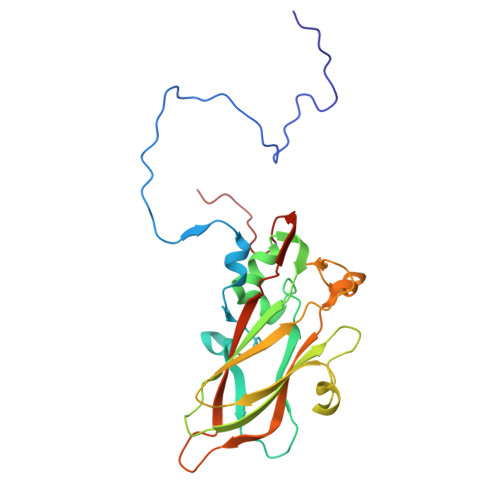

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
VP3	C	240	Coxsackievirus A6	Mutation(s): 0  EC: 3.4.22.29 (PDB Primary Data), 3.6.1.15 (PDB Primary Data), 3.4.22.28 (PDB Primary Data), 2.7.7.48 (PDB Primary Data)
UniProt
Find proteins for A0A4P2SK07 (Coxsackievirus A6) Explore A0A4P2SK07  Go to UniProtKB:  A0A4P2SK07

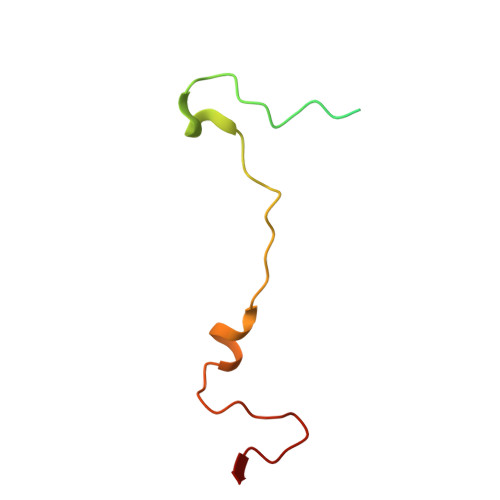

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
VP4	D	69	Coxsackievirus A6	Mutation(s): 0
UniProt
Find proteins for E3VJS6 (Coxsackievirus A6) Explore E3VJS6  Go to UniProtKB:  E3VJS6

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
STE (Subject of Investigation/LOI)	E [auth A]	STEARIC ACID C18 H36 O2 QIQXTHQIDYTFRH-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.23 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-11-26
Deposition Author(s): Ke, X., Li, X., Liu, Z., Liu, K., Yan, X., Shu, B., Zhang, C.

---

Funding Organization	Location	Grant Number
National Science Foundation (NSF, China)	China	--

Revision History

• Version 1.0: 2025-11-26
  Type: Initial release
