9UJW | pdb_00009ujw

CryoEM structure of Brucella melitensis CobS dodecamer 1 without AMPPNP

PDB DOI: https://doi.org/10.2210/pdb9UJW/pdb
EM Map EMD-64228: EMDB EMDataResource

Classification: LIGASE
Organism(s): Brucella melitensis
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-04-17 Released: 2026-07-29
Deposition Author(s): Zhou, Y.L., Chen, X., Liu, L.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 4.21 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UJW

This is version 1.0 of the entry. See complete history.

Literature

Assembly of the ATP-driven cobalt chelatase

Zhou, Y.L., Yuan, H., Wu, Y.C., Wang, J., Chen, H., Yao, L., Wang, M., Wang, X., Wang, J., He, C., Chen, X., Liu, L.

(2026) bioRxiv

DOI: https://doi.org/10.64898/2026.07.21.739949

Macromolecule Content

Total Structure Weight: 441.22 kDa
Atom Count: 27,752
Modeled Residue Count: 3,495
Deposited Residue Count: 3,936
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

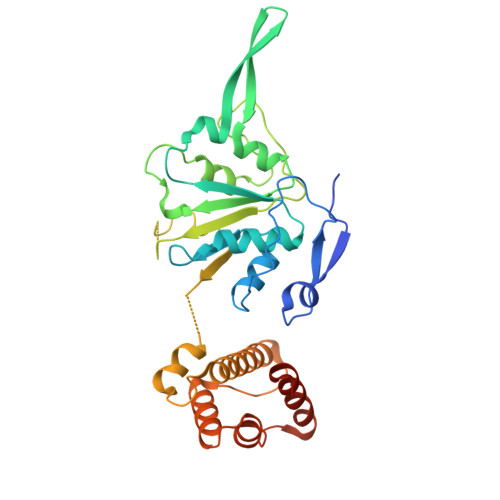

Cobaltochelatase subunit CobS	A B C D E A, B, C, D, E, F, G [auth a], H [auth b], I [auth c], J [auth d], K [auth e], L [auth f]	328	Brucella melitensis	Mutation(s): 0 Gene Names: BI318_03735 EC: 6.6.1.2
UniProt
Find proteins for A0AB36PZV1 (Brucella melitensis) Explore A0AB36PZV1 Go to UniProtKB: A0AB36PZV1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0AB36PZV1
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 4.21 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-29

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32471323
National Natural Science Foundation of China (NSFC)	China	32371270

Revision History (Full details and data files)

Version 1.0: 2026-07-29
Type: Initial release
