9UHQ | pdb_00009uhq

Local refinement of JN.1 spike in complex with antibody BA5-39

PDB DOI: https://doi.org/10.2210/pdb9UHQ/pdb
EM Map EMD-64172: EMDB EMDataResource

Classification: PROTEIN BINDING/IMMUNE SYSTEM
Organism(s): Severe acute respiratory syndrome coronavirus 2, Homo sapiens
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2025-04-14 Released: 2026-07-22
Deposition Author(s): Yue, C., Mao, X.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 4.62 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UHQ

This is version 1.0 of the entry. See complete history.

Literature

Local refinement of JN.1 spike in complex with antibody BA5-39

Yue, C., Mao, X.

To be published.

Macromolecule Content

Total Structure Weight: 47 kDa
Atom Count: 3,312
Modeled Residue Count: 424
Deposited Residue Count: 424
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Spike protein S1	A	198	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 18 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

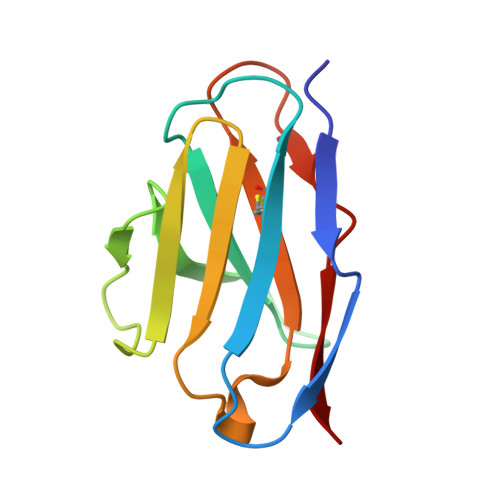

BA5-39-L	B	107	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

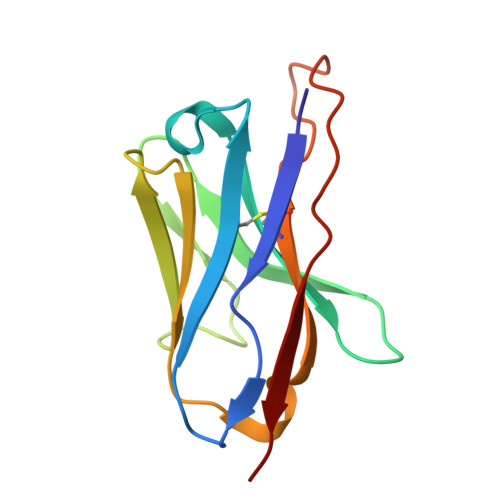

BA5-39-H	C	119	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 4.62 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-22

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-07-22
Type: Initial release
