Crystal structure of the NKX2.1 homeodomain in complex with a 12-bp DNA duplex containing a CACG motif variant

• PDB DOI: https://doi.org/10.2210/pdb9U19/pdb
• NAKB: 9U19

• Classification: TRANSCRIPTION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
• Mutation(s): No


• Deposited: 2026-01-29 Released: 2026-03-11
• Deposition Author(s): Malecka, M.Z., Bommer, M., Heinemann, U.
• Funding Organization(s): German Research Foundation (DFG), Polish National Science Centre

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.18 Å
• R-Value Free:
  0.211 (Depositor), 0.214 (DCC)
• R-Value Work:
  0.185 (Depositor), 0.188 (DCC)
• R-Value Observed:
  0.186 (Depositor)

Starting Model: experimental

Literature

Quantification of the effects of single nucleotide variants in NKX2.1 transcription factor binding sites

Lenihan-Geels, F., Proft, S., Bommer, M., Heinemann, U., Seelow, D., Schuelke, M., Malecka, M.

(2026) bioRxiv

• DOI: https://doi.org/10.64898/2026.02.27.708450

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: gel filtration

Biological Assembly 2

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 2 assigned by authors.

Macromolecule Content

• Total Structure Weight: 29.65 kDa
• Atom Count: 2,245
• Modeled Residue Count: 159
• Deposited Residue Count: 166
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

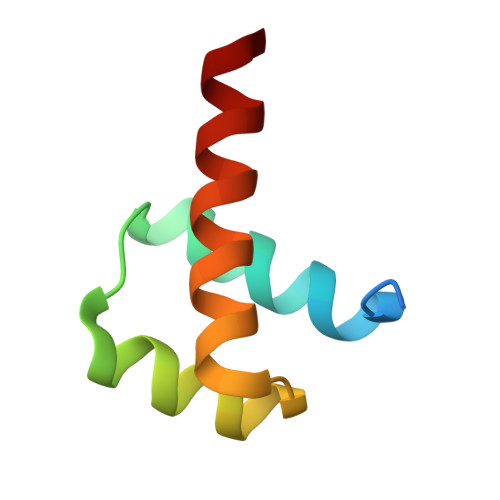

Homeobox protein Nkx-2.1	C, F	59	Homo sapiens	Mutation(s): 0  Gene Names: NKX2-1, NKX2A, TITF1, TTF1
UniProt & NIH Common Fund Data Resources
Find proteins for P43699 (Homo sapiens) Explore P43699  Go to UniProtKB:  P43699
PHAROS:  P43699 GTEx:  ENSG00000136352

Entity ID: 1
Molecule	Chains	Length	Organism	Image

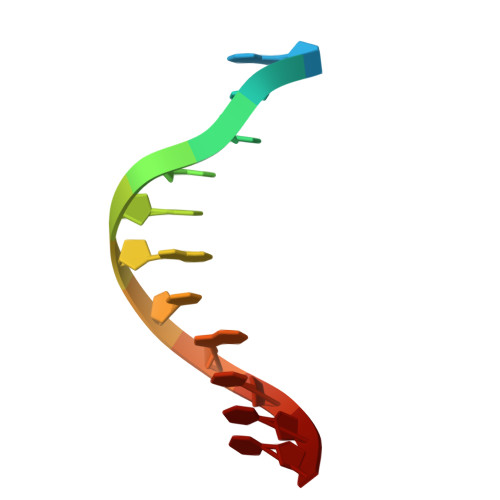

CACG-containing 12bp forward strand	A, D	12	Homo sapiens

Entity ID: 2
Molecule	Chains	Length	Organism	Image
12bp reverse complementary	B, E	12	Homo sapiens

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
MG	G [auth C]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.18 Å
• R-Value Free:  0.211 (Depositor), 0.214 (DCC)
• R-Value Work:  0.185 (Depositor), 0.188 (DCC)
• R-Value Observed: 0.186 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 109.94	α = 90
b = 39.016	β = 111.04
c = 69.996	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
PDB_EXTRACT	data extraction
XDS	data reduction
PHENIX	phasing

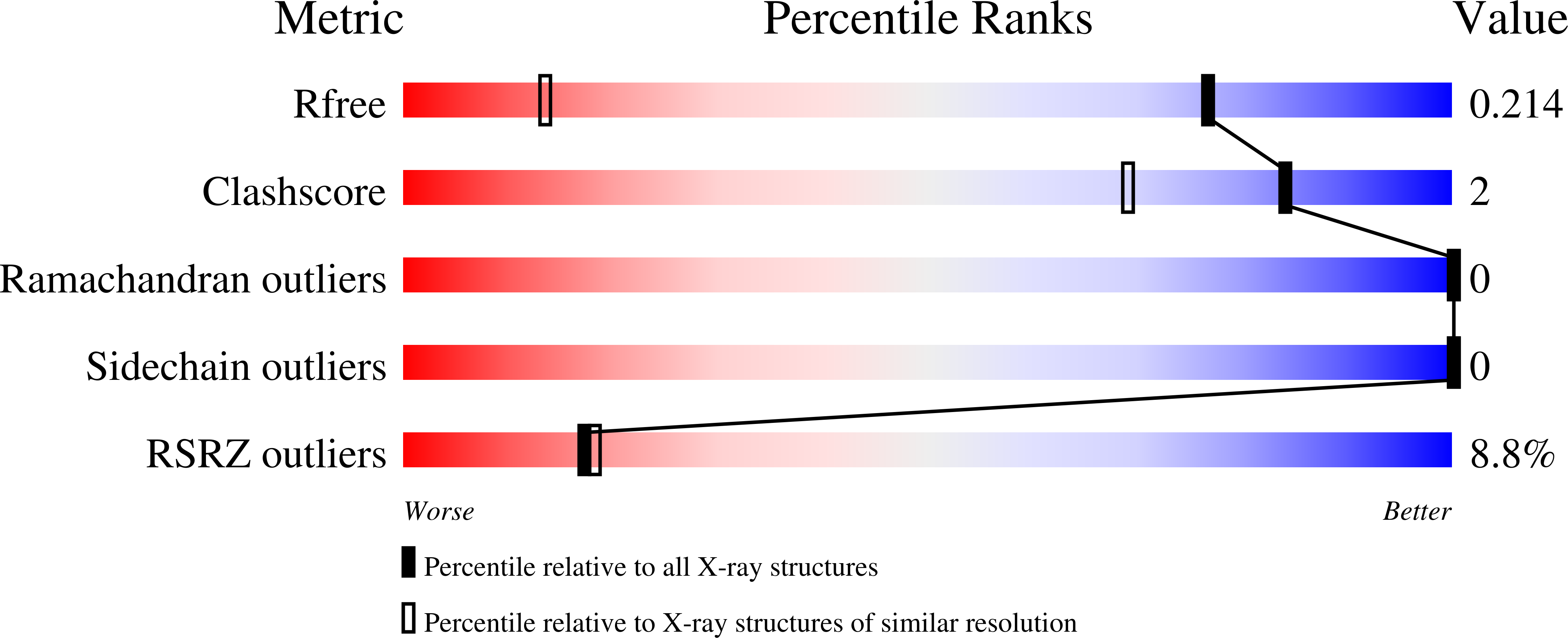

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-03-11
Deposition Author(s): Malecka, M.Z., Bommer, M., Heinemann, U.

---

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	FOR 2841 "Beyond the exome"
Polish National Science Centre	Poland	3033/44/C/NZ1/00085

Revision History

• Version 1.0: 2026-03-11
  Type: Initial release
