9T5V | pdb_00009t5v

Cryo-EM structure of alphaM/beta2:C3d-anti-CR3-Nb headpiece complex (HPO1 3D class reconstruction)

PDB DOI: https://doi.org/10.2210/pdb9T5V/pdb
EM Map EMD-55596: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens, Lama glama
Expression System: Homo sapiens
Mutation(s): Yes

Deposited: 2025-11-06 Released: 2026-03-25
Deposition Author(s): Andersen, G.R., Fruergaard, M.U.
Funding Organization(s): Other private

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.06 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9T5V

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of alphaM/beta2:C3d-anti-CR3-Nb headpiece complex (HPO1 3D class reconstruction)

Andersen, G.R., Fruergaard, M.U.

To be published.

Macromolecule Content

Total Structure Weight: 189.67 kDa
Atom Count: 12,937
Modeled Residue Count: 1,632
Deposited Residue Count: 1,680
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

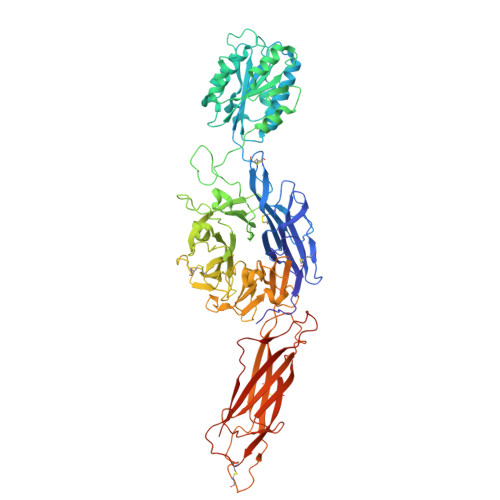

Isoform 2 of Integrin alpha-M	A	763	Homo sapiens	Mutation(s): 2 Gene Names: ITGAM, CD11B, CR3A
UniProt & NIH Common Fund Data Resources
Find proteins for P11215 (Homo sapiens) Explore P11215 Go to UniProtKB: P11215
PHAROS: P11215 GTEx: ENSG00000169896
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P11215
Glycosylation
Glycosylation Sites: 5	Glycosylation Focus chain A	Go to GlyGen: P11215-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Integrin beta-2	B	469	Homo sapiens	Mutation(s): 3 Gene Names: ITGB2, CD18, MFI7
UniProt & NIH Common Fund Data Resources
Find proteins for P05107 (Homo sapiens) Explore P05107 Go to UniProtKB: P05107
PHAROS: P05107 GTEx: ENSG00000160255
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P05107
Glycosylation
Glycosylation Sites: 3	Glycosylation Focus chain B	Go to GlyGen: P05107-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

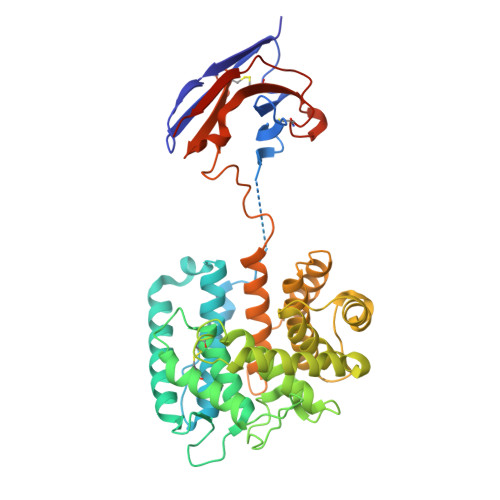

C3d-anti-CR3-Nb fusion ligand	C	448	Lama glama	Mutation(s): 0 Gene Names: C3, CPAMD1

Oligosaccharides

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D	3		N-Glycosylation	Interactions Focus chain D Interactions & Density Focus chain D
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E, F	5		N-Glycosylation	Interactions Focus chain E Focus chain F Interactions & Density Focus chain E Focus chain F
Glycosylation Resources
GlyTouCan: G22768VO GlyCosmos: G22768VO GlyGen: G22768VO

Entity ID: 6
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	G, H	2		N-Glycosylation	Interactions Focus chain G Focus chain H Interactions & Density Focus chain G Focus chain H
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain R [auth B] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain R [auth B] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain R [auth B]	M [auth A], N [auth A], R [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain M [auth A] Focus chain N [auth A] Focus chain R [auth B] Interactions & Density Focus chain M [auth A] Focus chain N [auth A] Focus chain R [auth B]
MN Query on MN Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain O [auth B] MOL2 format, chain K [auth A] MOL2 format, chain O [auth B] mmCIF format, chain K [auth A] mmCIF format, chain O [auth B]	K [auth A], O [auth B]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Focus chain O [auth B] Interactions & Density Focus chain K [auth A] Focus chain O [auth B]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain L [auth A] SDF format, chain P [auth B] SDF format, chain Q [auth B] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain L [auth A] MOL2 format, chain P [auth B] MOL2 format, chain Q [auth B] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain L [auth A] mmCIF format, chain P [auth B] mmCIF format, chain Q [auth B]	I [auth A], J [auth A], L [auth A], P [auth B], Q [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Focus chain J [auth A] Focus chain L [auth A] Focus chain P [auth B] Focus chain Q [auth B] Interactions & Density Focus chain I [auth A] Focus chain J [auth A] Focus chain L [auth A] Focus chain P [auth B] Focus chain Q [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.06 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-25

Deposition Author(s):

Fruergaard, M.U.

Funding Organization	Location	Grant Number
Other private		--

Revision History (Full details and data files)

Version 1.0: 2026-03-25
Type: Initial release
