9T2Q | pdb_00009t2q

E. coli 70S ribosome from delta-9 strain, PTC class 7

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.08 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9T2Q

This is version 1.1 of the entry. See complete history.

Literature

Ribosomal RNA modifications around the peptidyl transfer center stimulate catalytic activity and prevent the formation of alternative structures

Larsson, D.S.D., Liiv, A., Ero, R., Remme, J., Selmer, M.

(2026) bioRxiv

Macromolecule Content

  • Total Structure Weight: 1,194.72 kDa
  • Atom Count: 15,318
  • Modeled Residue Count: 844
  • Deposited Residue Count: 4,637
  • Unique protein chains: 10
  • Unique nucleic acid chains: 4

Macromolecules


Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

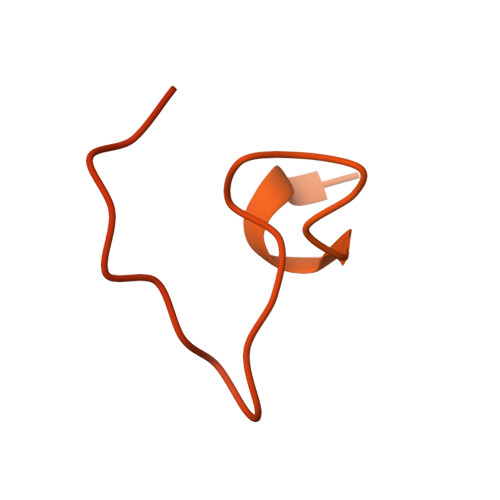

Large ribosomal subunit protein uL2D [auth c]273Escherichia coliMutation(s): 0
UniProt
Find proteins for P60422 (Escherichia coli (strain K12))
Explore P60422
Go to UniProtKB:  P60422
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60422
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

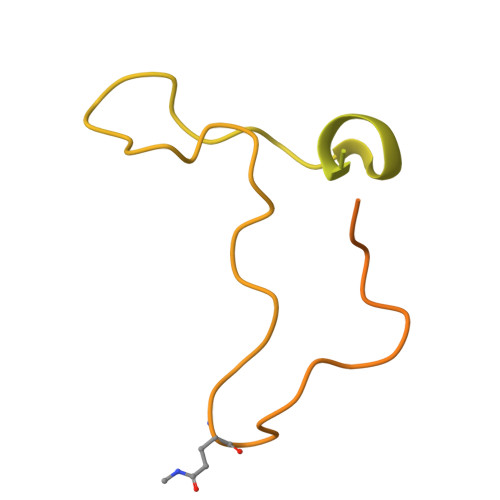

Large ribosomal subunit protein uL3E [auth d]209Escherichia coliMutation(s): 0
UniProt
Find proteins for P60438 (Escherichia coli (strain K12))
Explore P60438
Go to UniProtKB:  P60438
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60438
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage

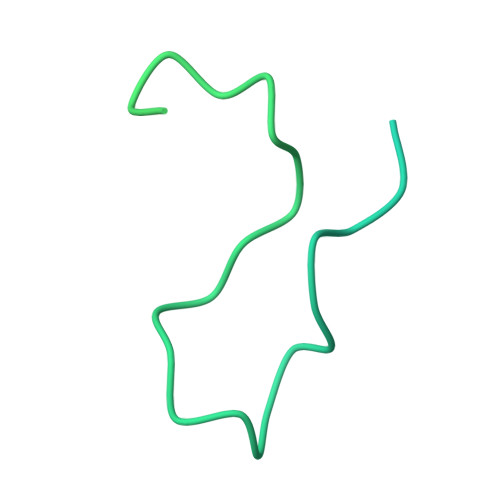

Large ribosomal subunit protein uL4F [auth e]201Escherichia coliMutation(s): 0
UniProt
Find proteins for P60723 (Escherichia coli (strain K12))
Explore P60723
Go to UniProtKB:  P60723
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60723
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 7
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL13G [auth i]142Escherichia coliMutation(s): 0
UniProt
Find proteins for P0AA10 (Escherichia coli (strain K12))
Explore P0AA10
Go to UniProtKB:  P0AA10
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AA10
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 8
MoleculeChains  Sequence LengthOrganismDetailsImage

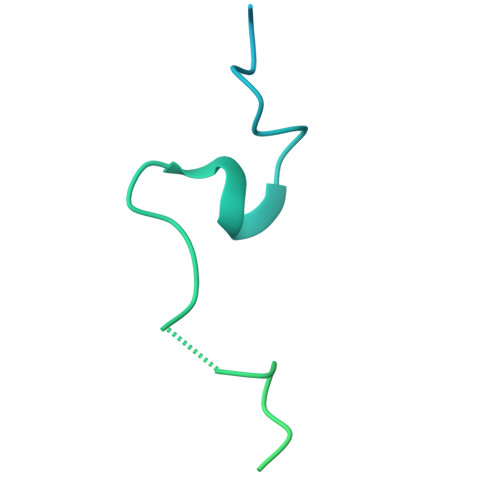

Large ribosomal subunit protein uL15H [auth k]144Escherichia coliMutation(s): 0
UniProt
Find proteins for P02413 (Escherichia coli (strain K12))
Explore P02413
Go to UniProtKB:  P02413
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02413
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 9
MoleculeChains  Sequence LengthOrganismDetailsImage

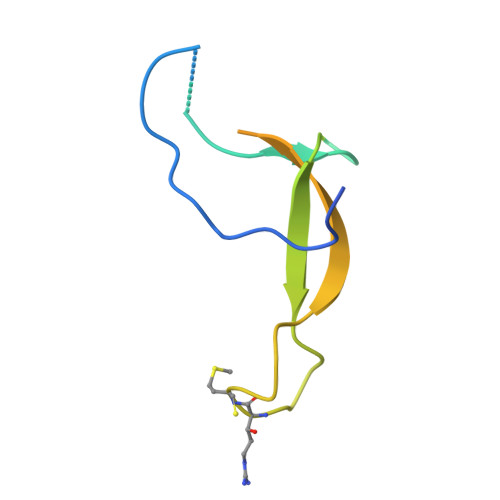

Large ribosomal subunit protein uL16I [auth l]136Escherichia coliMutation(s): 0
UniProt
Find proteins for A7ZSK2 (Escherichia coli O139:H28 (strain E24377A / ETEC))
Explore A7ZSK2
Go to UniProtKB:  A7ZSK2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7ZSK2
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 10
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein bL21J [auth q]103Escherichia coliMutation(s): 0
UniProt
Find proteins for P0AG48 (Escherichia coli (strain K12))
Explore P0AG48
Go to UniProtKB:  P0AG48
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG48
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 11
MoleculeChains  Sequence LengthOrganismDetailsImage
Large ribosomal subunit protein uL22K [auth r]110Escherichia coliMutation(s): 0
UniProt
Find proteins for P61175 (Escherichia coli (strain K12))
Explore P61175
Go to UniProtKB:  P61175
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61175
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 12
MoleculeChains  Sequence LengthOrganismDetailsImage

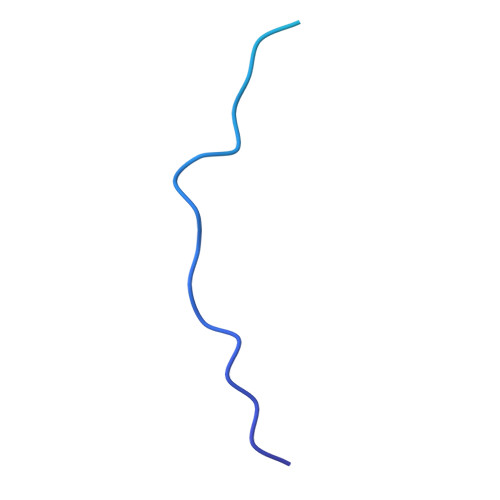

Large ribosomal subunit protein bL27L [auth v]85Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7L8 (Escherichia coli (strain K12))
Explore P0A7L8
Go to UniProtKB:  P0A7L8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7L8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 13
MoleculeChains  Sequence LengthOrganismDetailsImage

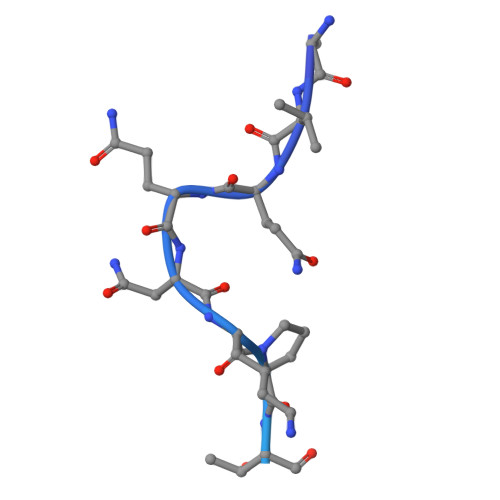

Large ribosomal subunit protein bL32M [auth z]57Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7N4 (Escherichia coli (strain K12))
Explore P0A7N4
Go to UniProtKB:  P0A7N4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7N4
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 1
MoleculeChains LengthOrganismImage
tRNA(fMet)A [auth Z]77Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 2
MoleculeChains LengthOrganismImage

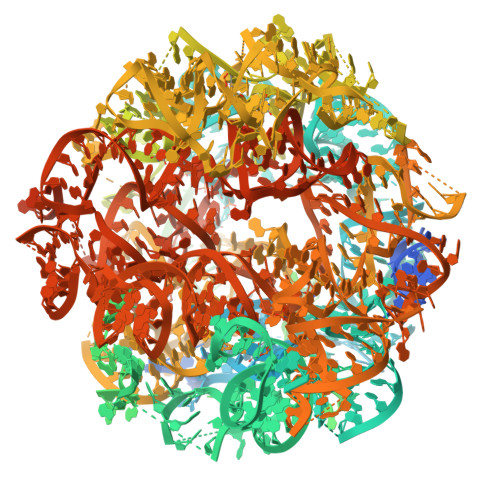

23S rRNAB [auth a]2,904Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 3
MoleculeChains LengthOrganismImage
5S rRNAC [auth b]120Escherichia coli
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:
(by identity cutoff)
Entity ID: 14
MoleculeChains LengthOrganismImage
tRNA(Phe)N [auth Y]76Escherichia coli
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
SR0

Query on SR0


Download:Ideal Coordinates CCD File
O [auth a],
P [auth a]		N~1~-(3-azaniumylpropyl)butane-1,4-diaminium
C7 H22 N3
ATHGHQPFGPMSJY-UHFFFAOYSA-Q
PUT

Query on PUT


Download:Ideal Coordinates CCD File
Q [auth a]1,4-DIAMINOBUTANE
C4 H12 N2
KIDHWZJUCRJVML-UHFFFAOYSA-N
K

Query on K


Download:Ideal Coordinates CCD File
AF [auth e]
CB [auth a]
DB [auth a]
EB [auth a]
FB [auth a]
AF [auth e],
CB [auth a],
DB [auth a],
EB [auth a],
FB [auth a],
FC [auth a],
GB [auth a],
GC [auth a],
HB [auth a],
HC [auth a],
IB [auth a],
IC [auth a],
JB [auth a],
JC [auth a],
KB [auth a],
KC [auth a],
LB [auth a],
LC [auth a],
MB [auth a],
MC [auth a],
NB [auth a],
NC [auth a],
OB [auth a],
OC [auth a],
PB [auth a],
PC [auth a],
QB [auth a],
QC [auth a],
QD [auth a],
QE [auth a],
RC [auth a],
RD [auth a],
RE [auth a],
SC [auth a],
SD [auth a],
TC [auth a],
TD [auth a],
UC [auth a],
UD [auth a],
YE [auth a]
POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
MG

Query on MG


Download:Ideal Coordinates CCD File
AA [auth a]
AB [auth a]
AC [auth a]
AD [auth a]
AE [auth a]
AA [auth a],
AB [auth a],
AC [auth a],
AD [auth a],
AE [auth a],
BA [auth a],
BB [auth a],
BC [auth a],
BD [auth a],
BE [auth a],
BF [auth z],
CA [auth a],
CC [auth a],
CD [auth a],
CE [auth a],
DA [auth a],
DC [auth a],
DD [auth a],
DE [auth a],
EA [auth a],
EC [auth a],
ED [auth a],
EE [auth a],
FA [auth a],
FD [auth a],
FE [auth a],
GA [auth a],
GD [auth a],
GE [auth a],
HA [auth a],
HD [auth a],
HE [auth a],
IA [auth a],
ID [auth a],
IE [auth a],
JA [auth a],
JD [auth a],
JE [auth a],
KA [auth a],
KD [auth a],
KE [auth a],
LA [auth a],
LD [auth a],
LE [auth a],
MA [auth a],
MD [auth a],
ME [auth a],
NA [auth a],
ND [auth a],
NE [auth a],
OA [auth a],
OD [auth a],
OE [auth a],
PA [auth a],
PD [auth a],
PE [auth a],
QA [auth a],
R [auth a],
RA [auth a],
RB [auth a],
S [auth a],
SA [auth a],
SB [auth a],
SE [auth a],
T [auth a],
TA [auth a],
TB [auth a],
TE [auth a],
U [auth a],
UA [auth a],
UB [auth a],
UE [auth a],
V [auth a],
VA [auth a],
VB [auth a],
VC [auth a],
VD [auth a],
VE [auth a],
W [auth a],
WA [auth a],
WB [auth a],
WC [auth a],
WD [auth a],
WE [auth a],
X [auth a],
XA [auth a],
XB [auth a],
XC [auth a],
XD [auth a],
XE [auth a],
Y [auth a],
YA [auth a],
YB [auth a],
YC [auth a],
YD [auth a],
Z [auth a],
ZA [auth a],
ZB [auth a],
ZC [auth a],
ZD [auth a],
ZE [auth d]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  3 Unique
IDChains TypeFormula2D DiagramParent
MEQ
Query on MEQ		E [auth d]L-PEPTIDE LINKINGC6 H12 N2 O3GLN
4D4
Query on 4D4		I [auth l]L-PEPTIDE LINKINGC6 H14 N4 O3ARG
MS6
Query on MS6		I [auth l]L-PEPTIDE LINKINGC5 H11 N O S2MET

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.08 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.4
MODEL REFINEMENTServalcat0.4.77

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Swedish Research CouncilSweden2016-06264
Swedish Research CouncilSweden2017-03827
Swedish Research CouncilSweden2022-04511

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-18
    Type: Initial release
  • Version 1.1: 2026-04-01
    Changes: Data collection
