9SYW | pdb_00009syw

Crystal structure of human GABARAP featuring an extended N-terminal conformation

PDB DOI: https://doi.org/10.2210/pdb9SYW/pdb

Classification: PROTEIN BINDING
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-10-14 Released: 2026-10-28
Deposition Author(s): Wilms, J.A., Ueffing, A., Willbold, D., Weiergraeber, O.H.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.68 Å
R-Value Free:
0.235 (Depositor), 0.235 (DCC)
R-Value Work:
0.197 (Depositor), 0.197 (DCC)
R-Value Observed:
0.199 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9SYW

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of human GABARAP featuring an extended N-terminal conformation

Reschke, B., Wilms, J.A., Ueffing, A., Willbold, D., Weiergraeber, O.H., Seidel, C.

To be published.

Macromolecule Content

Total Structure Weight: 29.68 kDa
Atom Count: 2,405
Modeled Residue Count: 238
Deposited Residue Count: 238
Unique protein chains: 1

Macromolecules

Find similar proteins by:

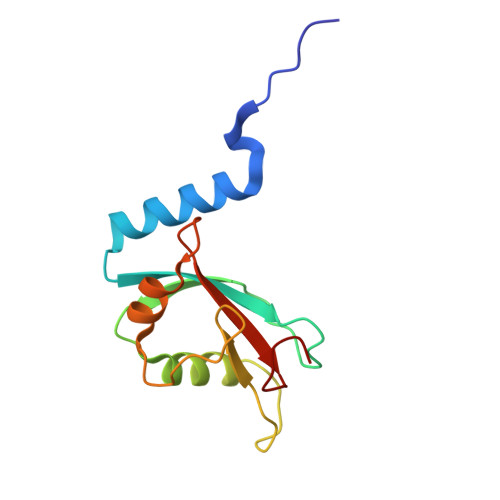

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Gamma-aminobutyric acid receptor-associated protein	A, B	119	Homo sapiens	Mutation(s): 0 Gene Names: GABARAP, FLC3B, HT004
UniProt & NIH Common Fund Data Resources
Find proteins for O95166 (Homo sapiens) Explore O95166 Go to UniProtKB: O95166
PHAROS: O95166 GTEx: ENSG00000170296
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	O95166
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 8 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
P4K Query on P4K Download:Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	polyethylene glycol C₃₀ H₆₂ O₁₅ WWPGFZAAWXFBTF-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
P6G Query on P6G Download:Ideal Coordinates CCD File SDF format, chain I [auth B] MOL2 format, chain I [auth B] mmCIF format, chain I [auth B]	I [auth B]	HEXAETHYLENE GLYCOL C₁₂ H₂₆ O₇ IIRDTKBZINWQAW-UHFFFAOYSA-N		Interactions Focus chain I [auth B] Interactions & Density Focus chain I [auth B]
TRS Query on TRS Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL C₄ H₁₂ N O₃ LENZDBCJOHFCAS-UHFFFAOYSA-O		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain H [auth A] MOL2 format, chain H [auth A] mmCIF format, chain H [auth A]	H [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Interactions & Density Focus chain H [auth A]
DMS Query on DMS Download:Ideal Coordinates CCD File SDF format, chain K [auth B] MOL2 format, chain K [auth B] mmCIF format, chain K [auth B]	K [auth B]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain K [auth B] Interactions & Density Focus chain K [auth B]
EDO Query on EDO Download:Ideal Coordinates CCD File SDF format, chain J [auth B] MOL2 format, chain J [auth B] mmCIF format, chain J [auth B]	J [auth B]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain J [auth B] Interactions & Density Focus chain J [auth B]
ACT Query on ACT Download:Ideal Coordinates CCD File SDF format, chain L [auth B] SDF format, chain F [auth A] SDF format, chain E [auth A] MOL2 format, chain L [auth B] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] mmCIF format, chain L [auth B] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A]	E [auth A], F [auth A], L [auth B]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain L [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain L [auth B]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.68 Å
R-Value Free: 0.235 (Depositor), 0.235 (DCC)
R-Value Work: 0.197 (Depositor), 0.197 (DCC)
R-Value Observed: 0.199 (Depositor)

Diffraction Data:

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 35.43	α = 90
b = 36.29	β = 90
c = 170.46	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XSCALE	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-28

Deposition Author(s):

Weiergraeber, O.H.

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	267205415

Revision History (Full details and data files)

Version 1.0: 2026-10-28
Type: Initial release
