9SX2 | pdb_00009sx2

30S Doxycycline Bound E. coli Ribosome

PDB DOI: https://doi.org/10.2210/pdb9SX2/pdb
EM Map EMD-55330: EMDB EMDataResource
NAKB: 9SX2

Classification: RIBOSOME
Organism(s): Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-10-08 Released: 2026-04-22
Deposition Author(s): Stuart, W.S., Isupov, M.N., Harmer, N.J.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.08 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

30S Doxycycline Bound E. coli Ribosome

Stuart, W.S., Isupov, M.N., McLaren, M., Jenkins, C.H., Monier, A., Daum, B., Norville, I.H., Gold, V.A.M., Harmer, N.J.

To be published.

Macromolecule Content

Total Structure Weight: 795.97 kDa
Atom Count: 54,044
Modeled Residue Count: 4,027
Deposited Residue Count: 4,150
Unique protein chains: 21
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

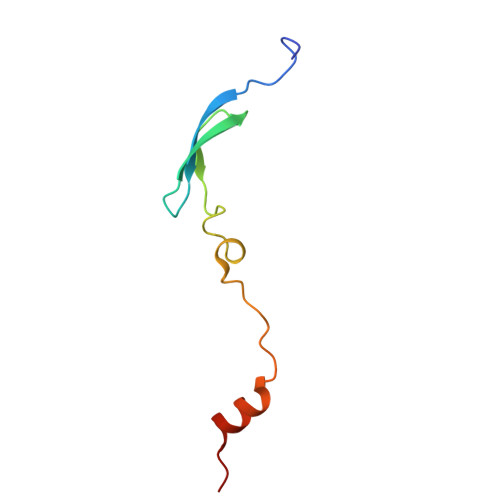

Large ribosomal subunit protein bL31	A [auth 4]	67	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SIV2 (Escherichia coli) Explore C3SIV2 Go to UniProtKB: C3SIV2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SIV2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

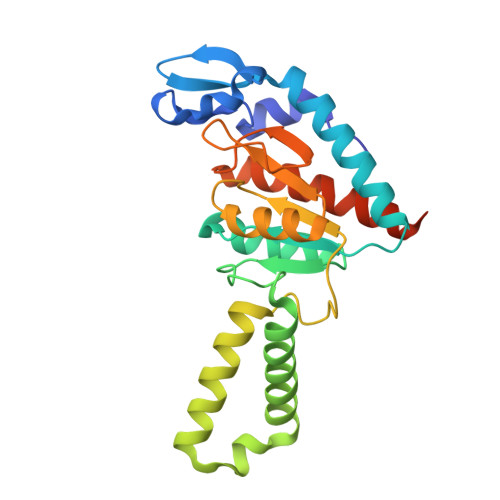

Small ribosomal subunit protein uS2	C [auth B]	241	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3TPN2 (Escherichia coli) Explore C3TPN2 Go to UniProtKB: C3TPN2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3TPN2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS3	D [auth C]	233	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SQX2 (Escherichia coli) Explore C3SQX2 Go to UniProtKB: C3SQX2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQX2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

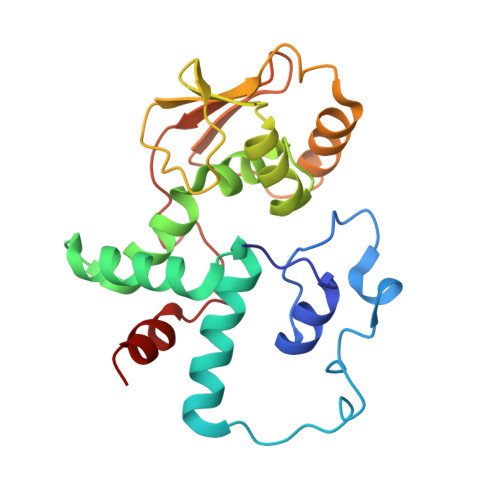

Small ribosomal subunit protein uS4	E [auth D]	206	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SR62 (Escherichia coli) Explore C3SR62 Go to UniProtKB: C3SR62
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SR62
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

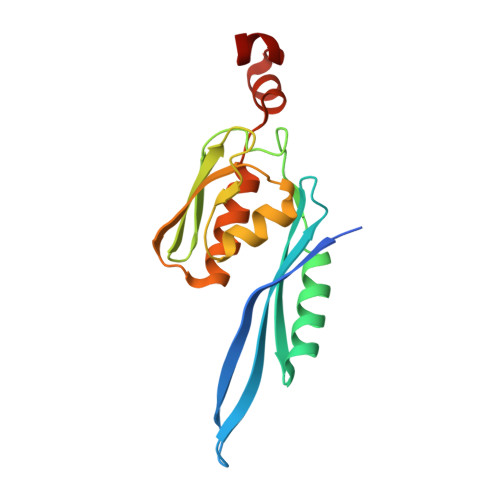

Small ribosomal subunit protein uS5	F [auth E]	167	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for A0A090BZW5 (Escherichia coli) Explore A0A090BZW5 Go to UniProtKB: A0A090BZW5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A090BZW5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein bS6	G [auth F]	131	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for W8T6F0 (Escherichia coli) Explore W8T6F0 Go to UniProtKB: W8T6F0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	W8T6F0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS7	H [auth G]	156	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SQS2 (Escherichia coli) Explore C3SQS2 Go to UniProtKB: C3SQS2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQS2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

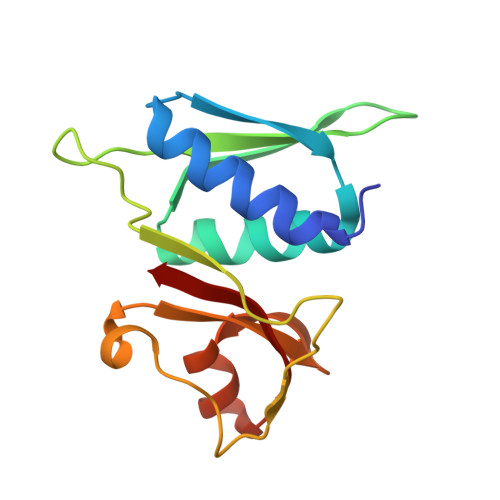

Small ribosomal subunit protein uS8	I [auth H]	130	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SR12 (Escherichia coli) Explore C3SR12 Go to UniProtKB: C3SR12
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SR12
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS9	J [auth I]	130	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SRY2 (Escherichia coli) Explore C3SRY2 Go to UniProtKB: C3SRY2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SRY2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS12	K [auth L]	124	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SQR7 (Escherichia coli) Explore C3SQR7 Go to UniProtKB: C3SQR7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQR7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS13	L [auth M]	118	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SR52 (Escherichia coli) Explore C3SR52 Go to UniProtKB: C3SR52
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SR52
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

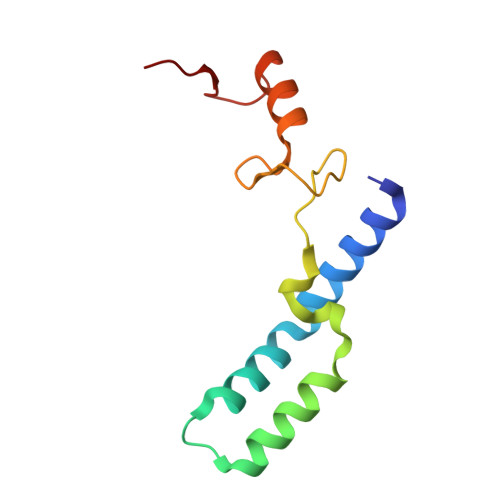

Small ribosomal subunit protein uS14	M [auth N]	101	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for A0A2X1PQW4 (Escherichia coli) Explore A0A2X1PQW4 Go to UniProtKB: A0A2X1PQW4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A2X1PQW4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

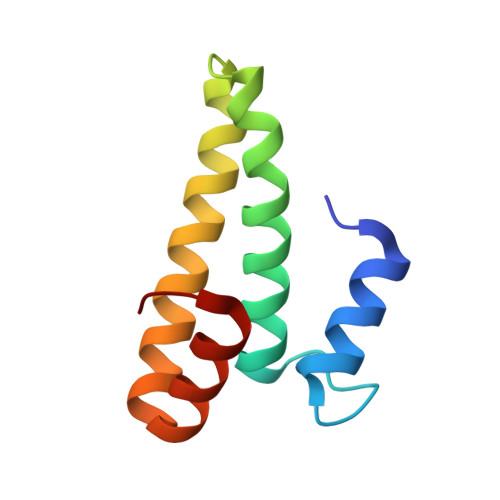

Small ribosomal subunit protein uS15	N [auth O]	89	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SSQ7 (Escherichia coli) Explore C3SSQ7 Go to UniProtKB: C3SSQ7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SSQ7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

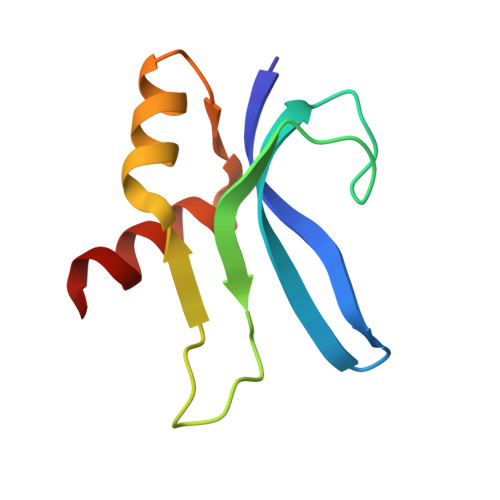

Small ribosomal subunit protein bS16	O [auth P]	82	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SYP2 (Escherichia coli) Explore C3SYP2 Go to UniProtKB: C3SYP2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SYP2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

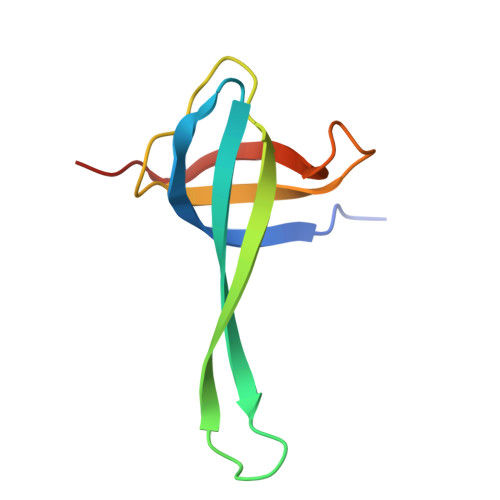

Small ribosomal subunit protein uS17	P [auth Q]	84	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SQY7 (Escherichia coli) Explore C3SQY7 Go to UniProtKB: C3SQY7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQY7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

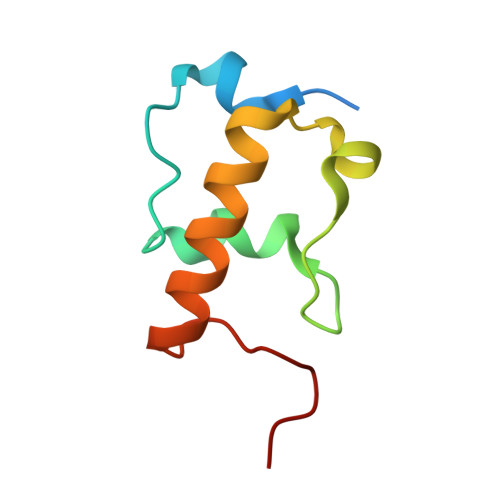

Small ribosomal subunit protein bS18	Q [auth R]	75	Escherichia coli BL21(DE3)	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
Small ribosomal subunit protein uS19	R [auth S]	92	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SQW2 (Escherichia coli) Explore C3SQW2 Go to UniProtKB: C3SQW2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQW2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image

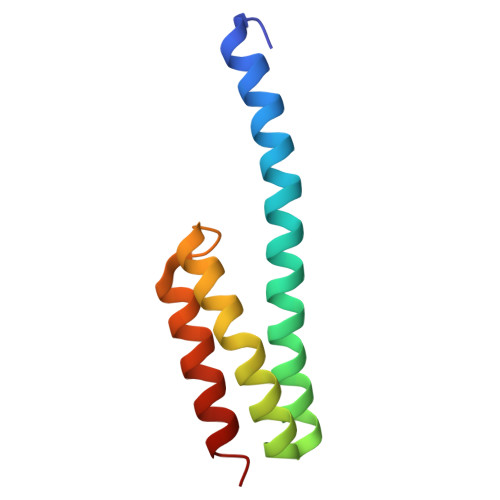

Small ribosomal subunit protein bS20	S [auth T]	87	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3TRH7 (Escherichia coli) Explore C3TRH7 Go to UniProtKB: C3TRH7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3TRH7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image

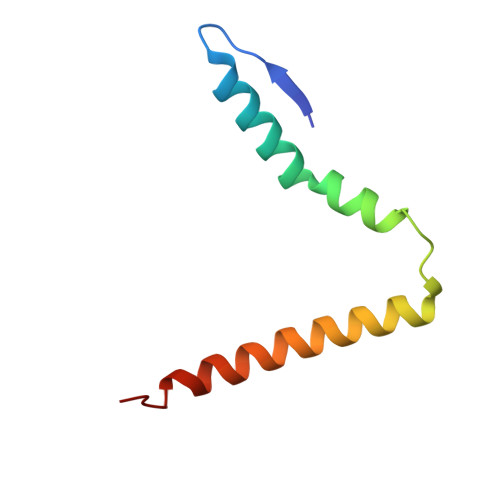

Small ribosomal subunit protein bS21	T [auth U]	71	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for A0A6I7DAD8 (Proteus columbae) Explore A0A6I7DAD8 Go to UniProtKB: A0A6I7DAD8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A6I7DAD8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image

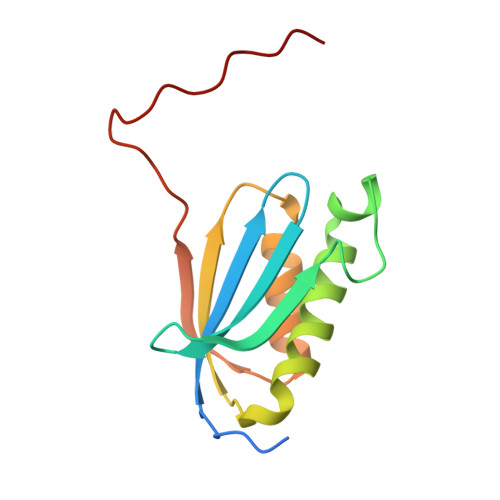

Small ribosomal subunit protein uS11	U [auth K]	129	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SR57 (Escherichia coli) Explore C3SR57 Go to UniProtKB: C3SR57
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SR57
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image

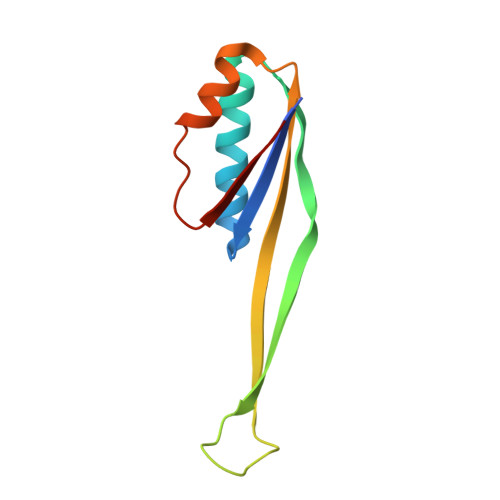

Small ribosomal subunit protein uS10	V [auth J]	103	Escherichia coli BL21(DE3)	Mutation(s): 0
UniProt
Find proteins for C3SQT7 (Escherichia coli) Explore C3SQT7 Go to UniProtKB: C3SQT7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	C3SQT7
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 2

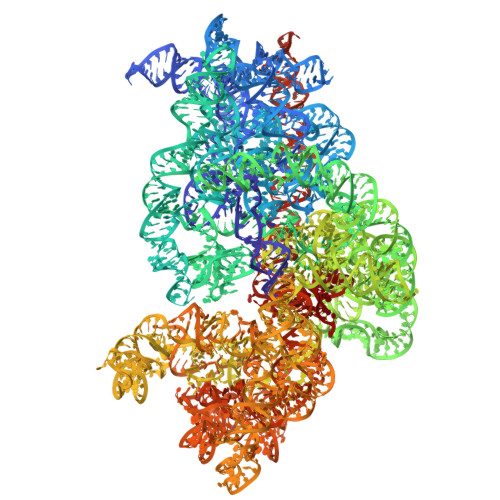

16S ribosomal RNA	B [auth A]	1,534	Escherichia coli BL21(DE3)
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
DXT (Subject of Investigation/LOI) Query on DXT Download:Ideal Coordinates CCD File SDF format, chain X [auth A] MOL2 format, chain X [auth A] mmCIF format, chain X [auth A]	X [auth A]	(4S,4AR,5S,5AR,6R,12AS)-4-(DIMETHYLAMINO)-3,5,10,12,12A-PENTAHYDROXY-6-METHYL-1,11-DIOXO-1,4,4A,5,5A,6,11,12A-OCTAHYDROTETRACENE-2-CARBOXAMIDE C₂₂ H₂₄ N₂ O₈ JBIWCJUYHHGXTC-AKNGSSGZSA-N		Interactions Focus chain X [auth A] Interactions & Density Focus chain X [auth A]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain W [auth 4] MOL2 format, chain W [auth 4] mmCIF format, chain W [auth 4]	W [auth 4]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain W [auth 4] Interactions & Density Focus chain W [auth 4]
K Query on K Download:Ideal Coordinates CCD File SDF format, chain LF [auth A] SDF format, chain KF [auth A] SDF format, chain JF [auth A] SDF format, chain IF [auth A] MOL2 format, chain LF [auth A] MOL2 format, chain KF [auth A] MOL2 format, chain JF [auth A] MOL2 format, chain IF [auth A] mmCIF format, chain LF [auth A] mmCIF format, chain KF [auth A] mmCIF format, chain JF [auth A] mmCIF format, chain IF [auth A]	IF [auth A], JF [auth A], KF [auth A], LF [auth A]	POTASSIUM ION K NPYPAHLBTDXSSS-UHFFFAOYSA-N		Interactions Focus chain IF [auth A] Focus chain JF [auth A] Focus chain KF [auth A] Focus chain LF [auth A] Interactions & Density Focus chain IF [auth A] Focus chain JF [auth A] Focus chain KF [auth A] Focus chain LF [auth A]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain ZE [auth A] SDF format, chain ZD [auth A] SDF format, chain ZC [auth A] SDF format, chain ZB [auth A] SDF format, chain ZA [auth A] SDF format, chain Z [auth A] SDF format, chain YE [auth A] SDF format, chain YD [auth A] SDF format, chain YC [auth A] SDF format, chain YB [auth A] SDF format, chain YA [auth A] SDF format, chain Y [auth A] SDF format, chain XE [auth A] SDF format, chain XD [auth A] SDF format, chain XC [auth A] SDF format, chain XB [auth A] SDF format, chain XA [auth A] SDF format, chain WE [auth A] SDF format, chain WD [auth A] SDF format, chain WC [auth A] SDF format, chain WB [auth A] SDF format, chain WA [auth A] SDF format, chain VE [auth A] SDF format, chain VD [auth A] SDF format, chain VC [auth A] SDF format, chain VB [auth A] SDF format, chain VA [auth A] SDF format, chain UE [auth A] SDF format, chain UD [auth A] SDF format, chain UC [auth A] SDF format, chain UB [auth A] SDF format, chain UA [auth A] SDF format, chain TE [auth A] SDF format, chain TD [auth A] SDF format, chain TC [auth A] SDF format, chain TB [auth A] SDF format, chain TA [auth A] SDF format, chain SE [auth A] SDF format, chain SD [auth A] SDF format, chain SC [auth A] SDF format, chain SB [auth A] SDF format, chain SA [auth A] SDF format, chain RE [auth A] SDF format, chain RD [auth A] SDF format, chain RC [auth A] SDF format, chain RB [auth A] SDF format, chain RA [auth A] SDF format, chain QE [auth A] SDF format, chain QD [auth A] SDF format, chain QC [auth A] SDF format, chain QB [auth A] SDF format, chain QA [auth A] SDF format, chain PE [auth A] SDF format, chain PD [auth A] SDF format, chain PC [auth A] SDF format, chain PB [auth A] SDF format, chain PA [auth A] SDF format, chain OE [auth A] SDF format, chain OD [auth A] SDF format, chain OC [auth A] SDF format, chain OB [auth A] SDF format, chain OA [auth A] SDF format, chain NF [auth M] SDF format, chain NE [auth A] SDF format, chain ND [auth A] SDF format, chain NC [auth A] SDF format, chain NB [auth A] SDF format, chain NA [auth A] SDF format, chain MF [auth B] SDF format, chain ME [auth A] SDF format, chain MD [auth A] SDF format, chain MC [auth A] SDF format, chain MB [auth A] SDF format, chain MA [auth A] SDF format, chain LE [auth A] SDF format, chain LD [auth A] SDF format, chain LC [auth A] SDF format, chain LB [auth A] SDF format, chain LA [auth A] SDF format, chain KE [auth A] SDF format, chain KD [auth A] SDF format, chain KC [auth A] SDF format, chain KB [auth A] SDF format, chain KA [auth A] SDF format, chain JE [auth A] SDF format, chain JD [auth A] SDF format, chain JC [auth A] SDF format, chain JB [auth A] SDF format, chain JA [auth A] SDF format, chain IE [auth A] SDF format, chain ID [auth A] SDF format, chain IC [auth A] SDF format, chain IB [auth A] SDF format, chain IA [auth A] SDF format, chain HF [auth A] SDF format, chain HE [auth A] SDF format, chain HD [auth A] SDF format, chain HC [auth A] SDF format, chain HB [auth A] SDF format, chain HA [auth A] SDF format, chain GF [auth A] SDF format, chain GE [auth A] SDF format, chain GD [auth A] SDF format, chain GC [auth A] SDF format, chain GB [auth A] SDF format, chain GA [auth A] SDF format, chain FF [auth A] SDF format, chain FE [auth A] SDF format, chain FD [auth A] SDF format, chain FC [auth A] SDF format, chain FB [auth A] SDF format, chain FA [auth A] SDF format, chain EF [auth A] SDF format, chain EE [auth A] SDF format, chain ED [auth A] SDF format, chain EC [auth A] SDF format, chain EB [auth A] SDF format, chain EA [auth A] SDF format, chain DF [auth A] SDF format, chain DE [auth A] SDF format, chain DD [auth A] SDF format, chain DC [auth A] SDF format, chain DB [auth A] SDF format, chain DA [auth A] SDF format, chain CF [auth A] SDF format, chain CE [auth A] SDF format, chain CD [auth A] SDF format, chain CC [auth A] SDF format, chain CB [auth A] SDF format, chain CA [auth A] SDF format, chain BF [auth A] SDF format, chain BE [auth A] SDF format, chain BD [auth A] SDF format, chain BC [auth A] SDF format, chain BB [auth A] SDF format, chain BA [auth A] SDF format, chain AF [auth A] SDF format, chain AE [auth A] SDF format, chain AD [auth A] SDF format, chain AC [auth A] SDF format, chain AB [auth A] SDF format, chain AA [auth A] MOL2 format, chain ZE [auth A] MOL2 format, chain ZD [auth A] MOL2 format, chain ZC [auth A] MOL2 format, chain ZB [auth A] MOL2 format, chain ZA [auth A] MOL2 format, chain Z [auth A] MOL2 format, chain YE [auth A] MOL2 format, chain YD [auth A] MOL2 format, chain YC [auth A] MOL2 format, chain YB [auth A] MOL2 format, chain YA [auth A] MOL2 format, chain Y [auth A] MOL2 format, chain XE [auth A] MOL2 format, chain XD [auth A] MOL2 format, chain XC [auth A] MOL2 format, chain XB [auth A] MOL2 format, chain XA [auth A] MOL2 format, chain WE [auth A] MOL2 format, chain WD [auth A] MOL2 format, chain WC [auth A] MOL2 format, chain WB [auth A] MOL2 format, chain WA [auth A] MOL2 format, chain VE [auth A] MOL2 format, chain VD [auth A] MOL2 format, chain VC [auth A] MOL2 format, chain VB [auth A] MOL2 format, chain VA [auth A] MOL2 format, chain UE [auth A] MOL2 format, chain UD [auth A] MOL2 format, chain UC [auth A] MOL2 format, chain UB [auth A] MOL2 format, chain UA [auth A] MOL2 format, chain TE [auth A] MOL2 format, chain TD [auth A] MOL2 format, chain TC [auth A] MOL2 format, chain TB [auth A] MOL2 format, chain TA [auth A] MOL2 format, chain SE [auth A] MOL2 format, chain SD [auth A] MOL2 format, chain SC [auth A] MOL2 format, chain SB [auth A] MOL2 format, chain SA [auth A] MOL2 format, chain RE [auth A] MOL2 format, chain RD [auth A] MOL2 format, chain RC [auth A] MOL2 format, chain RB [auth A] MOL2 format, chain RA [auth A] MOL2 format, chain QE [auth A] MOL2 format, chain QD [auth A] MOL2 format, chain QC [auth A] MOL2 format, chain QB [auth A] MOL2 format, chain QA [auth A] MOL2 format, chain PE [auth A] MOL2 format, chain PD [auth A] MOL2 format, chain PC [auth A] MOL2 format, chain PB [auth A] MOL2 format, chain PA [auth A] MOL2 format, chain OE [auth A] MOL2 format, chain OD [auth A] MOL2 format, chain OC [auth A] MOL2 format, chain OB [auth A] MOL2 format, chain OA [auth A] MOL2 format, chain NF [auth M] MOL2 format, chain NE [auth A] MOL2 format, chain ND [auth A] MOL2 format, chain NC [auth A] MOL2 format, chain NB [auth A] MOL2 format, chain NA [auth A] MOL2 format, chain MF [auth B] MOL2 format, chain ME [auth A] MOL2 format, chain MD [auth A] MOL2 format, chain MC [auth A] MOL2 format, chain MB [auth A] MOL2 format, chain MA [auth A] MOL2 format, chain LE [auth A] MOL2 format, chain LD [auth A] MOL2 format, chain LC [auth A] MOL2 format, chain LB [auth A] MOL2 format, chain LA [auth A] MOL2 format, chain KE [auth A] MOL2 format, chain KD [auth A] MOL2 format, chain KC [auth A] MOL2 format, chain KB [auth A] MOL2 format, chain KA [auth A] MOL2 format, chain JE [auth A] MOL2 format, chain JD [auth A] MOL2 format, chain JC [auth A] MOL2 format, chain JB [auth A] MOL2 format, chain JA [auth A] MOL2 format, chain IE [auth A] MOL2 format, chain ID [auth A] MOL2 format, chain IC [auth A] MOL2 format, chain IB [auth A] MOL2 format, chain IA [auth A] MOL2 format, chain HF [auth A] MOL2 format, chain HE [auth A] MOL2 format, chain HD [auth A] MOL2 format, chain HC [auth A] MOL2 format, chain HB [auth A] MOL2 format, chain HA [auth A] MOL2 format, chain GF [auth A] MOL2 format, chain GE [auth A] MOL2 format, chain GD [auth A] MOL2 format, chain GC [auth A] MOL2 format, chain GB [auth A] MOL2 format, chain GA [auth A] MOL2 format, chain FF [auth A] MOL2 format, chain FE [auth A] MOL2 format, chain FD [auth A] MOL2 format, chain FC [auth A] MOL2 format, chain FB [auth A] MOL2 format, chain FA [auth A] MOL2 format, chain EF [auth A] MOL2 format, chain EE [auth A] MOL2 format, chain ED [auth A] MOL2 format, chain EC [auth A] MOL2 format, chain EB [auth A] MOL2 format, chain EA [auth A] MOL2 format, chain DF [auth A] MOL2 format, chain DE [auth A] MOL2 format, chain DD [auth A] MOL2 format, chain DC [auth A] MOL2 format, chain DB [auth A] MOL2 format, chain DA [auth A] MOL2 format, chain CF [auth A] MOL2 format, chain CE [auth A] MOL2 format, chain CD [auth A] MOL2 format, chain CC [auth A] MOL2 format, chain CB [auth A] MOL2 format, chain CA [auth A] MOL2 format, chain BF [auth A] MOL2 format, chain BE [auth A] MOL2 format, chain BD [auth A] MOL2 format, chain BC [auth A] MOL2 format, chain BB [auth A] MOL2 format, chain BA [auth A] MOL2 format, chain AF [auth A] MOL2 format, chain AE [auth A] MOL2 format, chain AD [auth A] MOL2 format, chain AC [auth A] MOL2 format, chain AB [auth A] MOL2 format, chain AA [auth A] mmCIF format, chain ZE [auth A] mmCIF format, chain ZD [auth A] mmCIF format, chain ZC [auth A] mmCIF format, chain ZB [auth A] mmCIF format, chain ZA [auth A] mmCIF format, chain Z [auth A] mmCIF format, chain YE [auth A] mmCIF format, chain YD [auth A] mmCIF format, chain YC [auth A] mmCIF format, chain YB [auth A] mmCIF format, chain YA [auth A] mmCIF format, chain Y [auth A] mmCIF format, chain XE [auth A] mmCIF format, chain XD [auth A] mmCIF format, chain XC [auth A] mmCIF format, chain XB [auth A] mmCIF format, chain XA [auth A] mmCIF format, chain WE [auth A] mmCIF format, chain WD [auth A] mmCIF format, chain WC [auth A] mmCIF format, chain WB [auth A] mmCIF format, chain WA [auth A] mmCIF format, chain VE [auth A] mmCIF format, chain VD [auth A] mmCIF format, chain VC [auth A] mmCIF format, chain VB [auth A] mmCIF format, chain VA [auth A] mmCIF format, chain UE [auth A] mmCIF format, chain UD [auth A] mmCIF format, chain UC [auth A] mmCIF format, chain UB [auth A] mmCIF format, chain UA [auth A] mmCIF format, chain TE [auth A] mmCIF format, chain TD [auth A] mmCIF format, chain TC [auth A] mmCIF format, chain TB [auth A] mmCIF format, chain TA [auth A] mmCIF format, chain SE [auth A] mmCIF format, chain SD [auth A] mmCIF format, chain SC [auth A] mmCIF format, chain SB [auth A] mmCIF format, chain SA [auth A] mmCIF format, chain RE [auth A] mmCIF format, chain RD [auth A] mmCIF format, chain RC [auth A] mmCIF format, chain RB [auth A] mmCIF format, chain RA [auth A] mmCIF format, chain QE [auth A] mmCIF format, chain QD [auth A] mmCIF format, chain QC [auth A] mmCIF format, chain QB [auth A] mmCIF format, chain QA [auth A] mmCIF format, chain PE [auth A] mmCIF format, chain PD [auth A] mmCIF format, chain PC [auth A] mmCIF format, chain PB [auth A] mmCIF format, chain PA [auth A] mmCIF format, chain OE [auth A] mmCIF format, chain OD [auth A] mmCIF format, chain OC [auth A] mmCIF format, chain OB [auth A] mmCIF format, chain OA [auth A] mmCIF format, chain NF [auth M] mmCIF format, chain NE [auth A] mmCIF format, chain ND [auth A] mmCIF format, chain NC [auth A] mmCIF format, chain NB [auth A] mmCIF format, chain NA [auth A] mmCIF format, chain MF [auth B] mmCIF format, chain ME [auth A] mmCIF format, chain MD [auth A] mmCIF format, chain MC [auth A] mmCIF format, chain MB [auth A] mmCIF format, chain MA [auth A] mmCIF format, chain LE [auth A] mmCIF format, chain LD [auth A] mmCIF format, chain LC [auth A] mmCIF format, chain LB [auth A] mmCIF format, chain LA [auth A] mmCIF format, chain KE [auth A] mmCIF format, chain KD [auth A] mmCIF format, chain KC [auth A] mmCIF format, chain KB [auth A] mmCIF format, chain KA [auth A] mmCIF format, chain JE [auth A] mmCIF format, chain JD [auth A] mmCIF format, chain JC [auth A] mmCIF format, chain JB [auth A] mmCIF format, chain JA [auth A] mmCIF format, chain IE [auth A] mmCIF format, chain ID [auth A] mmCIF format, chain IC [auth A] mmCIF format, chain IB [auth A] mmCIF format, chain IA [auth A] mmCIF format, chain HF [auth A] mmCIF format, chain HE [auth A] mmCIF format, chain HD [auth A] mmCIF format, chain HC [auth A] mmCIF format, chain HB [auth A] mmCIF format, chain HA [auth A] mmCIF format, chain GF [auth A] mmCIF format, chain GE [auth A] mmCIF format, chain GD [auth A] mmCIF format, chain GC [auth A] mmCIF format, chain GB [auth A] mmCIF format, chain GA [auth A] mmCIF format, chain FF [auth A] mmCIF format, chain FE [auth A] mmCIF format, chain FD [auth A] mmCIF format, chain FC [auth A] mmCIF format, chain FB [auth A] mmCIF format, chain FA [auth A] mmCIF format, chain EF [auth A] mmCIF format, chain EE [auth A] mmCIF format, chain ED [auth A] mmCIF format, chain EC [auth A] mmCIF format, chain EB [auth A] mmCIF format, chain EA [auth A] mmCIF format, chain DF [auth A] mmCIF format, chain DE [auth A] mmCIF format, chain DD [auth A] mmCIF format, chain DC [auth A] mmCIF format, chain DB [auth A] mmCIF format, chain DA [auth A] mmCIF format, chain CF [auth A] mmCIF format, chain CE [auth A] mmCIF format, chain CD [auth A] mmCIF format, chain CC [auth A] mmCIF format, chain CB [auth A] mmCIF format, chain CA [auth A] mmCIF format, chain BF [auth A] mmCIF format, chain BE [auth A] mmCIF format, chain BD [auth A] mmCIF format, chain BC [auth A] mmCIF format, chain BB [auth A] mmCIF format, chain BA [auth A] mmCIF format, chain AF [auth A] mmCIF format, chain AE [auth A] mmCIF format, chain AD [auth A] mmCIF format, chain AC [auth A] mmCIF format, chain AB [auth A] mmCIF format, chain AA [auth A]	AA [auth A] AB [auth A] AC [auth A] AD [auth A] AE [auth A] AA [auth A], AB [auth A], AC [auth A], AD [auth A], AE [auth A], AF [auth A], BA [auth A], BB [auth A], BC [auth A], BD [auth A], BE [auth A], BF [auth A], CA [auth A], CB [auth A], CC [auth A], CD [auth A], CE [auth A], CF [auth A], DA [auth A], DB [auth A], DC [auth A], DD [auth A], DE [auth A], DF [auth A], EA [auth A], EB [auth A], EC [auth A], ED [auth A], EE [auth A], EF [auth A], FA [auth A], FB [auth A], FC [auth A], FD [auth A], FE [auth A], FF [auth A], GA [auth A], GB [auth A], GC [auth A], GD [auth A], GE [auth A], GF [auth A], HA [auth A], HB [auth A], HC [auth A], HD [auth A], HE [auth A], HF [auth A], IA [auth A], IB [auth A], IC [auth A], ID [auth A], IE [auth A], JA [auth A], JB [auth A], JC [auth A], JD [auth A], JE [auth A], KA [auth A], KB [auth A], KC [auth A], KD [auth A], KE [auth A], LA [auth A], LB [auth A], LC [auth A], LD [auth A], LE [auth A], MA [auth A], MB [auth A], MC [auth A], MD [auth A], ME [auth A], MF [auth B], NA [auth A], NB [auth A], NC [auth A], ND [auth A], NE [auth A], NF [auth M], OA [auth A], OB [auth A], OC [auth A], OD [auth A], OE [auth A], PA [auth A], PB [auth A], PC [auth A], PD [auth A], PE [auth A], QA [auth A], QB [auth A], QC [auth A], QD [auth A], QE [auth A], RA [auth A], RB [auth A], RC [auth A], RD [auth A], RE [auth A], SA [auth A], SB [auth A], SC [auth A], SD [auth A], SE [auth A], TA [auth A], TB [auth A], TC [auth A], TD [auth A], TE [auth A], UA [auth A], UB [auth A], UC [auth A], UD [auth A], UE [auth A], VA [auth A], VB [auth A], VC [auth A], VD [auth A], VE [auth A], WA [auth A], WB [auth A], WC [auth A], WD [auth A], WE [auth A], XA [auth A], XB [auth A], XC [auth A], XD [auth A], XE [auth A], Y [auth A], YA [auth A], YB [auth A], YC [auth A], YD [auth A], YE [auth A], Z [auth A], ZA [auth A], ZB [auth A], ZC [auth A], ZD [auth A], ZE [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain AA [auth A] Focus chain AB [auth A] Focus chain AC [auth A] Focus chain AD [auth A] Focus chain AE [auth A] Focus chain AF [auth A] Focus chain BA [auth A] Focus chain BB [auth A] Focus chain BC [auth A] Focus chain BD [auth A] Focus chain BE [auth A] Focus chain BF [auth A] Focus chain CA [auth A] Focus chain CB [auth A] Focus chain CC [auth A] Focus chain CD [auth A] Focus chain CE [auth A] Focus chain CF [auth A] Focus chain DA [auth A] Focus chain DB [auth A] Focus chain DC [auth A] Focus chain DD [auth A] Focus chain DE [auth A] Focus chain DF [auth A] Focus chain EA [auth A] Focus chain EB [auth A] Focus chain EC [auth A] Focus chain ED [auth A] Focus chain EE [auth A] Focus chain EF [auth A] Focus chain FA [auth A] Focus chain FB [auth A] Focus chain FC [auth A] Focus chain FD [auth A] Focus chain FE [auth A] Focus chain FF [auth A] Focus chain GA [auth A] Focus chain GB [auth A] Focus chain GC [auth A] Focus chain GD [auth A] Focus chain GE [auth A] Focus chain GF [auth A] Focus chain HA [auth A] Focus chain HB [auth A] Focus chain HC [auth A] Focus chain HD [auth A] Focus chain HE [auth A] Focus chain HF [auth A] Focus chain IA [auth A] Focus chain IB [auth A] Focus chain IC [auth A] Focus chain ID [auth A] Focus chain IE [auth A] Focus chain JA [auth A] Focus chain JB [auth A] Focus chain JC [auth A] Focus chain JD [auth A] Focus chain JE [auth A] Focus chain KA [auth A] Focus chain KB [auth A] Focus chain KC [auth A] Focus chain KD [auth A] Focus chain KE [auth A] Focus chain LA [auth A] Focus chain LB [auth A] Focus chain LC [auth A] Focus chain LD [auth A] Focus chain LE [auth A] Focus chain MA [auth A] Focus chain MB [auth A] Focus chain MC [auth A] Focus chain MD [auth A] Focus chain ME [auth A] Focus chain MF [auth B] Focus chain NA [auth A] Focus chain NB [auth A] Focus chain NC [auth A] Focus chain ND [auth A] Focus chain NE [auth A] Focus chain NF [auth M] Focus chain OA [auth A] Focus chain OB [auth A] Focus chain OC [auth A] Focus chain OD [auth A] Focus chain OE [auth A] Focus chain PA [auth A] Focus chain PB [auth A] Focus chain PC [auth A] Focus chain PD [auth A] Focus chain PE [auth A] Focus chain QA [auth A] Focus chain QB [auth A] Focus chain QC [auth A] Focus chain QD [auth A] Focus chain QE [auth A] Focus chain RA [auth A] Focus chain RB [auth A] Focus chain RC [auth A] Focus chain RD [auth A] Focus chain RE [auth A] Focus chain SA [auth A] Focus chain SB [auth A] Focus chain SC [auth A] Focus chain SD [auth A] Focus chain SE [auth A] Focus chain TA [auth A] Focus chain TB [auth A] Focus chain TC [auth A] Focus chain TD [auth A] Focus chain TE [auth A] Focus chain UA [auth A] Focus chain UB [auth A] Focus chain UC [auth A] Focus chain UD [auth A] Focus chain UE [auth A] Focus chain VA [auth A] Focus chain VB [auth A] Focus chain VC [auth A] Focus chain VD [auth A] Focus chain VE [auth A] Focus chain WA [auth A] Focus chain WB [auth A] Focus chain WC [auth A] Focus chain WD [auth A] Focus chain WE [auth A] Focus chain XA [auth A] Focus chain XB [auth A] Focus chain XC [auth A] Focus chain XD [auth A] Focus chain XE [auth A] Focus chain Y [auth A] Focus chain YA [auth A] Focus chain YB [auth A] Focus chain YC [auth A] Focus chain YD [auth A] Focus chain YE [auth A] Focus chain Z [auth A] Focus chain ZA [auth A] Focus chain ZB [auth A] Focus chain ZC [auth A] Focus chain ZD [auth A] Focus chain ZE [auth A] Interactions & Density Focus chain AA [auth A] Focus chain AB [auth A] Focus chain AC [auth A] Focus chain AD [auth A] Focus chain AE [auth A] Focus chain AF [auth A] Focus chain BA [auth A] Focus chain BB [auth A] Focus chain BC [auth A] Focus chain BD [auth A] Focus chain BE [auth A] Focus chain BF [auth A] Focus chain CA [auth A] Focus chain CB [auth A] Focus chain CC [auth A] Focus chain CD [auth A] Focus chain CE [auth A] Focus chain CF [auth A] Focus chain DA [auth A] Focus chain DB [auth A] Focus chain DC [auth A] Focus chain DD [auth A] Focus chain DE [auth A] Focus chain DF [auth A] Focus chain EA [auth A] Focus chain EB [auth A] Focus chain EC [auth A] Focus chain ED [auth A] Focus chain EE [auth A] Focus chain EF [auth A] Focus chain FA [auth A] Focus chain FB [auth A] Focus chain FC [auth A] Focus chain FD [auth A] Focus chain FE [auth A] Focus chain FF [auth A] Focus chain GA [auth A] Focus chain GB [auth A] Focus chain GC [auth A] Focus chain GD [auth A] Focus chain GE [auth A] Focus chain GF [auth A] Focus chain HA [auth A] Focus chain HB [auth A] Focus chain HC [auth A] Focus chain HD [auth A] Focus chain HE [auth A] Focus chain HF [auth A] Focus chain IA [auth A] Focus chain IB [auth A] Focus chain IC [auth A] Focus chain ID [auth A] Focus chain IE [auth A] Focus chain JA [auth A] Focus chain JB [auth A] Focus chain JC [auth A] Focus chain JD [auth A] Focus chain JE [auth A] Focus chain KA [auth A] Focus chain KB [auth A] Focus chain KC [auth A] Focus chain KD [auth A] Focus chain KE [auth A] Focus chain LA [auth A] Focus chain LB [auth A] Focus chain LC [auth A] Focus chain LD [auth A] Focus chain LE [auth A] Focus chain MA [auth A] Focus chain MB [auth A] Focus chain MC [auth A] Focus chain MD [auth A] Focus chain ME [auth A] Focus chain MF [auth B] Focus chain NA [auth A] Focus chain NB [auth A] Focus chain NC [auth A] Focus chain ND [auth A] Focus chain NE [auth A] Focus chain NF [auth M] Focus chain OA [auth A] Focus chain OB [auth A] Focus chain OC [auth A] Focus chain OD [auth A] Focus chain OE [auth A] Focus chain PA [auth A] Focus chain PB [auth A] Focus chain PC [auth A] Focus chain PD [auth A] Focus chain PE [auth A] Focus chain QA [auth A] Focus chain QB [auth A] Focus chain QC [auth A] Focus chain QD [auth A] Focus chain QE [auth A] Focus chain RA [auth A] Focus chain RB [auth A] Focus chain RC [auth A] Focus chain RD [auth A] Focus chain RE [auth A] Focus chain SA [auth A] Focus chain SB [auth A] Focus chain SC [auth A] Focus chain SD [auth A] Focus chain SE [auth A] Focus chain TA [auth A] Focus chain TB [auth A] Focus chain TC [auth A] Focus chain TD [auth A] Focus chain TE [auth A] Focus chain UA [auth A] Focus chain UB [auth A] Focus chain UC [auth A] Focus chain UD [auth A] Focus chain UE [auth A] Focus chain VA [auth A] Focus chain VB [auth A] Focus chain VC [auth A] Focus chain VD [auth A] Focus chain VE [auth A] Focus chain WA [auth A] Focus chain WB [auth A] Focus chain WC [auth A] Focus chain WD [auth A] Focus chain WE [auth A] Focus chain XA [auth A] Focus chain XB [auth A] Focus chain XC [auth A] Focus chain XD [auth A] Focus chain XE [auth A] Focus chain Y [auth A] Focus chain YA [auth A] Focus chain YB [auth A] Focus chain YC [auth A] Focus chain YD [auth A] Focus chain YE [auth A] Focus chain Z [auth A] Focus chain ZA [auth A] Focus chain ZB [auth A] Focus chain ZC [auth A] Focus chain ZD [auth A] Focus chain ZE [auth A]
